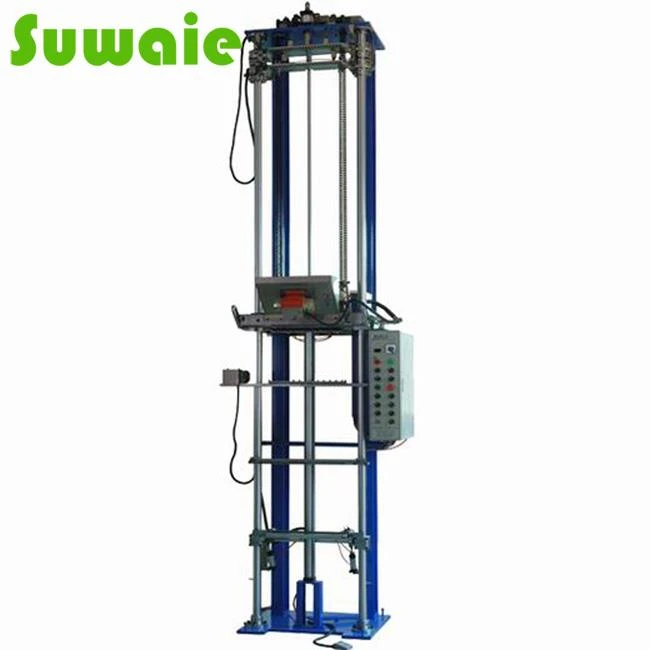

Filling Machine For Tubular Heating Element
Functions:
1. PLC control, human-computer interface. Vibration frequency can be adjusted.
2. Powder filling density above 2.17g/cm3. Almost zero MgO loss.
3.Oscillation mode: Motor or electromagnetic.
4. Tube diameter: below 16mm.
5. Indicate how to clear fault automatically.
6. 12, 18, 24, 36 positions are available.
7. Filling speed: 250-350mm/min.
8. Min. tube diameter: 5.5mm.
Main Technical Parameters:
1. Power supply: Single phase 220V, 50Hz.
2. Rated power: 1.5KW.
3. Air supply: 5-7kg/cm2.
4. Efficiency: 6500pcs/8h (tube length 250mm)
5. It can fill 24pcs or 36pcs tubes at a time (below 10mm)
Element tube Length (M) | Vibration System (PCS) | Machine Size (L*W*H)mm | Packing Size (L*W*H)mm | Gross Weight (KG) | Net Weight (KG) |
1 | 1 | 3600*1200*1050 | 3300*1050*1050 | 650 | 500 |
1.5 | 1 | 4600*1200*1050 | 4500*1050*1050 | 730 | 580 |
2 | 2 | 5600*1200*1050 | 5800*1050*1050 | 810 | 660 |
2.5 | 2 | 6600*1200*1050 | 7100*1050*1050 | 890 | 740 |
3 | 3 | 7600*1200*1050 | 8200*1050*1050 | 970 | 820 |
Products Picture Show
Tubular Heater Filling Machine Packing
Shipment
Our trade terms:
1. Payment term: 50% deposit by T/T,balance before shipentment
2. Delivery time: 7-30days according to your order qty.
3. Samples time: 3-7 days.
4. Shipping terms: FOB Shenzhen,C&F Shenzhen.
5. Discounts will be dertermined by quantity.
6. Welcome distributors to cooperate together.
FAQ
1.
Q: Can You Give Me Help If My Products are Very Urgent?
A: Yes, Of Course, We Will Try Our Best to Give You Help. Because We Have Our Own Factory to Produce. We Can Flexible to Adjust Our Production Schedule.
2.
Q:Can you sent the product drawing to me?
A: Pictures on website was just for reference, More correct information and some special requirements,
Please kindly contact us.
3.
Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,CIF and so on.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Filling Machine For Tubular Heating Element. Our company has professional equipment and engineers to provide the production and service of Filling Machine For Tubular Heating Element.
Hot Tags: filling machine for tubular heating element, China, manufacturers, suppliers, factory, customized
