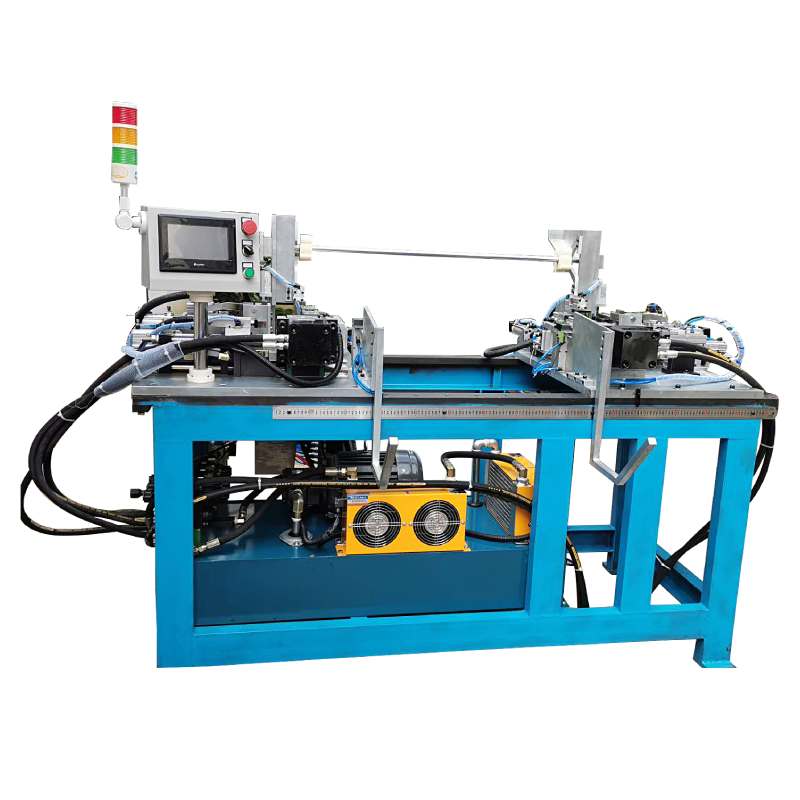

SW-P01A Automatic plug removing pin cutting and stretching machine is mainly used for taking out the plastic plug, cutting the terminal pin and stretching the heater to same length.
Functions
Fully Automated Feeding and Centering
The SW-P01A features automatic feeding and centering functions, which simplify setup and ensure precision during operation. These automated processes eliminate the need for manual adjustments, significantly improving efficiency and reducing labor effort.
Integrated Plug Removal, Pin Cutting, and Stretching
This machine seamlessly combines three critical operations: removing the plastic plug, cutting the terminal pin, and stretching the heater to a uniform length. By integrating these tasks, the SW-P01A helps streamline production, saving time and enhancing output quality.
Precise Movement Control
Equipped with advanced movement control, the machine ensures smooth and accurate operations at every stage. This precision minimizes errors and maximizes the consistency of finished products.
Fault Diagnosis Display
In case of operational issues, the machine provides a fault reason display. This feature allows operators to quickly identify and resolve problems, reducing downtime and maintaining production efficiency.
Accumulative Output Tracking
The accumulative output function helps monitor production quantities in real-time. This feature is particularly useful for tracking progress and maintaining consistent production goals.
PLC I/O Monitoring
The SW-P01A includes PLC I/O monitoring, ensuring reliable performance and enabling real-time diagnostics. This advanced system increases operational transparency and helps optimize the manufacturing process.
Multi-Device Supervision with Minimal Labor
Thanks to its user-friendly design, a single operator can easily supervise multiple machines simultaneously. This feature is ideal for high-volume production setups, maximizing productivity with minimal staffing requirements.
Intuitive Human-Machine Interface
The user-friendly interface simplifies operation, making it easy for operators to learn and control the machine. Clear instructions and real-time feedback reduce training time and operational complexity.
Technical specifications
|
Model |
SW-P01A |
|
Power supply |
380V 3P 50HZ 2KW |
|
Air supply |
0.5-0.7MPa |
|
Pipe material |
Iron,copper,stainless steel pipe |
|
Tubular heater diameter |
6mm-10mm |
|
Tube length |
300-1500mm |
|
Incoming straightness requirement |
Min3mm/M |
|
Output |
5000-6000pcs/8h |
|
Machine size(L*W*H) |
2100*900*1500mm |
|
Packing size(L*W*H) |
2200*1100*1700mm |
|
Control |
PLC system |
|
Weight |
650KG |
How to order Automatic plug removing pin cutting and stretching machine
To ensure the machine meets your production needs, please provide the following details when placing an order:
Material of Tube
Specify the type of material used for the tubes (e.g., stainless steel or copper) to configure the machine accordingly.
Tube Diameter
Indicate the outer diameter of the tubes to ensure compatibility with the machine's specifications.
Why Choose the SUWAIE SW-P01A?
The SW-P01A Automatic Plug Removing, Pin Cutting, and Stretching Machine is designed for precision, efficiency, and ease of use. Its automated functions, fault diagnosis system, and intuitive interface make it an indispensable tool for manufacturers aiming to optimize their production lines.
Get in touch with us today to learn more or place your order. Let the SUWAIE help you enhance your manufacturing process and achieve consistent.
