Product details:
Portable X-ray machine A true multi-purpose X-ray machine with a built-in display that allows the operator to view images in real time according to the display. The image can be locked and viewed through the display. It is equipped with a special protective plate to shield more rays and protect the operator. It is very convenient to use the rotary card type installation. Suitable for medical, pet, industrial, electronics manufacturers, inspection, maintenance departments, research laboratories to provide the best X-ray inspection equipment and solutions.
It has a good detection effect on electronic component structure, whether it is broken, whether the internal solder joint is soldered, the fuse protector, the chip, the electric heating tube, the circuit board, the magnetic card, and other industrial electronic products.
Technical performance parameters:
Effective field of view: Φ100mm
The thickness of the measured object is: ≤300mm
X-ray tube working voltage: continuously adjustable from 45 to 70kv
Voltage regulation accuracy: ≤±10%
X-ray tube working current: 0.25~0.5mA continuously adjustable
Deviation of focus position : reference axis ±1mm
Steady flow accuracy : ≤±20%
Brightness : ≥25 cd/m2
Image resolution : ≥3 lp/mm
Gray level : ≥7
Performance parameter
|
The output image size |
Diameter 100mm |
|
Thickness |
300mm |
|
Resolution |
>4LP/mm |
|
Output screen brightness |
>40cd/m2 |
|
X tube high pressure |
35-75kV |
|
X bulb tube current |
0.2-0.5mA |
|
X - ray leakage rate |
<5mR/h |
|
Weight |
13.6kg |
|
Power consumption |
80W |
|
Power supply |
220V50-60HZ |
Product show
Packing details

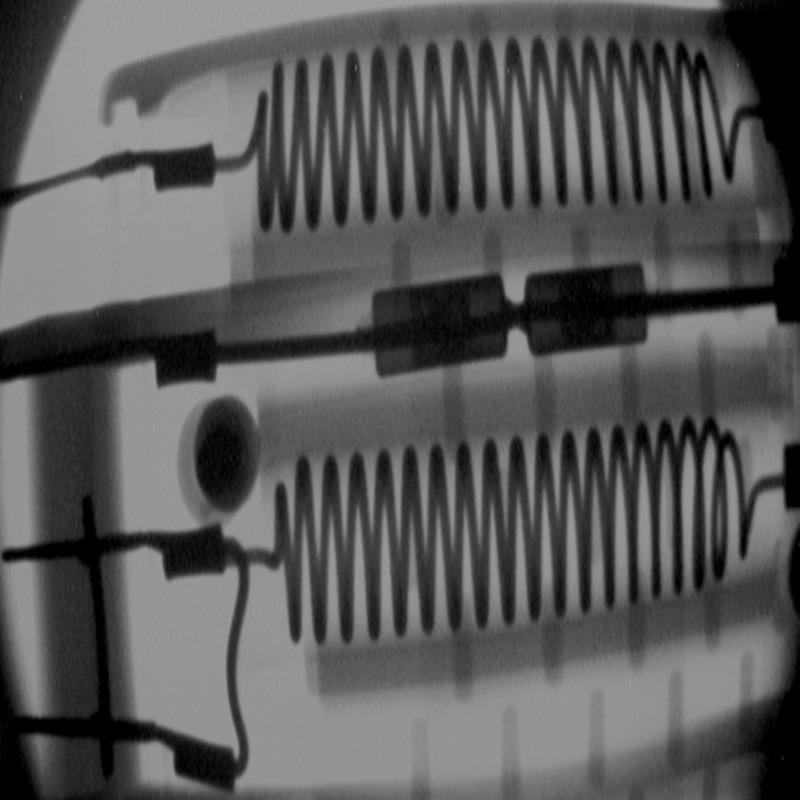

Portable X-ray machine imaging renderings
Office
How does the Qida control the quality?
1) During processing, the operating machine worker inspect the each sizes by themselves.
2) After finished the first whole part, will show to QA for full inspection.
3) Before shipment, the QA will inspect according to ISO sampling inspection standard for mass production. Will do 100% full checking for small QTY.
4) When shipping the goods, we will attached the inspection report with the parts.
Our Advantages:
1.We accept Custom-made and OEM, so that we can meet the special requirements from different customers.
2.We can produce Moulds/Tooling by ourself, it can help to save your cost and time while in volume production.
3.We have a group of experienced technical engineers to help customers solve the problems and requirements at any time.
4.We promise the high quality with resonable price,and guarantee the lead time for orders.
FAQ
1. Q: How can you ensure the HEATING ELEMENTS product quality?
A: Before shippment, all the HEATING ELEMENT have aging test. And then we also have Withstand voltage test and Insulation resistance test, ensure products can transportation safety and normal use.
2. Q: What Production Equipments do we own?
A: Rolling machine,Mgo filling machine,tube cutting machine,banding machine,coiling machine,Swaging machine welding machine, etc.
3. Q: What Inspection Equipments do we have?
A: Current tester, withstand voltage tester, X-ray machine, insulation current tester, insulation voltage tester, pressure tester, salt spray tester, micrometer, etc.
