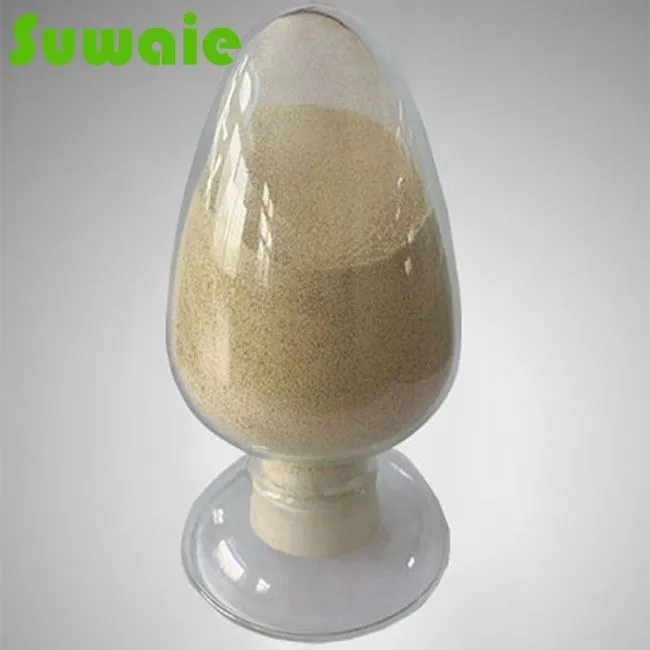

magnesium oxide pure powder
Electrical grade magnesium oxide is made of electrically fused 100 crystal magnesium oxide whacked and sieved out of different degrees of the number of powder particles through the surface activation treatment scientific proportional production
It is mainly used for refractory insulation of electric heating equipment such as filling material in electric heating tube, electrical grade magnesium oxide is mainly divided into three kinds of back, low temperature magnesium oxide, medium temperature magnesium oxide, high temperature magnesium oxide, the iron content is less than 0.5%
Features:
-
(1) Low magnetic content.
-
Most of the domestic manufacturers are between 200ppm and 600ppm, and the company's special high-temperature electrical grade magnesium oxide H series products are ≤ 60ppm; the lower magnetic content is conducive to improve the working life of the electric heat pipe, according to the form of experimental testing, the working life can be improved by more than 20%.
-
(2) Low moisture content (LOl).
-
That is, the lower moisture content, domestic common products are generally ≥ 0.08%, or even higher (0.1% or more), while the special high temperature electrical grade magnesium oxide H series is only 0.04% or less. This indicator is conducive to the draining of moisture from the electrical heating elements, which, for long tubes, can be easily drained to avoid the occurrence of expansion in heat treatment.
-
3) Low hydration rate.
-
The lower the hydration rate of magnesium oxide, the lower the moisture absorption of magnesium oxide.
-
4) Lower sintering index.
-
This is shown by the fact that the bending of the heater is less degraded (compared to ordinary products), which is conducive to improving the compressive strength of the heating element.
-
5) Does not contain organic impurities.
-
It can avoid the blackening of the organic carbonization during the heat treatment due to the organic inclusions that may be contained in the magnesium oxide.
-
6) Better electrical performance.
-
Overall, the electrical performance of this product is superior compared to the same class of products; applied to more than 2.5 meters of pipe, the test data is more effective, the insulation resistance, voltage resistance has been significantly improved.
-
(7) Even color, beautiful, small dust, conducive to improving the environment of the powdering site.
Application
M series is moisture-resistant and high-temperature magnesium oxide, according to various electrical performance requirements are divided into four grade specifications, suitable for different high-temperature air-fired electric heating components, the maximum can withstand the air-fired temperature of 800 ℃, not suitable for high-temperature heat treatment (such as 1050 ℃ annealing), with strong moisture-proof ability, can be easily sealed, before sealing the electric heating components need to do 200 ℃-350 ℃ / 2-4 hours drying treatment.
Suitable for: water heater tube, oven tube, mosquito tube and other medium power and medium high rate load media heater.
Production workshop:
Packing and shipment
Packed in 25KG carton or woven bag, also available upon request.
Instructions for use and storage
(1) MEG-1 is a high temperature powder.
(2) No silicone oil is added to the magnesium powder or very little silicone oil is added.
③ Electrical grade magnesium oxide powder is non-toxic and harmless, but there will be some dust, it is recommended that the operator wear a mask and gloves when using it.
④ Mainly used for dry-fired heating elements with ≤10w/cm² in air.
⑤ The heating element needs to be 1050°C ± 50°C for 1 5 minutes to 30 minutes. And it needs to be sealed as soon as possible after passing the oven to prevent secondary moisture absorption.
(6) Electrical grade magnesium oxide should be placed in a dry location where direct sunlight is not available and is recommended for use within 6 months of delivery.
Quality Control:
1) Technicians self-check in production
2) Engineer spot check in production
3) QC inspects after mass production finished
4) International sales who were trained the technical know-how spot check before shipping
FAQ
1.
Q: What is The Process Of an Order?
A: Send Your Detailed Request→Feedback With Quotation→Confirm Quotation & Make Payment→Make Size Drawing For Approval→Make Production→Production Test→Sample Test(Approval)→Mass Production→Quality Checking→Delivery→After Service→Repeat Order...
2.
Q: I Want to Keep Our Design in Secret,Can We Sign NDA?
A: Sure! We Will Not Design Any Customers' Design or Show to Other People, And We Can Sigh NDA.
3.
Q: What are our after-Sales Services?
a).We are willing to improve the quality of the products if there is any problem with your order.
b).Repairs are free of charge if the problem is due to manufacturing defects.
c).We are willing to comply with customers' reasonable requests.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of magnesium oxide pure powder. Our company has professional equipment and engineers to provide the production and service of magnesium oxide pure powder
