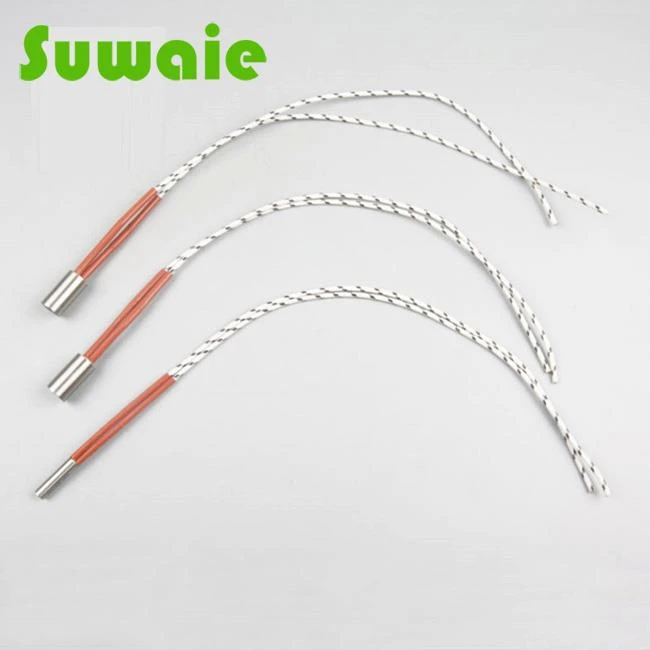

12 Volt Micro Cartridge Heater Heaing Rod

Electric Heating Element And Tube also named tubular heaters, used for almost every kind of heating appliances.

Send Inquiry

Description

Product introduction

Electric Heating Element And Tube also named tubular heaters,used for almost every kind of heating appliances.
They are easy to form and feature highest mechanic stability and electric properties at the same time.
Even though resistance heaters are technically rather mature and universal to use, there exist various new innovative solutions for many applications.

Cartridge Heater Parameters

Sheath material	SUS304,321,316,Incoloy800,840
Wattage Tolerance	+5%, -10%
Resistance tolerance	+10%, -5%
Voltages available	240V, 220V,110V,36V,24V or 12V
Max operating temp	800ºC
Length tolerance	±0.5 mm
Diameter tolerance	-0.02mm
Standard Cold Zone	5-10mm
Thermocouple Location	Type J or K are available
Lead wire length	300mm
Lead wire material	Glass fiber wire
Filler material	Mgo and Mgo rod
Resistance heating wire	NiCr8020
Insulation resistance (cold)	≥ 500 MΩ
Maximum leakage current (cold)	≤ 0.5 mA
