High Density Ceramic Rod Heater
A Industrial Cartridge Heaters belongs to a type of electric heating elements, also called a Cartridge Heaters, and is an electric heating element that is out of the line. It has good insulation performance and uses high-purity magnesium oxide with high thermal conductivity as filler. The product has high inherent power, high thermal efficiency and fast heating dissipation.
Features:
1. Conditions of use: ambient temperature -20 ° C ~ +60 ° C, relative temperature <80%;
2. Electrical strength: cold state withstand voltage AC work 1500V 50HZ duration 1MIN no breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50HZ duration 1MIN no breakdown phenomenon;
4. Leakage current <0.5MA; insulation resistance >30MΩ;
5. Power deviation +5%, -10%; surface load up to 25W per square centimeter;
6. tubu diameter: 3mm - 30mm
7.tube length: 40mm - 1000mm
8.tube material: SUS304, SUS321,INCOLOY800,etc.
9.product name:Low Voltage Industrial Electric Pencil Heater
10.lead-out wire length: 300mm, or clients requriement.
11.lead out wire type: PTFE wire, Silicone wire,etc.
Application
Cartidge heater heating rods are suitable for working in heating media that cannot be wired at both ends, such as high and low temperature plug-in heating of various sizes of molds and mechanical equipment, including die and other molds, medical equipment, plastic sealing machines, bottle caps Machine, continuous automatic sealing machine, cigarette making machine, etc.
1. Mold heating has been accepted by a wide range of customers in modern industrial applications.
2. In the plastic mechanical heating system.
3. Pharmaceutical production line.
4. Laboratory heat treatment test.
5. Chemical industry and so on.

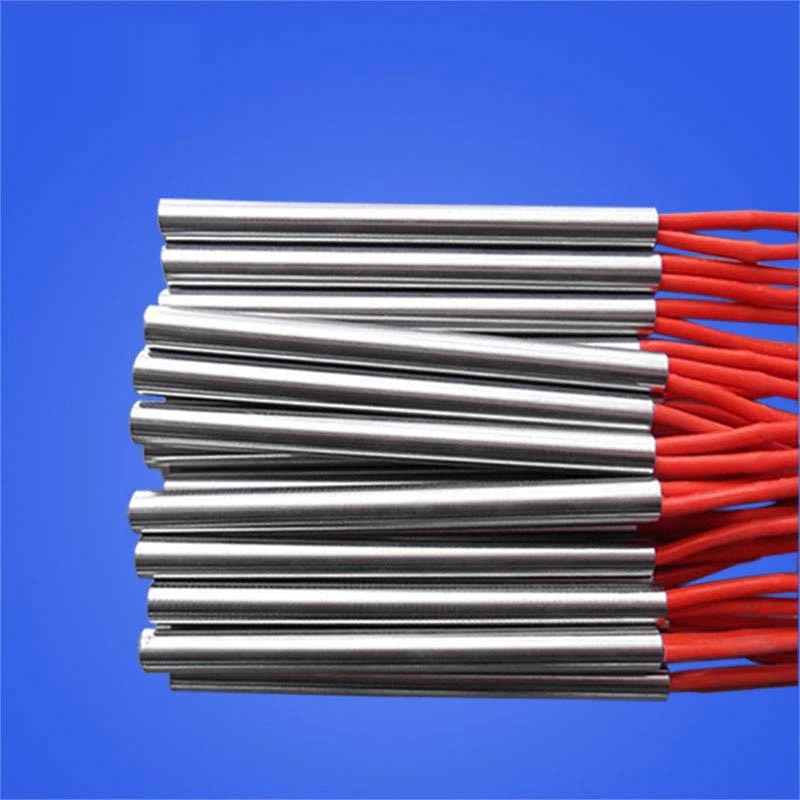

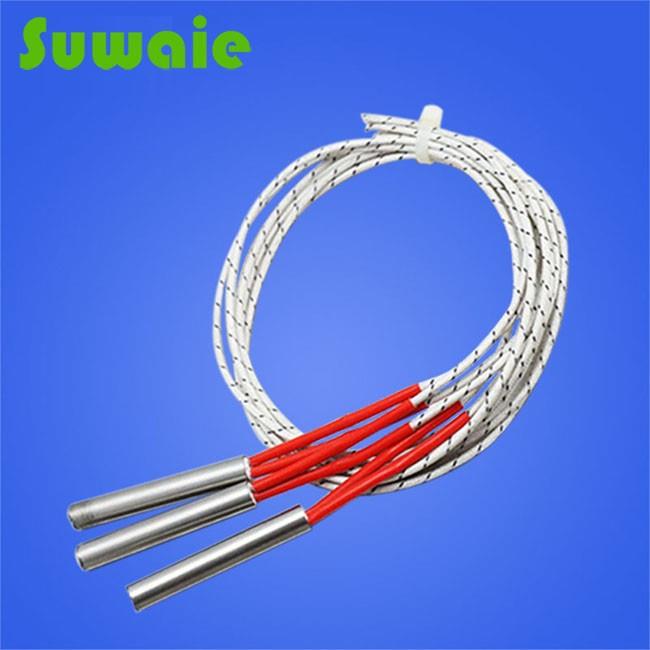

Micro Cartridge Heater Products show
Product Structure show
Pencil heater process and test working show
Packing and shipment case show
Why so many clients choose SUWAIE?
Our heating element has applied many countries in the world. Many countries have our projects.
Suwaie heating element advantage
-------Service
Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
--------Price
Our price is based on the quantity, We have the basic price for 1000pcs. What is more, free power and fan will send to you. The cabinet will be free.
--------Quality
Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.
Choose SUWAIE, you choose the cost-effective , high quality and good service.
FAQ
1.
Q: What Inspection Equipments do we have?
A:Current tester, withstand voltage tester, X-ray machine, insulation current tester, insulation voltage tester, pressure tester, salt spray tester, micrometer, etc.
2.
Q: have your sale team and service team for you company? A: Yes, we have sales team and service team, also we have technology D&R team, for service our clients
3.
Q: How to transport my products?
A: If the goods is less than 200kg, we suggest to use express delivery. We have long-term cooperation with FedEx/DHL/UPS and enjoy much discount. If the goods are more than 200kg, we can arrange shipment as per customer’s requirements.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of High Density Ceramic Rod Heater. Our company has professional equipment and engineers to provide the production and service of High Density Ceramic Rod Heater.
