Electric Finned Air Heater
Product Description
It adopts high-quality thick 304 stainless steel, modified magnesium oxide powder, high-resistance electrothermal alloy wire, stainless steel heat sink and other materials, that is, the surface of the common component is wrapped with metal heat sink, which is made through advanced production equipment and technology, and is strictly The quality management, finned electric heating element can be installed in the air duct or other static, flowing air heating occasions.
Specification
Product name | Industrial electric Finned heater |
Pipe diameter | stainless steel 304/316/321 |
Machining precision | Ø 6mm-20mm customized |
Length | 100mm-2000mm customized |
Voltage | 12-1000V customized |
Resistance error | ±5%(Min ±2%) |
Limiting temperature | -270℃-+1050℃ |
Use medium | AIr/water /oil /mold |
Heat efficiency | 99.99%(close unlimitedly to 100%) |
Features
Mechanically-bonded continuous fin assures excellent heat transfer and helps prevent fin vibration at high air velocities.
2.Tube diameter:6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm
3. Several standard formations and mounting bushings available.
4.Standard fin is SUS304,other Sheath and fin material available
5.120V, 208V, 240V, 480V available, Special voltage/wattages avaiable
6.Maximum Sheath Temperature 750ºF (400ºC) - Steel 900ºF (480ºC) - ST.ST./INCOLY

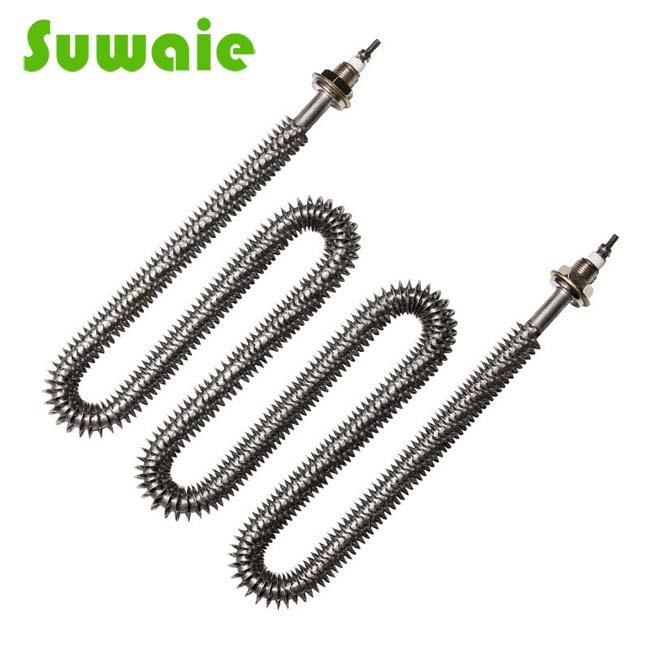

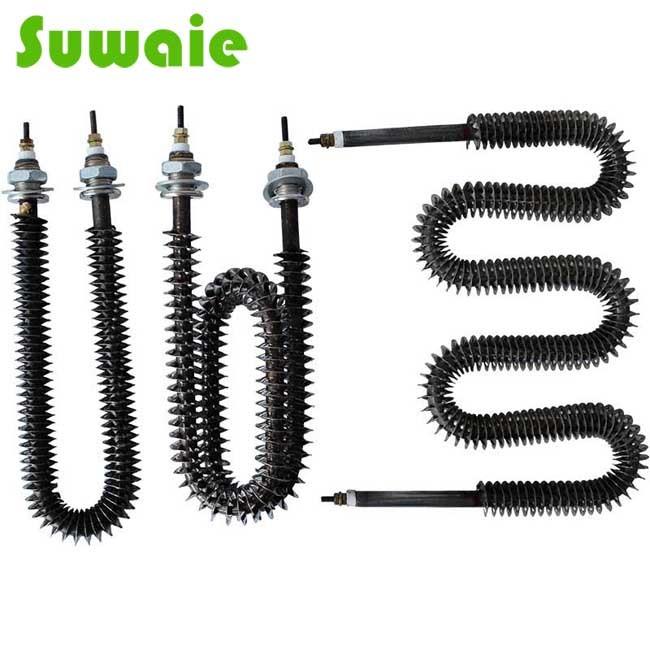

7.Various shape: straight type, U type, W type ,Roud type and so on
Standard Factory Formations-Consult factory for other available formationns
W-type finned heating tube, the following are the regular size specifications
Tightening: M18*25mm spacing: 160-180mm adjustable
Pipe diameter: 12mm Heat sink outer diameter: 24mm
W type length: length L = 250MM, voltage 220V/380V, power 1500W
Length L=340MM, voltage 220V/380V, power 2000W
Industrial electric tubular heater picture show
How to produce the tubular heater? Tubular heating element machinery show
Test room show
Packing details
Shipment ways
Our Advantage:
1. Excellent Purchasing Service
Since we have many resources of different ranges of heating element raw material factories, we know their quality level and price level. We can choose the most suitable supplier for customers according to their request.
2. High Quality Products offered
Most of products are from our long-term suppliers. They have been supplying the goods for us for more than 20 years; we can control the quality and price. So the issue for quality is not a problem. Even if the products have met the function problem, we can afford all the consequences. We will never hurt the customer's interests.
3. Rich Factory Resources & heater Marketing Suggestion
After more than 12 years experience accumulated in this filed, we have collected valuable resources of manufacturers and distributors. We are not only able to supply high quality goods; also we can recommend the hot sale products to customers according to different market needs. We help customer save money, but help them earn more money.
4. Perfect After-sale Service
According to our company's rule, we support one-year quality guarantee after you receive the goods. During this time, if you meet any quality problems, please contact with us, we can provide you with any replacement. The premise is non-human damage.
FAQ
1. Q: How about the machine warranty?
A: Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free
2. Q: How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,CIF and so on.
3. Q: What is your term of delivery ?
A: EX-WORKS, FOB,CIF,C&F,DDP,DDU , etc
4. Q: How does the Qida control the quality?
A: 1) During processing, the operating machine worker inspect the each sizes by themselves.
2) After finished the first whole part, will show to QA for full inspection.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Electric Finned Air Heater. Our company has professional equipment and engineers to provide the production and service of Electric Finned Air Heater.
