Introduction of finned electric heating elements:
It adopts high-quality thick 304 stainless steel, modified magnesium oxide powder, high-resistance electrothermal alloy wire, stainless steel heat sink and other materials, that is, the surface of the common component is wrapped with metal heat sink, which is made through advanced production equipment and technology, and is strictly The quality management, finned electric heating element can be installed in the air duct or other static, flowing air heating occasions.
Specification

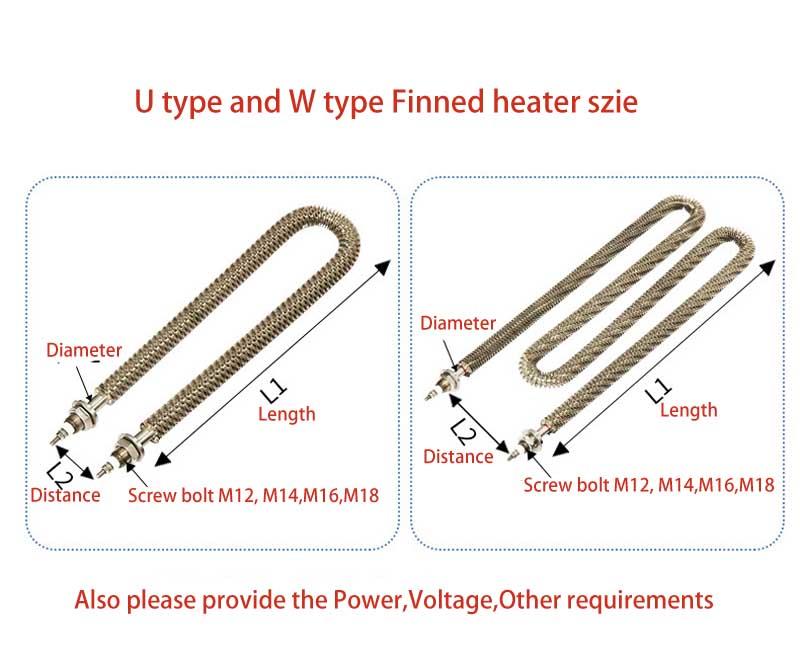

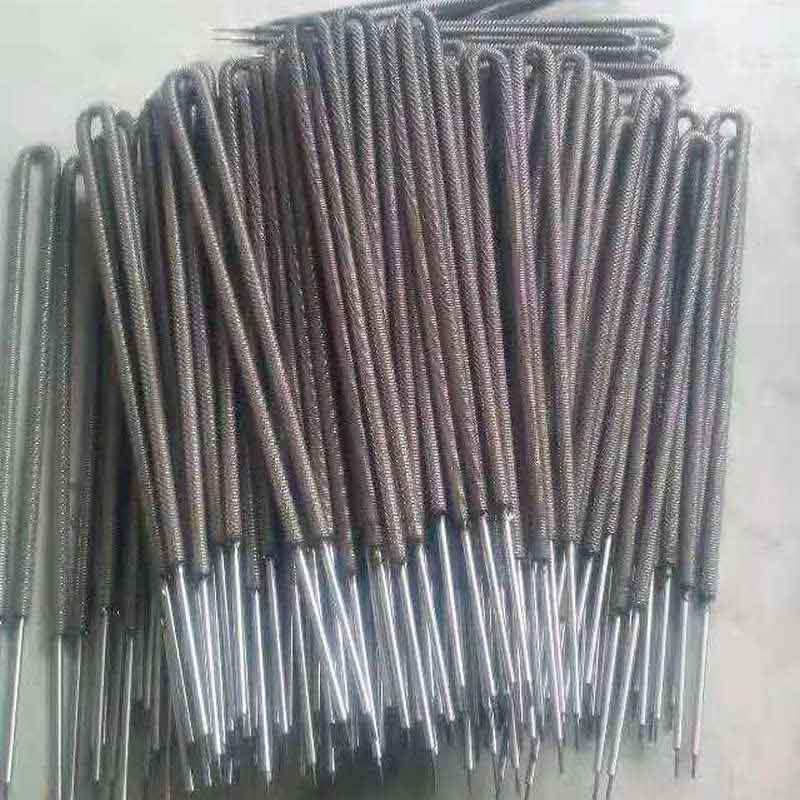

The finned tube is a U-fin tube, the following are the regular size specifications:
Tightening: M18*25mm spacing: 50~60mm adjustable
Pipe diameter: 12mm Heat sink outer diameter: 24mm
U type specification: length L = 270MM, voltage 220V/380V, power 800W
Length L=370MM, voltage 220V/380V, power 1000W
Length L=550MM, voltage 220V/380V, power 1500W
Length L=650MM, voltage 220V/380V, power 2000W

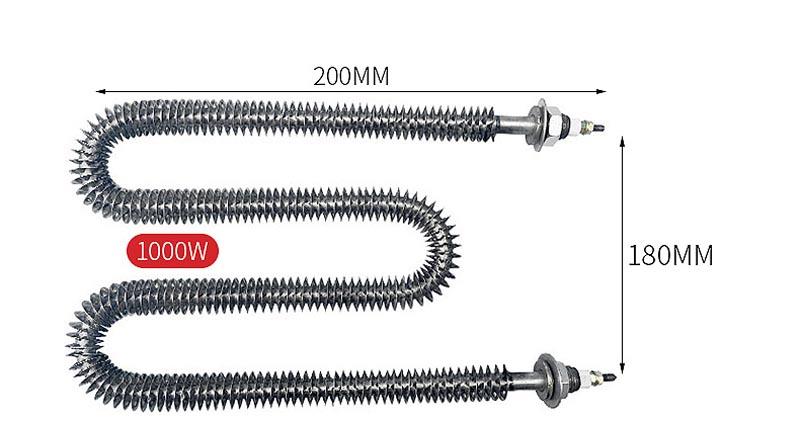

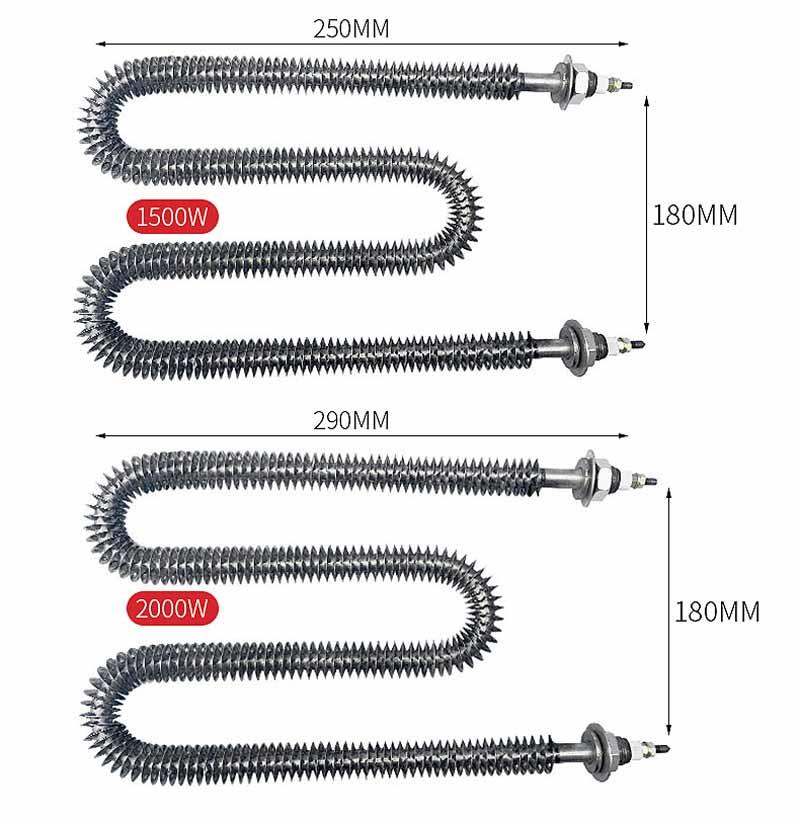

W-type finned heating tube, the following are the regular size specifications
Tightening: M18*25mm spacing: 160-180mm adjustable
Pipe diameter: 12mm Heat sink outer diameter: 24mm
W type length: length L = 250MM, voltage 220V/380V, power 1500W
Length L=340MM, voltage 220V/380V, power 2000W
Finned tube is a flat finned heating tube
Pipe diameter: 12mm Heat sink outer diameter: 24mm
One-length length: length L=440MM, voltage 220V/380V, power 500W
Length L=540MM, voltage 220V/380V, power 600W
Length L=660MM, voltage 220V/380V, power 700W
Length L=1240MM, voltage 220V/380V, power 1500W
Note: The longer the finned heating tube, the greater the power

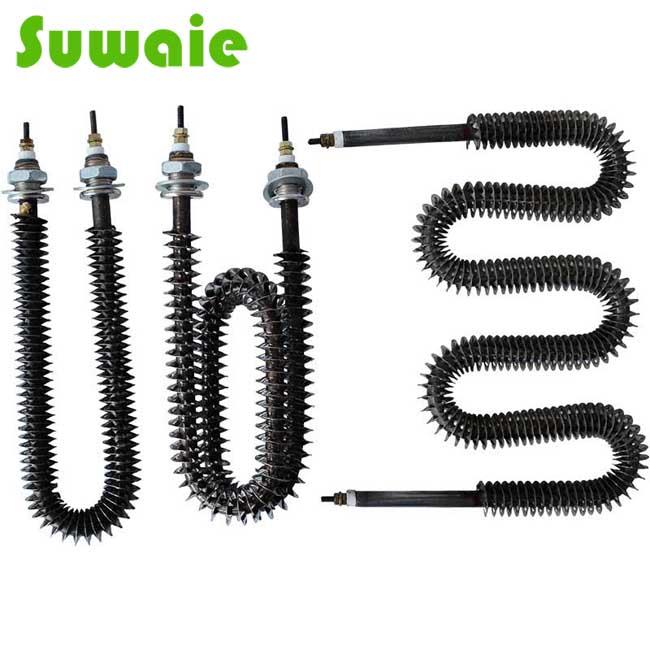

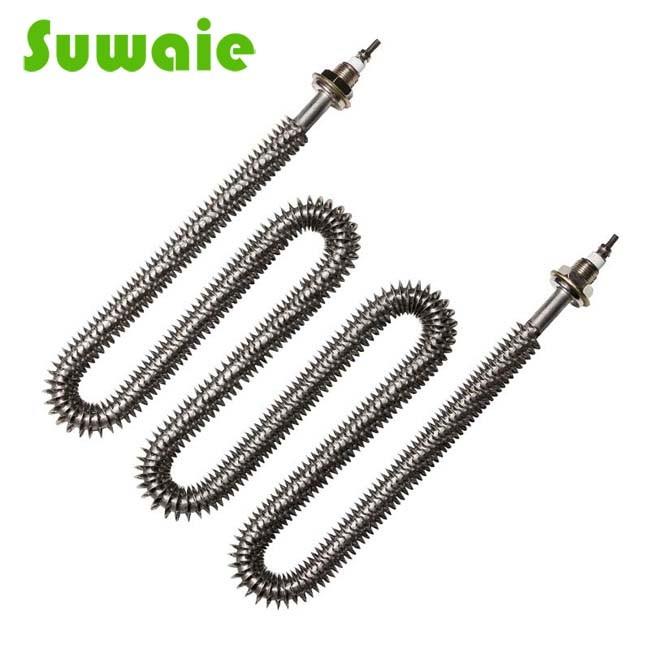

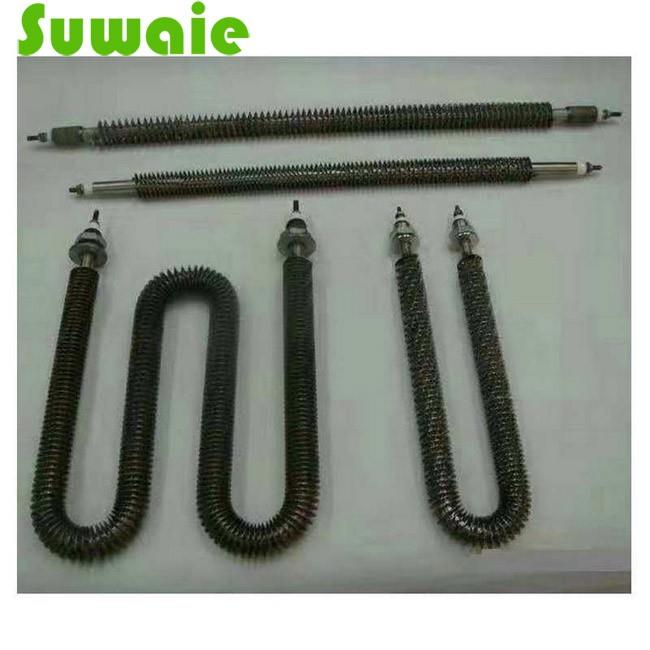

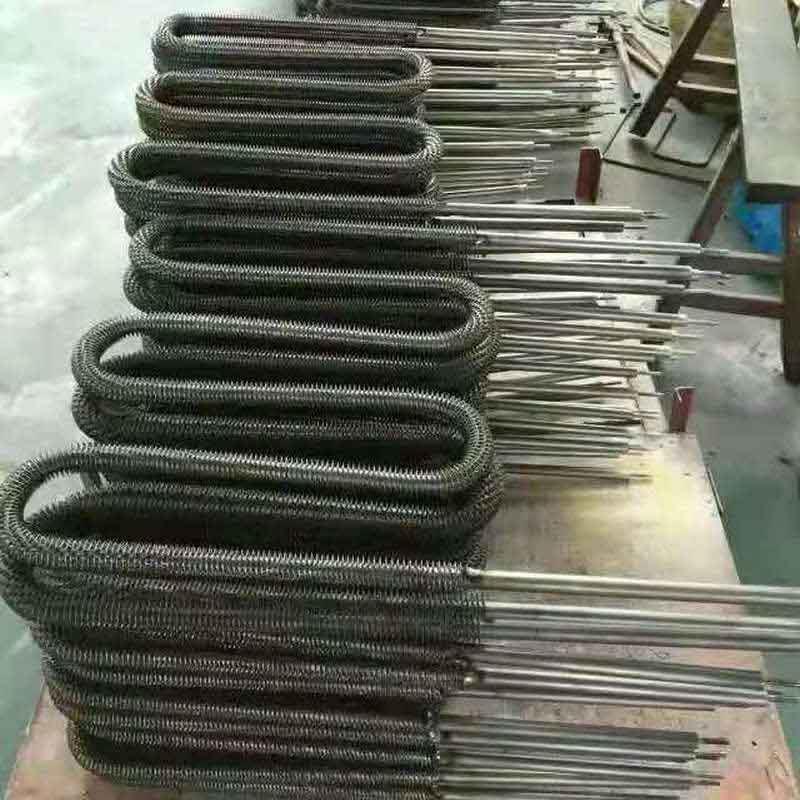

Products show

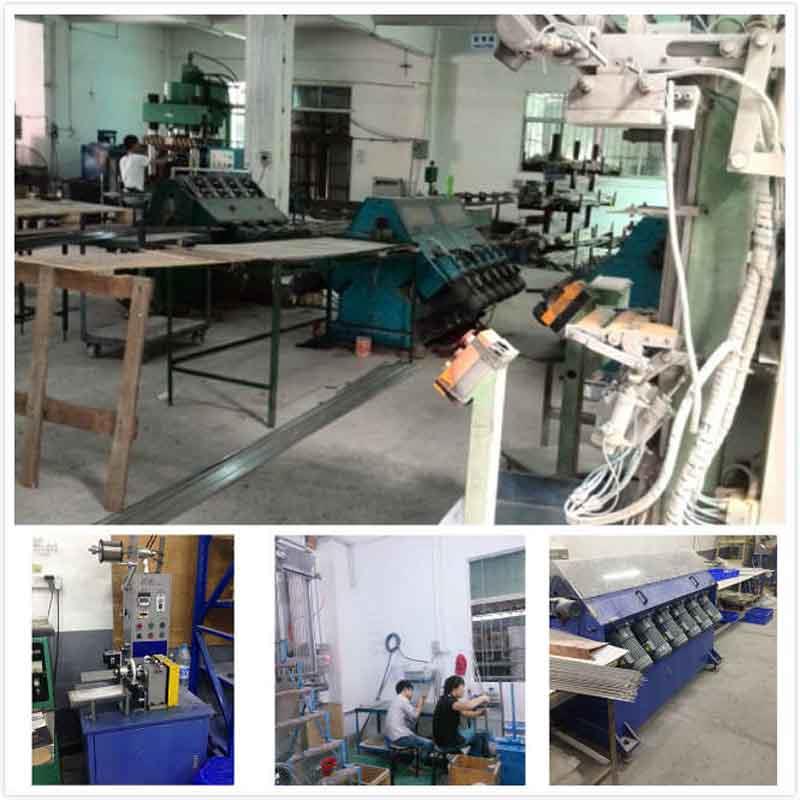

Produce process

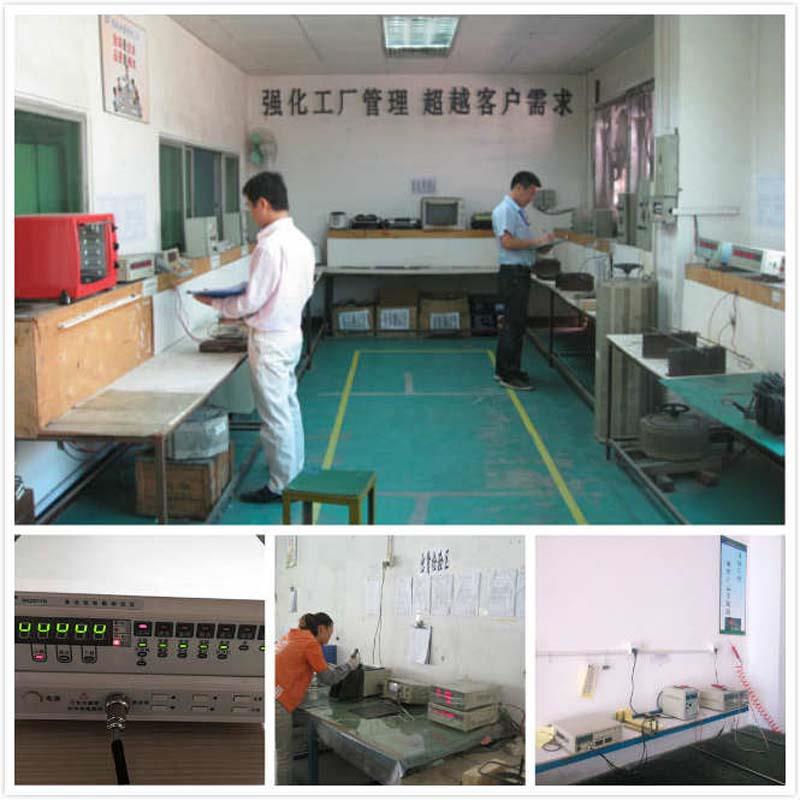

Test room
Packing details
Service
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of heating element.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
FAQ
1. Q: What about the warranty? What if the products go wrong?
A: All our products have 1 years warranty, should you have any problems, please contact us directly and we will do our best to solve it.
2. Q: Can you sent the product drawing to me?
A: Pictures on website was just for reference, More correct information and some special requirements,
Please kindly contact us.
3. Q: Can you customize products?
A: Yes, products can be customized according to your requirements. MOQ will be different depending on products available or not.
4. Q: Who bears the bank transfer fee?
A: The total amount of the order is relatively small, the clients bears bank transfer fee, and the amount of the order is large, we bear bank transfer fee.
