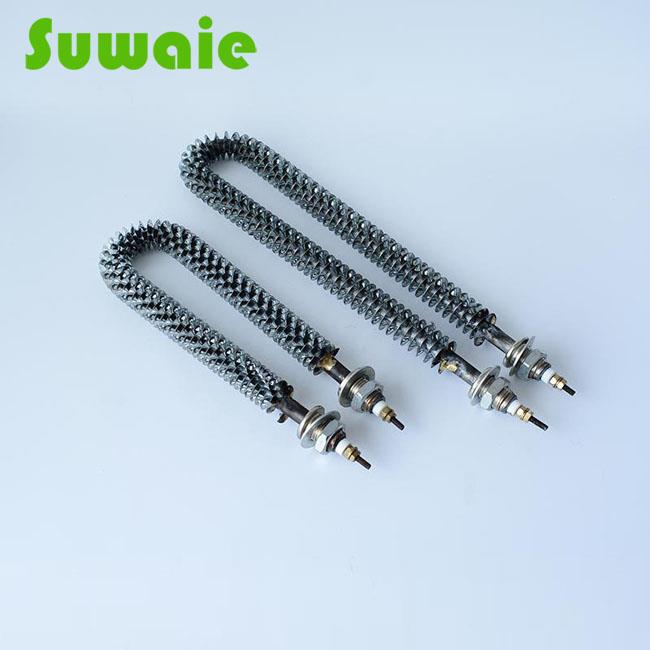

Finned Heating Element Type U
Product Description
The finned heater is a metal heat sink wound on the surface of a common component, and the heat dissipation area is expanded by 2 to 3 times compared with the conventional component, that is, the surface power load allowed by the fin component is 3-4 times that of the ordinary component. Due to the shortened length of the component, the heat loss of the component is reduced, and the utility model has the advantages of rapid temperature rise, uniform heat generation, good heat dissipation performance, high thermal efficiency, long service life, small volume of the heating device and low cost under the same power condition. According to user requirements, a reasonable design is made for easy installation. Products are widely used in machinery manufacturing, automotive, textile, food, home appliances and other industries, especially in the air curtain wind curtain industry.
Specification
Product name | Industrial electric Finned heater |
Pipe diameter | stainless steel 304/316/321 |
Machining precision | Ø 6mm-20mm customized |
Length | 100mm-2000mm customized |
Voltage | 12-1000V customized |
Resistance error | ±5%(Min ±2%) |
Limiting temperature | -270℃-+1050℃ |
Use medium | AIr/water /oil /mold |
Heat efficiency | 99.99%(close unlimitedly to 100%) |
Features
1. Mechanically-bonded continuous fin assures excellent heat transfer and helps prevent fin vibration at high air velocities.
2.Tube diameter:6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm
3. Several standard formations and mounting bushings available.
4.Standard fin is SUS304,other Sheath and fin material available
5.120V, 208V, 240V, 480V available, Special voltage/wattages avaiable
6.Maximum Sheath Temperature 750ºF (400ºC) - Steel 900ºF (480ºC) - ST.ST./INCOLY

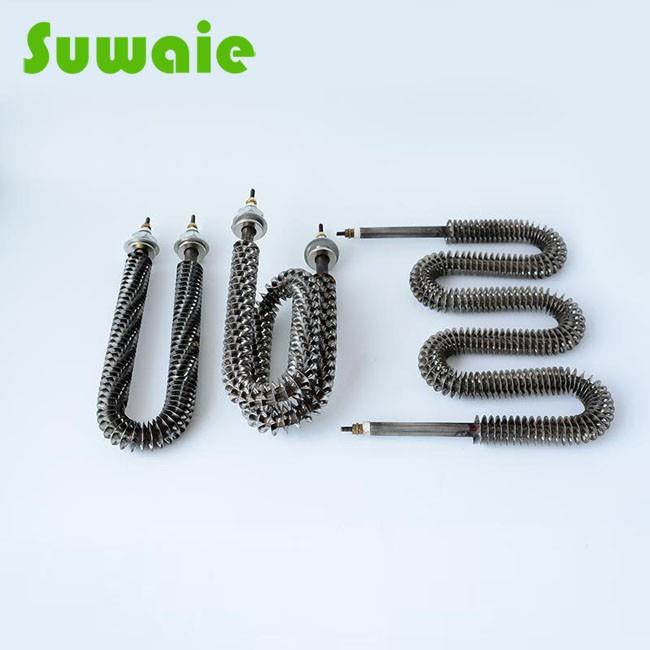

7.Various shape: straight type, U type, W type ,Roud type and so on
Standard Factory Formations-Consult factory for other available formationns
Industrial electric tubular heater picture show
How to produce the tubular heater? Tubular heating element machinery show
Test room show
Packing details
Shipment ways
Our Advantages:
1.We accept Custom-made and OEM, so that we can meet the special requirements from different customers.
2.We can produce Moulds/Tooling by ourself, it can help to save your cost and time while in volume production.
3.We have a group of experienced technical engineers to help customers solve the problems and requirements at any time.
4.We promise the high quality with resonable price,and guarantee the lead time for orders.
FAQ:
1.
Q: What is The Process Of an Order?
A: Send Your Detailed Request→Feedback With Quotation→Confirm Quotation & Make Payment→Make Size Drawing For Approval→Make Production→Production Test→Sample Test(Approval)→Mass Production→Quality Checking→Delivery→After Service→Repeat Order...
2.
Q:How can I get a sample to check your quality?
A: After price is confirmed, you can require samples to check our quality. Free for existing samples ,but you need to paid the express freight. For sample making, we will charge a sample fee. Sample fee will be confirmed according to the products' craftwork.
3.
Q:How can you ensure the HEATING ELEMENTS product quality?
A: Before shippment, all the HEATING ELEMENT have aging test. And then we also have Withstand voltage test and Insulation resistance test, ensure products can transportation safety and normal use.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Finned Heating Element Type U. Our company has professional equipment and engineers to provide the production and service of Finned Heating Element Type U.
