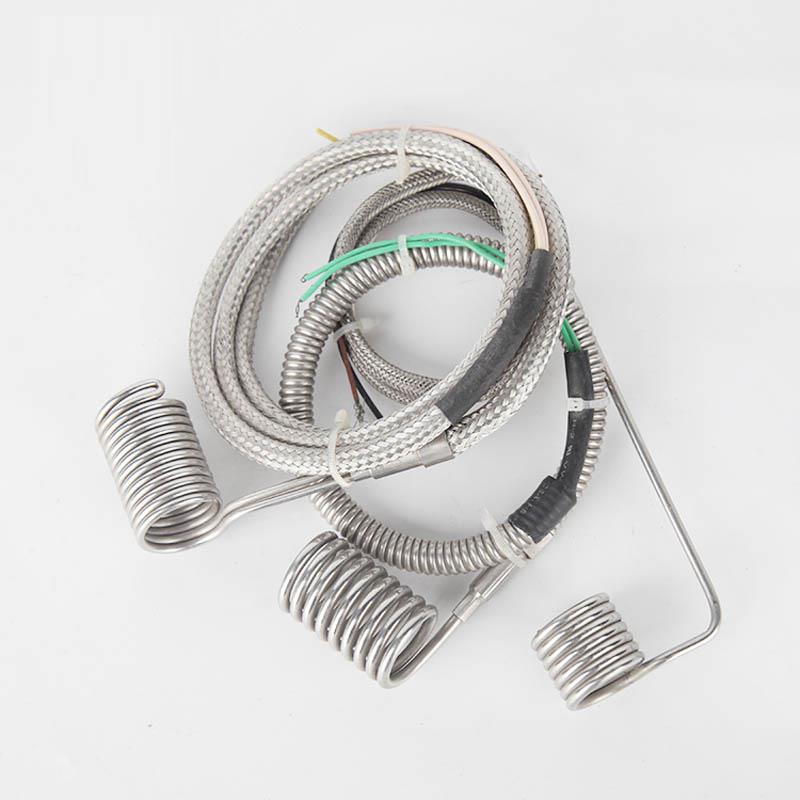

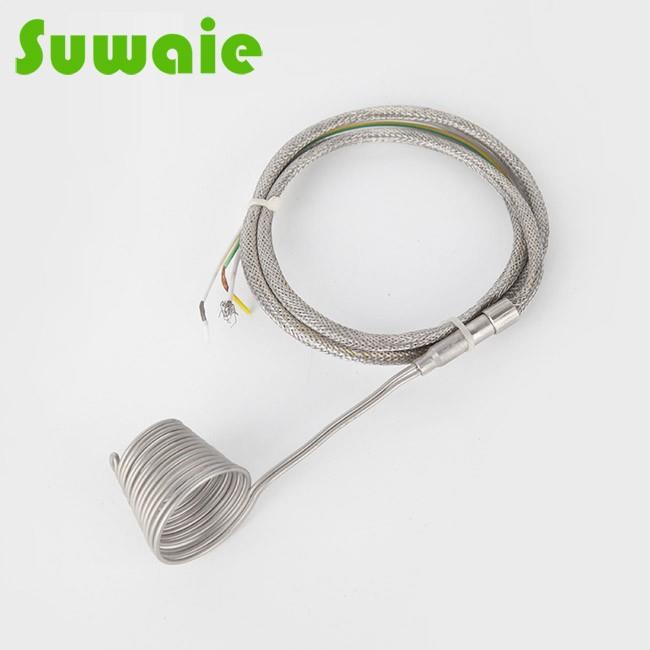

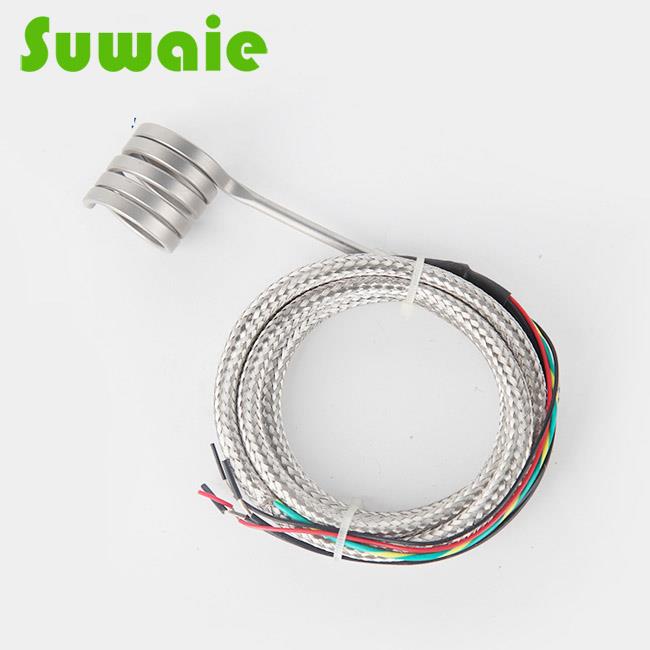

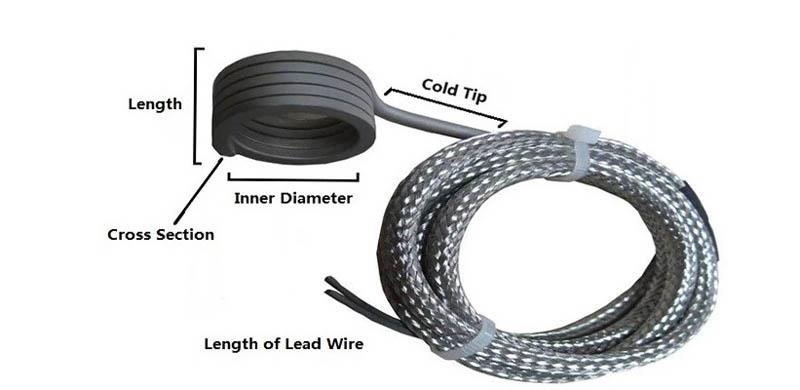

Hot runner coil heaters spring heaters 2.2x.4.2mm cross section specification
Description of Coil Heater:
1) Spring coil heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder.
2) Spring coil heater is also known as high performance tubular heaters or cable heaters.
3) Spring heater can be produced with or without built in thermocouples.
4) Spring coil heater is widely used in heating engineering, mold, plastic industry, including the transfer machinery, medical equipment, casting process, welding, heat treatment process and many other industries and fields
Hot runner coil heaters can be manufactured with “j” or “K” type thermocouple inside and with different power fields.
APPLICATION
Molds & dies
Manifolds
Hot runner nozzles and spruce bushes
Packaging machinery
Manifolds
Injection molding machine nozzle
Technology Data
Sheath Material for Coil Heater | Cr Ni-Steel |
Insulation Material | MgO |
Resistance Wire | Ni Cr 80-20 |
Maximum Sheath Temperature | 700°C |
Die Electrical Strength | 800V A/C |
Insulation | > 5 M W |
Thermocouple | J type (Standard) or K type |
Length Tolerance (Straight) | + 5% |
Wattage Tolerance | + 10% (+ 5% Available Upon Request) |
Resistance Tolerance | + 10% (+ 5% Available Upon Request |

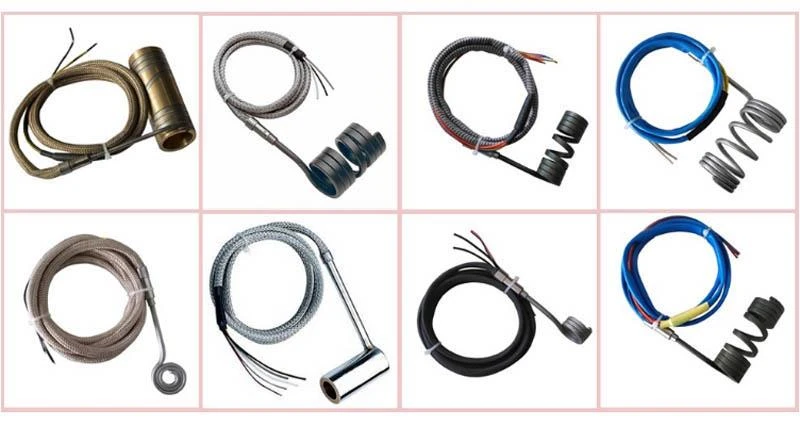

Products show

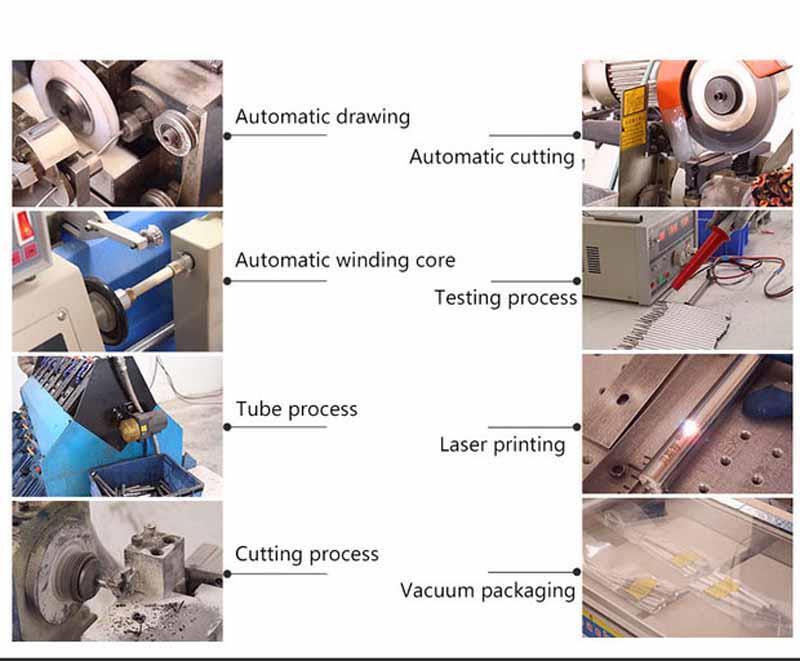

Process and test room show
Packing and shipment case
Our advantages:
a) Manufacturer, in house mould design and assembly, competitive price.
b) 10 years' of experience working with OEM's various materials
c) QC: 100% inspection
d) Confirm sample: Before start mass production we will send the pre-production samples to customer for confirmation. We will modify the mould until customer satisfied.
e) Small Order Allowed
f) Strict QC and high quality.
g) Highly skilled manufacturing process
h) A broad variety of OEM product range
FAQ
1. Q: What are our after-Sales Services?
a) We are willing to improve the quality of the products if there is any problem with your order.
b) Repairs are free of charge if the problem is due to manufacturing defects.
c) We are willing to comply with customers' reasonable requests.
2. Q: Are you a factory or trading company?
A: We are manufacturer.
