Product introduction
Hot Runner Heater are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.
Technical indicators:
Voltage: 220V, 230V, 240V
Power: 200W ~ 2000W
Heating coil inner diameter: 10 ~ 42 (MM)
Heating coil length: 30 ~ 280 (mm)
Square section size: 3 × 3; 3.3 × 3.3; 3.5 × 3.5; 4 × 4;
Round: Φ1.5; Φ2; Φ3; Φ4;
Flat section: 4 × 2; 4 × 2.2; 4 × 2.5;
Temperature-controlled thermocouple: K type; J type; E type
Surface effect: sandblasted;
Maximum power density: 9W/cm2
Maximum working temperature: 650 ° C
Typical Applications:
1. Injection moulding machine nozzle
2. Hot runner nozzles & Bushings
3. Packaging machineries
4. Hot runner injection moulds
5. Injection & Blow moulding machine nozzles
6. Hot runner manifolds

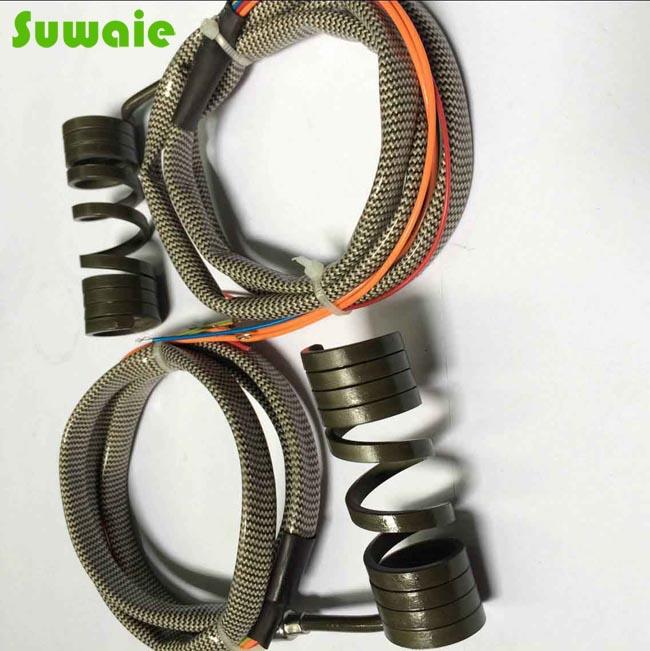

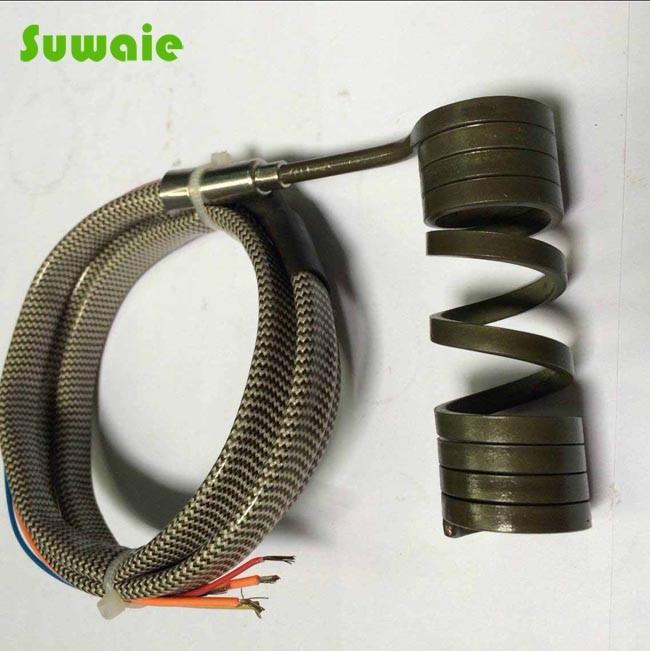

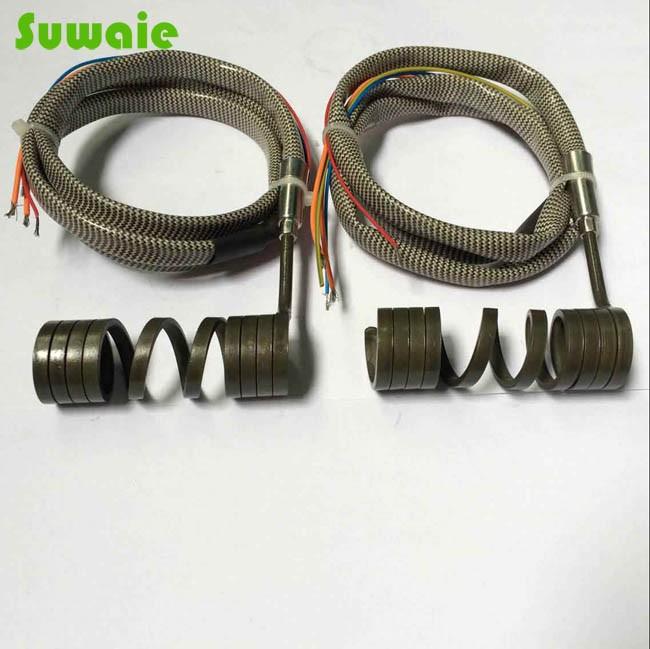

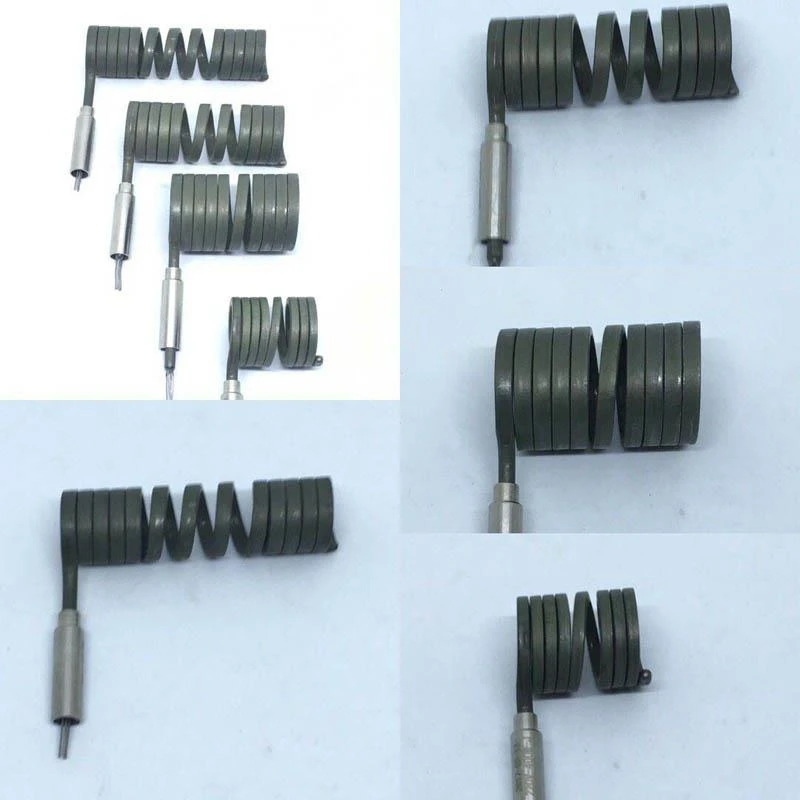

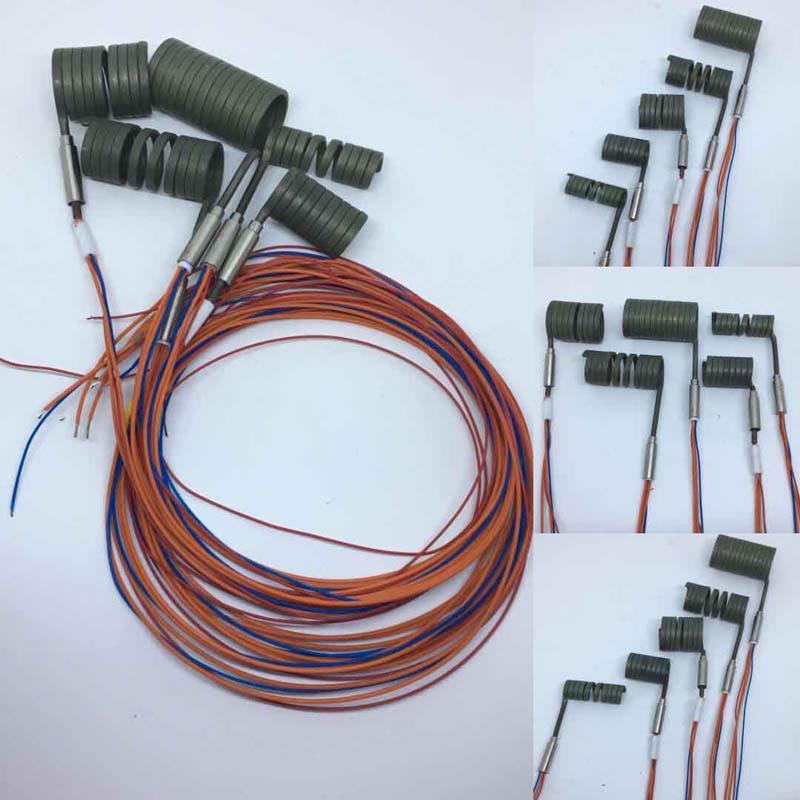

Product show

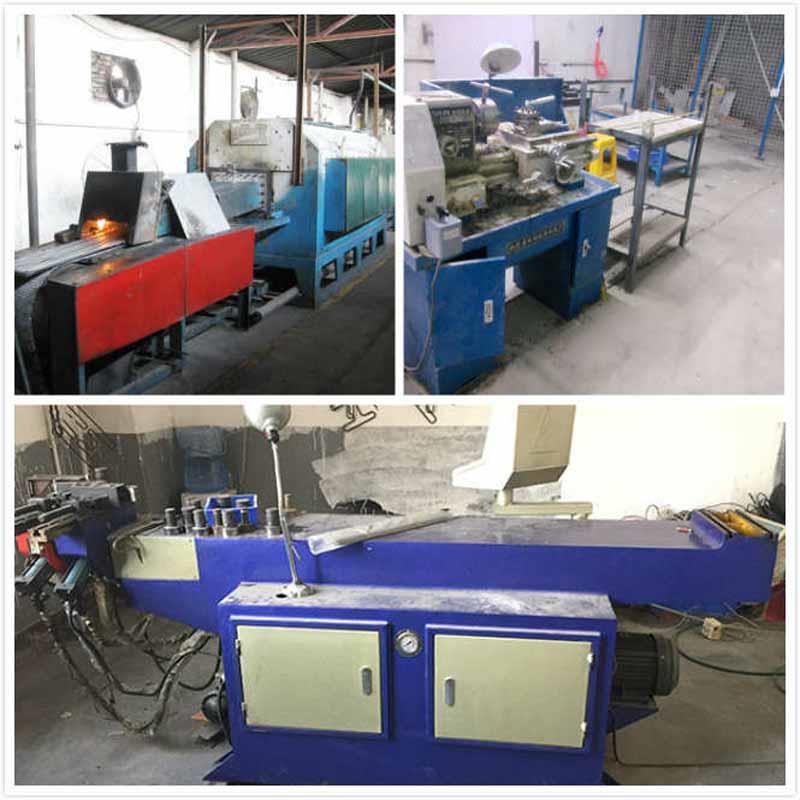

Workline show
Service
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of heating element.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
FAQ
1. Q: Are you a factory or trading company?
A: We are manufacturer.
2. Q: How about the Package & Product design?
A: Based on factory original box, original design on product with neutral laser and label, original package for export carton. Custom-made is OK.
3. Q: How to proceed the order if I have logo to print?
A: First, Artwork for visual confirmation, and next is Sample picture or sending sample to you for confirmation, finally we will go to mass production.
