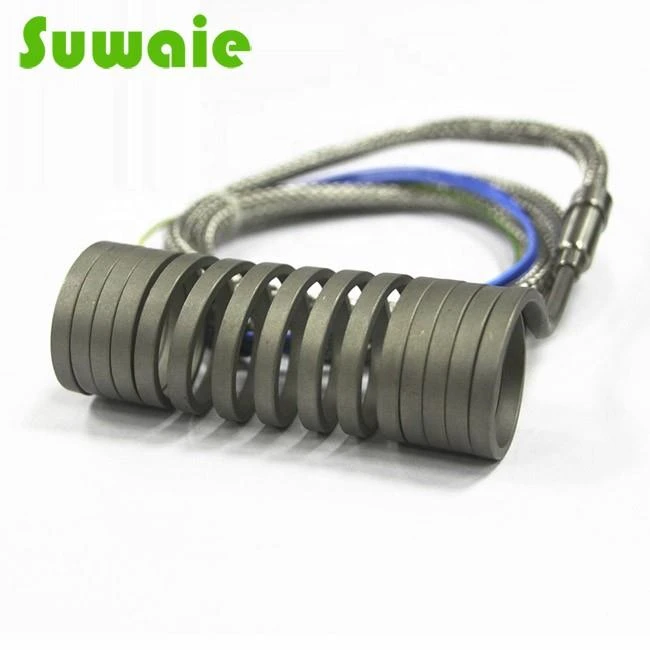

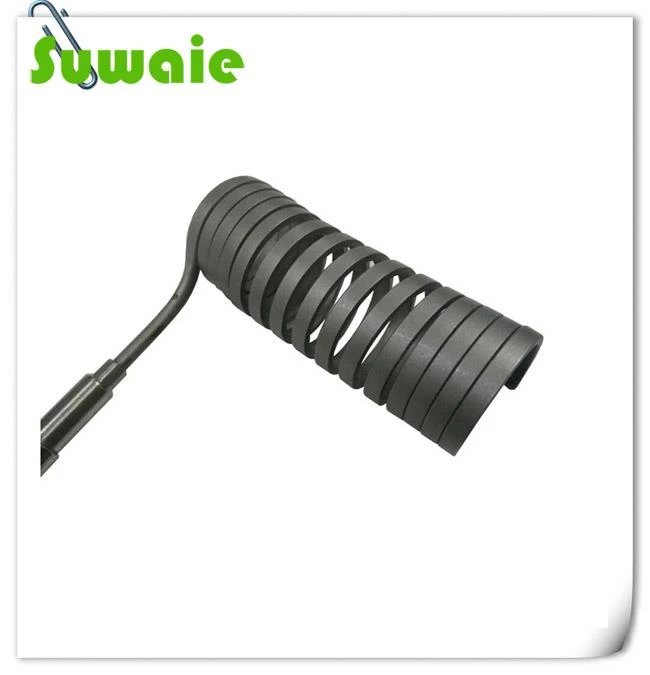

Micro Coil Heater
SUWAIE Coil heaters are a high performance heat source for hot runner applications. The coil heaters are available in a wide variety of inner diameters and lengths to fit any current size on the market. The sheath of the heater is rectangular with the wattage distributed evenly over the length of the nozzle assembly for optimum heat uniformity.
The heater is transitioned to flexible leadwires of Teflon or fiberglass with an additional protective jacket of heavy wall fiberglass sleeve or stainless steel braid. Stainless steel armor is also available. Most designs also feature an internal thermocouple for direct temperature control, which eliminates the need for a separate sensor.
230V | Total length straight (incl. cold length） | |||
2,2 x 4,2 mm | Ø 3,0mm | 3,2x3,2mm | 2,5x4,0mm | |
Other types on request | ||||
150 W | 265 | - | - | - |
175W | - | 365mm | 250mm | - |
200W | 315mm | - | 300mm | 250mm |
225W | 345mm | - | 350mm | 300mm |
250W | 400mm | 515mm | 400mm | 350mm |
290W | 450mm | - | 450mm | 400mm |
330W | - | 615mm | 500mm | 450mm |
350W | 525mm | - | - | - |
400W | 585mm | 765mm | 600mm | 500mm |
470W | 665mm | - | 700mm | 600mm |
550W | - | - | 800mm | 700mm |
620W | 825mm | - | 900mm | 800mm |
690W | 965mm | - | - | - |
700W | - | - | 1000mm | 900mm |
800W | - | - | - | 1000mm |
850 | 1165mm | - | 1200mm | - |
950W | 1265mm | - | 1400mm | 1200mm |
1000W | - | - | - | - |
1100W | 1465mm | - | 1600mm | 1400mm |
1200W | 1615mm | - | 1800mm | 1600mm |
1400W | 1815mm | - | - | 1800mm |
1600W | 2015mm | - | - | 2000mm |
1800W | - | - | - | 2200mm |
2000W | - | - | - | 2400mm |
2200W | - | - | - | 2500mm |
Main Features
1.Spring ring heating specification: heating section: 2.2X4.2 3X3 3.4X3.4 3.5X3.5 4X4mm.
2. Heating coil ID :10mm ~ 38mm, heating height of ring: 40mm ~200mm.
3. Voltage: 220V-380V, wattages: 200W- 3000W.
4. Built-in thermocuple power:with or without J/K thermocouple, length of lead wire as 500mm 1000m 1200mm 1500mm or 2000mm.
5. Continuous Operating Temperatures to 1200℉.
Intermittent Operating Temperatures to 1500℉.
6. Spring heating ring advantages: high working temperature, fast heating, long service life, convenient installation.

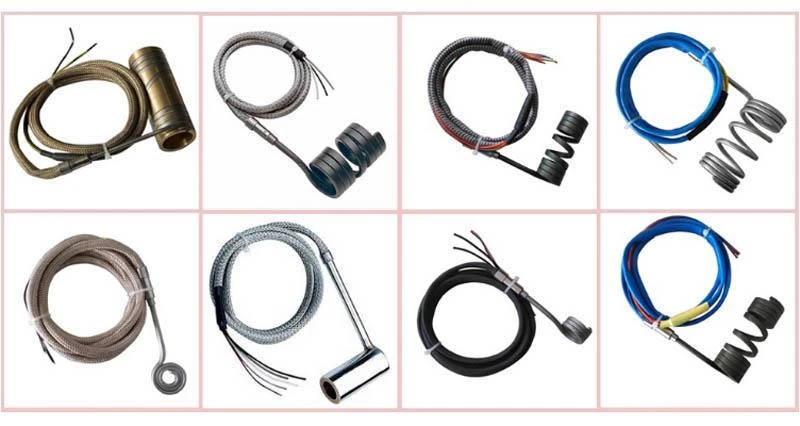

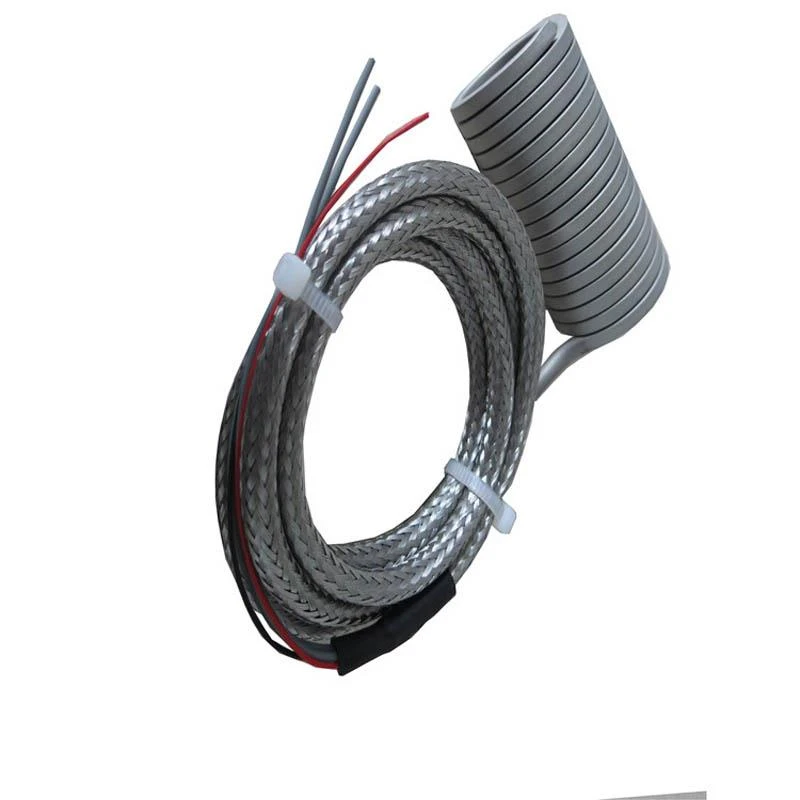

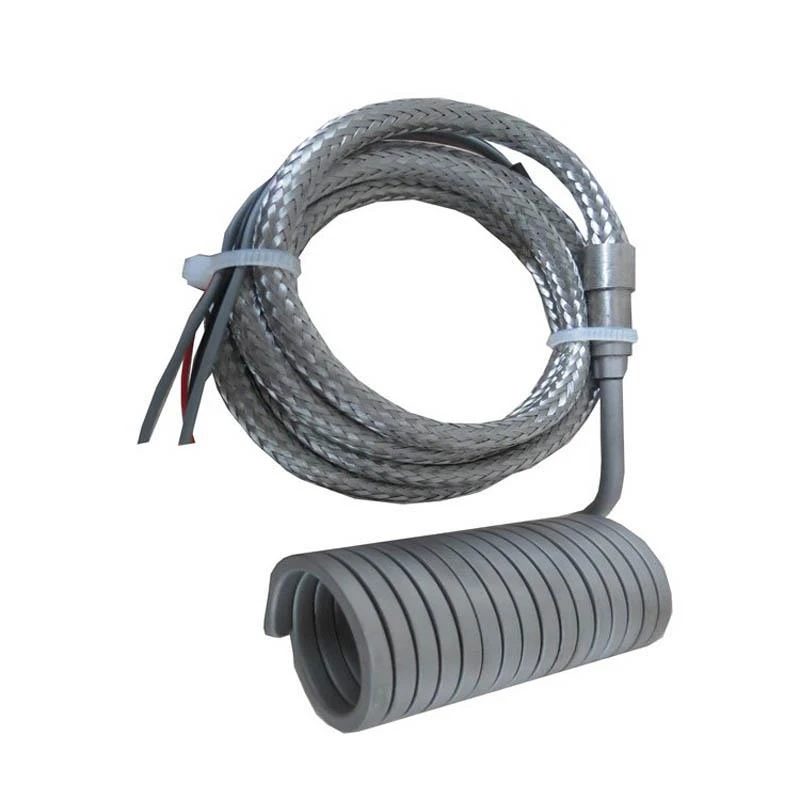

Straight Coil Heater products picture show
Process show
Test room show
Packing and shipment ways
Our Advantages:
1.We accept Custom-made and OEM, so that we can meet the special requirements from different customers.
2.We can produce Moulds/Tooling by ourself, it can help to save your cost and time while in volume production.
3.We have a group of experienced technical engineers to help customers solve the problems and requirements at any time.
4.We promise the high quality with resonable price,and guarantee the lead time for orders.
FAQ
1.
Q: Do you have the ability to do independent research and development?
A: Our engineering department has 5 elites, we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement.
2.
Q: How to transport my products?
A: If the goods is less than 200kg, we suggest to use express delivery. We have long-term cooperation with FedEx/DHL/UPS and enjoy much discount. If the goods are more than 200kg, we can arrange shipment as per customer’s requirements.
3.
Q:How can you ensure the HEATING ELEMENTS product quality?
A: Before shippment, all the HEATING ELEMENT have aging test. And then we also have Withstand voltage test and Insulation resistance test, ensure products can transportation safety and normal use.
