Product Description
Specification parameter | Detail | Remark |
Sheath Material | Sus304 | Materials can be changed to be copper,sus321,sus316L,incoloy804,incoloy800as requested |
Voltage/wattage | 380V/ 6000W | Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance (cold condition)+5%-10% |
Tube Diameter | 8mm | Tube diameter can be changed to 8.0mm,8.5mm,or other as requested |
Resistance Powder | Magnesium oxide | We can use other powder if requested |
Resistance Wire | Ni80Cr20 | Ocr25Al5 or other material if requested |
Length*Width*Heigth | 27.5cm*6cm*6cm | |
Leads | Sus304 | Materials of terminal piece could be stainless iron,stainless steel if required |
Screw Thread | 1 1/2' | Other thread can be made if required |
Shape | U or as requested | |
Warranty | 10000 working hour or at least three year | |
Weight | 500g | |
Case pack | 38piece | |
Packing volume | 0.042m³ | |
Characteristics & Properties Of immersion heater
* Tube diameter: Φ8mm-Φ16mm
* Tube Material: SS201, SS304, SS316, SS321, INCOLOY800
* Insulation Material: MgO
* Conductor Material: Nichrome Resistance Wire
* Wattage Density: High/Middle/Low (5-25w/cm2)
* Lead Connection Option: Threaded Stud Terminal or Lead Wire
* Lead Wire Type: 300mm Standard (Teflon/Silicone High Temperature Fiberglass are available for immersion flange heater)
The key questions which need to be answered before selecting a tubular heating element are:
1. What wattage and voltage will be used?
2. What is the diameter and heated length required?
3. What's the heating medium? Water or Oil heating?
4. What is thread flange size?

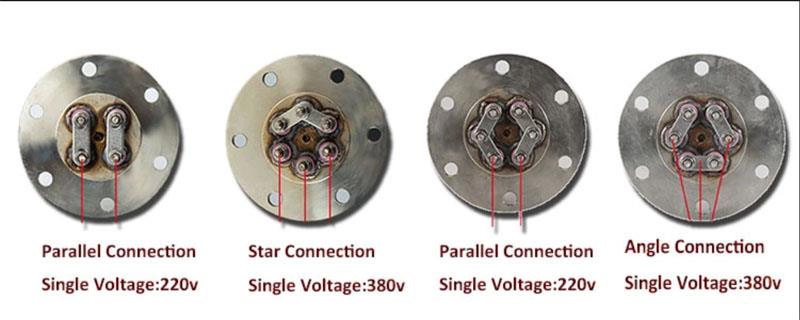

380V Industrial Immersion Submersible Heater Wiring

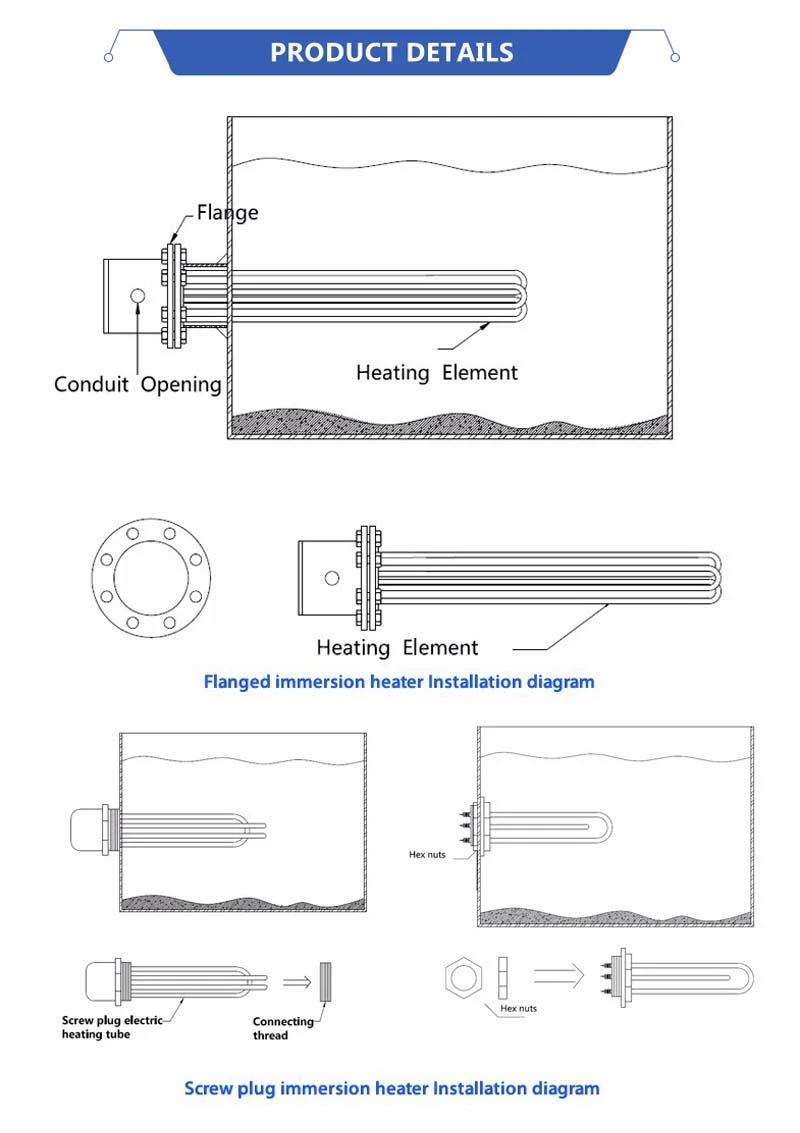

380V Industrial Immersion Submersible Heater Installation diagram

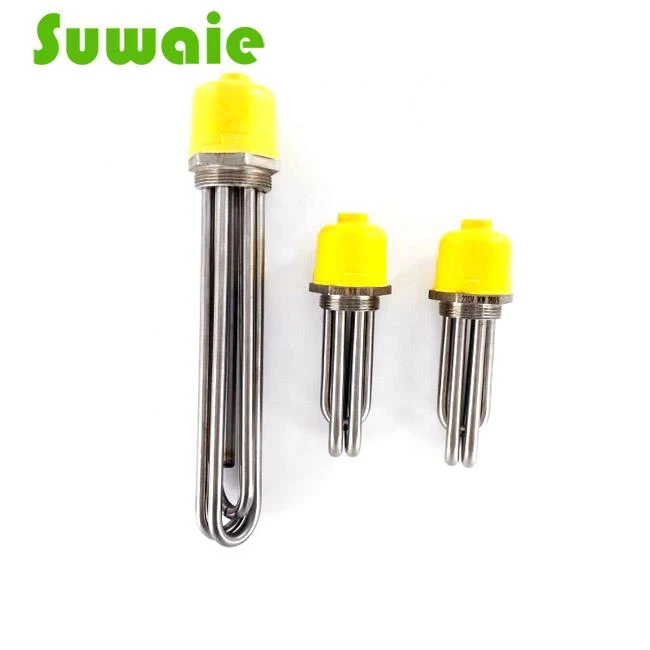

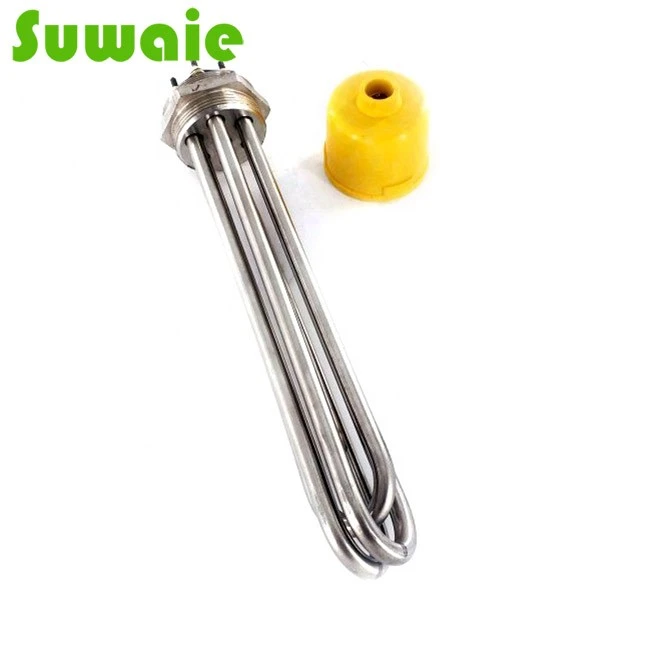

Products show

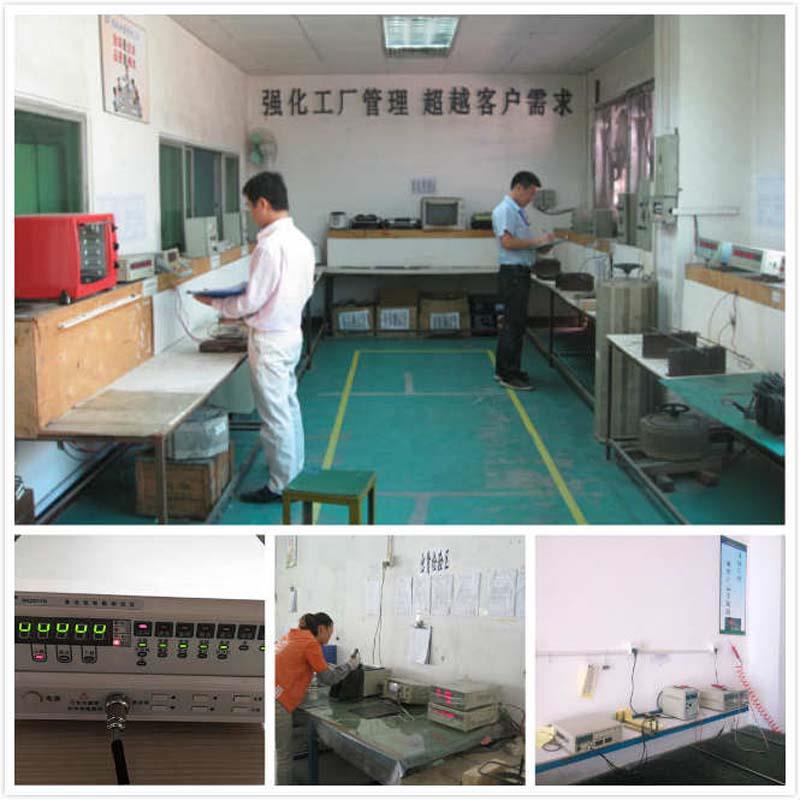

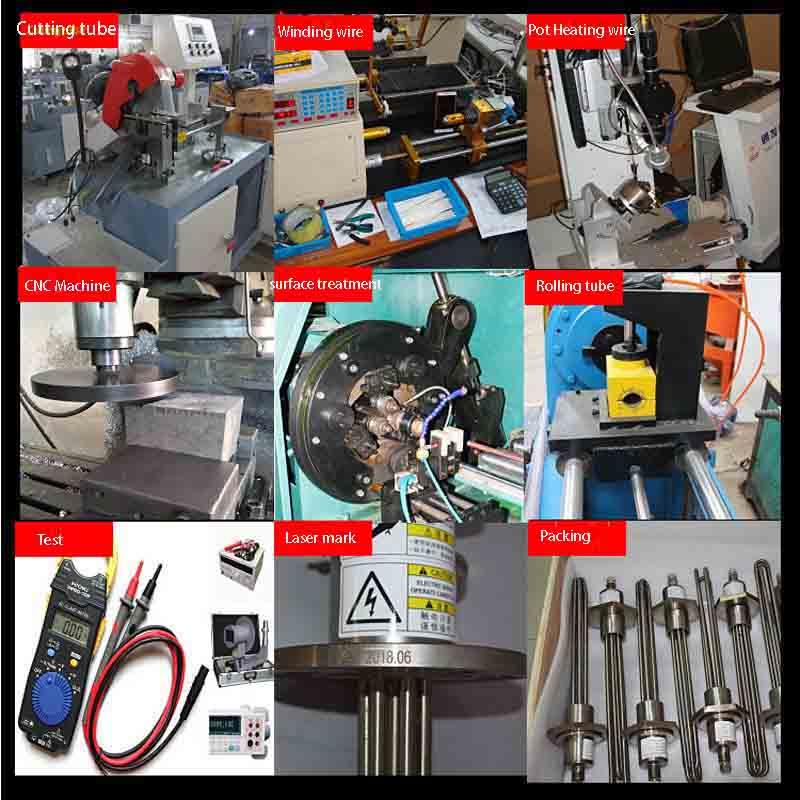

Process and test room
Packing and shipment ways
Our Service
As a manufacturer with 12 years
R&D experience in China, we would like to offer any support you need as following:
1) Immediate reply to your inquiry.
2) Exact recommend of our machine for the job you do.
3) Detail information of our products, and our company if you need.
4) Best quotation.
5) Immediate answers to your questions about our produts.
6) Technical support, or alternative accessories if necessary.
FAQ
1. Q: Can you sent the product drawing to me?
A: Pictures on website was just for reference, More correct information and some special requirements,
Please kindly contact us.
2. Q: Have the R&D for our company?
A: We have professional R&D team with rich design experience.We also establish strict but scientific product testing system so that products have perfect.
3. Q: Will you give me advice when necessary ?
A: Certainly, we will give you our professional technical advice like material type, surface finish, and drawings-making as long as you need.
