Bendable Immersion Heater Elements
Product Introduction
The immersion electric heater is mainly used for heating the contacted fluid, has the characteristics of fast heat exchange and high thermal efficiency, and can heat the flowing medium such as water, oil and gas, and heat the surface of the heating element, that is, the unit area of the heating element. The power, surface thermal load is an extremely important parameter of the heating element, which will directly affect the service life and performance of the heating element.
The maximum surface heat load of the heating element allowed by different heated media is different. The value is closely related to the physical chemical properties of the heated medium. If the selection is not correct, serious problems will occur. When it is high, the surface temperature of the heating element is sharply increased, so that the service life is lowered, which causes an increase in the volume of the heater, thereby causing a sharp increase in cost.
Specification
Product nama | Stainless steel / Brass Screw Plug Immersion Heater |
Cartridge heater diameter | 8mm,9mm,10mm and so on. |
Screw plug szie | 1’’, 1-1/4’’, 1-1/2’’ , 2’’ , Etc. |
Screw plug material | Barss , Stainless steel, SUS304, SUS201, and so on. |
Resistance wire | NiCr8020 |
Power | 1000W, 1500W, 2000W, 3000W and so on. |
Immersion heater shape | U type |
Voltage | 220V/ 380V |
Insulation resistance | ≥50M Ohm |
Leakage current | ≤0.5mA |
Length tolerance | ±0.5mm |
Wattage tolerance | +5%, -10% |
Input voltage | 12V, 24V,110V,220V,240V |
Tube Material | Stainless steel 304, 316L, incoloy800, 840 |
color | White |
When you inquiry, pls secify the following details:
1 Heater model, and shape;
2 Wattage and voltage;
3 Usage environmental and max temperature;
4 Material and surface treatment;
5 Diameter and length of tube;
6 The drawing is preferred.

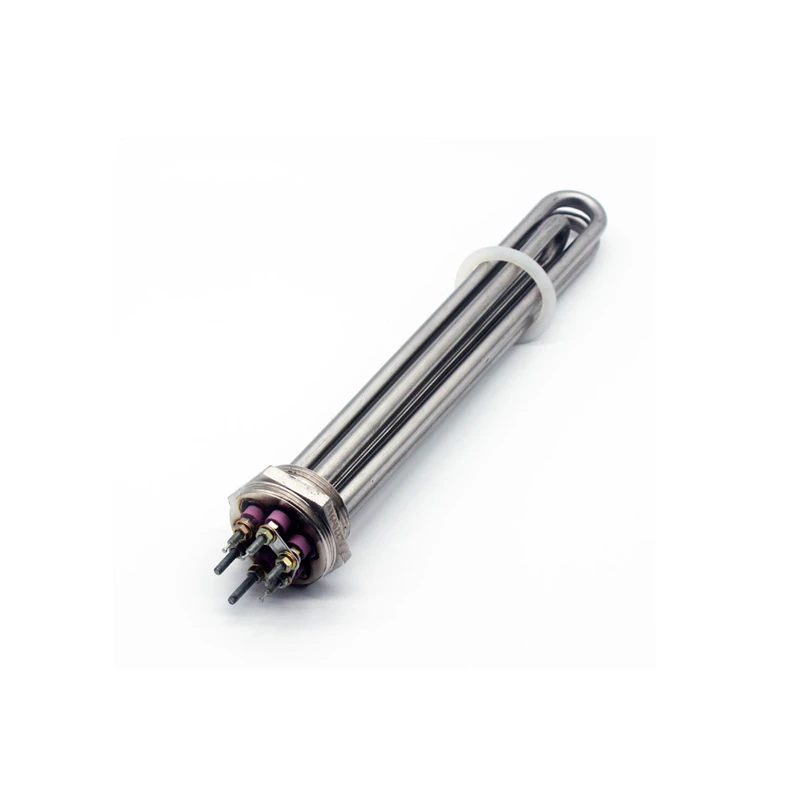

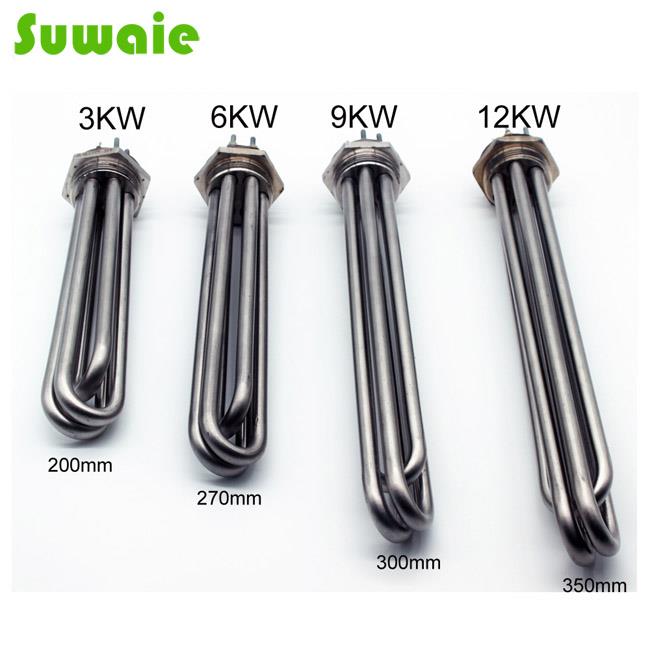

Products Show
How To Produce This Immersion Heaters
Quality Control Test Room
Packing and shipment:
Why Choose US?
1. Bureau veritas audited supplier
2. Strict confidentiality for customers
3. Have a strong product development capabilities!
4. We have Longterm cooperation forwarders to ensure the quick and safe shipment, avoid goods delay and extra cost.
5. Solve problems for customers in time
6. Good Payment terms and Reasonable price
7. Excellent after-sales service and feedback
8. Potential problems in product handling
9. we can provide installation video and instructions.
FAQ
1. Q: Have the R&D for our company?
A: We have professional R&D team with rich design experience.We also establish strict but scientific product testing system so that products have perfect.
2. Q: Do you carry instead of 220v a 110v model ?
A: NO need to any model to change the Voltage.
3. Q: How long is the warranty?
A: I assume warranty will be at least a year.
