Product introduction
Flanged immersion heaters are commonly used in many chemical, petroleum and water based applications.Suwaie flanged heaters allow the flexibility of using many different alloys to help resist corrosion and maintain life longevity of the flanged heating element Steel flanges are typically used for lubricant oils, heavy and light oils, waxes as well as mildly corrosive liquids and low flow gas heating.Flange immersion heaters are constructed of hairpin bent tubular heater elements brazed or welded into ANSI standard flanges or plate flanges of various shapes and sizes. ANSI flange heaters are typically used for large volume, high power and/or higher pressure applications. Plate flange heaters are typically custom designed for use in smaller pieces of equipment such as boilers and chillers.
There are two connections, one thread connection, commonly used specifications size G1,G1 -1/4'',G1-1/2'', G2'' ,G1 / 2--2 inch, the second is the flange connection. Also known as the flat flange connection . Common specifications size DN50mm - DN300mm, flange electric tube flange commonly used materials are brass, stainless steel, 10 steel, pipe material commonly used 10 steel, stainless steel, copper. Common specifications, 1.5KW, 3KW, 6KW, 9KW , 12KW, 15KW, 30KW to 500kw, etc. Used for electric water boilers, electric boilers, solar energy systems, solar water tanks, chemical pools, baths, swimming pools and other places to be heated.
Rating | 220V,380V/1KW-24KW |
Pipe Material | Stainless steel or Incoloy 800,840 |
Type | Industrial heater |
Diamenter | pipe:8mm to 16mm |
Screw material | Follow spec custom |
Resistance wire | 0Cr25A15,CrNi8020 |
Terminals | Screw with nut or Cable |
Color | white |

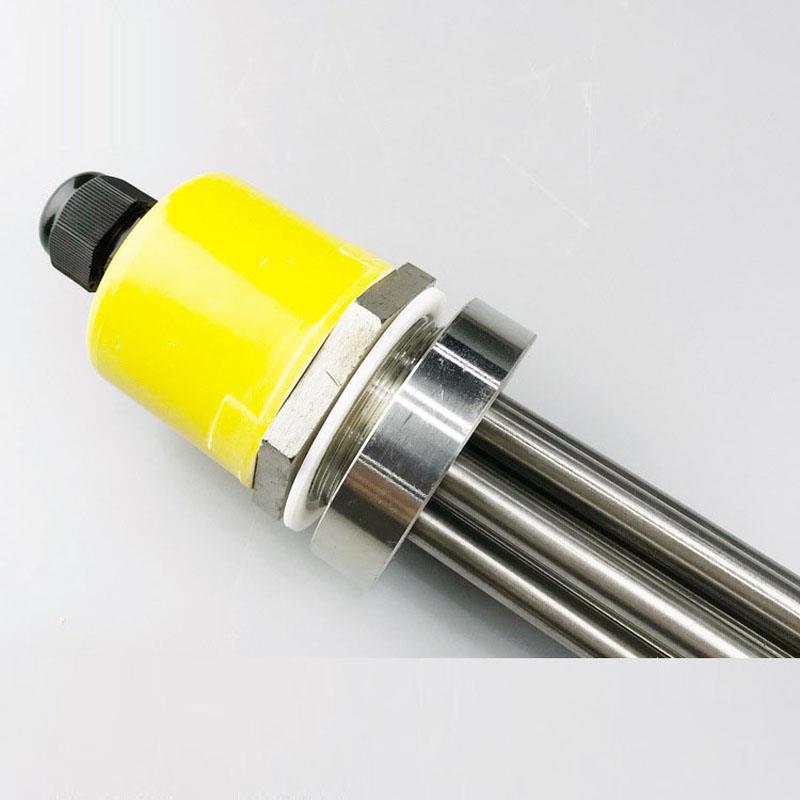

Products show

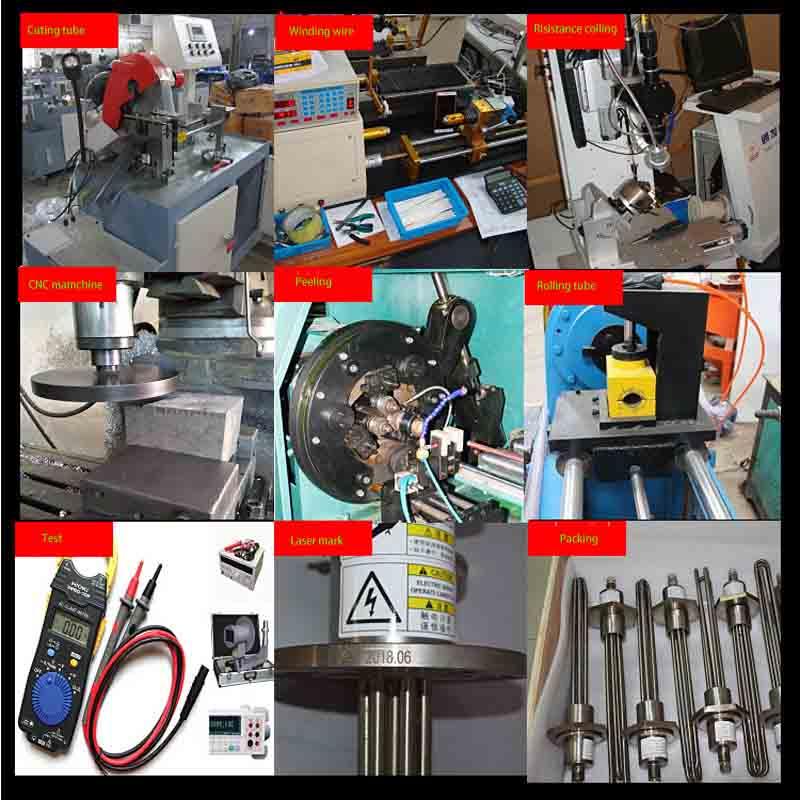

How to produce this Immersion heaters
Quality control test room
After-sales service:
1. We offer 12 months warranty.
2. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
3. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
4. Service Center all over the world for after sales problems.
5. Various operation instructions such as: products inspect and control, Receiving inspection control, sampling inspection operation instruction, process quality inspection operation instruction etc
6. Pre-sale service and free consultation service.
7. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
FAQ
1. Q: Have your sale team and service team for you company?
A: Yes, we have sales team and service team, also we have technology D&R team, for service our clients
2. Q：Do you company have the website?
A: Yes, we have two website: www.suwaie.com and www.suwaieheater.com
3. Q: What products can supplier?
A: We can supply all industrial heaters, heating element machinery, raw material and spare parts for heating elements. thermocouples and parts
4. Q: Who we are?
A: We are professional heater manufacturers,since 2007. Local in Shenzhen China, Shezhen Suwaie Technology Co.,LTD.
