Tubular Electric Heating Element
Specification
Product nama | Industrial tubular heating element |
Tubular heater diameter | 6mm,8mm,9mm,10mm and so on. |
Resistance wire | NiCr8020 |
Voltage | 220V |
Insulation resistance | ≥50M Ohm |
Leakage current | ≤0.5mA |
Length tolerance | ±0.5mm |
Wattage tolerance | +5%, -10% |
Input voltage | 12V, 24V,110V,220V,240V |
Material | Stainless steel, steel, copper |
color | White |
Product Application
1.Plastic Processing machinery.
2.Water and Oil Heating Appliances.
3.Packaging machinery
4.Vending Machines.
5.Dies and Tools.
6.Heating Chemical Solutions.
7.Ovens & Dryers
8.Kitchen equipment
9.Medical equipment
How to choose the right Material for the heater?
Copper Sheath | Water heating, water solutions non-corrosive to copper. |
Stainless stell sheath | Immersion in oils, molten salt baths, alkaline cleaning solutions, tars and asphalt. Also suitable for clamping to metal surfaces and casting into aluminum. Corrosive liquids, food processing equipment. Stainless steel 304 is the normal material. |
Incoloy Sheath | Air heating, radiant heating, cleaning and degreasing solutions, plating and pickling solutions, corrosive liquids. Usually for high temperature. |
itanium tube | corrosive environment. |

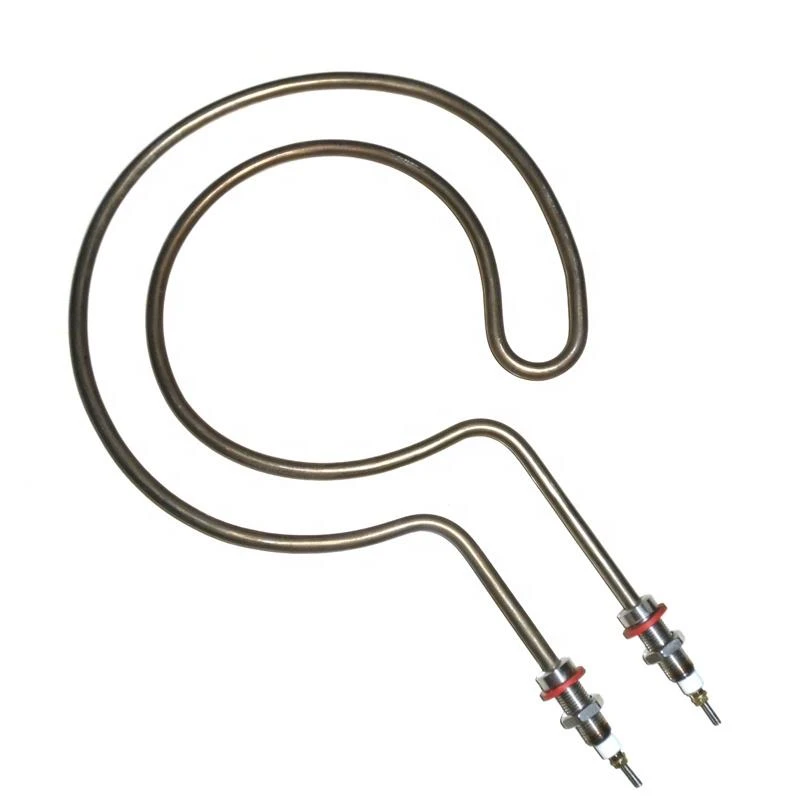

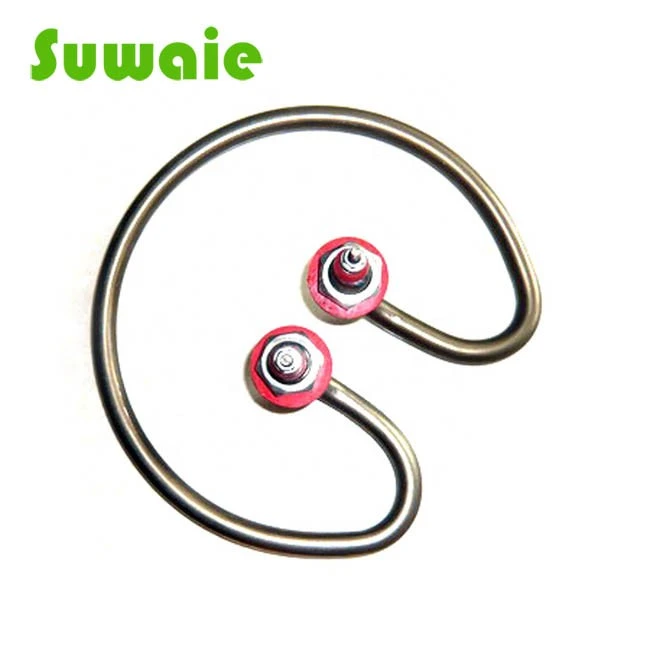

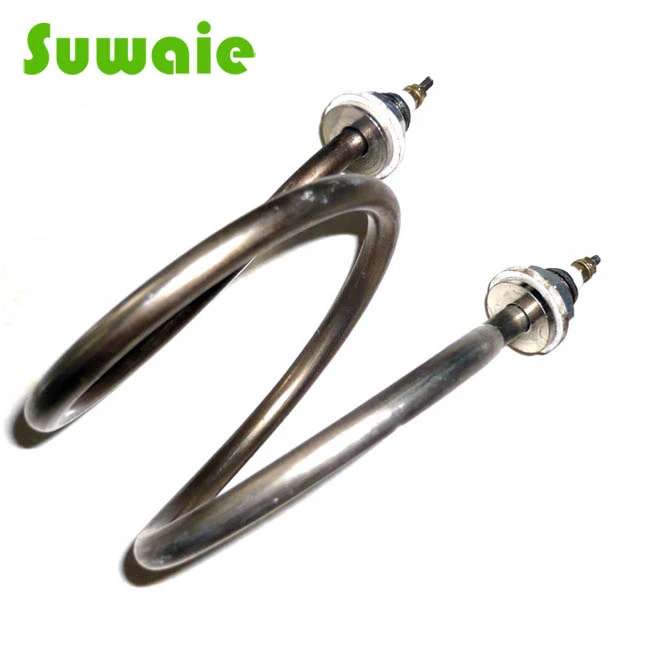

Industrial electric tubular heater picture show
How to produce the tubular heater? Tubular heating element machinery show
Test room show
Packing details
Shipment ways
Our Advantage:
1.Competitive price.
2.Continuance service and support.
3.Diversified rich experienced skilled workers.
4.Custom R&D program coordination.
5.Application expertise.
6.Quality,reliability and long product life.
7.Mature,perfect and excellence,but simple design.
FAQ
1.
Q: How can I get the quotation?
A: We will submit the quotation in 8 hours if getting detailed information during working days.
In order to quote for you earlier, please provide us the following information together with your inquiry.
1). Detailed drawings (CAD/PDF/DWG/IGS/STEP/JPG)
2). Material requirement
3). Surface treatment
4). Quantity (per order/per month/annual)
5). Any special demands or requirements, such as packing, labels,delivery,etc.
2.
Q: How is the next ?
A: We will send the cost to you and get your confirmations for the quote;
3.
Q: How to Place an order?
A: Kindly pls send us you order by email, we will confirm the PI with you. we wish to know the followings: Delivery information-company name, address, phone/fax number, destination, transportation way; Product information :item number, size, quantity, or any requirements, etc.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Tubular Electric Heating Element. Our company has professional equipment and engineers to provide the production and service of Tubular Electric Heating Element.
