Tubular Heating Elements
Product details：
We are professional electric heating element manufacturer in China.The production that have advantage of long time ,heating fast, have been widely using in water heater industry etc. It is possible to customize various style production what you like as your location marketing.
Tubular heating element use consolidated and established technologies utilizing a spiral of resistive wire immersed in MgO compressed and protected by a metallic sheath.
Tubular heating elements after annealing can be shaped to many geometries depending on the heating needs and foot print available.
Specification
type | Coil Tubular heater |
Power Source | Electric |
Condition | New |
Brand name | SUWAIE |
Certification | ISO9001,CE |
Power | 200W-10KW |
Tube diamater | 6-20mm |
Voltage | 100V,220V,240V,380V |
Tubu material | Stainless steel 304/ SUS321/310/316L/Incoloy800,840 |
Appication | Water heater, oil heater, tank heating, air heating |
Features
Hi-Pot Test | 150V/S min cold condition |
Insulation resistance | 50M ohm |
Leakage current | <0.5MA |
Power tolerance | +5%,-10% |
Heating resistance wire | Cr20Ni80,0cr25Al5 |
Diameter tolerance | +-0.1 |
Max Temperture | 750 degree |
Tube diameter | 6.6mm |
Tubular heater Unique Feature:
1. Long life
2. Rapid Heating
3. Safety, environmental protection
4. Easy installation.
5. Low cost with long service life and high efficiency.
6. It is customizable include shape,surface,specification etc.

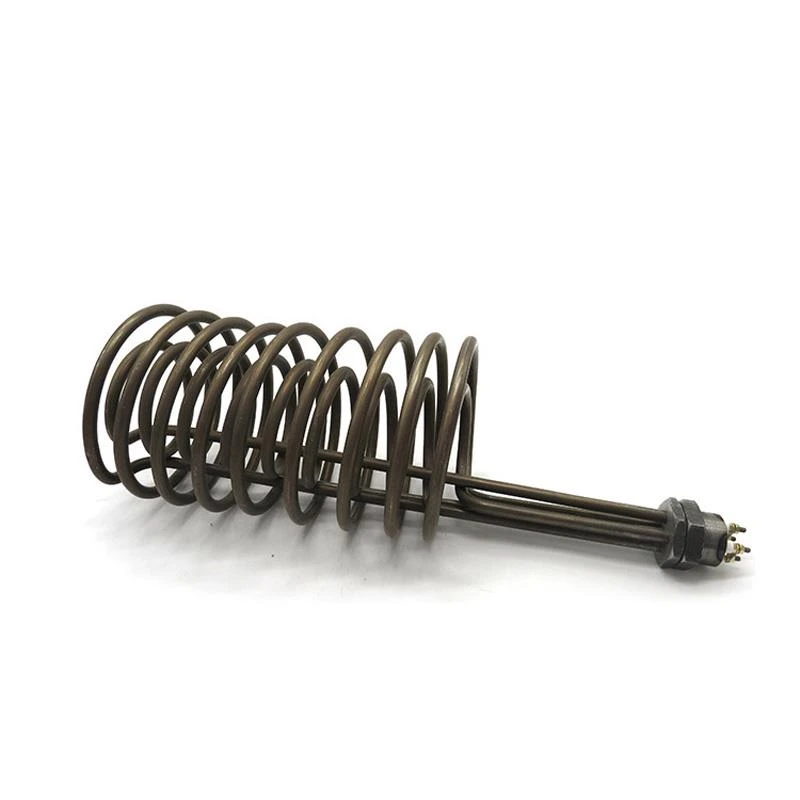

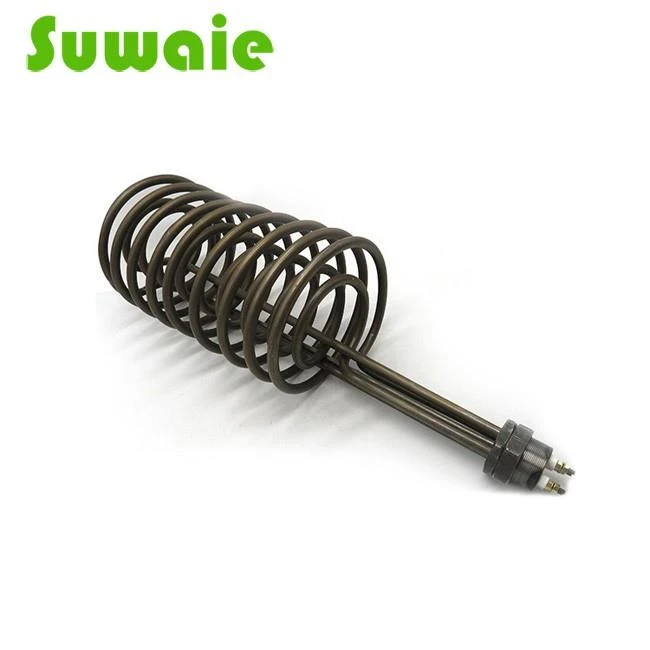

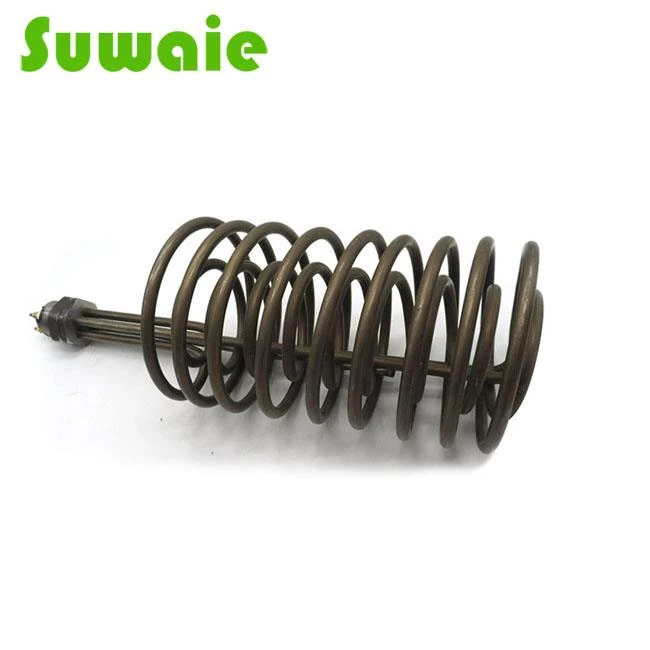

Industrial electric tubular heater picture show
How to produce the tubular heater? Tubular heating element machinery show
Test room show
Packing details
Shipment ways
Pre-sale
(1) Instruct customers to choose the most suitable electric heating element.
(2) Designing electric heating components and electric heating equipment for customers free of charge, seeking an ideal solution.
(3) The products can be designed and manufactured according to the special requirements of customers.
Sale
(1) Strict inspection before leaving the factory.
(2) Organize shipments in accordance with the contract.
FAQ
1.
Q:How can you ensure the HEATING ELEMENTS product quality?
A: Before shippment, all the HEATING ELEMENT have aging test. And then we also have Withstand voltage test and Insulation resistance test, ensure products can transportation safety and normal use.
2.
Q: Can you give me a discount price?
A: It is dependng on the quantity. The larger the quantity is, the more discount you can enjoy.
3.
Q:Is there cheap shipping cost to import to our country?
A: For small order,express will be best, for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest by express, big quantity by air.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Tubular Heating Elements. Our company has professional equipment and engineers to provide the production and service of Tubular Heating Elements.
