These flexible ceramic pad heaters are designed for most preheat and post heat treatment (stress relieving) requirements on weld joined materials. They can be used to construct a simple, inexpensive furnace when combined with the proper insulation as well as in many other applications where a flexible heater is required.
Flexible ceramic pad heating elements operate on low voltage (80 volts or less on AC or DC current) such as that supplied by a typical arc welder. They are designed for repeated heating applications. Their modular design permits a variety of element shapes, sizes, and thermal capacities to choose from. They can be used bare (as supplied) or with the application of rigid or flexible insulation to retain heat and speed up the heat treating jobs.

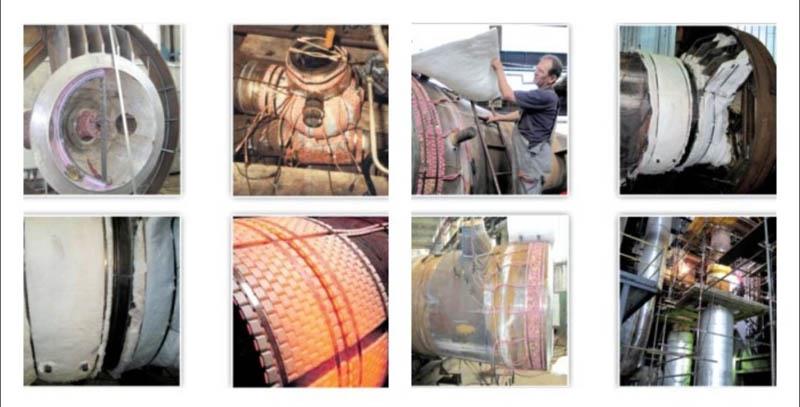

Applications
1) Preheating treatment
2) Post-heating treatment
3) Heating of tubes
4) Heating of vessels
5) Heating of container
Specifications:
Insulation: Aluminium Oxide Ceramics (95%)
Heating Conductor: Ni-Cr wire(Cr20Ni80), 19 single strands of 0.55mm wire or 37 single strands of 0.4mm wire.
Temperature: Max. 1050 C
Power: 2.7KW/3.6 kW
Voltage: 60V/ 80V
Amperage: 45A
Features:
1. High Temperature Resistance
2. Excellent Insulating Property
3. Efficient Thermal Conductivity
4. Significant Energy-saving

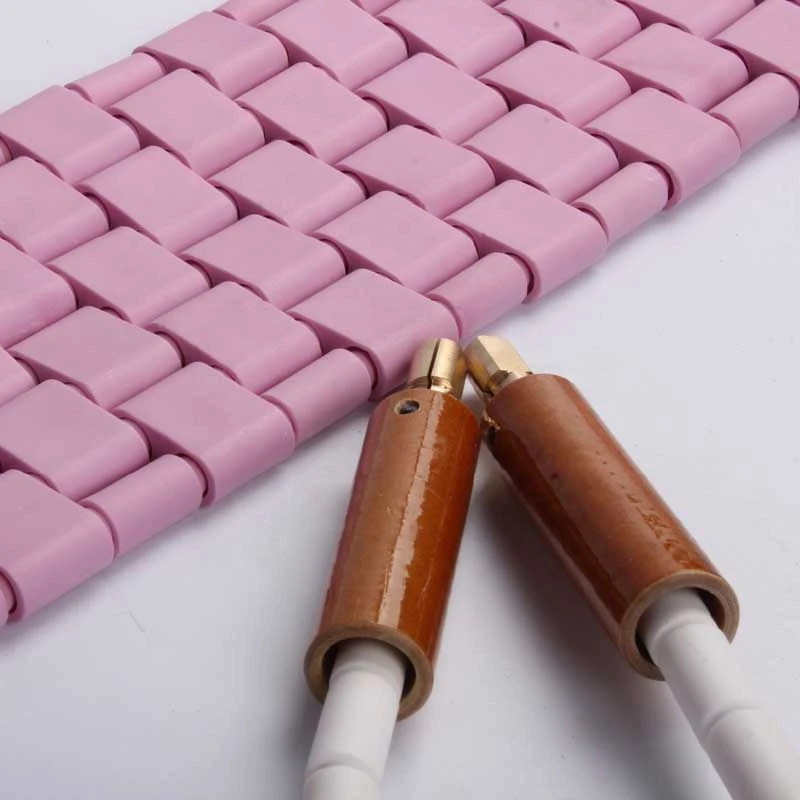

5. Flexible Ceramic Heater Pad

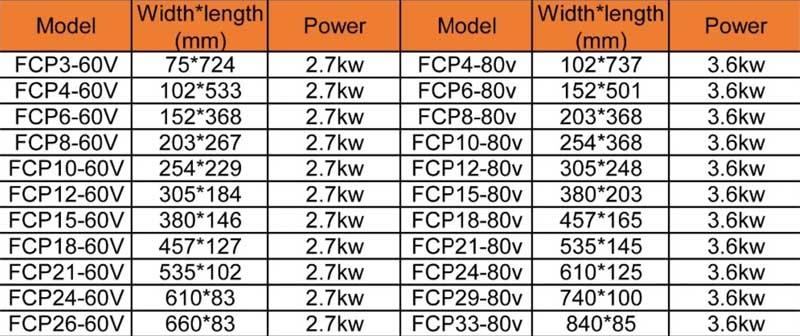

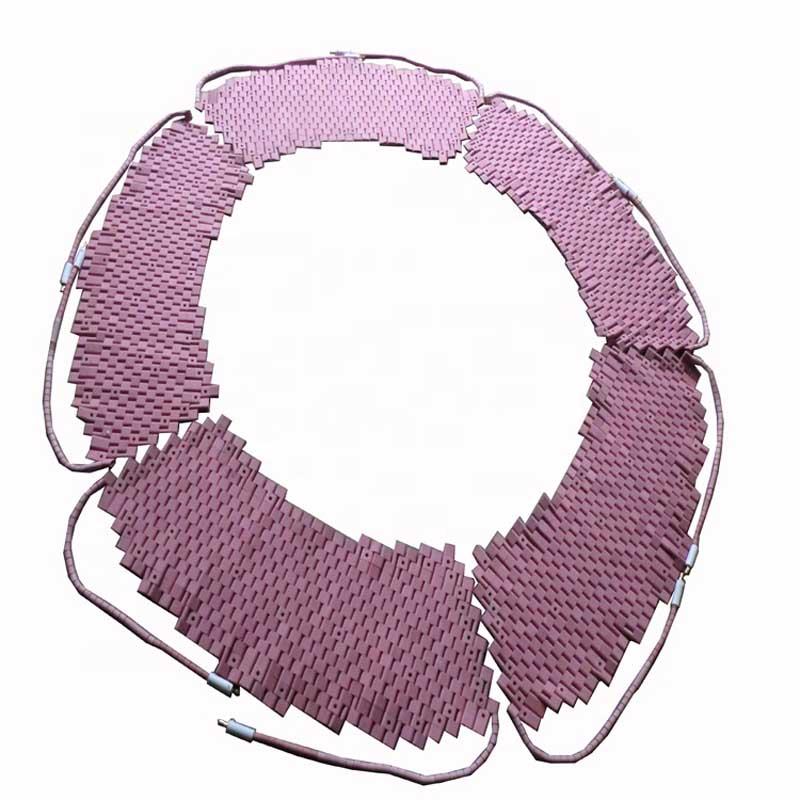

Products and FCP Heater size show

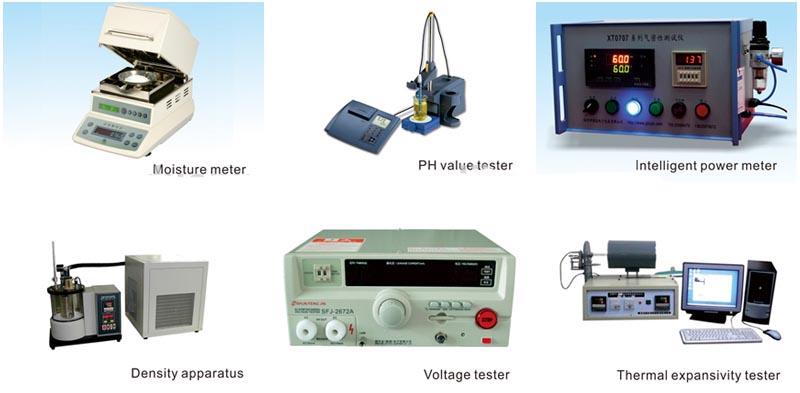

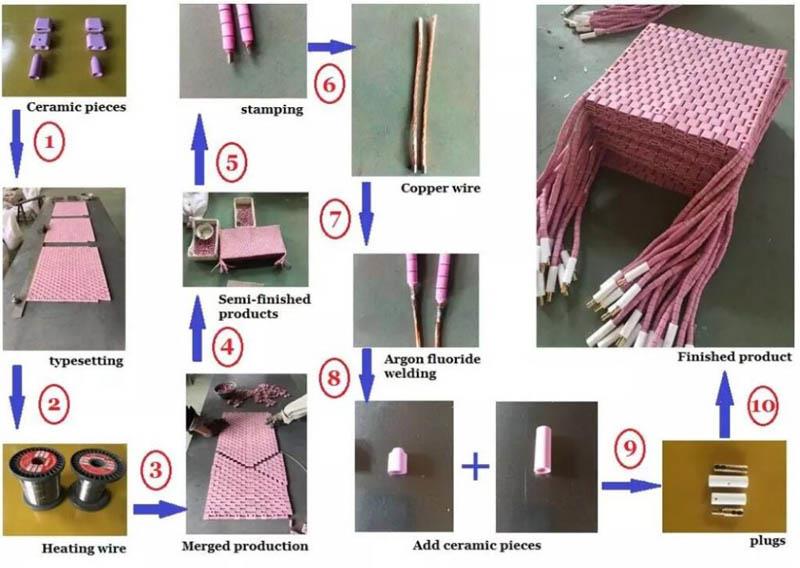

Process and test show

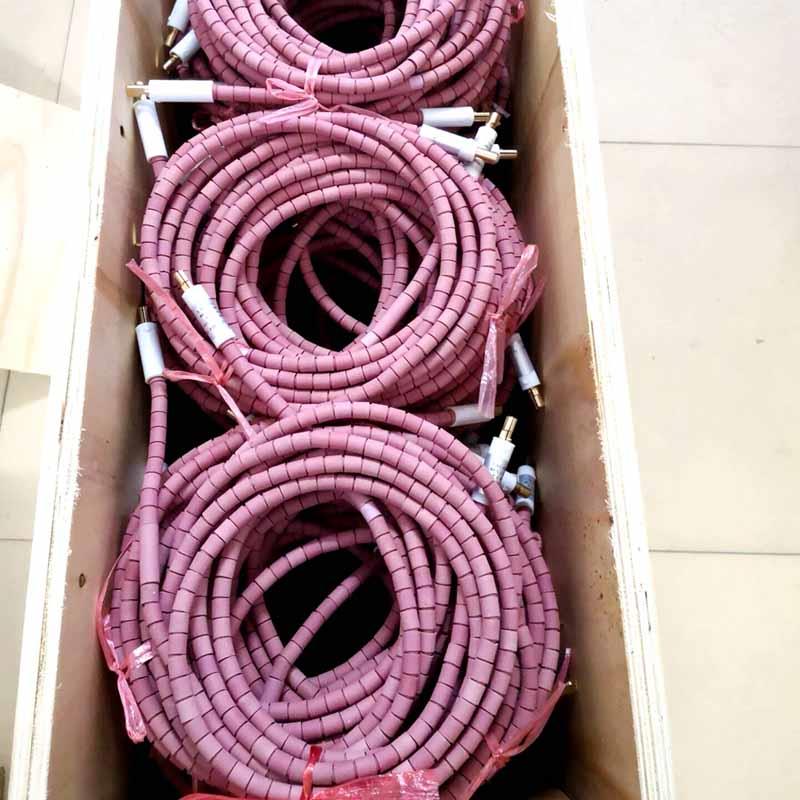

Packing and shipment
Our advantages:
a) Manufacturer, in house mould design and assembly, competitive price.
b) 10 years’ of experience working with OEM's various materials
c) QC:100% inspection
d) Confirm sample: before start mass production we will send the pre-production samples to customer for confirmation. We will modify the mould until customer satisfied.
e) Small Order Allowed
f) Strict QC and high quality.
g) Highly skilled manufacturing process
h) A broad variety of OEM product range
FAQ
1. Q: Will my drawings be safe after sending to you?
A: Yes, we will keep them well and not release to third party without your permission.
2. Q: How to handle the complains?
A: 1) During processing, if found any sizes defective, we will inform the clients and get clients approval.
2) If happen any complaints after got the goods, pls show us photos and detail complaints points, we will check with the production department and QC depart. Immediately and give solving solution with 6 hours.
3. Q: How can I get some samples?
A: We don't provide free one, but we will minux the extra price when you reorder with the suitable quantity.
4. A: Can we design our own package or print our own logo?
Q: Yes! Package and logo will be made acording to your requirements.
