Ceramic Infrared Radiant Emitters have a cast-in nichrome resistance wire operating at temperatures between 300 and 750oC. The glazed ceramic surface protects it from oxidation or corrosion. The ceramic element is manufactured to optimise its ability to transform the energy to improve its efficiency and reliability.
Applications
In Thermoforming & Vacuum Forming Machines
In PVC Pipe Belling / Socketing Machines
In Hot Stamping Machines
As Heat Therapy Equipment
In Shrink Packaging
Features
Dimension: | 240 x 60, 240 x 80, 120 x 120, 120 x 60, 60 x 60 etc. |
Dimension: | Dimension: 240 x 60, 240 x 80, 120 x 120, 120 x 60, 60 x 60 etc. |
Shapes: | Trough, Hollow and Flat |
Insulation Material: | Ceramic |
Conductor Material: | Nichrome Wire |
Voltage: | 220 volts, 380 volts, 110 volts |
Wattage: | 250 watts - 1000 watts |
Lead Connection: | Ceramic Bead Lead Wire 150mm |
Thermocouple: | Optional, K or J Type |
Operating Temperature: | 300C - 700C |
Recommended Radiation Distance: | 100mm - 200mm |

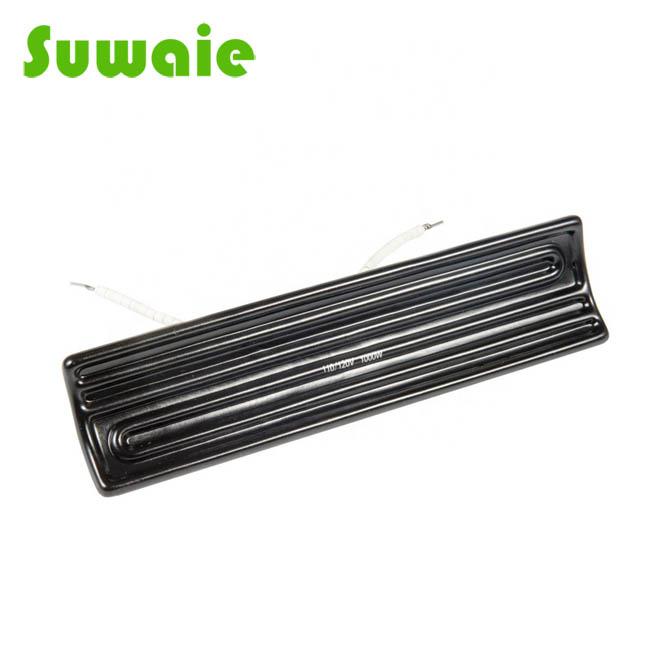

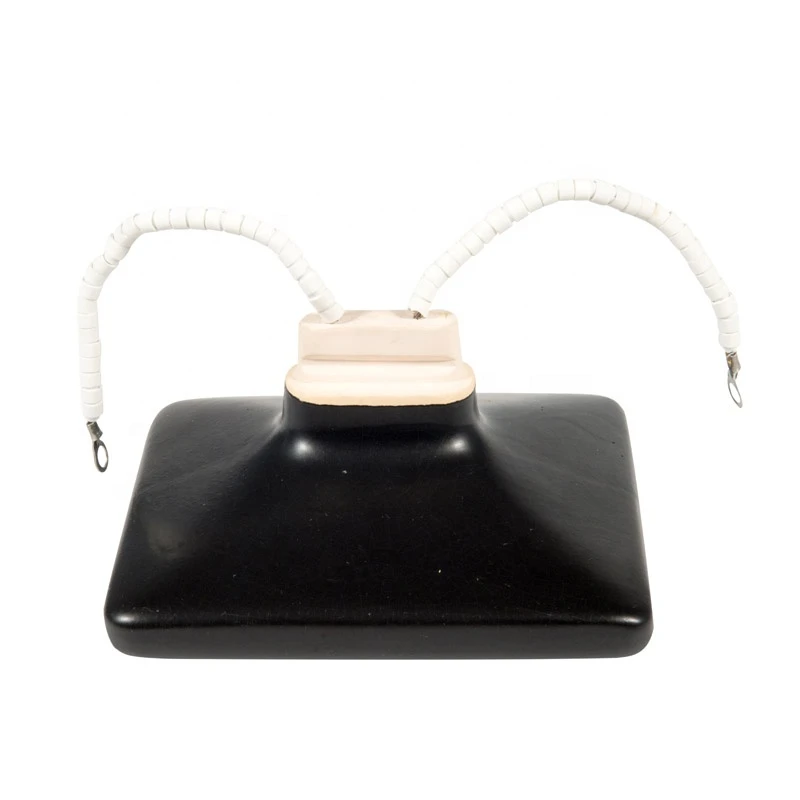

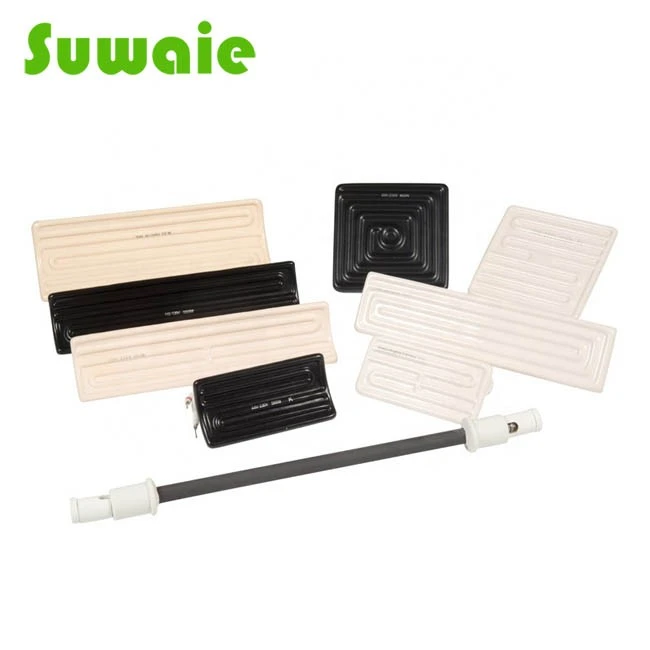

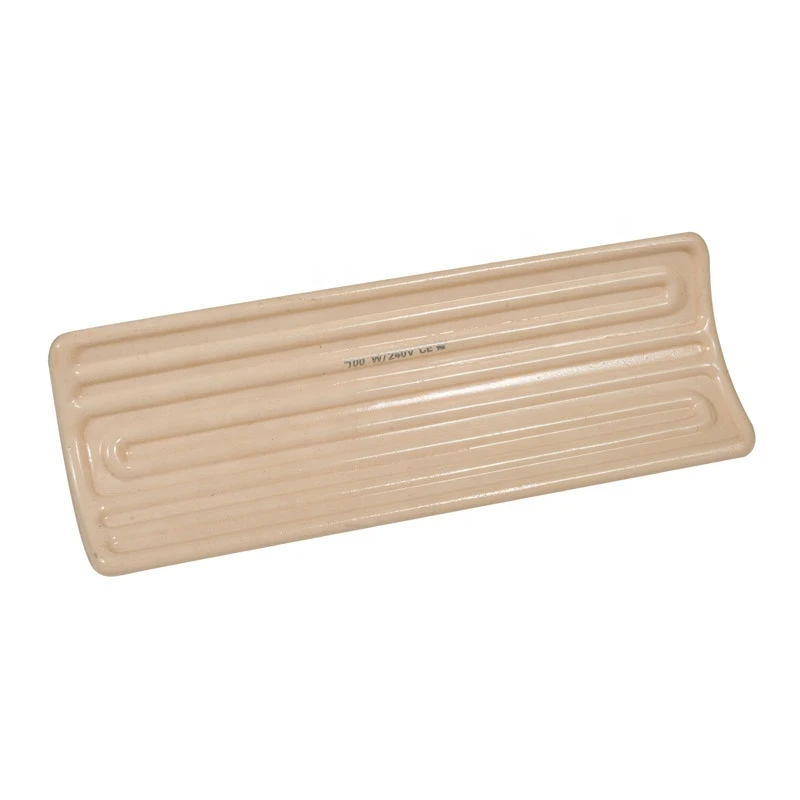

Products show

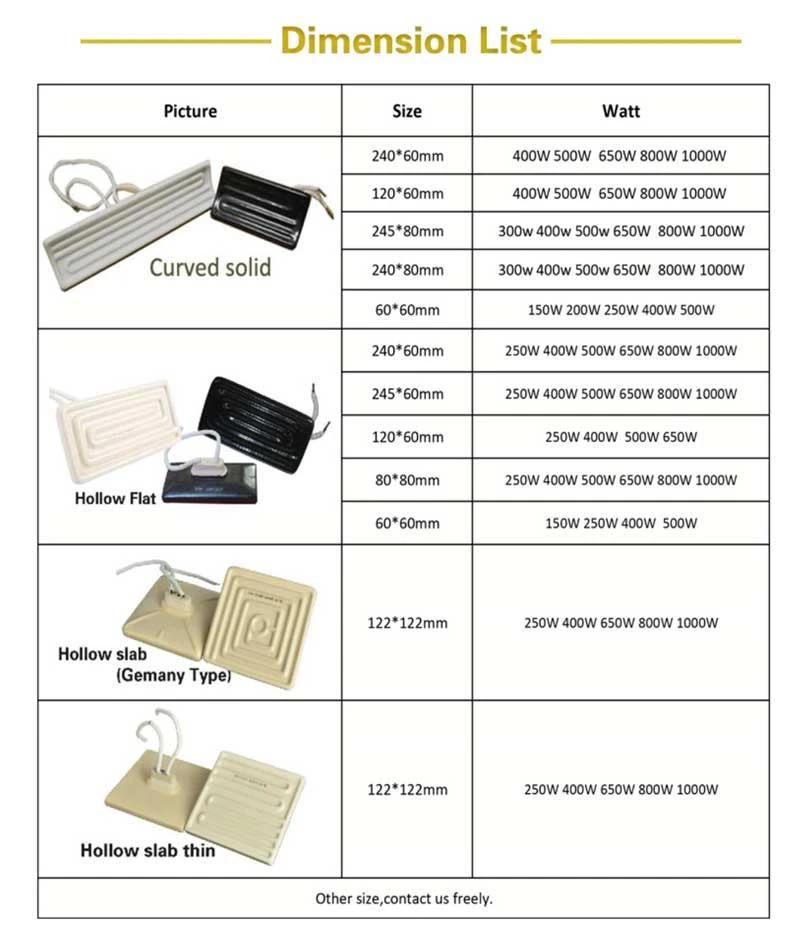

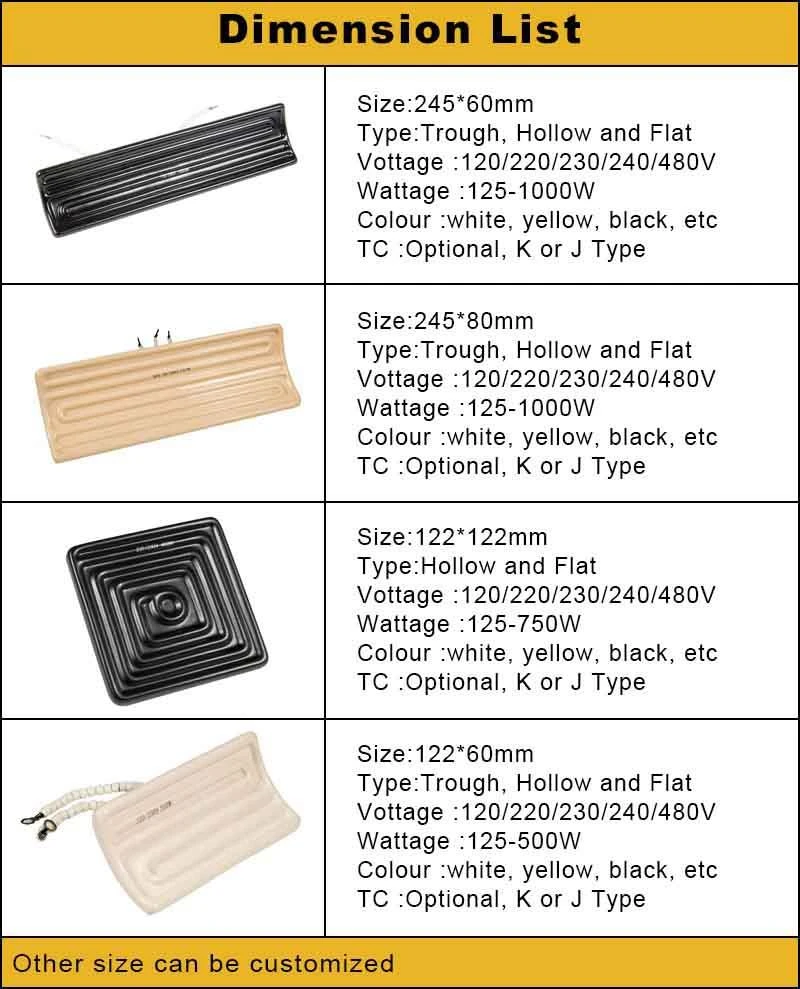

Size listing show

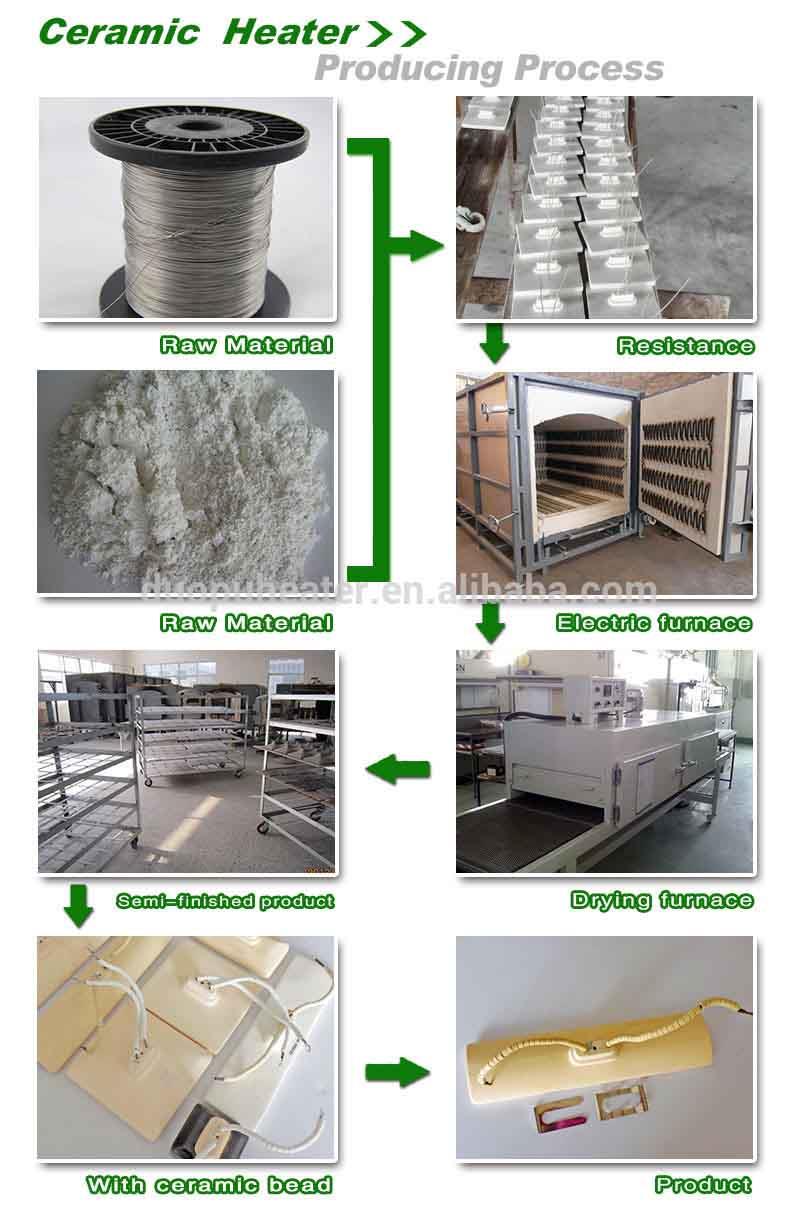

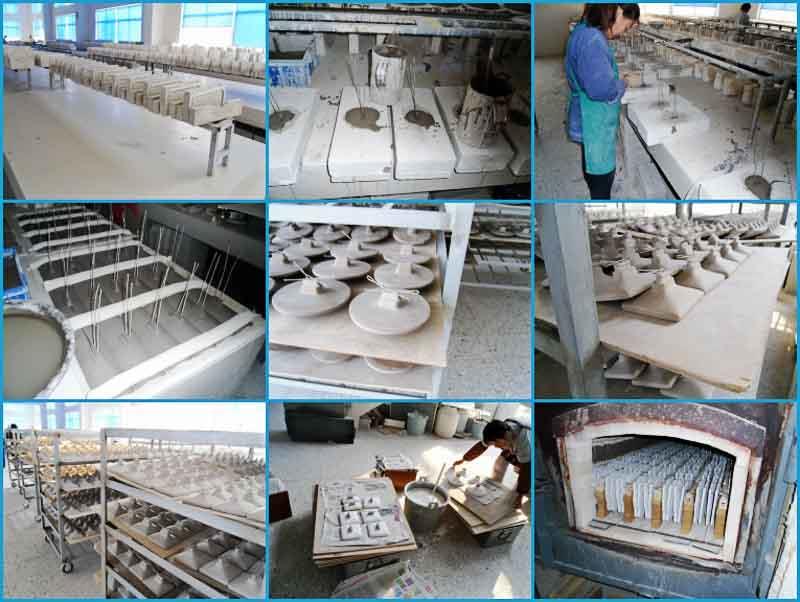

Process show

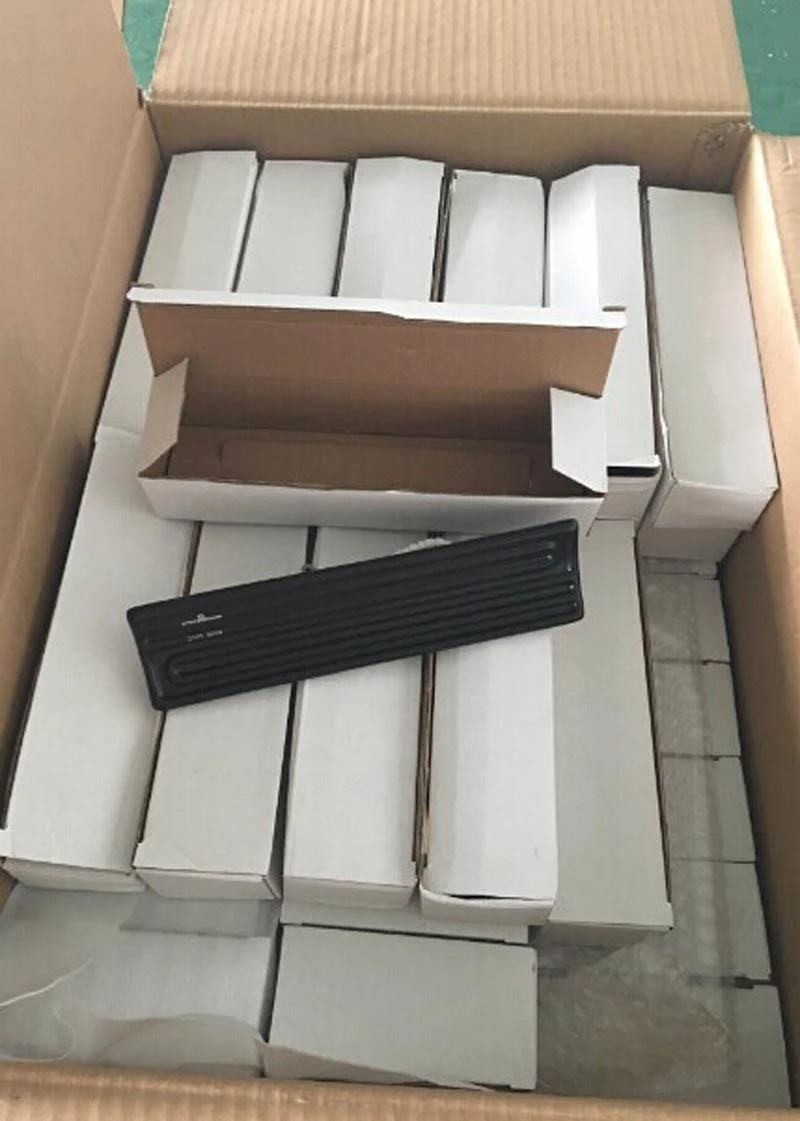

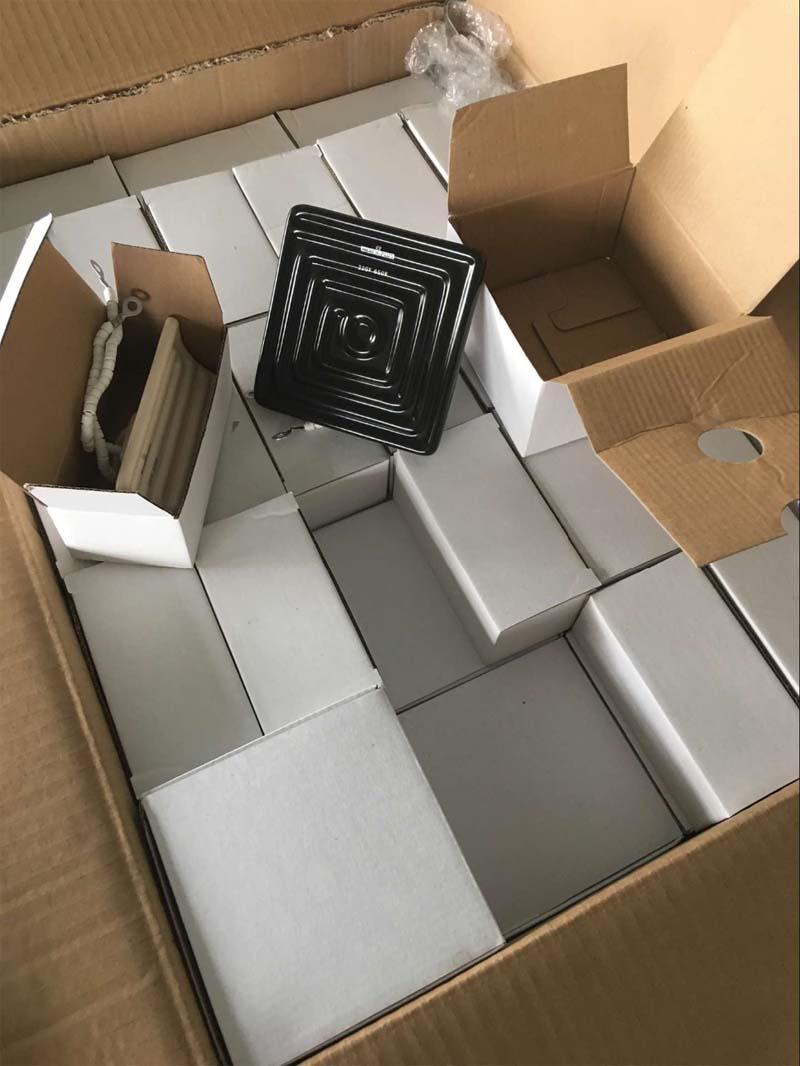

Packing and shipment show
Our Advantage:
1. Competitive price.
2. Continuance service and support.
3. Diversified rich experienced skilled workers.
4. Custom R&D program coordination.
5. Application expertise.
6. Quality, reliability and long product life.
7. Mature, perfect and excellence, but simple design.
FAQ
1. Q: How do you ship the goods and how long does it take to arrive?
A: Airline and sea shipping also optional. Shipping time depends on distance.
2. Q: What is your term of delivery ?
A: EX-WORKS, FOB,CIF,C&F,DDP,DDU , etc
3. Q: What is your production capacity?
A: 50000pcs per DAY
4. Q: How to transport my products?
A: If the goods is less than 200kg, we suggest to use express delivery. We have long-term cooperation with FedEx/DHL/UPS and enjoy much discount. If the goods are more than 200kg, we can arrange shipment as per customer’s requirements.
