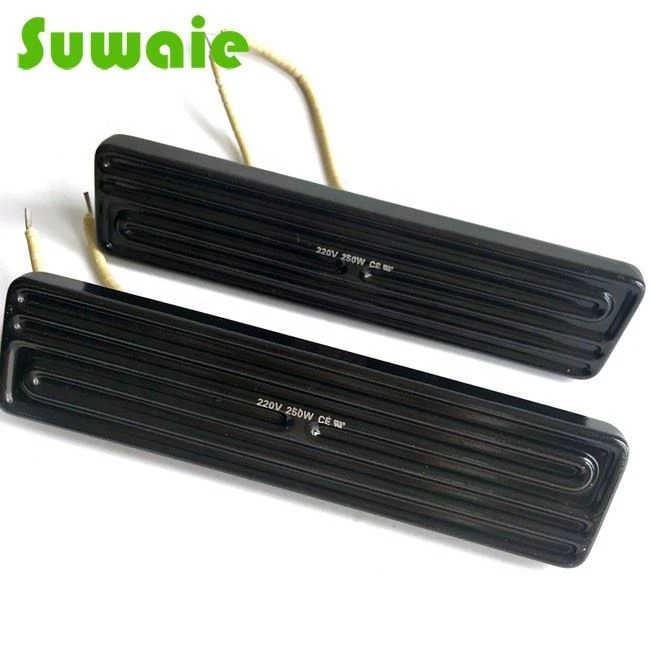

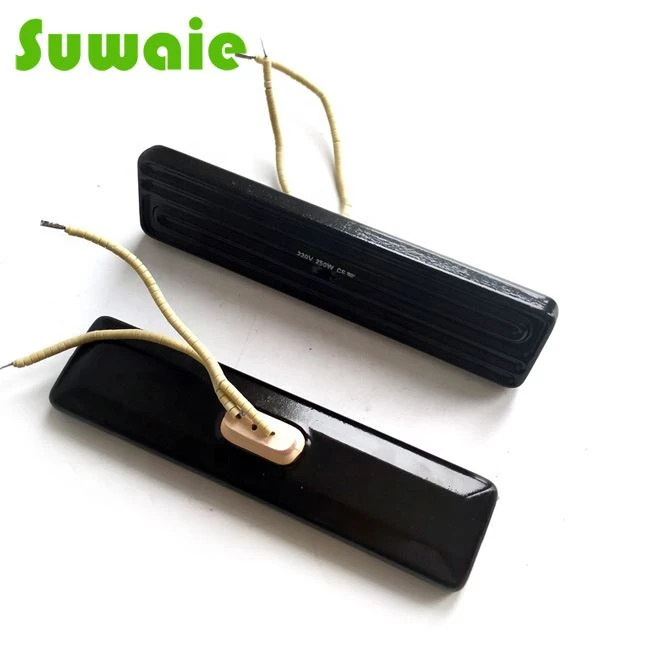

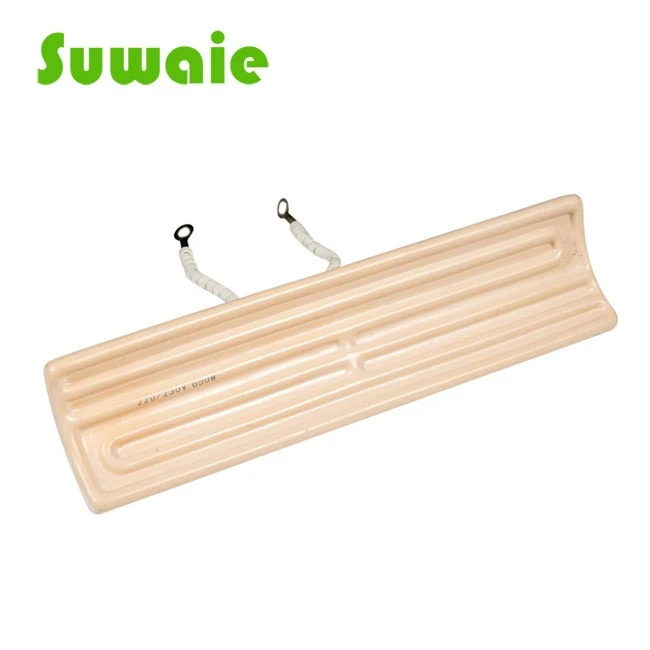

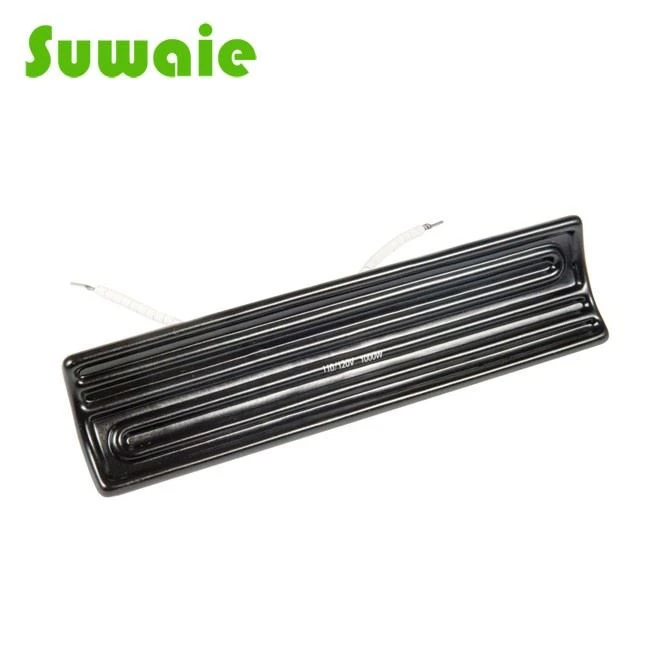

Curved Rectangle Ceramic Infrared Heater
Instruction
Curved Rectangle Ceramic Infrared Heater by high-temperature heating wire with high quality and high strength, high temperature resistant porcelain splice and become, according to the requirements of special process in the length direction is arbitrary bending properties. Can be widely used in various industrial field heat treatment equipment, parts, all kinds of metal container, pipeline drying, heating temperature, all kinds of die, die of high temperature heating, etc.
Key Specifications/Special Features:
a) Size: 292*92, 245*60, 122*122, 122*60, 60*60mm
b) Colors: white, black, red and yellow
c) Kanthal wire
Ceramic infrared heater is made out of high alumina ceramic material
1. Radioactive properties: maximum monochromatic radiation components reached 0.9, normal total radiation rate is greater than 0.83
2. Thermal response time: from room normal temperature to constant value of the radiant panel surface temperature less than 20 minutes
3. Degeneration of hot and cold resistance: five alternating hot and cold test of no peeling, no cracking
4. Radiating temperature in homogeneity: ≤ 15%
5. Power error: rated working voltage ≤ 5%
6. Cold insulation resistance: 500V megger> 2mΩ
7. Thermal insulation resistance: 500V megger> 0.5mΩ
8. Use life> 3000 hours
How to produce the ceramic infrared heater?
Test room show
Packing details
Shipment ways
Quality Control:
1) Technicians self-check in production
2) Engineer spot check in production
3) QC inspects after mass production finished
4) International sales who were trained the technical know-how spot check before shipping
FQA
1，
Q: Where are the main markets for sales?
A: Mainland China, UK, Thailand, Turkey, Canada, Mexico, Brazil, Argentina, Chile, India, Vietnam, Colombia, Malaysia, Australia, etc.
2，
Q: I Want to Keep Our Design in Secret,Can We Sign NDA?
A: Sure! We Will Not Design Any Customers' Design or Show to Other People, And We Can Sigh NDA.
3，
Q: Is small quantity available?
A: Yes, small quantity for trial order is available.
4，
Q:When can I get the price?
A: We usually quote within 2-3 days after we receive the RFQ or feedback within 2 days if any questions on prints need to be confirmed.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Curved Rectangle Ceramic Infrared Heater. Our company has professional equipment and engineers to provide the production and service ofCurved Rectangle Ceramic Infrared Heater.
