Product introduction
Construction and material of Infrared Ceramic Heater
Insulator: High thermal shock resistance ceramic material
Resistance wire: High quality Ni80Cr20
Glaze Layer: good radiation metal oxide materials with moderate additives to increase radiation intensity and enhance the suitability of the glaze.
Features
· Dimension: 245 x 60, 245 x 80, 122 x 122, 122 x 60, 60 x 60 etc.
· Shapes: Trough, Hollow and Flat
· Insulation Material: Ceramic
· Conductor Material: Nichrome Wire
· Voltage: 110-440volts
· Wattage: 150 watts - 1500 watts
· Lead Connection: Ceramic Bead Lead Wire 150mm
· Thermocouple: Optional, K or J Type
· Wavelength: 2 - 10 um
· Operating Temperature: 300C - 700C
· Recommended Radiation Distance: 100mm - 200mm
Size(mm) | Type | Power |
60*60 | Curved/flat/Hollow | Available in 125w and 250w |
122*60/120*60 | Curved/flat/Hollow | Available from 125w to 500w |
122*122/120*120 | Curved/flat/Hollow | Available from 150w to 750w |
245*60 | Curved/flat/Hollow | Available from 150W to 1000w |
245*80 | Curved/flat/Hollow | Available from 150w to 1500W |

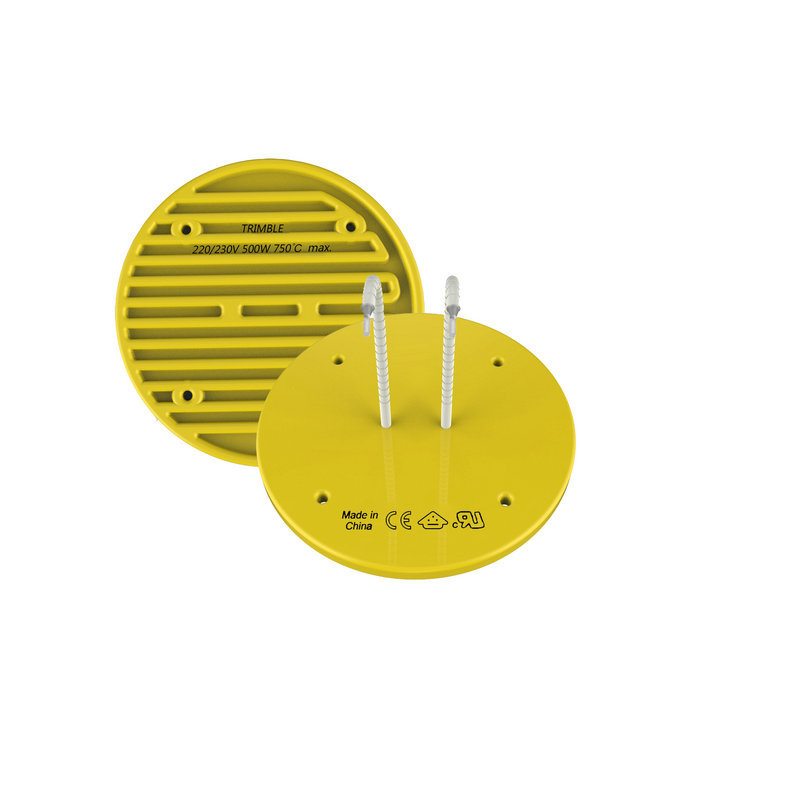

Product show
What benefit we can get from you?
1) Competitive price
2) High quality control : 100% full inspection before shipment
3) High precision, tolerance can be ± 0.005mm
4) Fast lead time (5-7days for samples, 7-30 days for mass production)
5) Non-standard//OEM//customized service provided
6) No MOQ, small QTY is acceptable.
7) ISO 9001:2003 and ISO13485:2008 certificated factory, ROHS material used
8) Professional export packing: Carton+Wooded Case, keep no scratch and damage
