Quartz Ir Heater
Stable Electrical Performance
After being energized, the carbon fiber quartz electric heating tube radiates infrared energy that can heat the material. The infrared radiation of the far-infrared radiant heating lamp has a wavelength of 4~16μm (medium wave). It is mainly used for high-infrared heating technology to heat the workpiece with high density, high energy and high-intensity radiation. It is suitable for modern production process with high output and high quality. Requirements: During frequent start-up, shutdown and long-term continuous operation, the power is stable within a certain tolerance range and does not generate any instantaneous power impact.
Technical Parameters:
- VOLT: 100, 110, 120, 220, 230, 240V
- WATT: 50-2500W
- Hz: 50-60 Hz
- Electricity saving ratio: 30%
- Infrared normal direction radiant ratio: ≥ 94%
- Electric heat transformation ratio: ≥ 98%
- Operating temperature: ≤ 1800 Celsius degree
- Highest heat temperature endured: 1100 Celsius degree
- Color temperature: 900-1500 Celsius degree
- Surface temperature: 500-900 Celsius degree
- Continuous servicing hour: 5, 000-8, 000H
Application Area:
- Health care & heating apparatus
- Drying equipment
- Cooking device
- Medical equipment
- Fry & baking equipment
- Brewage & fermentation installation
- Sterilizing device
Specification
Product nama | Quartz Heating Element |
Cartridge heater diameter | 8-20mm |
Power | 300W-2000W |
Voltage | 220V,380V |
Insulation resistance | ≥50M Ohm |
Leakage current | ≤0.5mA |
Length tolerance | ±0.5mm |
Wattage tolerance | +5%, -10% |
Input voltage | 12V, 24V,110V,220V,240V |
Material | Quartz |
Color | Transparent |

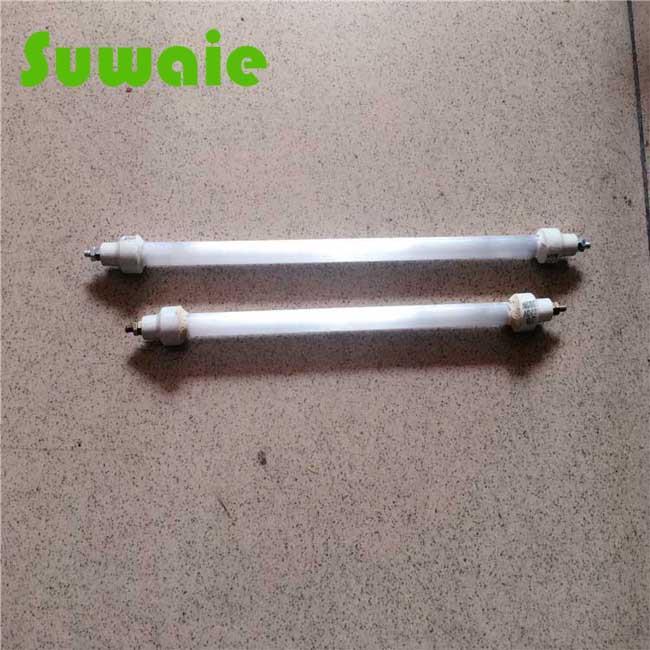

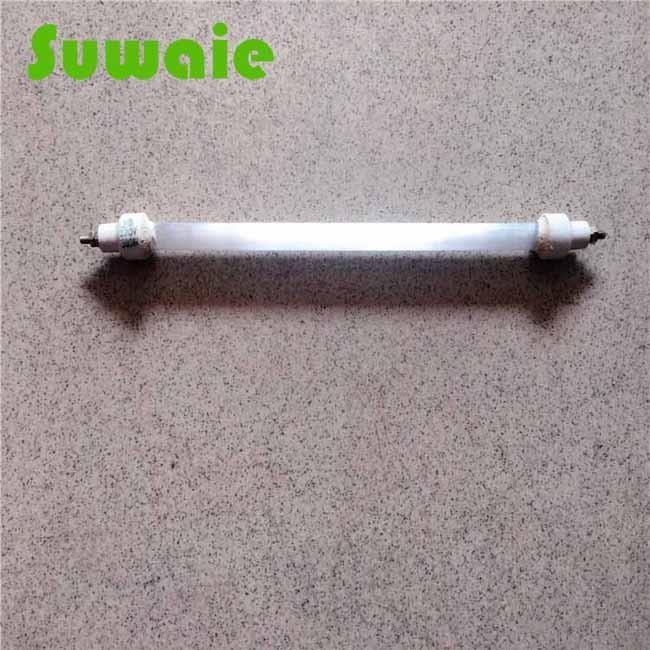

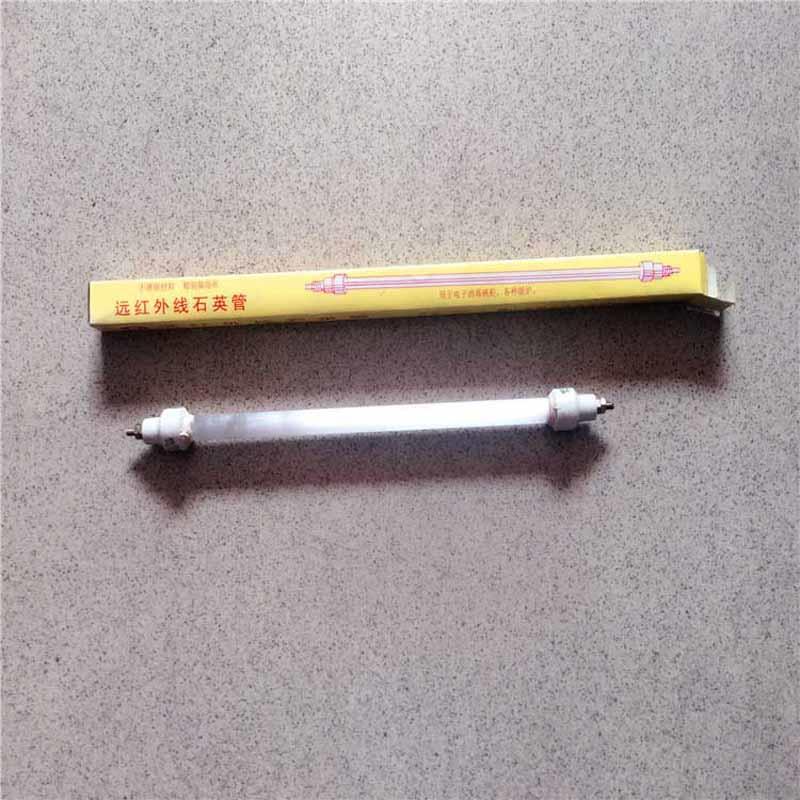

Product Show

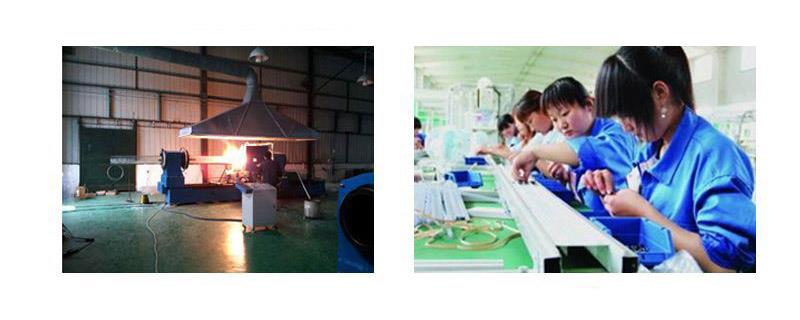

Working Produce Process
Quality Control Test Room
Packing Details
Shipment Ways
What Information Should I Let You Know Once I Want To Make A Inquiry?
1. The drawings ( PDF, CAD or 3D )?
2. The voltage, power, shape, tube diameter
3. The surface treatment requirement.
4. How many pieces do you need?
FAQ
1. Q: Will my drawings be safe after sending to you?
A: Yes, we will keep them well and not release to third party without your permission.
2. Q: Why is your price a bit higher than other Chinese suppliers?
A: We are focusing on manufacuturing high quality performance products in order to establish a long term and friendly cooperation with all customers.Our price maybe not the lowest, but our cost performance is the highest.
3. Q: How can I contact with you?
A: Leave a message on our website or sent an email to us, or call +86 15013695186 directly, we will reply you ASAP.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Quartz Ir Heater. Our company has professional equipment and engineers to provide the production and service of Quartz Ir Heater.
