Product introduction:
The temperature range of the silicone heater is between -60 ° C and 250 ° C. The standard thickness is 1.5 mm. The voltage can be customized according to the user's requirements. The highest power density is 12W / cm 2. The silicone rubber heating core has high resistance alloy wire and metal. Two kinds of foils, the electric heating core made of metal foil can make the heating sheet withstand high power density, and has excellent rapid heating function. The general use range is: 0.4~0.8W / cm 2 However, because of the installation and temperature according to the heating piece The difference in adjustment will vary, so please contact us when you choose.
Features:
1) Various shapes and sizes (such as round, oval, and vertebrae) can be customized according to customer requirements.
2) The insulating layer of the mechanical heating sheet is made of silicone rubber and glass fiber cloth. It has high insulation performance and the breakdown voltage can reach 20~50KV/mm, which can be used completely safely.
3) The mechanical heating plate is very convenient to install. It can be vulcanized and installed through room temperature vulcanized rubber. It can also be fixedly installed according to customer requirements or installed in bundle form.
4) The heating element is etched by alloy foil of nickel alloy, the heating power can reach 4W/cm2, and the heating is more uniform.
5) Technical parameters
1. Insulation material maximum temperature resistance: 250 °C
2. The maximum operating temperature: 250 °C
3. Insulation resistance: ≥1500 MΩ
4. Pressure strength: 3500v / s
5. Power deviation: ± 8%

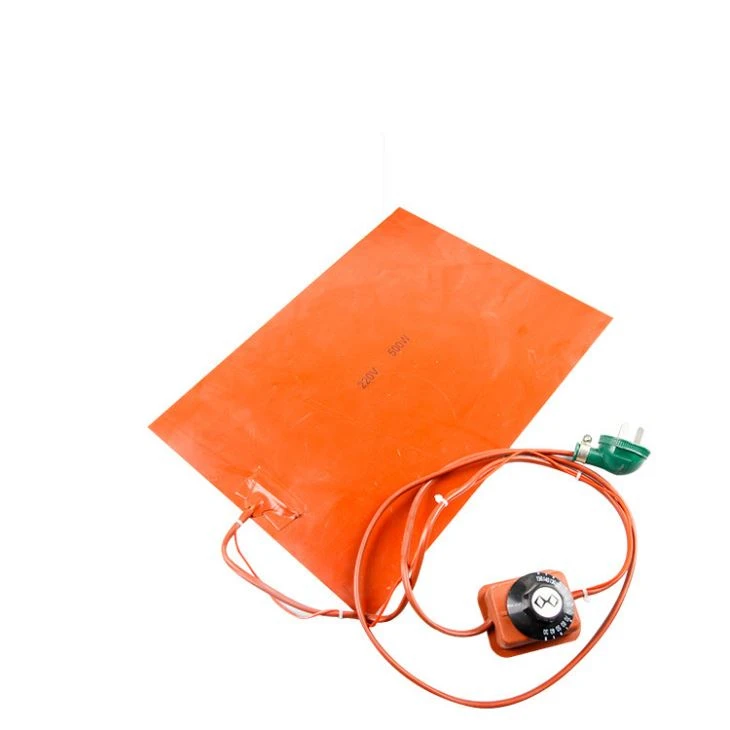

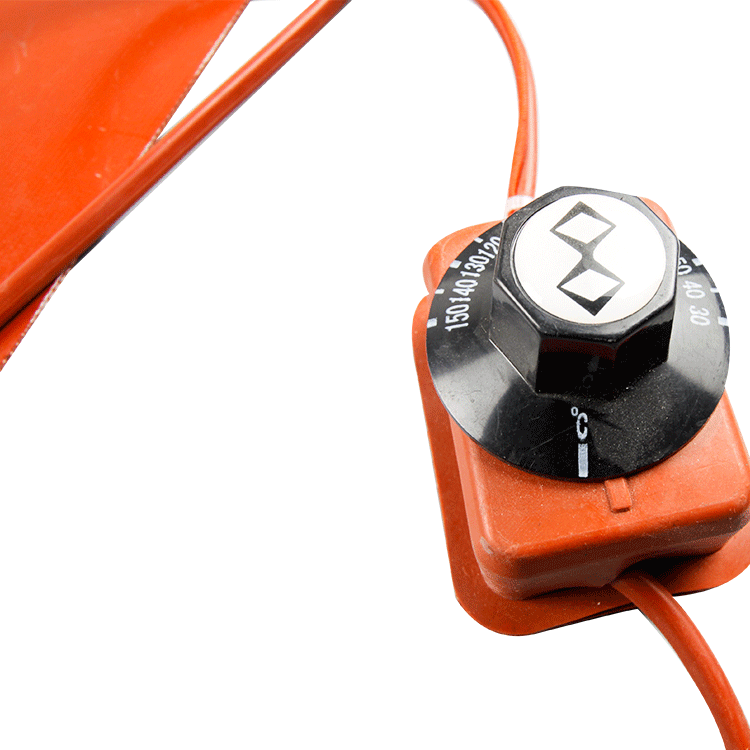

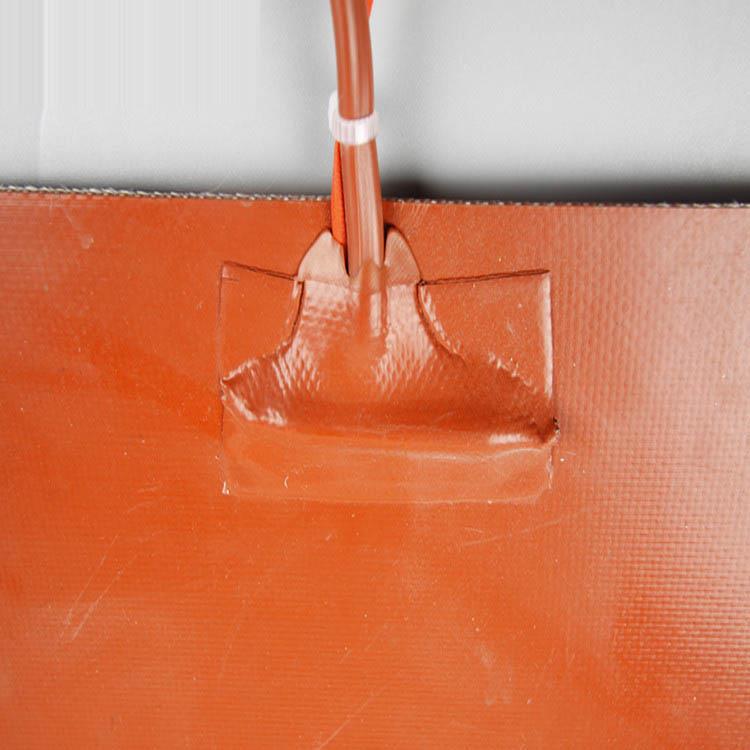

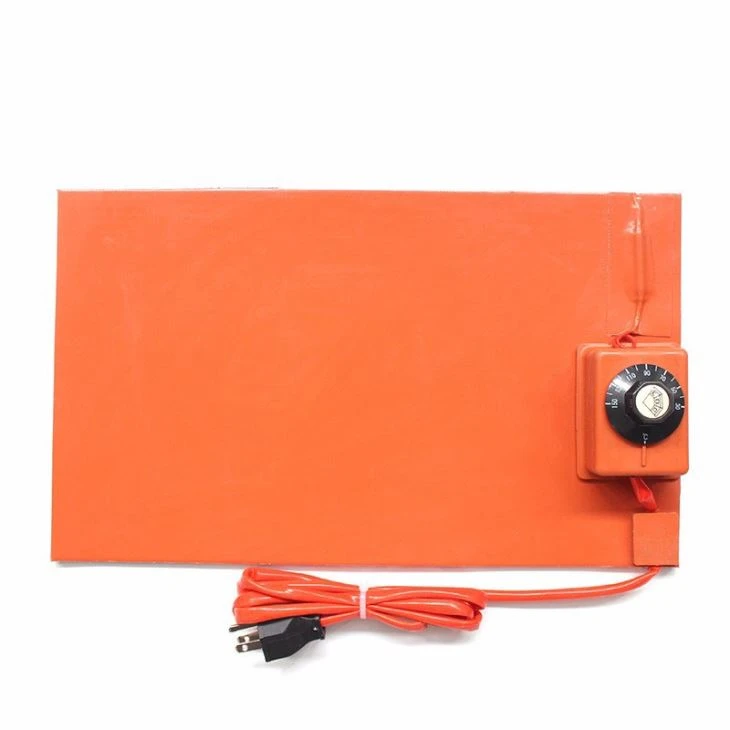

Product pictures
Note: After the finished product, it can't be cut. Once it is cut, the heating piece can no longer be used. The size of the product can be customized according to the customer's requirements. The voltage and power can also be customized according to the customer's requirements. Please strictly follow the requirements. When the order is placed, the power is plugged in and the wrong power supply cannot be inserted.

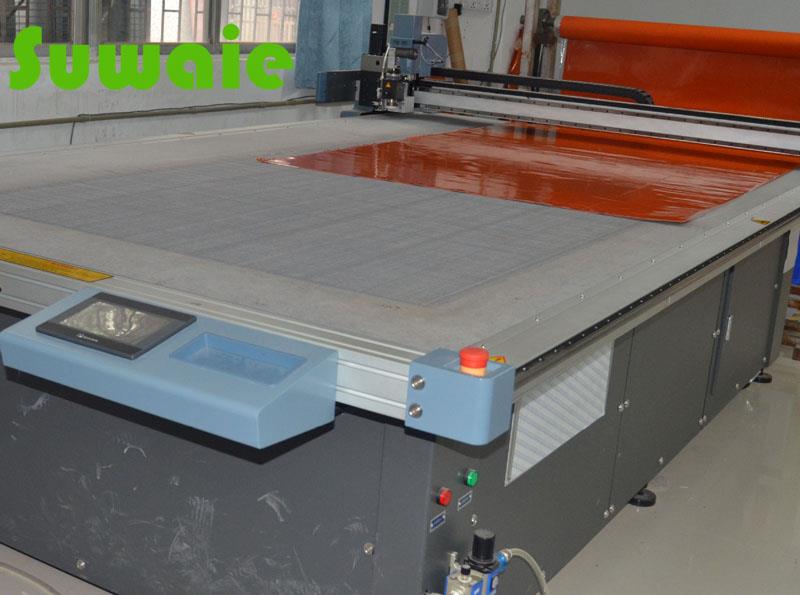

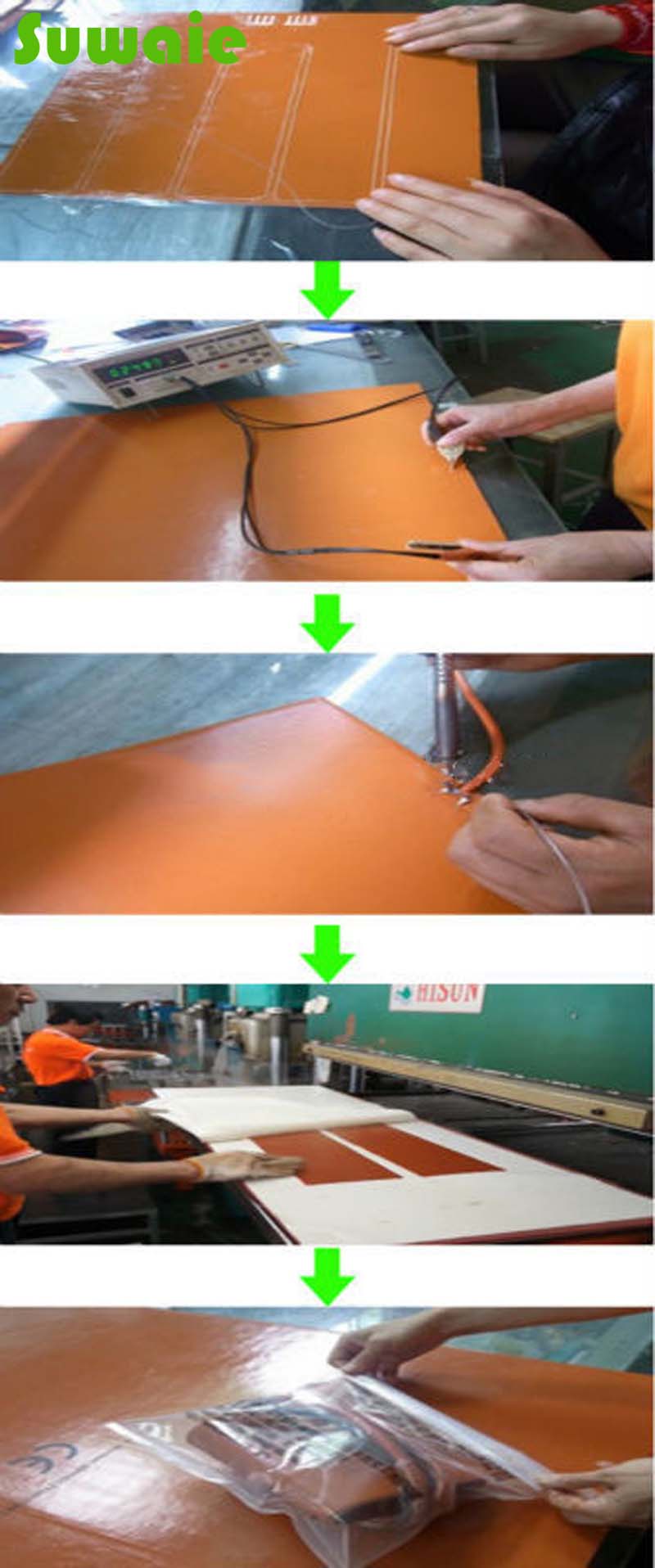

Produce process
What benefit we can get from you?
1) Competitive price
2) High quality control : 100% full inspection before shipment
3) High precision, tolerance can be ± 0.005mm
4) Fast lead time (5-7days for samples, 7-30 days for mass production)
5) Non-standard//OEM//customized service provided
6) No MOQ, small QTY is acceptable.
7) ISO 9001:2003 and ISO13485:2008 certificated factory, ROHS material used
9) Professional export packing: Carton+Wooded Case, keep no scratch and damage
FAQ
1. Q: How can I get the price ?
A: Pls Email/call/levea message to us with you the unit you are looking for with you details (name, telephone, address, etc), and your products details,we will send to you ASAP.
2. Q: How to Place an order?
A: Kindly pls send us you order by email, we will confirm the PI with you. we wish to know the followings: Delivery information-company name, address, phone/fax number, destination, transportation way; Product information :item number, size, quantity, or any requirements, etc.
3. Q: What's the Payment method?
A: Western union, T/T totally or 50% deposit before production, the balance before delivery. We suggest you transfer the full values at one time. Cause there is bank process fee, it would be a lot of money if you make twice transfer.

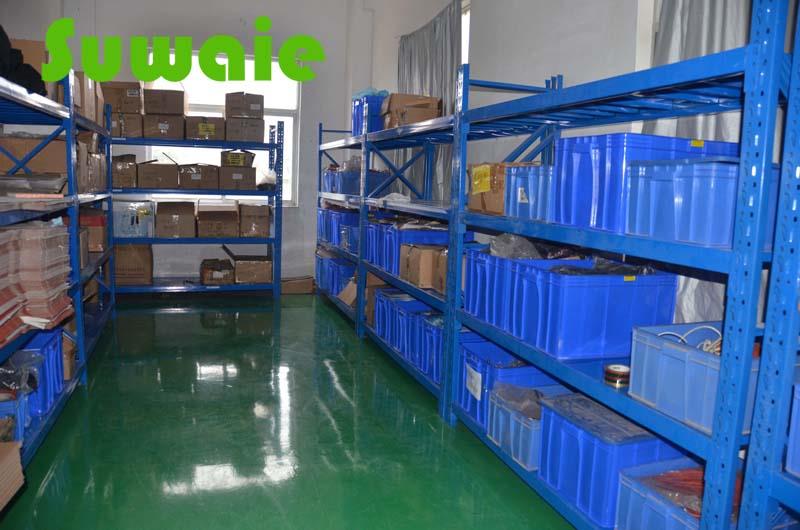

Warehouse
