Name: K Type Probe
Brand: SUWAIE
SKU: 99260197

Description

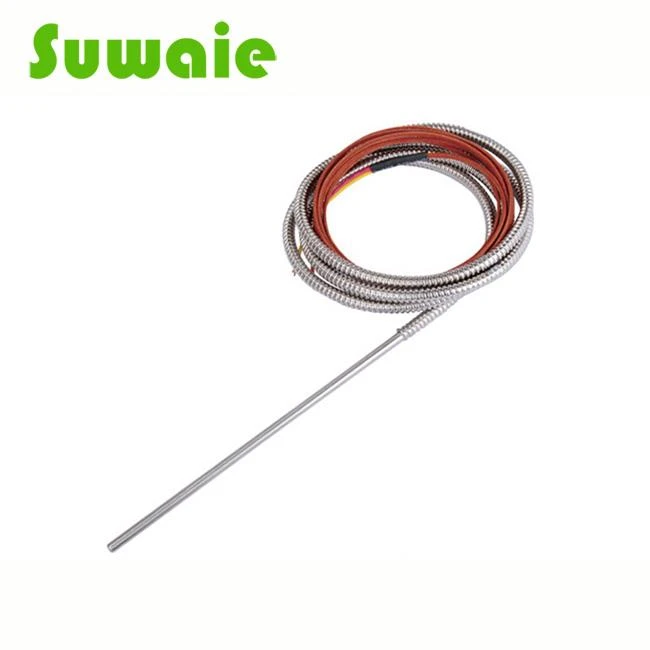

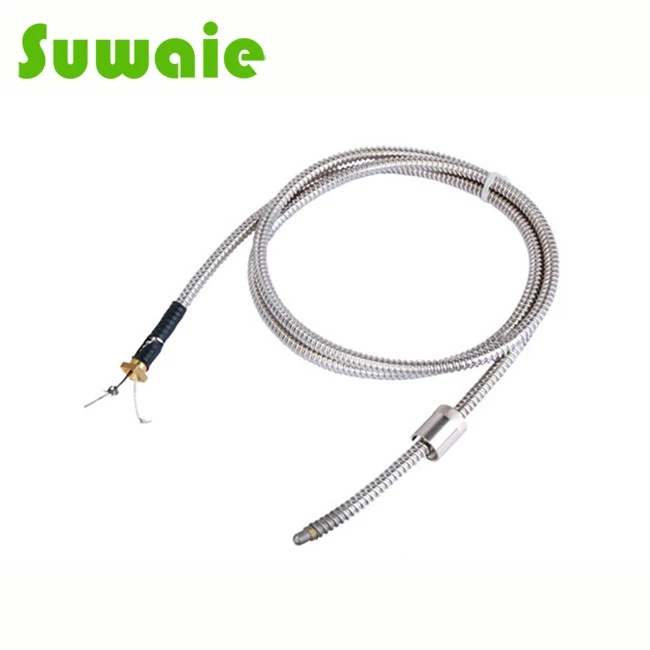

K Type Probe

Product Description:

Thermocouple/RTD are usually used with display instrument, recording instrument and computer to directly measure the temperature of liquid, gas and solid surface ranging from 0ºC~1800ºC during the production process.

It is widely used in petroleum, chemical industry, machinery, metallurgy, electric power, textile, food, atomic energy, aerospace and other industrial sectors and field of science & technology.
Assembly thermocouple is made up of temperature sensitive element, Mount fixed device and junction box.
B,S,K and E are optional.

Specifications:

1. Calibration:T

2. Outer diameter:0.5mm(CUSTOMIZED)

3. Sheath material: SS321,SS316,Inconel600

4. Single,dual sensing / elements

5. Moisture sealant to be applied at lead ends.

6. Thermocouple to meet ASTM E230 standard temperature standard tolerances.

7. Male and Female Connector

Model and specification:

Type	Code name	Measure range (ºC)	Class	Allowable deviation t (ºC), the greater one of two	Specification length
K	WRN	- 40~1000	I	±1.5ºC or ±0.4%t	0.5M,0.75M,1M,1.5M,2M,2.5M,3M and so on. Note: The small thermocouple, thermal resistance sensor measuring range does not exceed 400ºC. Sensor measuring range according to the real object.
K	WRN	-40~1200	II	±2.5ºC or ±0.75%t
E	WRE	-40~800	I	±1.5ºC or ±0.4%t
E	WRE	-40~900	II	±2.5ºC or ±0.75%t
J	WRJ	-40~750	I	±1.5ºC or ±0.4%t
J	WRJ	-40~750	II	±2.5ºC or ±0.75%t

Products Show

Adjustable Bayonet Thermocouple manufacturer 20191210103520

Thermocouple Parts Process Show

CNC Process2

Packing And Shipment Details

shipemt2

Suwaie packing2

Market

Currently, Suwaie Technology heating element is already exported to Asia, Europe, South America, North America, Africa and Middle East and other regions. For more details, please feel free to contact us. We will give you best service and timely reply.

FAQ

1. Q: What is your term of delivery ?

A: EX-WORKS, FOB, CIF, C&F, DDP, DDU, etc

2. Q: How does the Qida control the quality?

A: 1) During processing, the operating machine worker inspect the each sizes by themselves.

2) After finished the first whole part, will show to QA for full inspection.

3) Before shipment, the QA will inspect according to ISO sampling inspection standard for mass production. Will do 100% full checking for small QTY.

4) When shipping the goods, we will attached the inspection report with the parts.

3. Q: What is the standard of package?

A: Professional export packing:

1) Separate Blister plastic box or Bubble Wrap/Pearl Wool, keep no scratch and damage.

2) Under 100 KGS parts, use strong DHL export Carton.

3) Above 100 KGS, will customize Wooded case for packing.

Shenzhen Suwaie Technology Co., Ltd. Focus on the production of K Type Probe. Our company has professional equipment and engineers to provide the production and service of K Type Probe.

Hot Tags: k type probe, China, manufacturers, suppliers, factory, customized
