If you are looking for durable and accurate temperature sensors for industrial processes, our TC thermocouple is your best choice. Thermocouple/RTD is usually used with display instruments, recording instruments and computers to directly measure the surface temperature of liquids, gases and solids in the range of 0ºC to 1800ºC in the production process. It is widely used in petroleum, chemical, machinery, metallurgy, electricity, textile, food, nuclear energy, aerospace and other industrial fields and scientific fields.

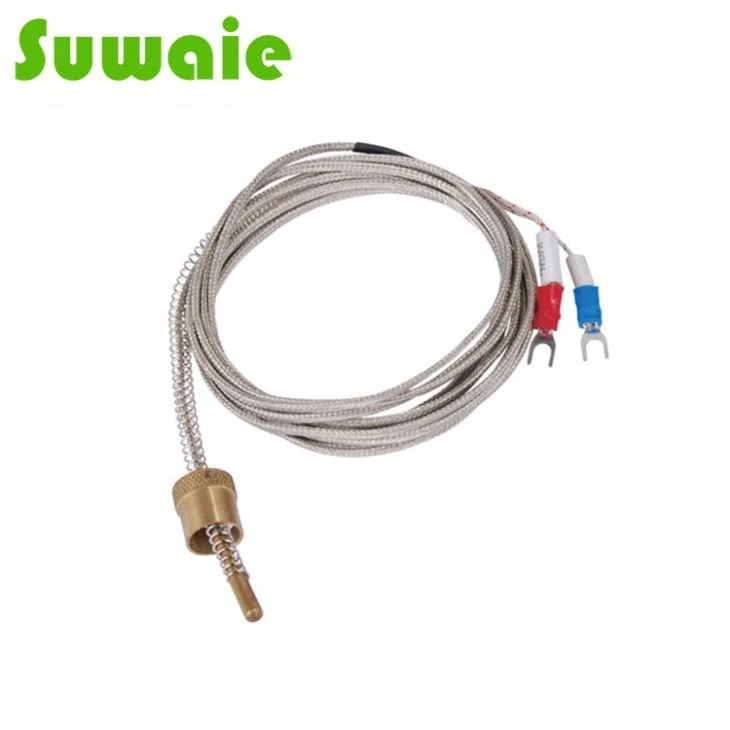

Due to its rugged design (including brass tip and stainless steel braided cable), this sensor performs well in harsh conditions where accuracy and reliability are critical.
Basic Structure Of The Product
- Temperature sensitive element (Thermocouple)
- Mounting fixture
- Junction box (optional)
- Cable sheath/braided mesh
- Wire terminal (such as fork terminal)
Model And Specification
|
Type |
Code name |
Measure range (ºC) |
Class |
Allowable deviation t (ºC), the greater one of two |
Specification length |
|
K |
WRN |
- 40~1000 |
I |
±1.5ºC or ±0.4%t |
0.5M,0.75M,1M,1.5M,2M,2.5M,3M and so on. Note: The small thermocouple, thermal resistance sensor measuring range does not exceed 400ºC. Sensor measuring range according to the real object. |
|
-40~1200 |
II |
±2.5ºC or ±0.75%t |
|||
|
E |
WRE |
-40~800 |
I |
±1.5ºC or ±0.4%t |
|
|
-40~900 |
II |
±2.5ºC or ±0.75%t |
|||
|
J |
WRJ |
-40~750 |
I |
±1.5ºC or ±0.4%t |
|
|
II |
±2.5ºC or ±0.75%t |
Product Features
- Metal protective sleeve and spring stress relief design: The temperature sensing head adopts brass end and has a spring-type stress relief design, which can protect the wire to a certain extent and reduce the damage to the temperature sensing element during installation or use.
- Stainless steel braided mesh cable: The outer layer of the cable has a stainless steel braided layer, which can enhance the mechanical strength and wear resistance, and is suitable for use in industrial environments.
- Color-coded terminals: The cable tail uses red and blue fork terminals (or other forms), which is convenient for you to quickly distinguish the positive and negative poles and make correct wiring to reduce installation errors.
- Customizable length: The product cable length can be customized according to customer needs, suitable for different installation environments and equipment layouts.
- Multiple fixing methods: Brass or stainless steel threaded parts, ferrules and other installation fixtures are optional to meet different installation requirements.
- Optional thermocouple types: According to the use temperature range and accuracy requirements, various thermocouple types such as B, S, K, and E are available.
Why Choose Shenzhen SUWAIE Technology
We are a manufacturer specializing in the production of TC Thermocouples. We have professional equipment and engineer teams to provide customers with customized production and technical services for thermocouples. We are committed to bringing customers reliable, durable and different use environment needs of thermocouple products, and look forward to working with more industry partners.
Ready To Improve Your Temperature Control?
Whether you need a single unit for a prototype or a batch order for a large project, we can tailor a solution to your requirements. We offer flexible payment terms (T/T), fast delivery (7-30 days), and welcome to cooperate with international distributors. Please contact us for detailed technical support, product customization and pricing for your unique needs.
Packing And Shipment Details
FAQ
How does a TC Thermocouple differ from other temperature sensors?
Unlike resistance temperature detectors (RTDs) or semiconductor-based sensors, a TC Thermocouple generates a small voltage signal based on the temperature difference between two different metals. This allows for faster response times at both low and high temperatures, making it especially suitable for applications requiring quick and accurate temperature monitoring.
Can I customize cable length and mounting options for my thermocouple?
Absolutely. You can specify the cable length, sheath material, and mounting features (such as threaded fittings or flanges) based on your unique process requirements. Whether you need a prosense thermocouple or a standard type, our team can tailor the product to your exact needs.
What are the best practices for installing a TC Thermocouple in an industrial setting?
- Ensure Proper Connection: Match the color-coded terminals (red and blue) with the correct polarity.
- Use Correct Mounting Accessories: Select durable fittings, such as brass or stainless-steel adapters, to secure the probe.
- Protect the Cable: The stainless-steel braided cable helps shield internal wiring from abrasion and mechanical stress.
- Check Calibration: Before deployment, verify the accuracy and calibrate according to industry standards for optimal performance.
How can I extend the service life of my TC Thermocouple?
Regular inspections for wear or damage-especially around the probe tip and cable connections-are key. Cleaning the probe to remove residue and avoiding excessive bending of the cable will also help maintain reliable readings. In addition, conducting periodic calibration ensures that the sensor continues to deliver precise measurements throughout its operational life.
