Detailed Product Description
Coiling Winding machine for cartridge heater is designed to wind resistance wire on MgO rod for cartridge heater. It adopts speed adjustable motor to discharge wire and clamp tube(rod). Wire discharging device adopts ball bearing screw mandrel with high accuracy, uniform pitch and can be adjusted. Using lock circle to clamp the tube(rod), it is easy to put on and take out the tube(rod). You can set parameters like wire diameter, speed, pitch on the screen. It is special for wind the resistance wire for cartridge heater compare with our other winding machines.
Functions:
1. Step motor drive, the pitch, wire diameter and speed can be adjusted.
2. Stable performance, easy operation.
3. Easy to change different specification.
Main Parameters:
1. Power supply: single phase AC 220+/-10% 50hz.
2. Power: 300W.
3. MgO rod diameter: ≤21mm.
4. MgO rod length: 50 to 500mm.
5. Dimension: 800*200*500mm
Required information when ordering our Winding Machine for Cartridge Heater
* Samples or drawings of MgO rod.
* Wire sizes.
* Electrical supply (for example,single phase 220v 50hz).
* To be supplied by customer before delivery: About 10pcs MgO rod for final adjustments.

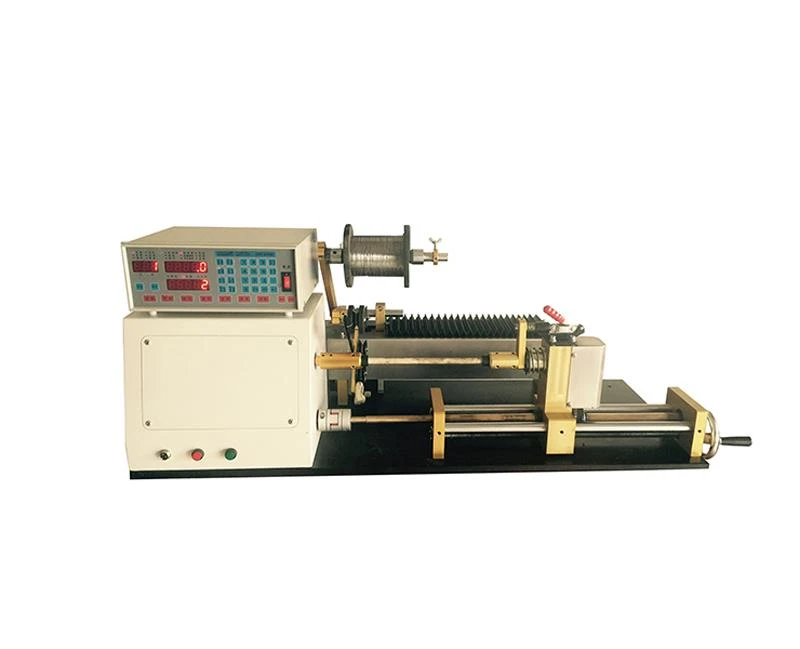

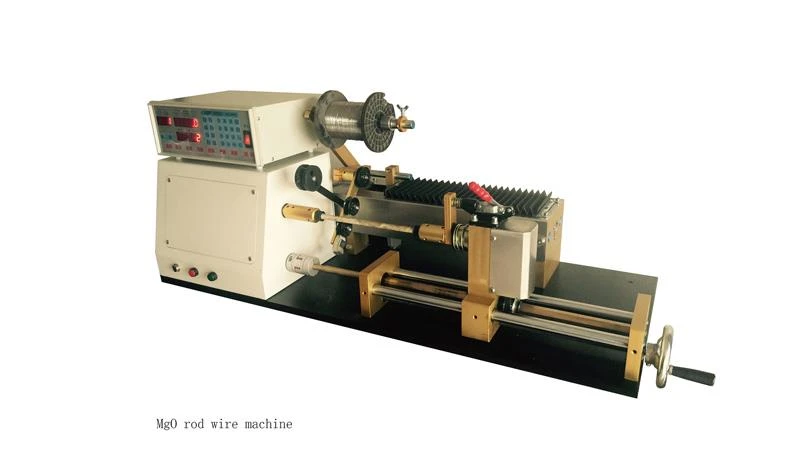

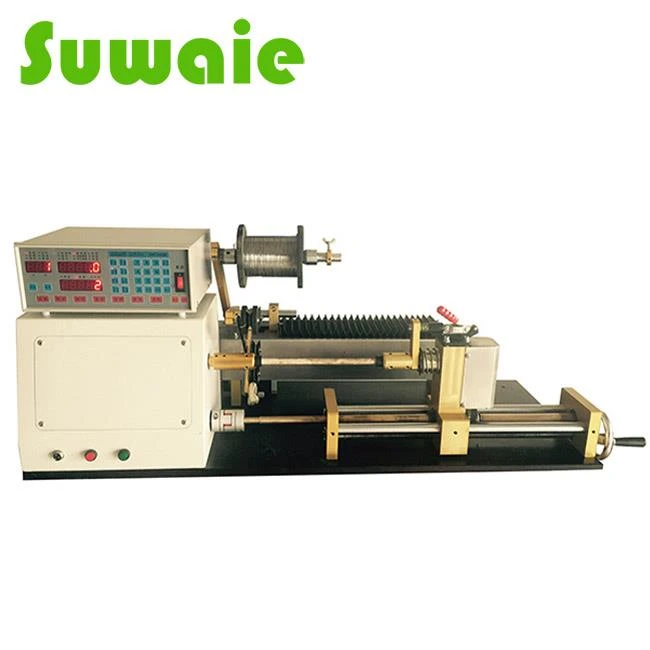

Mgo rod coiling machine for cartridge heater pictures
Company office
Mgo rod winding machine for cartridge heater wooden packing details
What can we do for you?
1. Professional, Competitive price and Fast delivery time
We engaged in this area for almost 12yeas, experience engineer can help you process the project well and perfect, also we own our factory that we can control the cost and delivery time very well. We can try best to meet your request.
2. Protect our customer profit well
Even we have very strictly quality control system, but we still can`t promise every part you received will 100% perfect, so if there is any defective parts you received, you just need to offer us the evidence(such as picture),we will check and confirm it.
Because of our strictly quality control system, we have confidence to promise our customer with this. Please kindly noted that it`s our advantage compared with others, we realize that only the high quality and good service can we keep friendly and long-term business relationship with our customer and it`s also the only way for an enterprise to be existed...
Shipment
FAQ
1. Q: Is it possible to return the money if the quality is not good?
A: This has never been occured right now ,as we treat the quality as our key of development.Quality and service is everything for us.
2. Q: How do you guarantee the deliver time?
A: We have independent PMC department to arrange the production plan. We have production meeting every morning to report the production progress and discuss the problems. We will make production progress report to you every week and take some pictures for your reference, that's you can know our production progress clearly.
3. Q: Have the R&D for our company?
A: We have professional R&D team with rich design experience.We also establish strict but scientific product testing system so that products have perfect.
4. Q: How to start the business?
A: We recommend you our product according to your requirement, if you are satisfied with that, then you make a trail order or sample order to check the quality, if all ok, you can place an order then.
