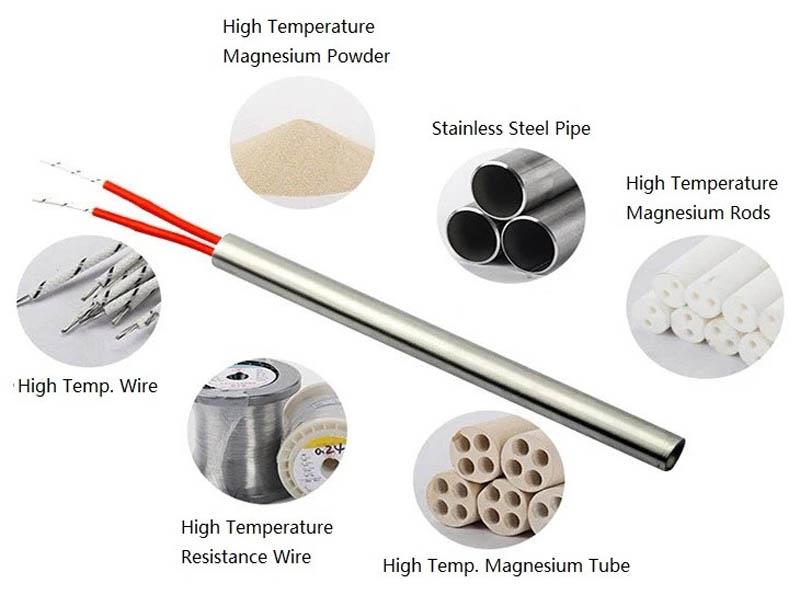

Our high watt density cartridge heaters comprise a nichrome resistance wire, wound around a magnesium oxide (MgO) core, inserted in a high temperature alloy sheath. The remaining space is then filled with a high purity MgO insulation powder and the heater is swaged to a particular diameter. This process of swaging results in increased thermal conductivity, dielectric strength, and vibration resistance. The greatly increased strength of the heater ensures a long, high-performance lifespan and reduces critical downtime.
Lengths up to 3000mm
• Up to 10,000 Watts
• Up to 480 volts
• Watt density of up to 260 watts per square inch
Square, rectangular and split sheath profiles are also available.

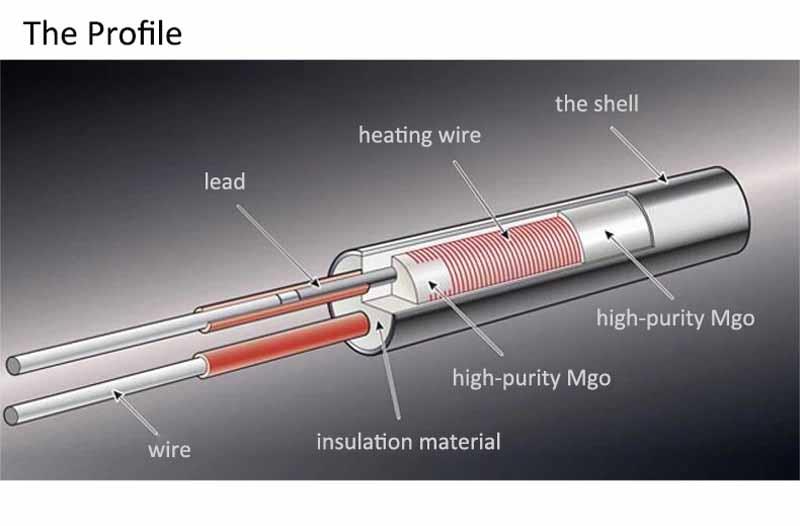

Screw Plug Split Sheath Cartridge Heater Structure diagram:
Fixed installation of Cartridge heater:
1. Mold Cartridge heater
The common mold Cartridge heater does not need to be fixed, and is directly installed in the heating hole for heat transfer.
2. Cartridge heater
The Cartridge heater has several types of common and L-shaped single-head heating rod, baffle-type single-head heating element, and threaded single-head heating elements.
Heating elements
(1) The common Cartridge heater refers to a heating pipe without baffles, threads and other fixed ways. The installation method is: directly mounted on the bracket; after drilling, copper or other metal pieces are placed on the heating pipe. Fix on the top (similar to the baffle type electric heating tube); some use the welding method to fix the heating tube.
(2) The L-type Cartridge heater can be directly inserted and used in general use environment. It is not necessary to fix it according to the installation instructions.
(3) The baffle type Cartridge heater can be used directly or welded on the basis of the baffle.
(4) The installation of the threaded Cartridge heater is to screw the heating pipe to the part that needs to be fixed. Usually, the liquid is heated by thread. Of course, the sealing property is strictly required. Solder on it.

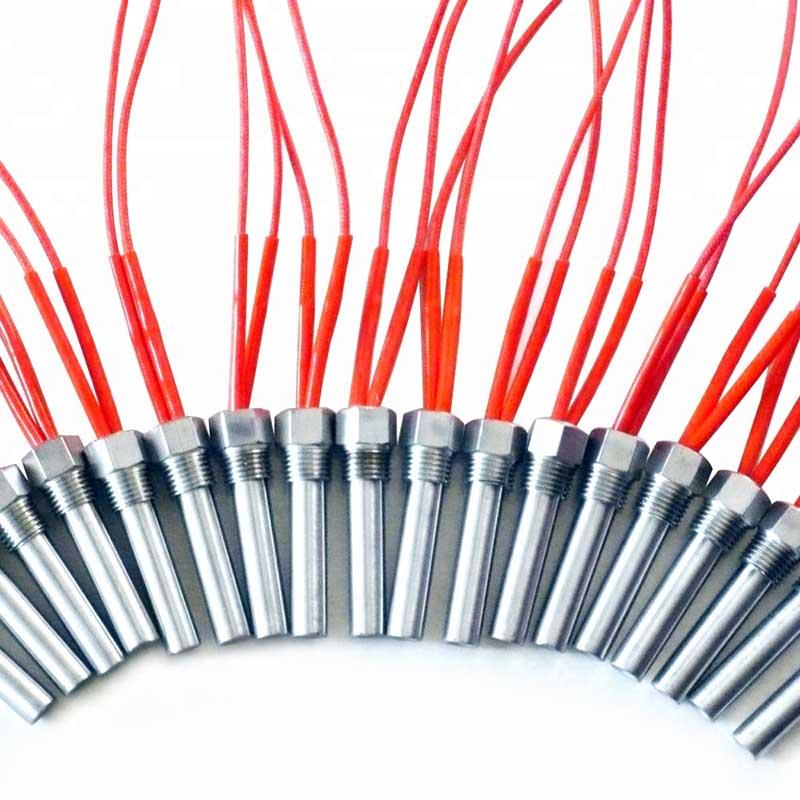

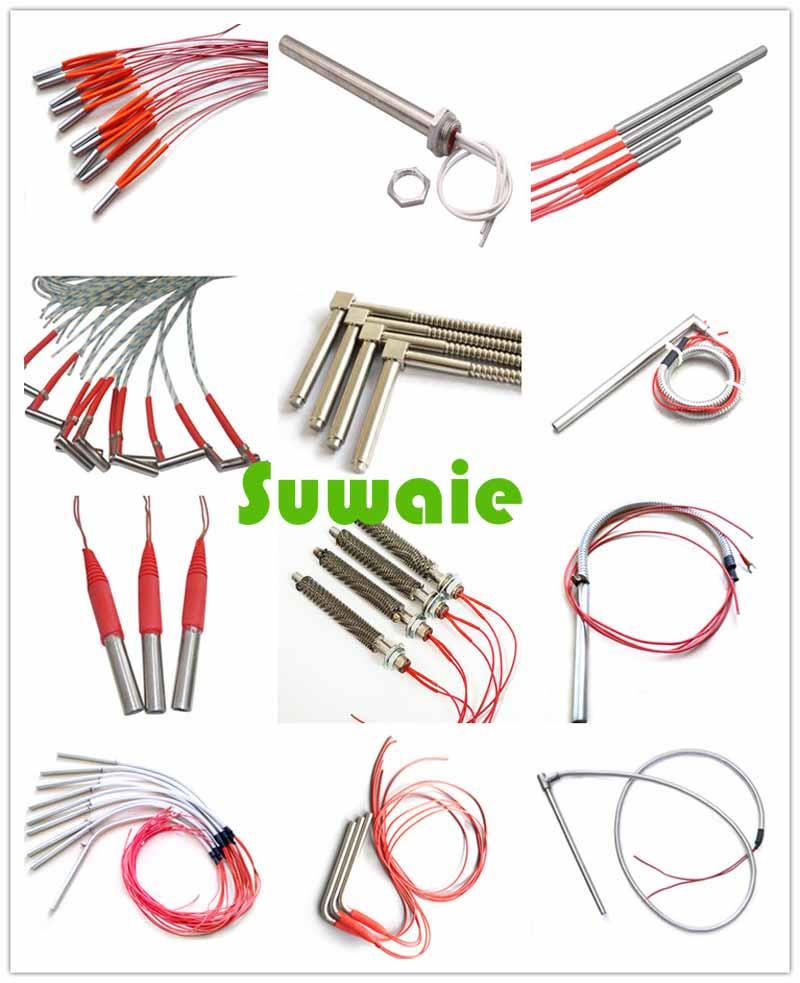

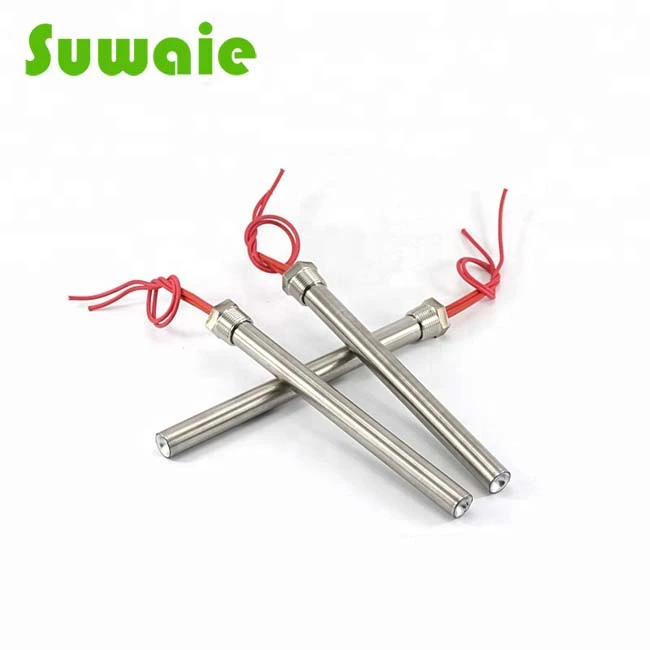

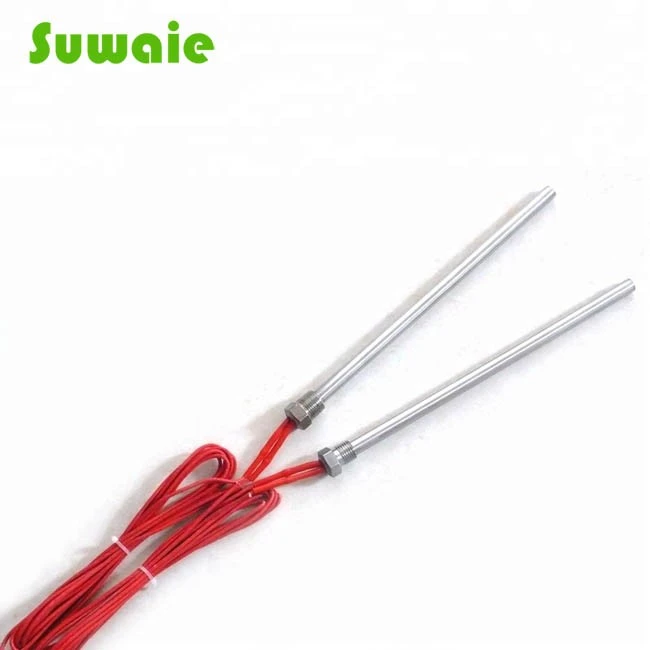

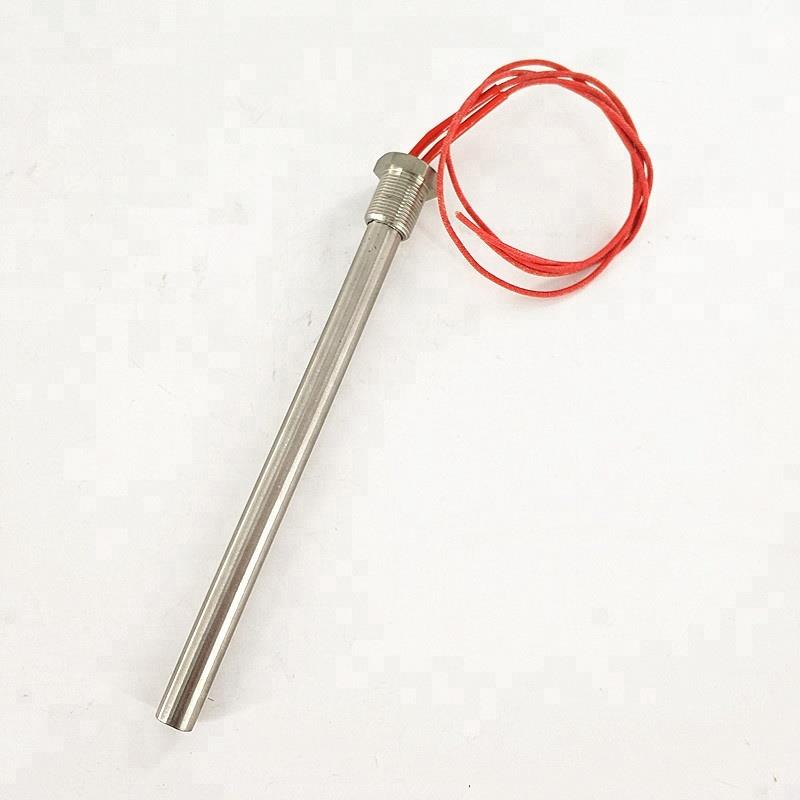

Product show

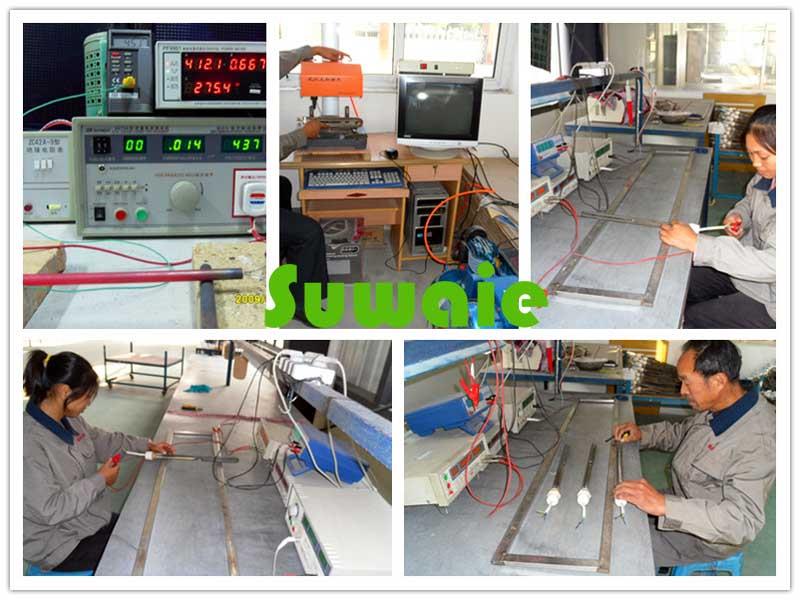

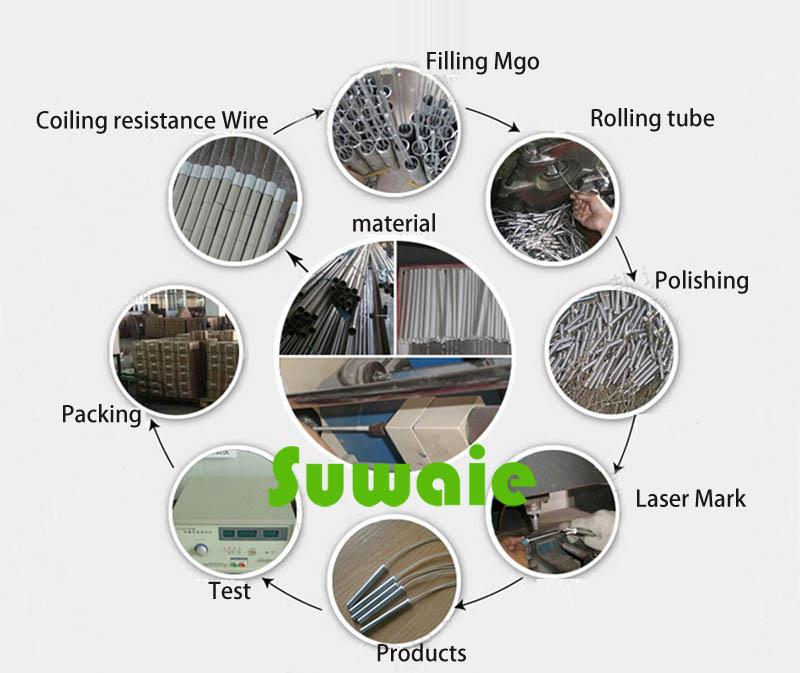

Process and test show

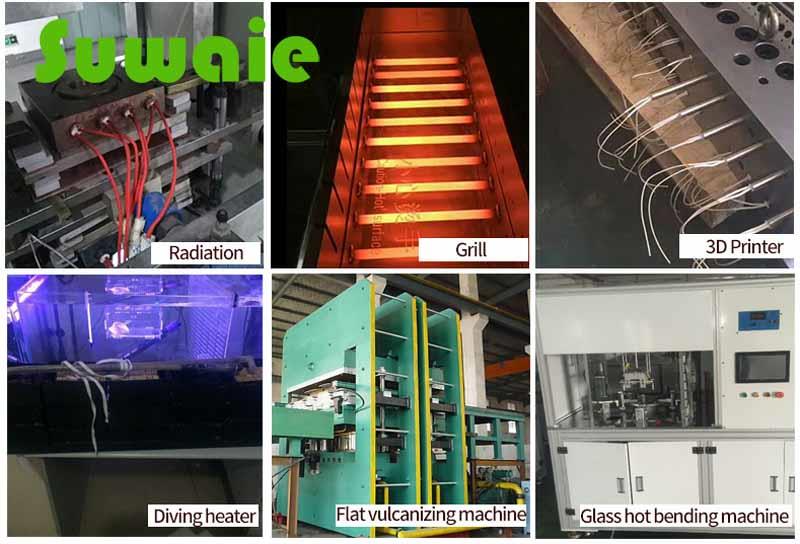

Application:
Packing and ship show
SUWIE HEATER Advantage:
12 years focusing on heating elements;
10 years technical service and proessional sales team;
9 years of independent product research and development;
OEM/ODM is available.
Obtain Obvious Advantages, Provide Best Price, Welcome To Talk More.
FAQ
1. Q: When can I get the price?
A: We usually quote within 2-3 days after we receive the RFQ or feedback within 2 days if any questions on prints need to be confirmed.
2. Q: Can you customize products?
A: Yes, products can be customized according to your requirements. MOQ will be different depending on products available or not.
3. Q: What's your packing?What to do in case of damaged goods during transport?
A1: Our Normal packing is bulking in Cartons, less than 20 kgs/carton, 48 cartons / pallet. We also can pack products according to your requirement.
A2: To avoid any subsequent trouble regarding quality issue, we suggest you check the goods once you receive them. If there is any transport damaged or quality issue, don't forget take the detail pictures and contact us as soon as possible, we will properly handle it to make sure your loss to reduce to the smallest.
