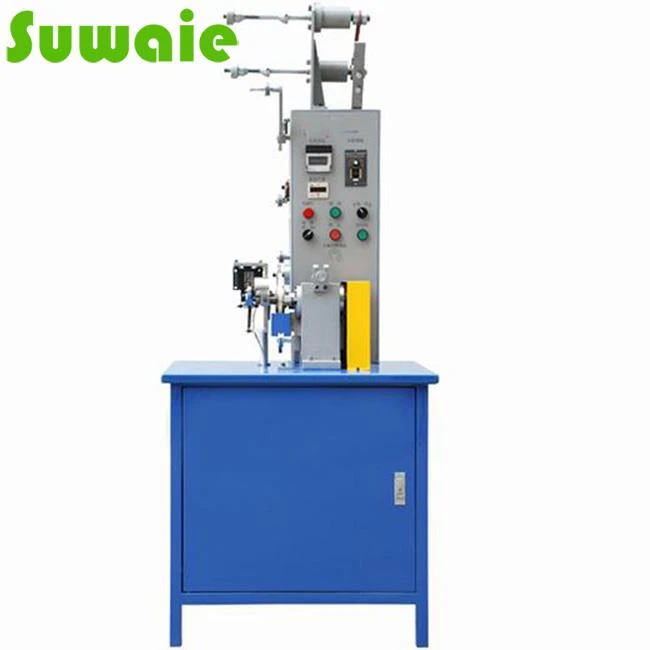

Detailed Product Description
This Winding Coiling machine for resistance wire is a special coiling equipment. The machine has the characteristics of small dimension, high accuracy, easy operation, stable performance and high production. It has touch screen and can input technical parameters into touch screen.
* Patent product.
* The Mitsubishi transducer controls the main shaft speed, it coils continuously and cuts the coil heater automatically.
Functions:
1. PLC control, operated by touch screen, count by coder, and measure resistance value automatically.
2. The inverter controls the shaft speed, coiling and cutting the coils automatically.
3. Can set the parameters like wire diameter, Ohm/M, Ohm value in the touch screen.
4. Cut by pneumatic cylinder, it can control the number of turns and with clean ends cut.
Main parameters:
1. Power supply: Single phase 220±10% 50Hz.
2. Shaft rotation speed: 0-2134RPM.
3. Plastic wheel rotation speed: 0-74RPM.
4. Plastic wheel hole ID: 14mm, outer dia100-200mm.
5. Collet inner hole: 6.0 +0.05+0.01.
6. Motor rate: spindle motor 370W/1340.
7. Plastic wheel motor: 60W/1400RPM.
8. Double roller motor: 120W/1400RPM.
9. Coil ID (mandrel diameter): 0.75mm-12.7mm.
10. Wire diameter: 0.10mm-1.0mm.
11. Packing size (L*W*H): 780*870*1930 (mm).
12. Gross weight: 188kg.
Required information when ordering our Automatic coiling machine
* Mandrel sizes and resistance wire diameters accordingly.
* Single wire or tandem wires.
* Single plastic wheel or double plastic wheels.
* Electrical supply (for example, single phase 220v 50hz).

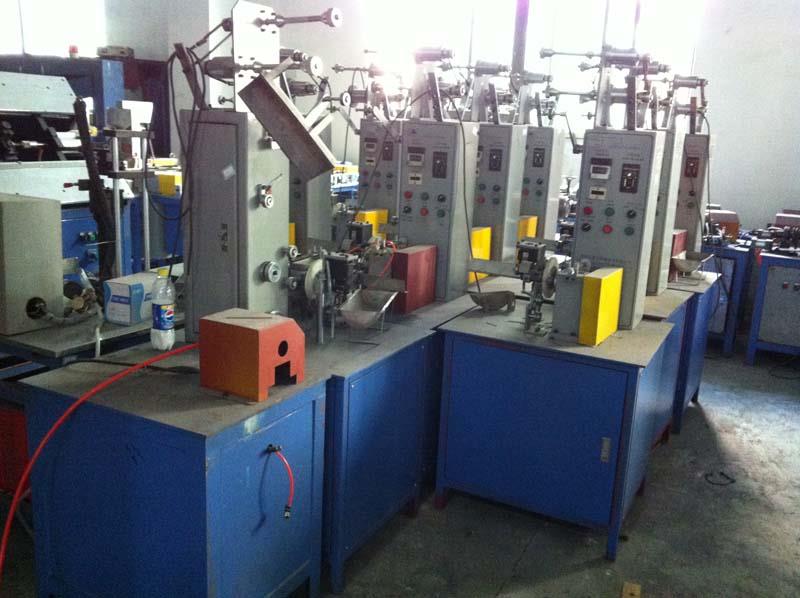

Tubular heating element coiling wind machine picture
Tubular heater coiling machine Packing
Shipment
Advantages:
1. OEM service: No agents, no trading company, reduce all necessary cost for you. Direct communication with our engineer.
2. Professional team: 20 years foreign customers service experience. Over 10 years investment casting manufacture. Almost 35% high educated people.
3. Globally acceptabe quality:
The products offered by us are thoroughly examined by our experienced professionals to ensure their durability, reliability and long service life. Full fledged QA department & ISO 9001 certification.
4. MOQ: 100 pcs is even acceptable in some special conditions
5. Annual output
It is more than 3000 metric ton, so we can deliver on time.
The QA department
We have inhouse sophisticated physical and chemical testing laboratory equipped with ultra modern testing equipment.
FAQ
1. Q: Who bears the bank transfer fee?
A: The total amount of the order is relatively small, the clients bears bank transfer fee, and the amount of the order is large, we bear bank transfer fee.
2. Q: How is the next ?
A: We will send the cost to you and get your confirmations for the quote;
3. Q: When can I get the price?
A: We usually quote within 2-3 days after we receive the RFQ or feedback within 2 days if any questions on prints need to be confirmed.
4. Q: How do I know about the production?
A: We will double confirm your requirements and send you the sample before the mass production.
During the mass production, we will keep you informed of any progress. Besides, we will do 100% quality inspection before shipment.
