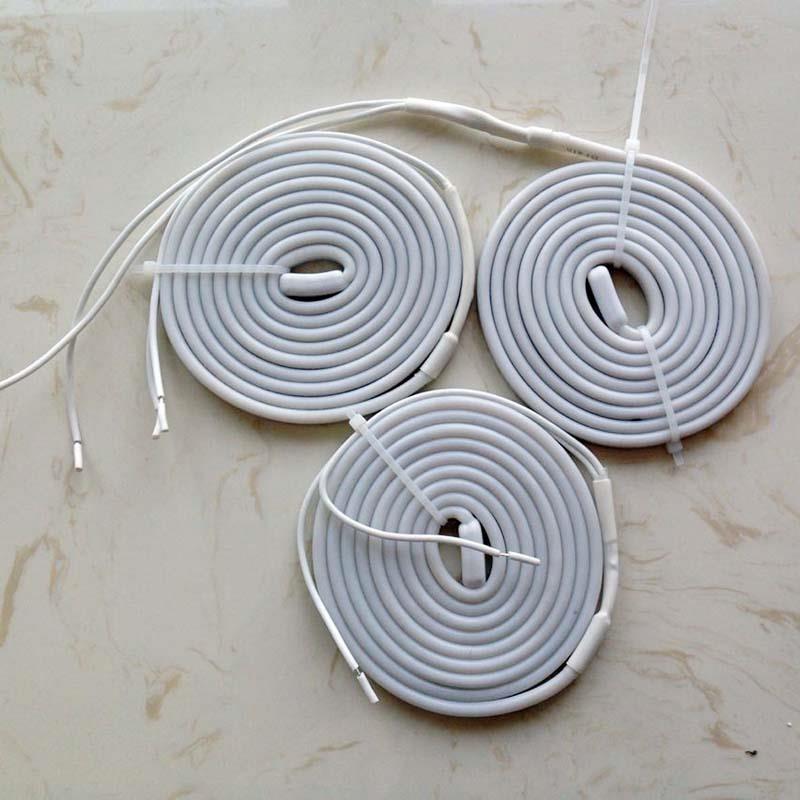

Application Field for Silicon Rubber Drain Pipe Heaters
After the air cooler operates for some time, its blade will freeze, at the time, the antifreezing heating wire can be used for defrosting to let molten water discharge out of the refrigerator through the drain pipe.
As the front end of the drain pipe is installed in the refrigerator, defrosted water is frozen under 0°C to block the drain pipe, and heating wire is needed to install to ensure that defrosted water doesn't freeze in the drain pipe. The heating wire is installed in the drain pipe to defrost and heat the pipe at the same time to let water exhaust smoothly.
Characteristics for Silicon Rubber Drain Pipe Heaters
Complete water-proof design
Double-layer insulator
Mould pressing knot, flexibility
Silicon rubber insulator applicable scope: -60°C to +200°C
Technical Parameters of defrost drain pipe heater
Heating Body | NiCr or Cu-Ni Alloy | Length/M | 40W/M | 50W/M |
Tail End of Heating Body | Seal Tail End of Colloidal Silica | 1 | 40W | 50W |
Maximum Surface Temperature | 200°C | 1.3 | 52W | 65W |
Minimum Surface Temperature | -60°C | 1.5 | 60W | 75W |
Immergence Withstand Voltage | AC2500V V/min | 2.0 | 80W | 100W |
Voltage | 110-230v | 3.0 | 120W | 150W |
Power | ±5% | 4.0 | 160W | 200W |
Shape | Average7*5mm | 5.0 | 200W | 250W |
Insulation Resistance | ≥200MN | 6.0 | 240W | 300W |
External Drain-Line Heaters
Application: External drain-line heaters are used to heat up pipes to maintain the flow of the fluids in the pipes. It is extremely flexible and easy to install.
Insulation: External drain-line heaters are insulated with Silicone rubber.
Specifications: Operational temperatures of -40C to +180C.
Heater rating: 21 Watt/m at 220 V.
Packaging: The wire is available in lengths from 2 m to 9 m with termination leads fitted.
Process and test show:
Company office show
Packing and shipment
What information should i let you know once i want to make a inquiry?
1. The drawings ( PDF,CAD or 3D )?
2. The voltage, power, shape, tube diameter
3. The surface treatment requirement.
4. How many pieces do you need?
FAQ
1. Q: How does your factory do regarding quality control?
A: Quality is the priority.We always attach great importance to quality controlling fromthe start to the end.Our factory has gained CE, RoHS certification.
2. Q: What is The Process Of an Order?
A: Send Your Detailed Request→Feedback With Quotation→Confirm Quotation & Make Payment→Make Size Drawing For Approval→Make Production→Production Test→Sample Test(Approval)→Mass Production→Quality Checking→Delivery→After Service→Repeat Order...
3. Q: What are our after-Sales Services?
a).We are willing to improve the quality of the products if there is any problem with your order.
b).Repairs are free of charge if the problem is due to manufacturing defects.
c).We are willing to comply with customers' reasonable requests.
4. Q: Can you do the design of package for us ?
A: Yes, We can. after tell us your idea. and we would make the files of your package according your your requirement.
