Suwaie Drum and Pail Heaters are designed to provide practical, efficient means of freeze protection, viscosity control, and maintenance of materials at elevated temperatures. A variety of standard sizes are combined with availability of configure-to-order designs to meet your application requirements. All-in-one, Portable, Built-in Adjustable thermostat.

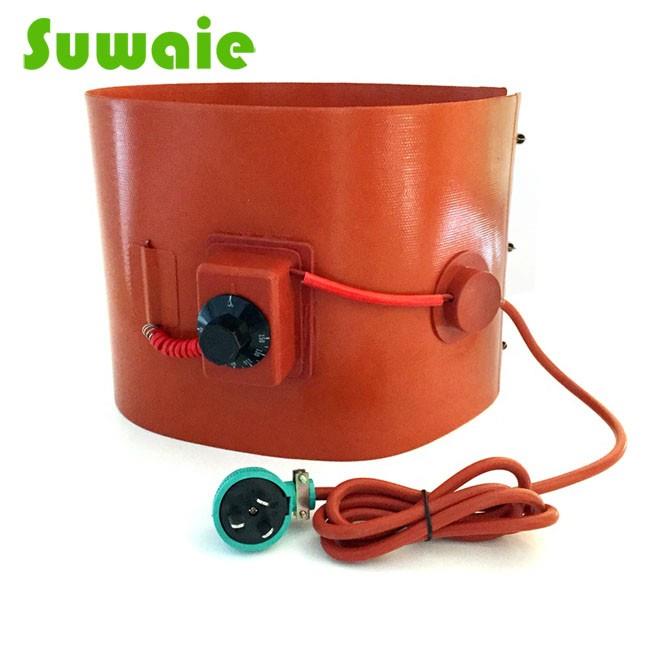

Heavy-Duty Silicone Rubber Drum Heater Overview:
Grounded Heating Element
Easy-to-use adjustable thermostat control.
Extra-wide 4" (102mm) wide heater coverage.
Excellent solution for a wide range of poly and metal drum heating applications.
Can be used on metal and plastic drums.
Moisture and chemical resistant.
Durable reinforced silicone rubber provides excellent strength and flexibility for long service life.
|
Technical Parameters For Flexible Heating Pad: |
|
|
Product Name: |
1740x250mm Flexible Silicone Rubber Band Heating Pad for 200L Oil Drum Heater |
|
Size: |
Rectangle (Lenght*Width), Round (Diameter), or provide the drawings |
|
Shape: |
Round, Rectangle, Square, any shape according to your requirement |
|
Voltage Range: |
1.5v -- 400v |
|
Power density range: |
0.1w/cm2 - 1w/cm2 |
|
Using temperature range: |
-60℃--180℃ |
|
Optional Accessories: |
3M adhesive; Temperature Controller; Thermostat and so on |
|
Features: |
|
|
Product Item |
200L Drum (Standard) |
200L Drum (Narrow) |
20L Drum (Standard) |
20L Drum (Narrow) |
100L Drum (Standard) |
Customized |
|
Size (W*L) |
250*1740mm |
125*1740mm |
200*860mm |
120*860mm |
250*1250mm |
Customized |
|
Voltage / Power |
220v 2000w |
220v 1000w |
220v 800w |
220v 400w |
220v 1500w |
Customized |
|
Adjustable Temp. Scope |
30--150℃ (Knob temperature control or digital display temperature control) |
Customized |
||||
|
Weight |
1.5KG |
0.9KG |
0.8KG |
0.7KG |
0.8KG |
/ |

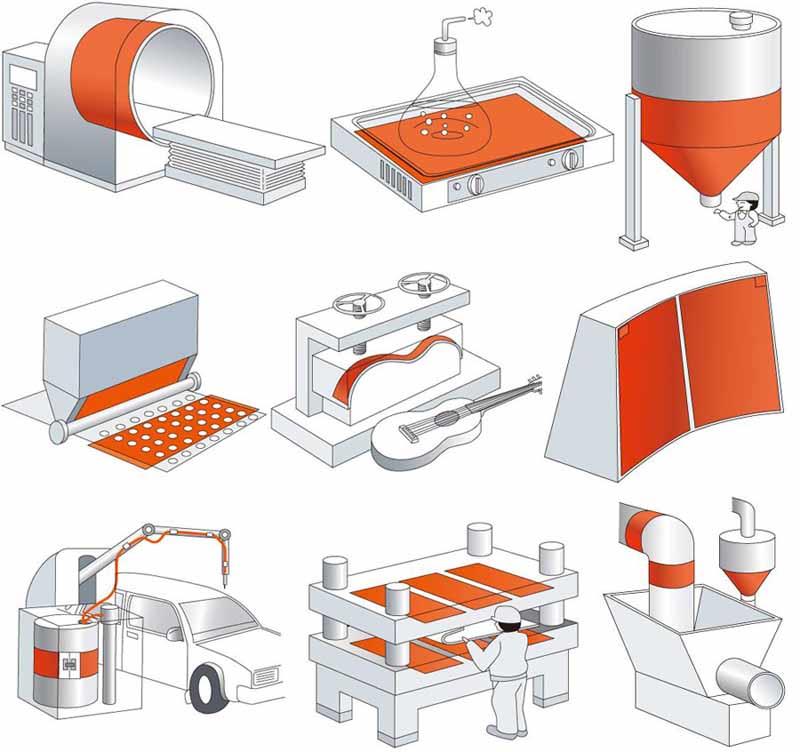

Application

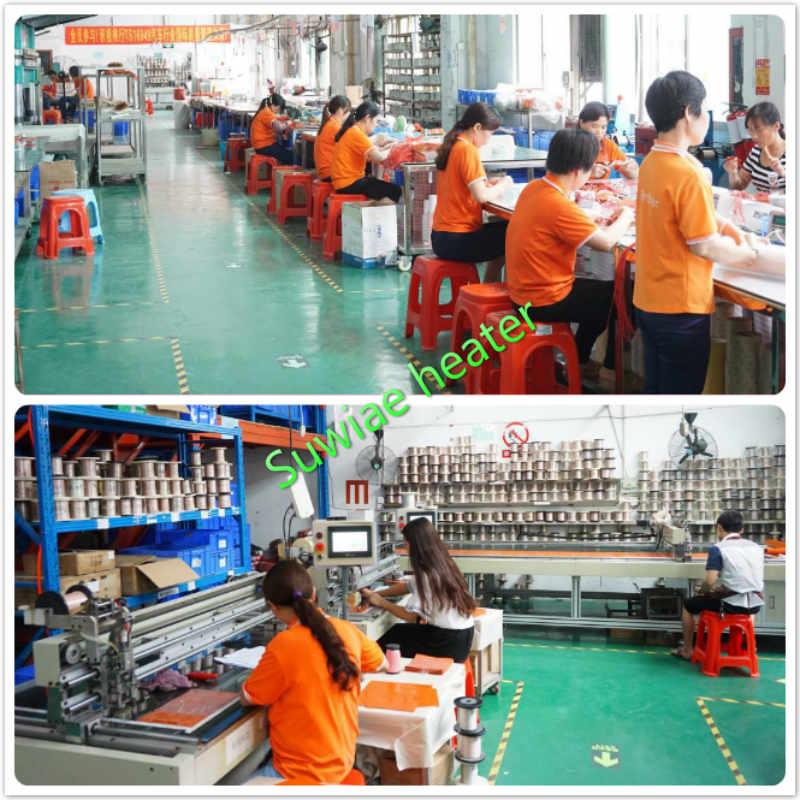

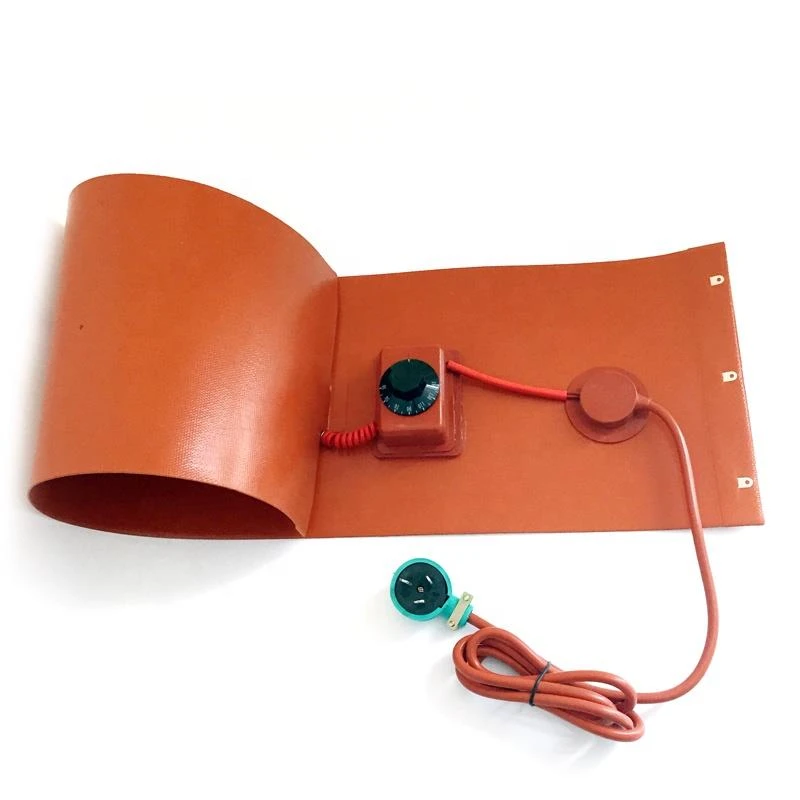

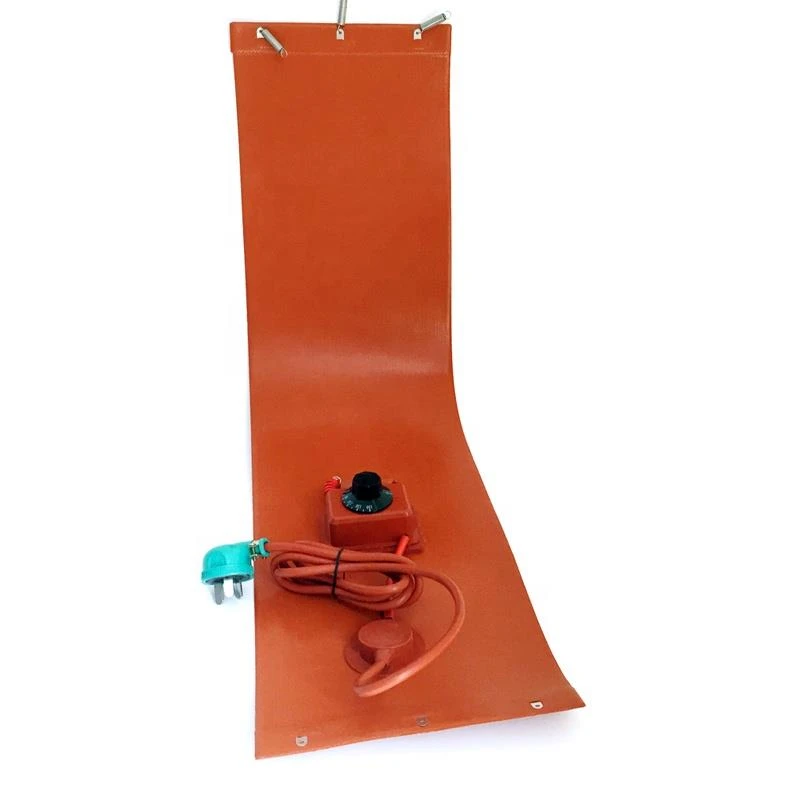

Products show

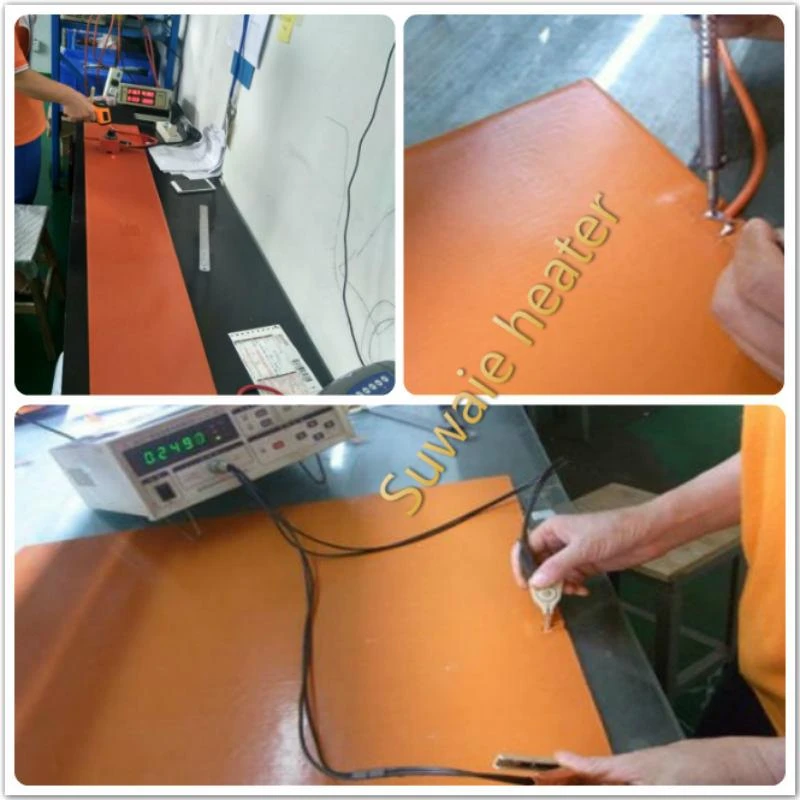

Process and test room
Office

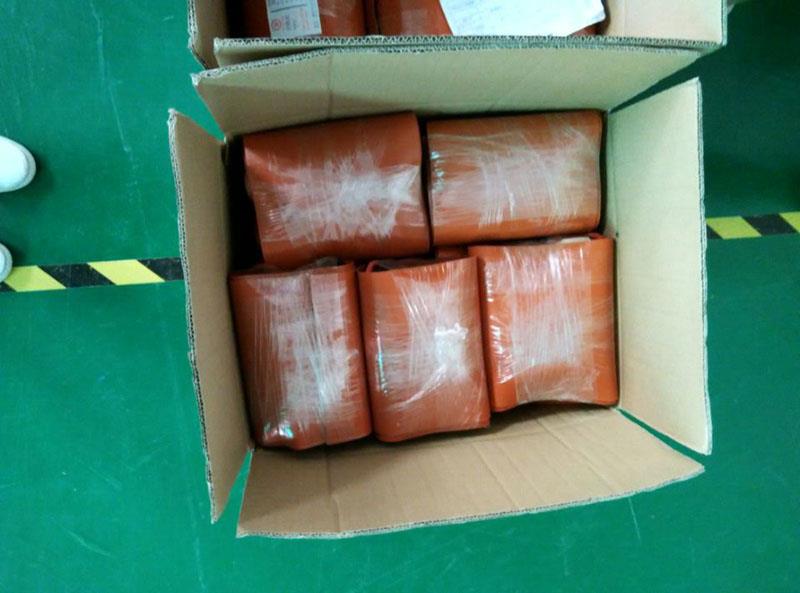

Packing details
Market:
Currently, Suwaie Technology heating element is already exported to Asia, Europe, South America, North America, Africa and Middle East and other regions. For more details, please feel free to contact us. We will give you best service and timely reply.
What is the standard of package?
Professional export packing:
1) Separate Blister plastic box or Bubble Wrap/Pearl Wool, keep no scratch and damage.
2) Under 100 KGS parts, use strong DHL export Carton .
3) Above 100 KGS, will customize Wooded case for packing.
FAQ
1. Q: Is small quantity available?
A: Yes, small quantity for trial order is available.
2. Q: What products can supplier?
A: We can supply all industrial heaters, heating element machinery, raw material and spare parts for heating elements. thermocouples and parts
3. Q: What about the warranty? What if the products go wrong?
A: All our products have 1 years warranty, should you have any problems, please contact us directly and we will do our best to solve it.
