Characteristics of Compressor Heating belt:
Random bending and winding according to the demand of to be heated component,small occupied space and volume.
Simple and fast installation mode
Sleeve silicon rubber insulator on heating body.
Tin copper braided layer can prevent machine from being damaged,and conduct electric power to the ground.
Moisture resistance entirely.Customize according to the required length.Core cold tail end.
Technical Parameter:
1. Continous Max Use Temperature:250℃;Min Ambient Temperature:40℃ below zero
2. Max Surface Power Density:2W/cm²
3. Min Making Thickness:0.5mm
4. Max Use Voltage:600V
5. Power Precision Range:±5%
Customized Design and Options
Heating wire | NiCr or Cu-Ni Alloy | Max.Surface Temperature | 200℃ |
Tail End of Heating Body | Seal Tail End of Colloidal Silica | Min.Surface Temperature | -60℃ |
Withstand Voltage | AC2500V/min | Volatge | 110-230V |
Insulation Resistance | ≥200MN | Shape | 14, 20, 25, 30mm |
1. The width of 2-core heating belt is 14mm,and the max power is 100W/M | |||
Application:
Product show
How to order?
1. Product specification
If round, diametre, voltage?
If rectangle, width, length, voltage?
If irregular, drawing will be better for reference.
2. If you dont have any specification for products, just let us know your requirements, We offer a special design for you.
3. Pls indicate your needed quantity for better quotation.
4. Drawing will be sent to you for last confirmation before production.

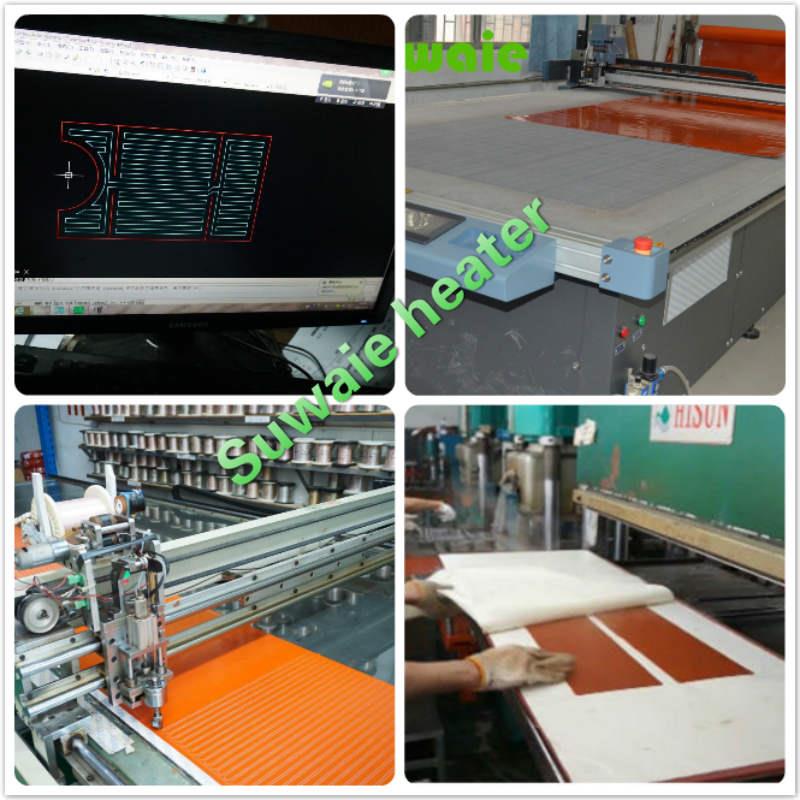

Process and test show
Company office show
Packing and shipment
Our Service
As a manufacturer with 12 years
R&D experience in China, we would like to offer any support you need as following:
1) Immediate reply to your inquiry.
2) Exact recommend of our machine for the job you do.
3) Detail information of our products, and our company if you need.
4) Best quotation.
5) Immediate answers to your questions about our produts.
6) Technical support, or alternative accessories if necessary.
FAQ
1. Q: Can you customize products?
A: Yes, products can be customized according to your requirements. MOQ will be different depending on products available or not.
2. Q: Where is your factory located?How can I wisit there?
A: Our factory is located in shenzhen City, China.
3. Q: How to proceed the order if I have logo to print?
A: First, Artwork for visual confirmation, and next is Sample picture or sending sample to you for confirmation, finally we will go to mass production.
4. Q: How long is the lead time?
A: For large quantity orders, products will depart from Shenzhen within 7-30 days after the deposit received.
