Cartridge heaters are an extraordinarily versatile and durable product that is used to heat a myriad of different processes from heavy industrial – plastics and packaging applications to critical care medical devices and analytical test instruments to being used on aircrafts, railcars and trucks. Cartridge heaters are capable of operating at temperatures of up to 750℃ and achieving watt densities of up to 30 watts per square centimeter. Available from stock or custom manufactured to your individual application need, they are available in many different imperial and metric diameters and lengths with many different style terminations, wattage and voltage ratings.
Size (Dia*L mm) | Power (low density W) | Power (high density W ) | Size (Dia*L mm) | Power(low density W) | Power (high density W) |
φ6*60 | 60 | 120 | φ14*100 | 200 | 450 |
φ6*100 | 100 | 200 | φ14*120 | 250 | 520 |
φ6*200 | 190 | 350 | φ14*150 | 330 | 650 |
φ8*50 | 65 | 120 | φ14*200 | 400 | 880 |
φ8*100 | 125 | 250 | φ14*250 | 550 | 1000 |
φ8*150 | 200 | 350 | φ14*300 | 650 | 1300 |
φ8*200 | 250 | 500 | φ16*100 | 250 | 500 |
φ10*60 | 100 | 200 | φ16*120 | 300 | 600 |
φ10*80 | 125 | 250 | φ16*150 | 350 | 750 |
φ10*120 | 200 | 375 | φ16*200 | 500 | 1000 |
φ10*150 | 235 | 475 | φ16*250 | 600 | 1250 |
φ10*200 | 300 | 600 | φ16*300 | 750 | 1500 |
φ10*300 | 470 | 900 | φ18*100 | 250 | 550 |
φ12*60 | 115 | 225 | φ18*150 | 400 | 850 |
φ12*100 | 200 | 375 | φ18*200 | 550 | 1150 |
φ12*120 | 225 | 450 | φ18*300 | 850 | 1500 |
φ12*150 | 280 | 550 | φ20*100 | 300 | 650 |
φ12*200 | 375 | 750 | φ20*150 | 450 | 950 |
φ12*300 | 550 | 1000 | φ20*300 | 950 | 1800 |
Any size and power can be customized by your requirement
Voltage | 12v 24v ,110V,220V or customized |
Wattage | 25w 30w 40w 60w 80w ,100w, 200w, 500W, 800W etc |
Wattage Tolerance | +5%,-10% or customized |
Resistance | NiCr2080 |
Resistance tolerance | +10%,-5% or customized |
Diametre | 3mm ,4mm,5mm,6mm etc |
Length | 15mm 17mm 20mm, 100mm or customized |
Wire length | 250mm or customized |
Connector | With or without |

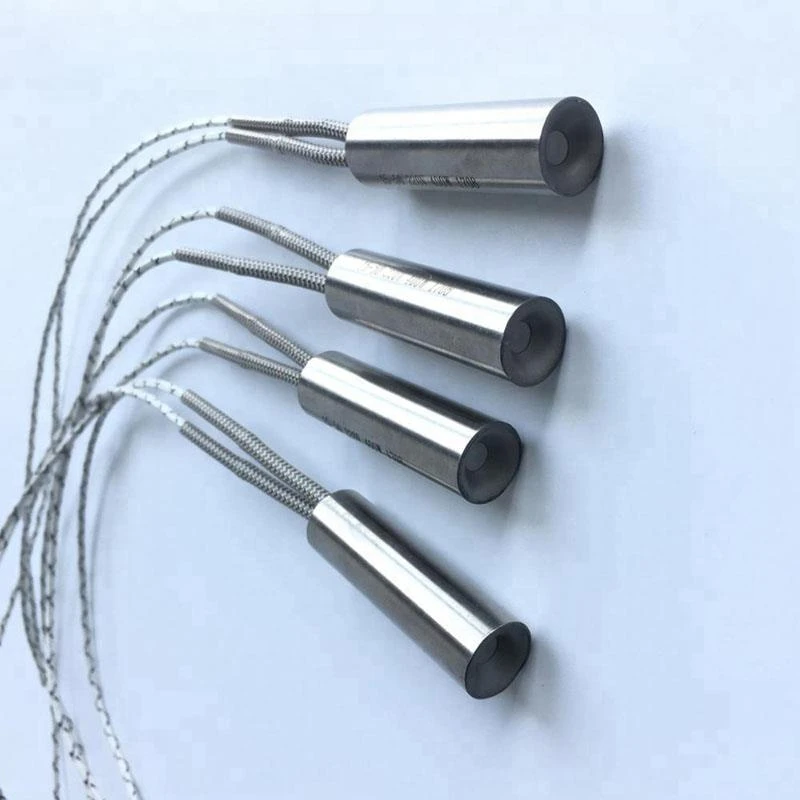

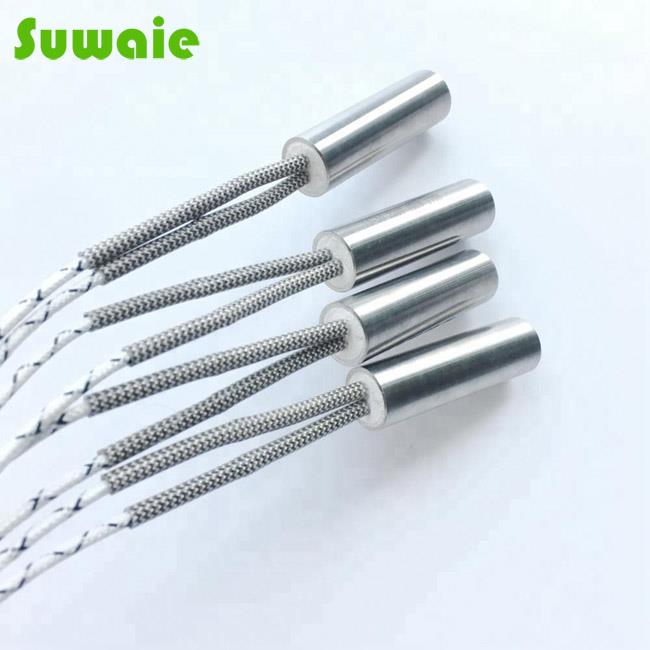

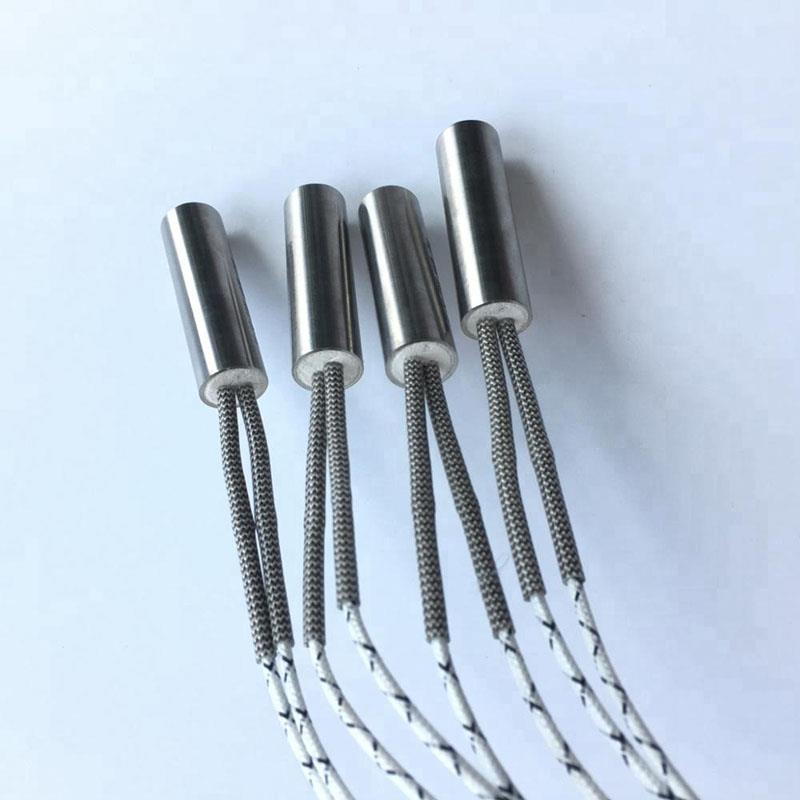

Products show

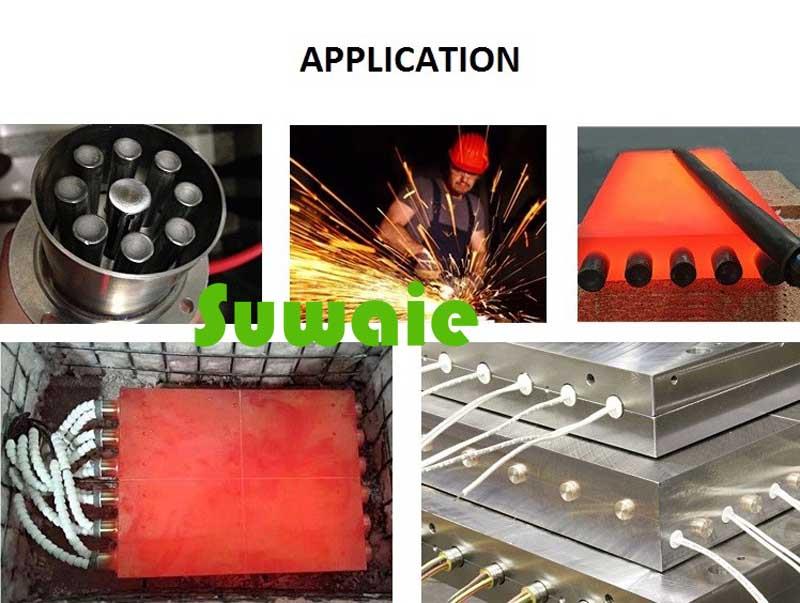

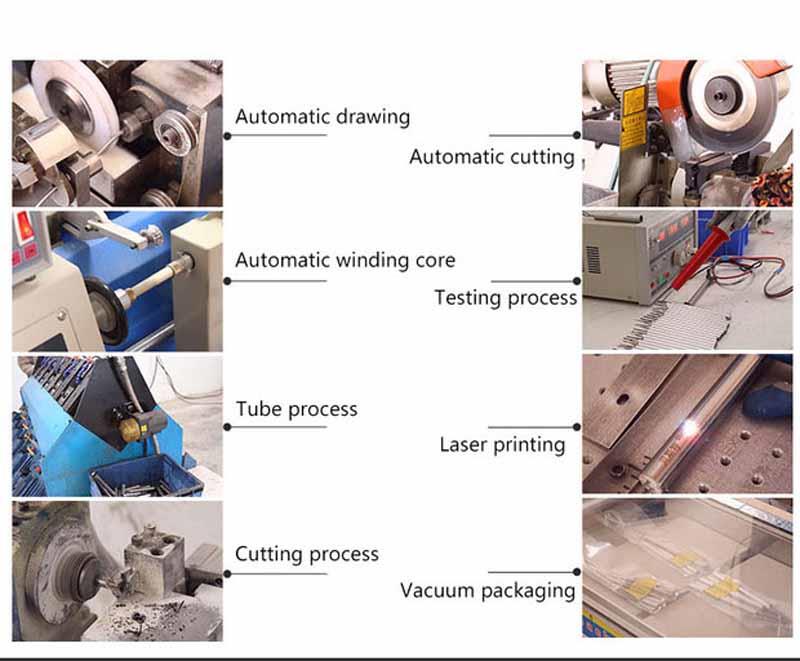

12V Heating Element Industrial Cartridge Heater process and application show
Packing details ans shipment ways
Why so many clients choose SUWAIE?
Our heating element has applied many countries in the world. Many countries have our projects.
Suwaie heating element advantage
-------Service
Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
--------Price
Our price is based on the quantity, We have the basic price for 1000pcs. What is more, free power and fan will send to you. The cabinet will be free.
--------Quality
Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.
Choose SUWAIE, you choose the cost-effective , high quality and good service.
FAQ
1. Q: How to handle the complains?
A: 1) During processing, if found any sizes defective, we will inform the clients and get clients approval.
2) If happen any complaints after got the goods, pls show us photos and detail complaints points, we will check with the production department and QC depart. Immediately and give solving solution with 6 hours.
2. Q: Is small quantity available?
A: Yes, small quantity for trial order is available.
3. Q: How about the Package & Product design?
A: Based on factory original box, original design on product with neutral laser and label, original package for export carton. Custom-made is OK.
