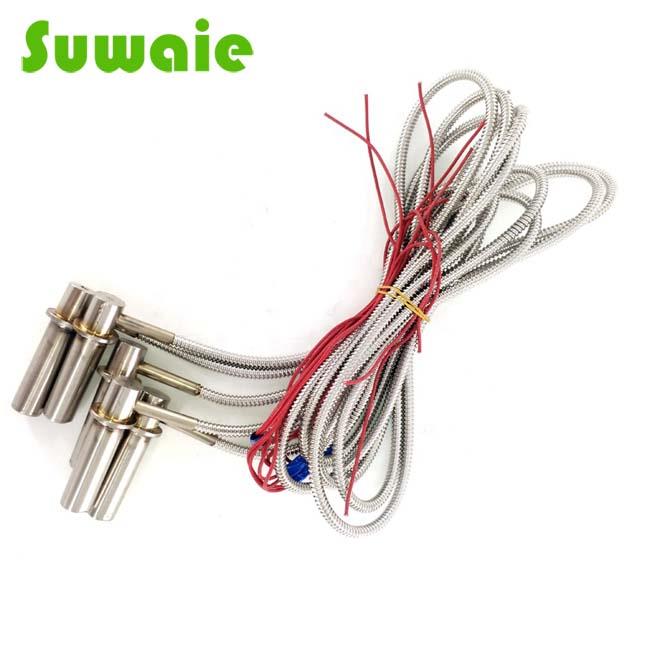

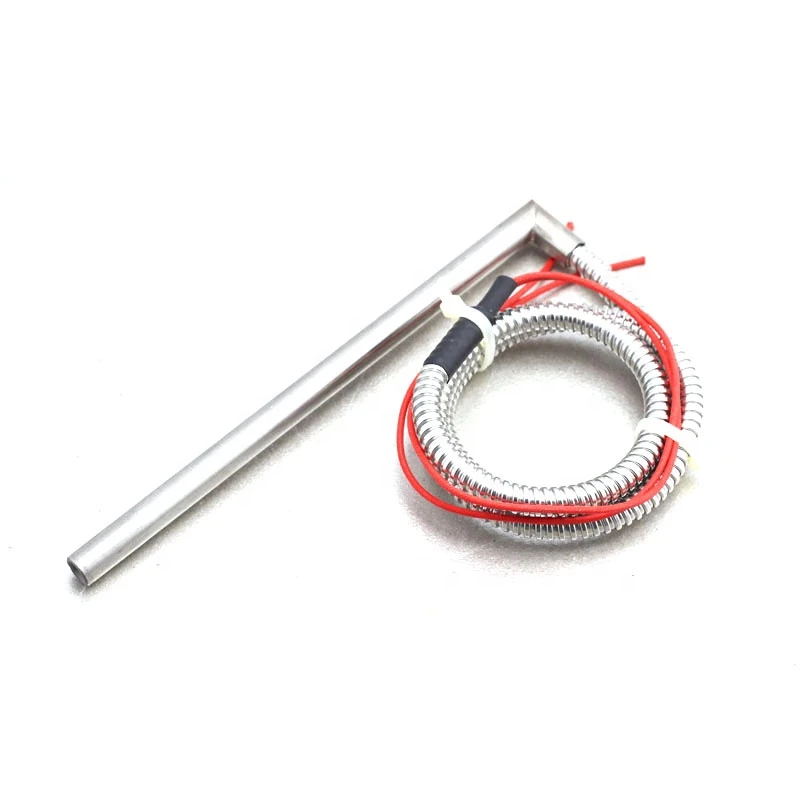

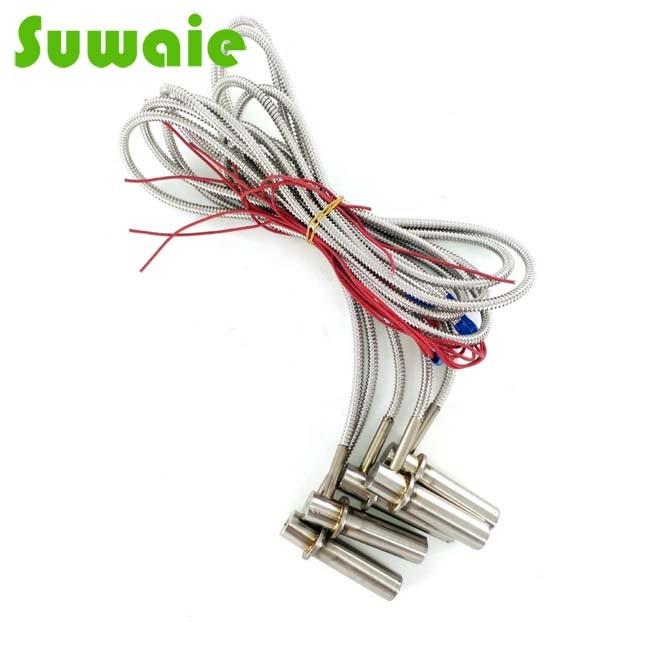

Split Sheath Cartridge Heater

The expandable cartridge heater solves two major problems associated with conventional cartridge heaters – poor durability and proper fit. The expandable cartridge heater will expand in the hole and will make better contact against the walls during heating, providing uniform heating along the complete length of the heater, better durability, and longer heater life. After cooling, the heater can be easily removed – meaning no more drilling, hammering, or destruction of heaters being removed from the holes. Expan heaters can be made with various lead terminations, threaded fittings, built-in thermocouples, and flanges.

Split Sheath Cartridge Heater Structure diagrams:

Introduction of leakage of heating cartridge heater and solution:

Solution

1. Connect the ground wire as required and check if it is correct;

2. Inspection and repair, if such an event occurs, it is recommended to replace;

3. The electric heating pipe has been damaged and replaced with the same specification electric heating pipe;

4. Clean and dry the stainless steel heating tube correctly;

5. Check off the wire, re-weld;

6. Clean and dry properly;

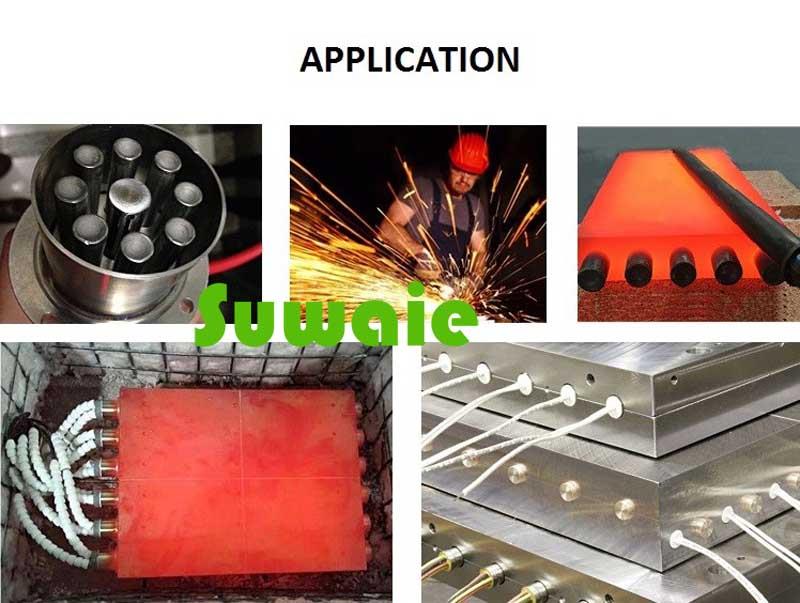

Application:

Njection molding manifolds

Mass spectrometry

Rubber molding/Food production/Immersion tank heating

HVAC compressors

Fuel cells/Semiconductors/Medical devices

Sensor measurement devices

Extrusion/Die casting/Hot melt adhesives

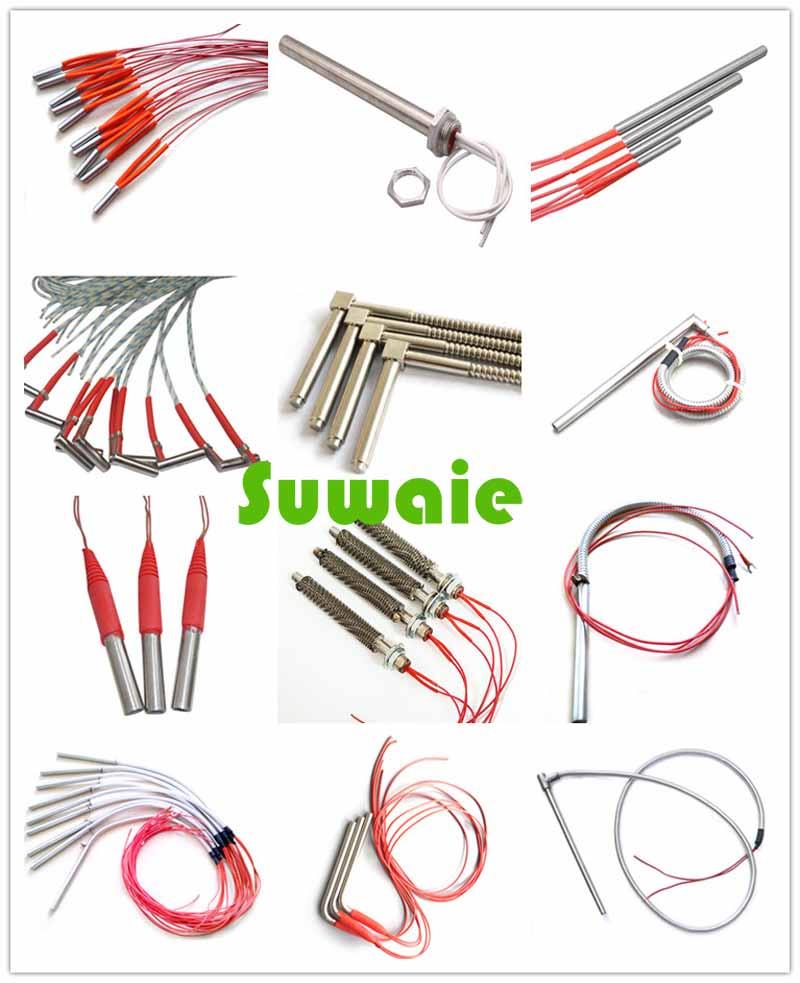

Products show

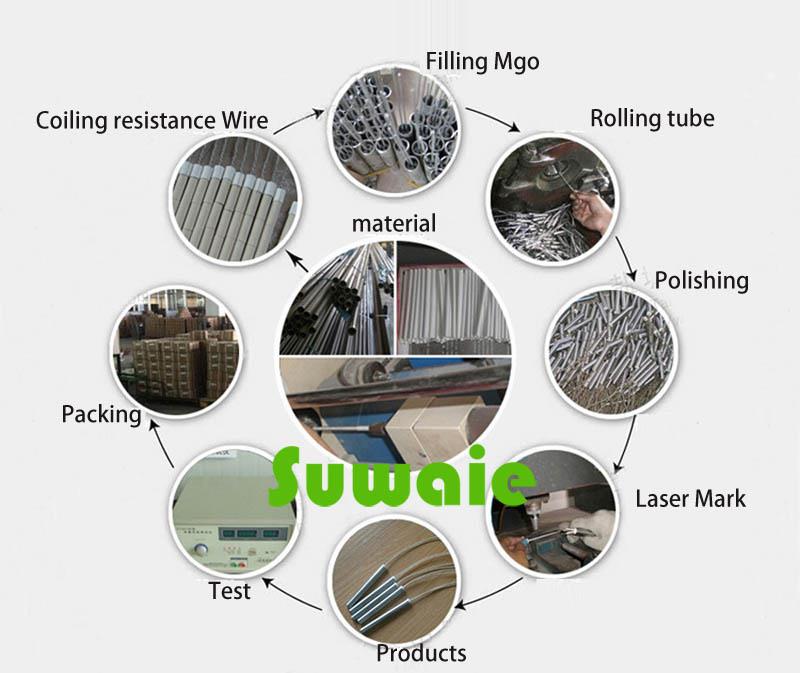

Process and shipment

Packing and ship case

What benefit we can get from you?

1) Competitive price

2) High quality control : 100% full inspection before shipment

3) High precision, tolerance can be ± 0.005mm

4) Fast lead time (5-7days for samples, 7-30 days for mass production)

5) Non-standard//OEM//customized service provided

6) No MOQ, small QTY is acceptable.

7) ISO 9001:2003 and ISO13485:2008 certificated factory, ROHS material used

9) Professional export packing: Carton+Wooded Case, keep no scratch and damage

FAQ

1. Q: What’s the shipping process?

Ⅰ. For LCL cargos, we arrange reliable logistics company to drive them to the forwarder agent’s warehouse.

Ⅱ. For FLC cargos, the container directly go to the Factory loading. Our professional loading workers, accompanied with our forklift workers arrange the loading in good order even on the condition that daily loading capacity is overloaded.

Ⅲ. Our professional data management is a guarantee of the real-time update and the unification to all the electrical packing list, invoice.

2. Q: What about the warranty? What if the products go wrong?

A: All our products have 1 years warranty, should you have any problems, please contact us directly and we will do our best to solve it.

3. Q: I have no drawing, how should I start the new project?

A: You can tell us the voltage, power, shape, tube diameter, and send the heating element pictures.

4. Q: What is The Process Of an Order?

A: Send Your Detailed Request→Feedback With Quotation→Confirm Quotation & Make Payment→Make Size Drawing For Approval→Make Production→Production Test→Sample Test(Approval)→Mass Production→Quality Checking→Delivery→After Service→Repeat Order...

5. Q: What Inspection Equipments do we have?

A: Current tester, withstand voltage tester, X-ray machine, insulation current tester, insulation voltage tester, pressure tester, salt spray tester, micrometer, etc.

6. Q: How to start the business?

A: We recommend you our product according to your requirement, if you are satisfied with that, then you make a trail order or sample order to check the quality, if all ok, you can place an order then.
