heating element mgo filling machine
Functions:
1. PLC control, human-computer interface. Vibration frequency can be adjusted.
2. Powder filling density above 2.17g/cm3. Almost zero MgO loss.
3.Oscillation mode: Motor or electromagnetic.
4. Tube diameter: below 16mm.
5. Indicate how to clear fault automatically.
6. 12, 18, 24, 36 positions are available.
7. Filling speed: 250-350mm/min.
8. Min. tube diameter: 5.5mm.
Main Technical Parameters:
1. Power supply: Single phase 220V, 50Hz.
2. Rated power: 1.5KW.
3. Air supply: 5-7kg/cm2.
4. Efficiency: 6500pcs/8h (tube length 250mm)
5. It can fill 24pcs or 36pcs tubes at a time (below 10mm)
Element tube Length (M) | Vibration System (PCS) | Machine Size (L*W*H)mm | Packing Size (L*W*H)mm | Gross Weight (KG) | Net Weight (KG) |
1 | 1 | 3600*1200*1050 | 3300*1050*1050 | 650 | 500 |
1.5 | 1 | 4600*1200*1050 | 4500*1050*1050 | 730 | 580 |
2 | 2 | 5600*1200*1050 | 5800*1050*1050 | 810 | 660 |
2.5 | 2 | 6600*1200*1050 | 7100*1050*1050 | 890 | 740 |
3 | 3 | 7600*1200*1050 | 8200*1050*1050 | 970 | 820 |

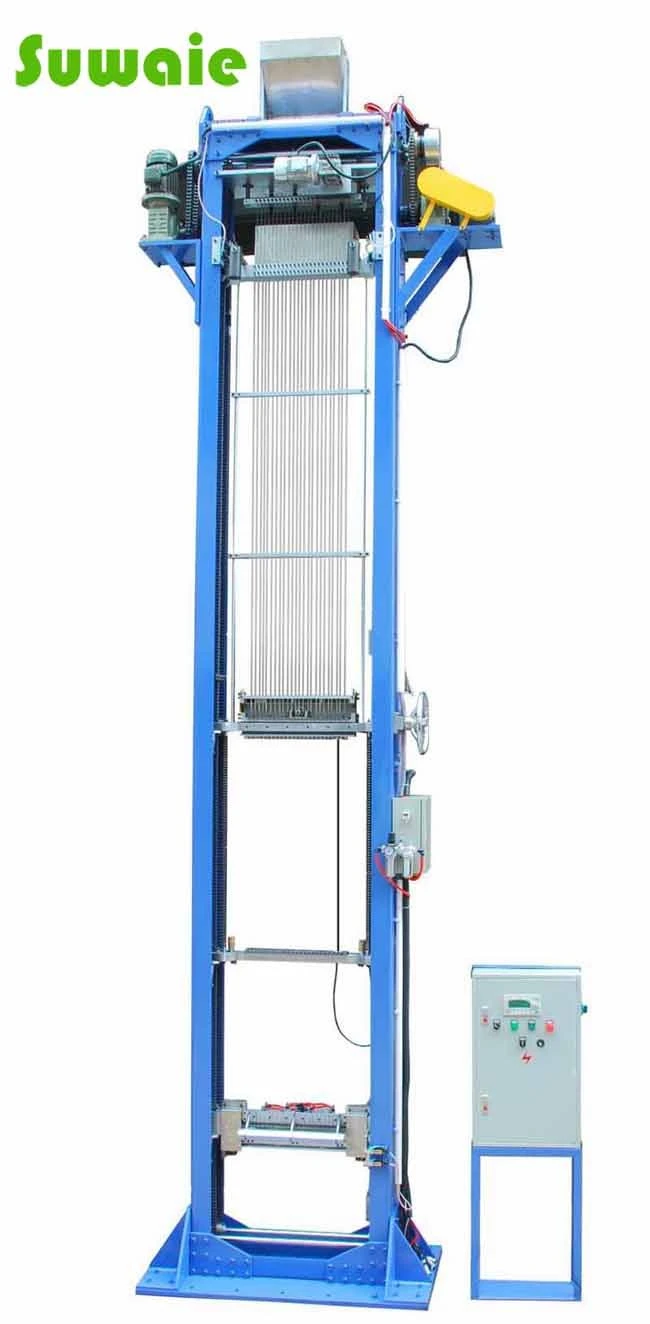

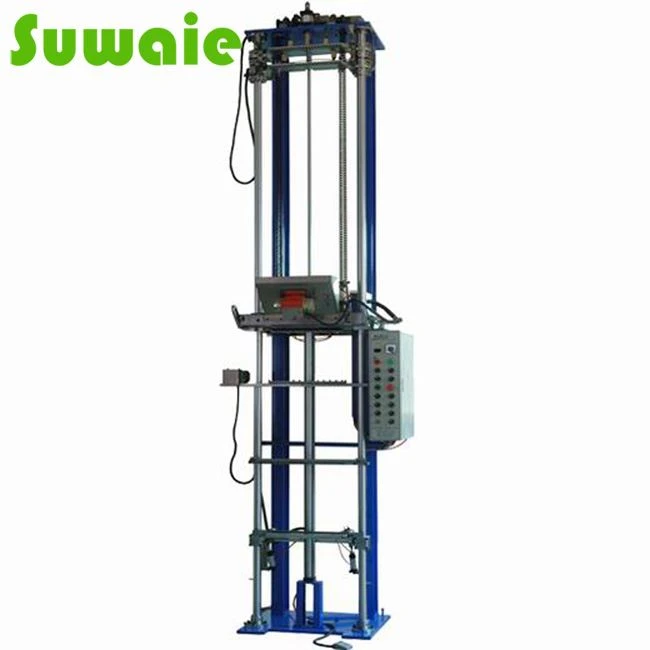

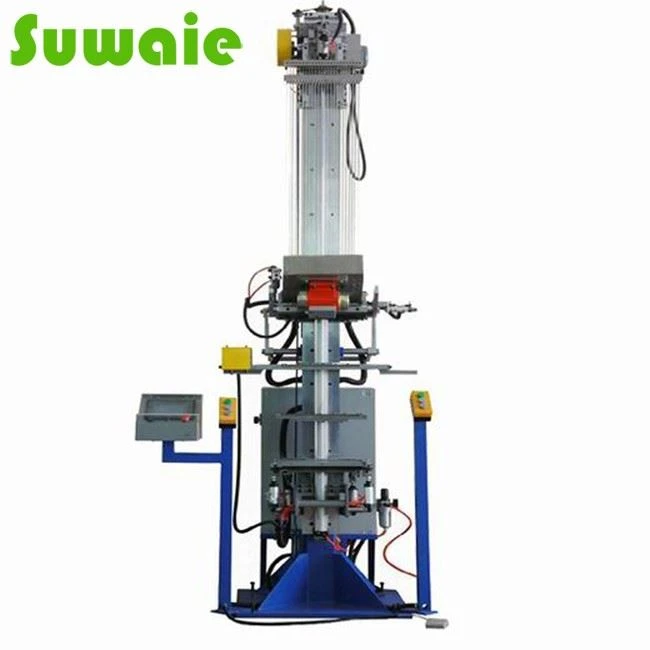

Products Picture Show
Tubular Heater Filling Machine Packing
Shipment
Advantages:
1.OEM service:
No agents, no trading company, reduce all necessary cost for you. Direct communication with our engineer.
2.Professional team:
20 years foreign customers service experience. Over 10 years investment casting manufacture.
Almost 35% high educated people.
3.Globally acceptabe quality:
The products offered by us are thoroughly examined by our experienced professionals to ensure their durability, reliability and long service life.
Full fledged QA department & ISO 9001 certification.
4. MOQ:
100 pcs is even acceptable in some special conditions
5.Annual output
It is more than 3000 metric ton, so we can deliver on time.
The QA department
We have inhouse sophisticated physical and chemical testing laboratory equipped with ultra modern testing equipment.
FAQ
1.
Q: What about the warranty? What if the products go wrong?
A: All our products have 1 years warranty, should you have any problems, please contact us directly and we will do our best to solve it.
2.
Q: How long should your heater serves?
A: The lifespan of heater is decided by the quality of Mgo and resistance wire quality. With good resistance wire, our heating element can serve 50000 hours.
3.
Q: Can you do the design of package for us ?
A: Yes, We can. after tell us your idea. and we would make the files of your package according your your requirement.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of
heating element mgo filling machine. Our company has professional equipment and engineers to provide the production and service of heating element mgo filling machine.
