SW01 Pipe rolling mill machine ，is used for compacting elements in order to increase the density of MgO. The speed rate of each pair of axis wheel will increase while the diameter of pipe changed , Compression and elongation of the tube tends to match the variation. It' s not easy to rolling pipe blockage in the pipe elongation ratio constant rolling machine increased by 5%.and with a fixed size trench roller R series, it' s heating element profession first choice ideal product .
Functions:
1. The machine body using integrated coin structure ,small distort, high precision, long lasting.
2. The speed rate of each pair of axis wheel will increase while the diameter of pipe reduced. The details have good linear character and small distort after pipe shrink,and elongation length, saving materials.
3. When adjusting roller compression ratio, roller high center unchanged.
4. High geometric precision of the compressed pipe, ovality at ≤ 0.05.
5. Motor with overload protection, when blockage, automatic stop;
6. Speed of pipe shrinking18m/min.high efficiency.
7. Used in Copper,iron,aluminum,stainless steel ,etc.
Main technical parameter:
1. Power supply：three-phase380V/50Hz(three-phase220V /60Hz customize)
2. Pipe diameter：φ5～φ19（customize）
3. Pipe length：Above 130mm .
4. Center of two axis wheel 99mm.
5. Adjustment of two axis wheel：±1mm.
6. Speed of pipe shrinking：18m/min.
Technical parameter: | |||||
No. | Number of roller groups | Power (Kw) | Reducer | Size(L*W*H)mm | Weight (kg) |
SW01-08 | 8Station | 12 | Differential or Uniform | 1360×1650×1100 | 2000 |
SW601-10 | 10Station | 15 | Differential or Uniform | 1600×1650×1100 | 2400 |
SW0601-12 | 12 Station | 18 | Differential or Uniform | 1840×1650×1100 | 2800 |

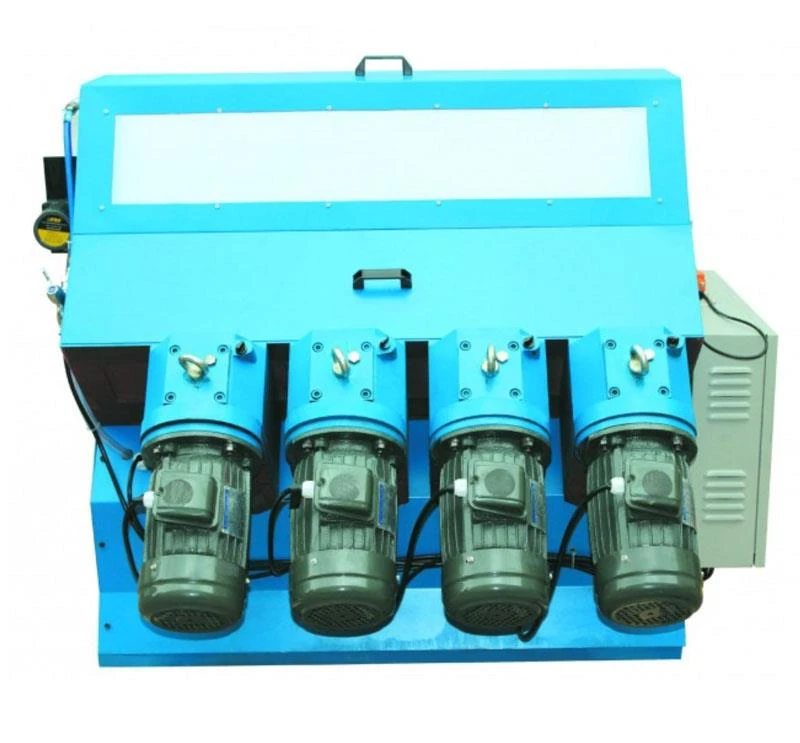

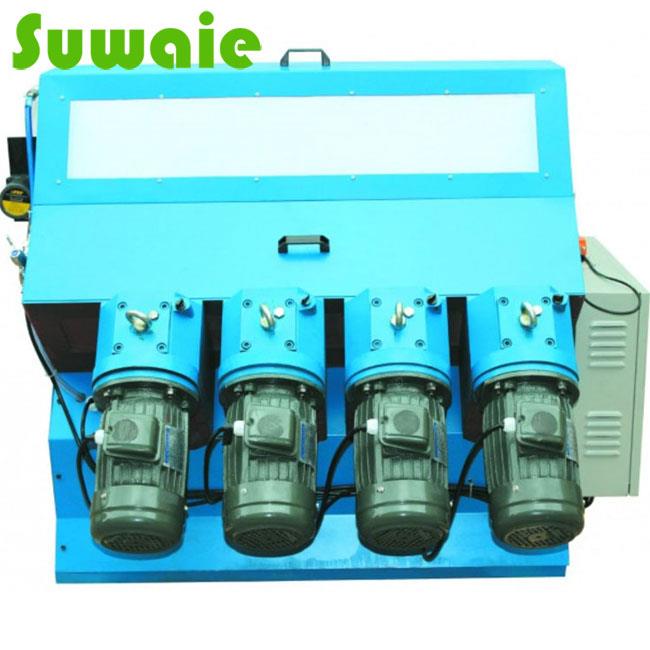

Tubular heater element reduce mill machine picture show
Working office
Tubular heater rolling machine packing details
