Functions:
1. PLC control, human-computer interface. Vibration frequency can be adjusted and vibration mechanism will go up along with the filling tube.
2. It adopts jet nozzle which assure almost zero MgO loss. Inner and outer filling tube makes better centering.
3. Powder filling density above 2.20g/cm3.
4. Big and small powder box design. Electronic adjusting the exposed length of terminal pin.
5. Indicate how to clear fault automatically.
6. 12, 18, 24, 36 and 48 position are available
7. Filling speed: 250-350mm/min
8. Tube diameter :below ￠16mm, tube length: below 5000mm.
Main technical parameters:
1. Power supply: Single phase 220V, 50Hz
2. Rated power: 2.0KW
3. Air supply: 5-7kg/cm2
4. Efficiency: 6500pcs/8h (tube length 250mm)
5. Packing size (L*W*H):8000*1950*1000(mm) (tube length 3meters)
10000*1950*1000(mm) (tube length 4meters)
12000*1950*1000(mm) (tube length 5meters)
6. Gross weight: 1200kg

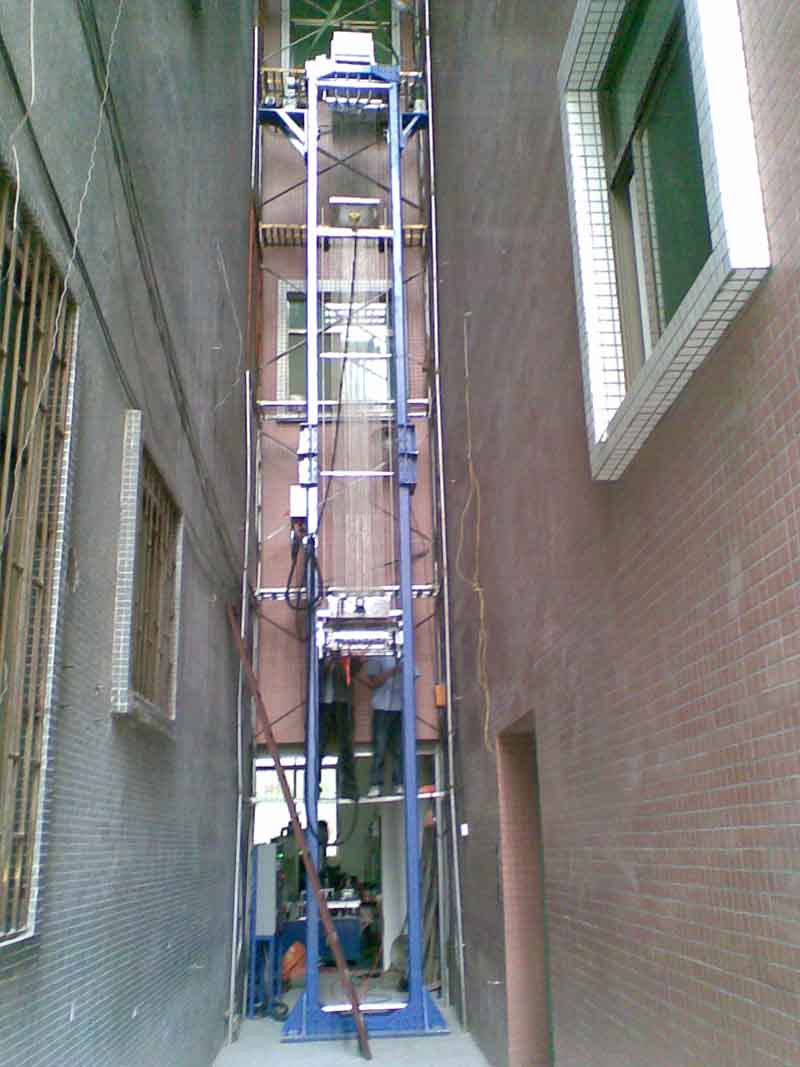

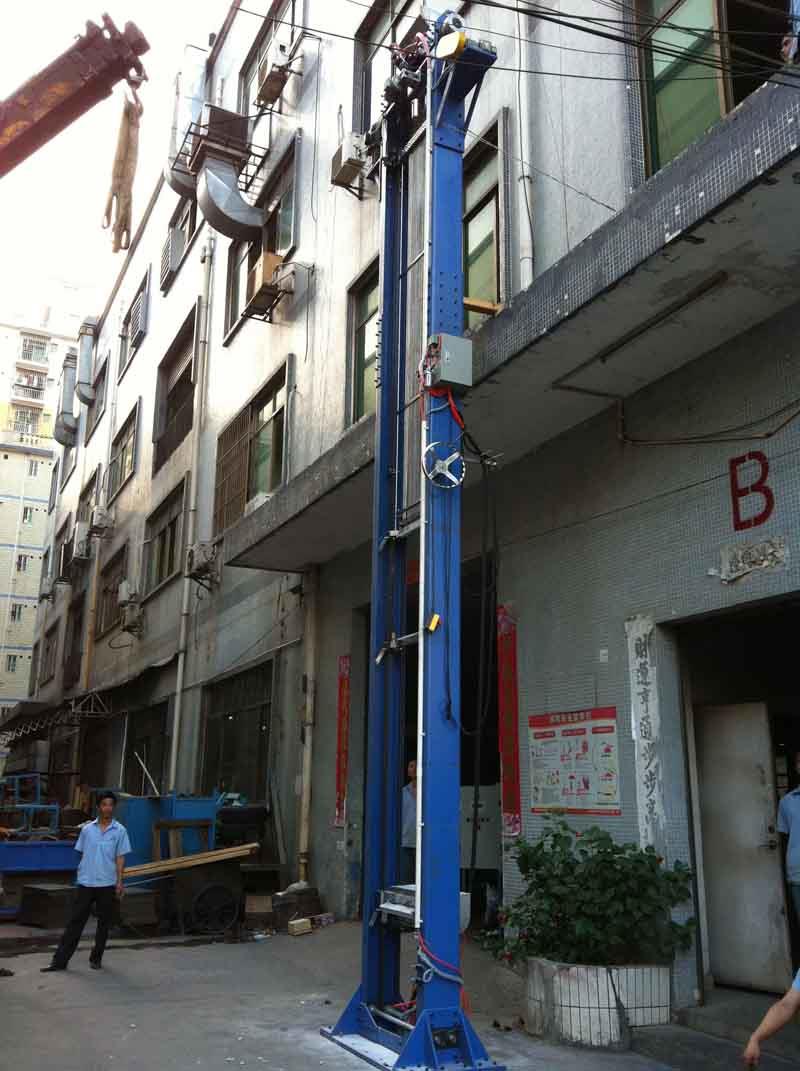

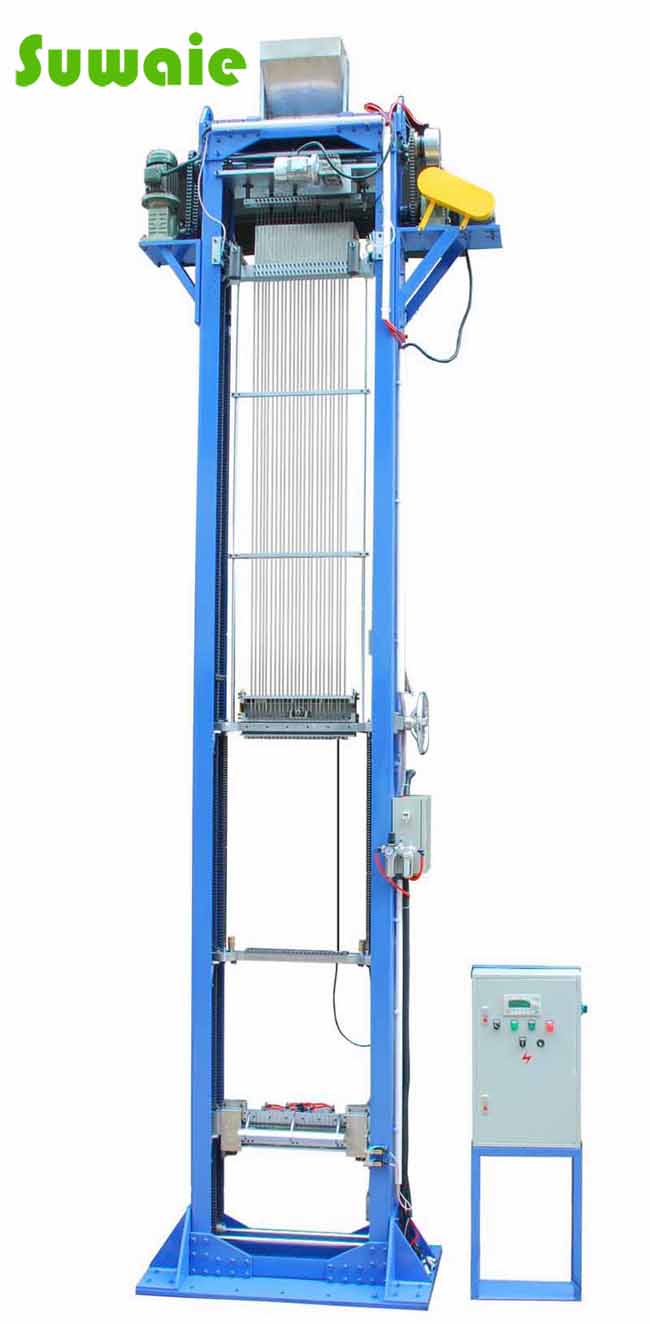

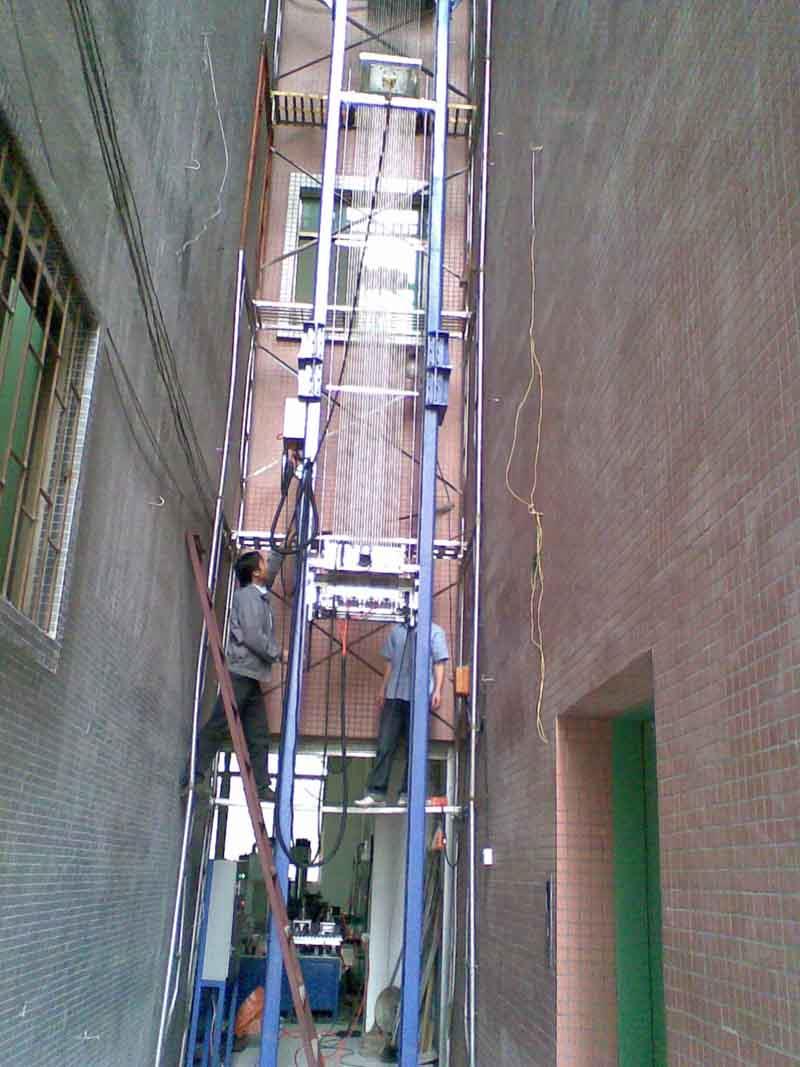

Heating element filling machine picture

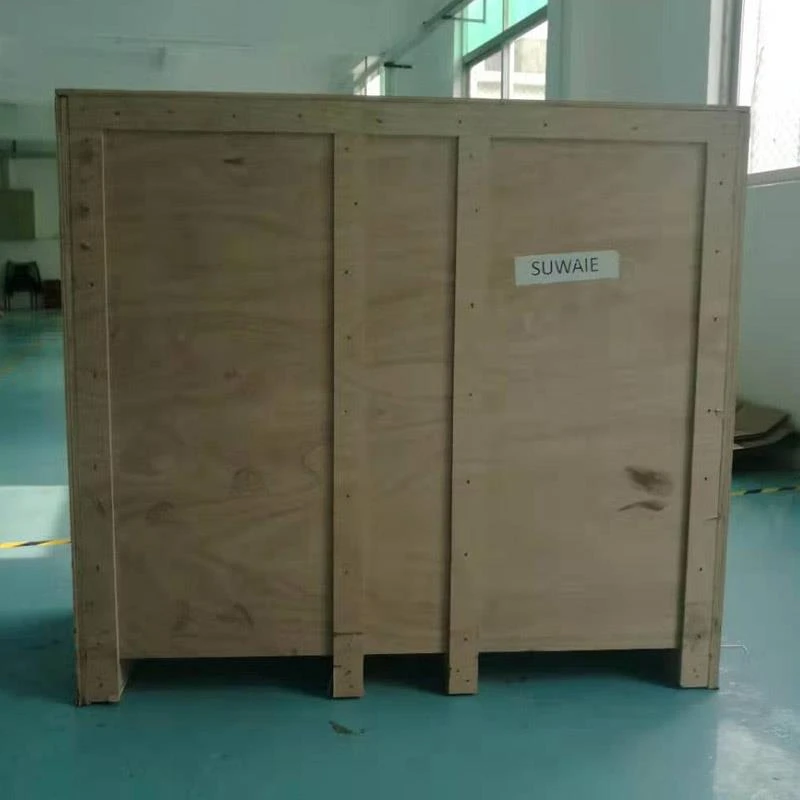

Packing details
Shipment
What can we do for you?
1. Professional, Competitive price and Fast delivery time
We engaged in this area for almost 12yeas, experience engineer can help you process the project well and perfect, also we own our factory that we can control the cost and delivery time very well. We can try best to meet your request.
2. Protect our customer profit well
Even we have very strictly quality control system, but we still can`t promise every part you received will 100% perfect, so if there is any defective parts you received, you just need to offer us the evidence(such as picture), we will check and confirm it.
Because of our strictly quality control system, we have confidence to promise our customer with this. Please kindly noted that it`s our advantage compared with others, we realize that only the high quality and good service can we keep friendly and long-term business relationship with our customer and it`s also the only way for an enterprise to be existed...
FAQ
1. Q: How about the machine warranty?
A: Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free
2. Q: Can you do the design of package for us ?
A: Yes, We can. after tell us your idea. and we would make the files of your package according your your requirement.
3. Q: Can you give me a discount price?
A: It is dependng on the quantity. The larger the quantity is, the more discount you can enjoy.
