Explosion Proof Oil Immersion Heater

Working principle of explosion-proof electric heater:

The fluid explosion-proof electric immersion water oil heater converts electrical energy into heat energy to heat the material to be heated. During operation, the low-temperature fluid medium enters its input port under the action of pressure through the pipeline, along the specific heat exchange flow path inside the electric heating vessel, and uses the path designed by the fluid thermodynamics principle to take away the high-temperature heat energy generated in the work of the electric heating element. The temperature of the heated medium is raised, and the electric heater outlet is obtained as a high temperature medium required by the process.

The electric heater internal control system automatically adjusts the electric heater output power according to the temperature sensor signal of the output port, so that the medium temperature of the output port is uniform; when the heating element is overheated, the independent overheat protection device of the heating element immediately cuts off the heating power source to avoid Overheating of the heated material causes coking, deterioration, and carbonization. In severe cases, the heating element burns out, effectively extending the service life of the electric heater.

Explosion-proof electric water heaterfeatures:

1. Small volume and high power: The heater mainly uses clustered tubular electric heating elements.

2. Fast thermal response, high temperature control accuracy and high comprehensive thermal efficiency.

3. High heating temperature: the maximum operating temperature of the heater design can reach 850 °C.

4. The medium outlet temperature is uniform and the temperature control precision is high.

5. Wide application range, adaptability: The heater can be applied to explosion-proof or ordinary occasions, the explosion-proof grade can reach dIIB grade and C grade, the pressure can reach 20MPa.

6. Long life and high reliability: The heater is made of special electrothermal material, with low surface power load and multiple protections, which greatly increases the safety and life of the electric heater.

7. Fully automatic control: According to the requirements, the heater circuit design can easily realize the automatic control of the parameters such as outlet temperature, flow rate and pressure, and can be networked with the computer.

8. Energy saving effect is significant, almost 100% of the heat generated by electrical energy is transferred to the heating medium

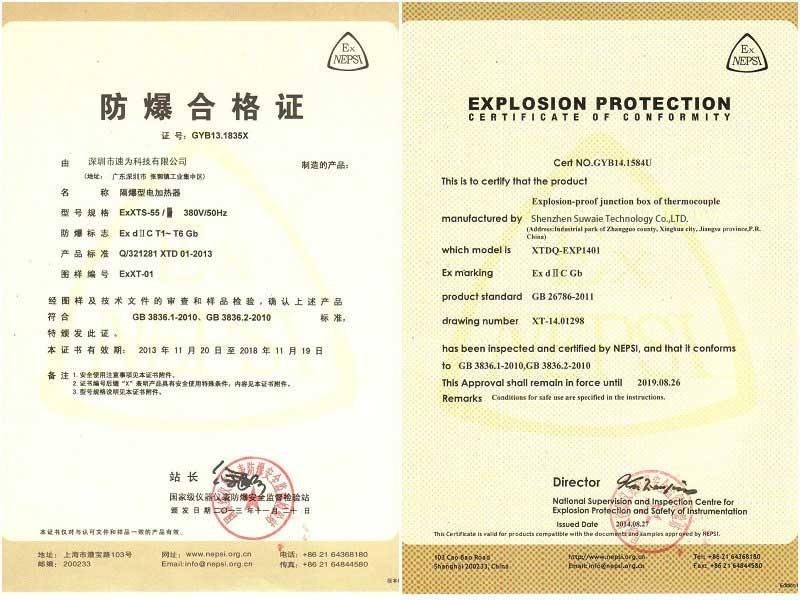

Explosion-proof heater certificate

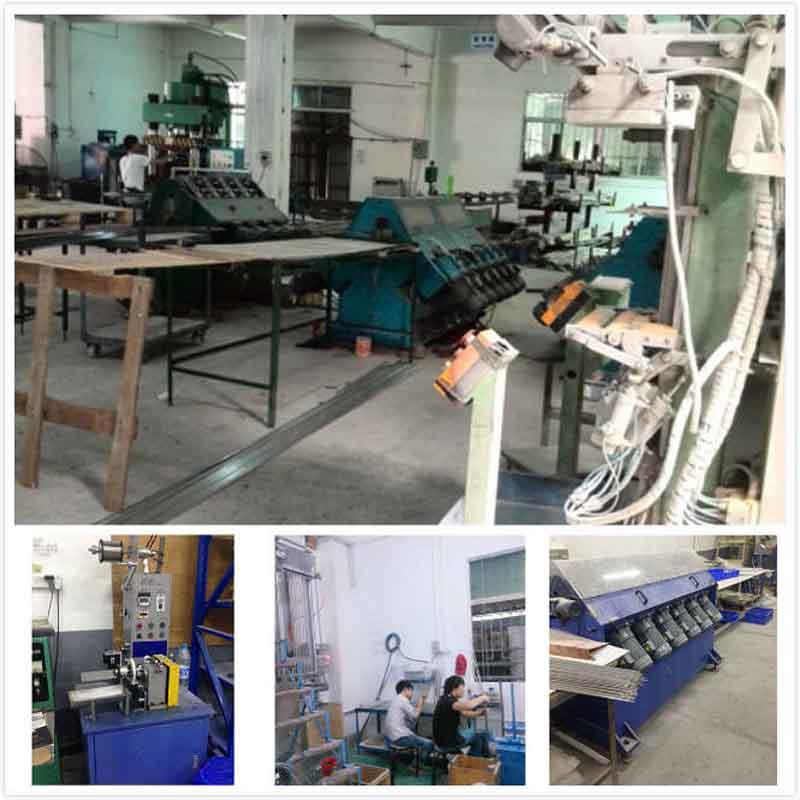

Explosion-proof flanged immersion heater machine process

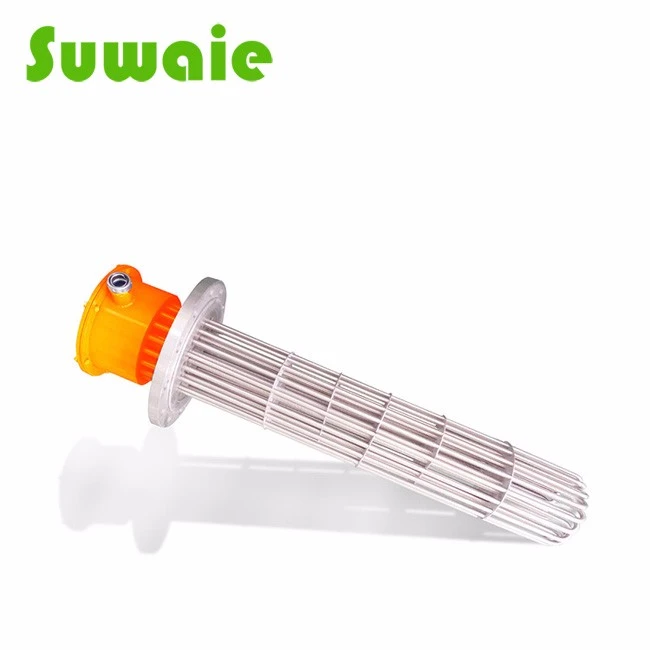

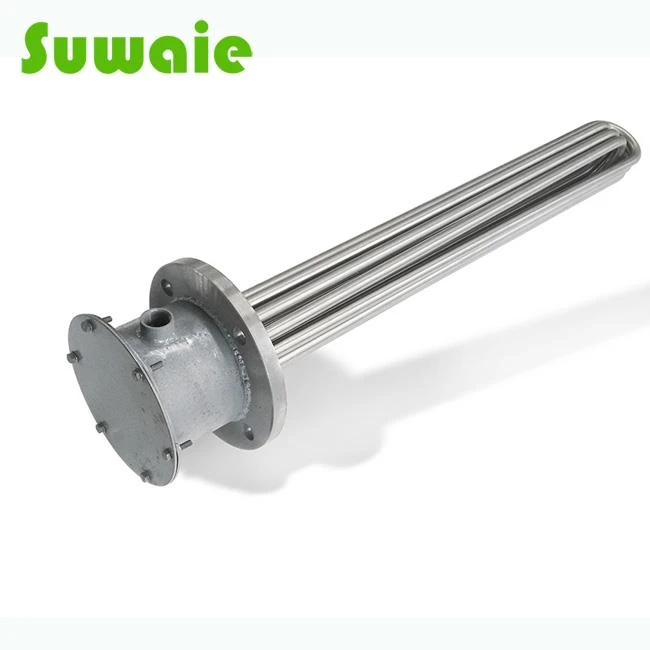

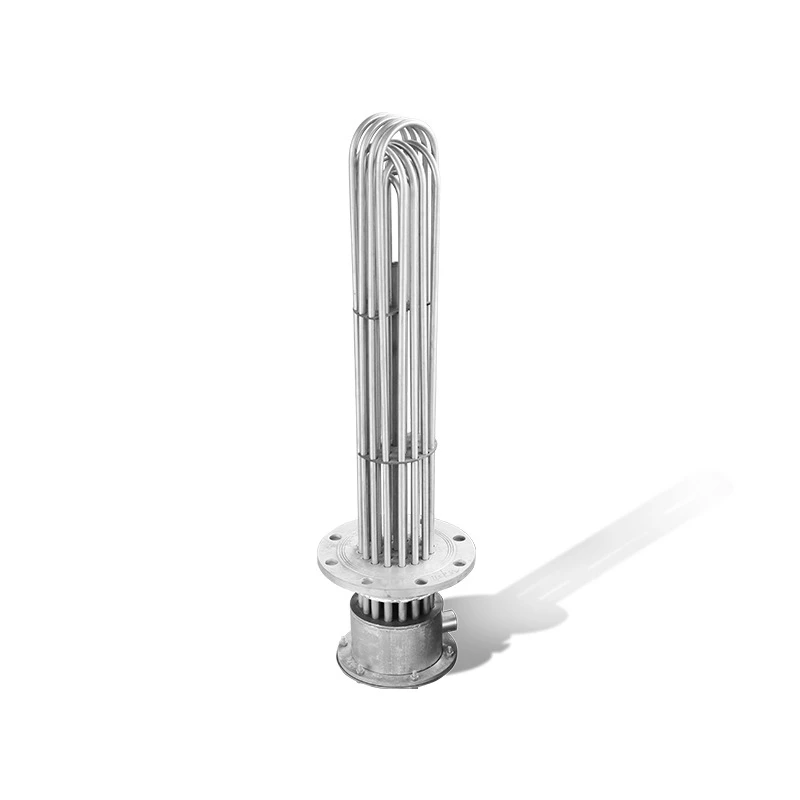

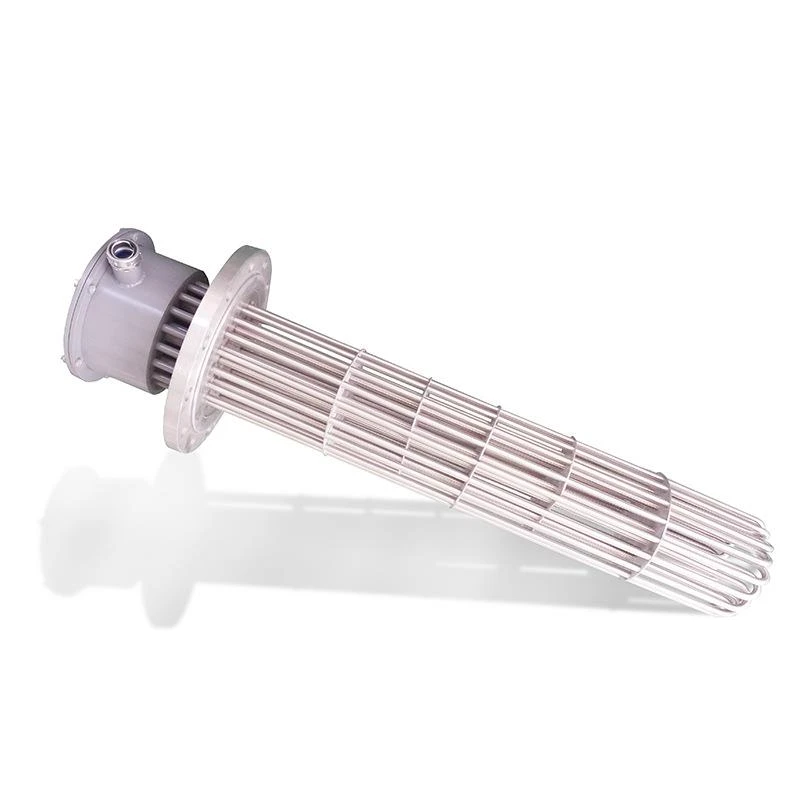

Product show

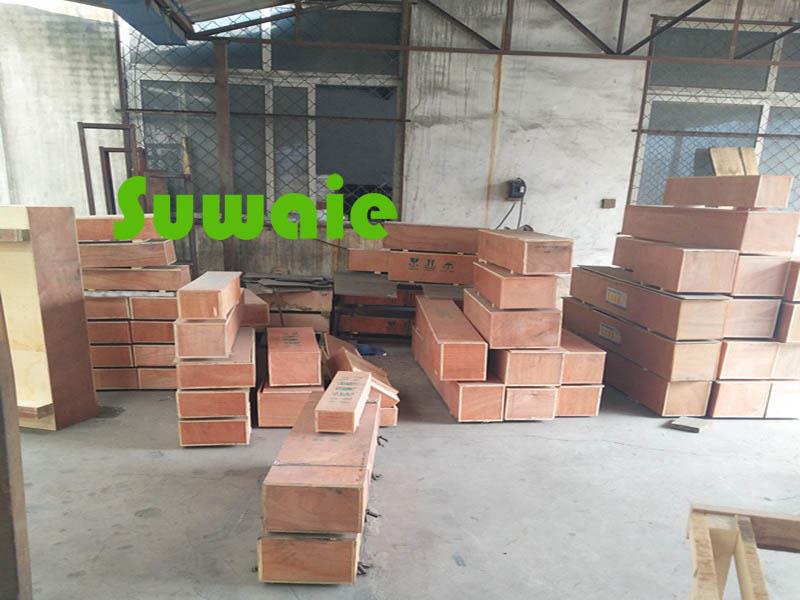

Wooden packing details

Why choose US?

1. Bureau veritas audited supplier

2. Strict confidentiality for customers

3. Have a strong product development capabilities!

4. We have Longterm cooperation forwarders to ensure the quick and safe shipment, avoid goods delay and extra cost.

5. Solve problems for customers in time

6. Good Payment terms and Reasonable price

7. Excellent after-sales service and feedback

8. Potential problems in product handling

9. We can provide installation video and instructions.

Shipment ways

FAQ

1. Q: How about the Package & Product design?

A: Based on factory original box, original design on product with neutral laser and label, original package for export carton. Custom-made is OK.

2. Q: What is your production capacity?

A: 50000pcs per DAY

3. Q: Do you have the ability to do independent research and development?

A: Our engineering department has 5 elites, we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement.

4. Q: What is your main product line made?

A: We mainly produce heating element,cartridge heater,hot runner heater ,industrial heater and so on.

Focus on heating element.( etc.)

Hot Tags: explosion proof oil immersion heater, China, manufacturers, suppliers, factory, customized
