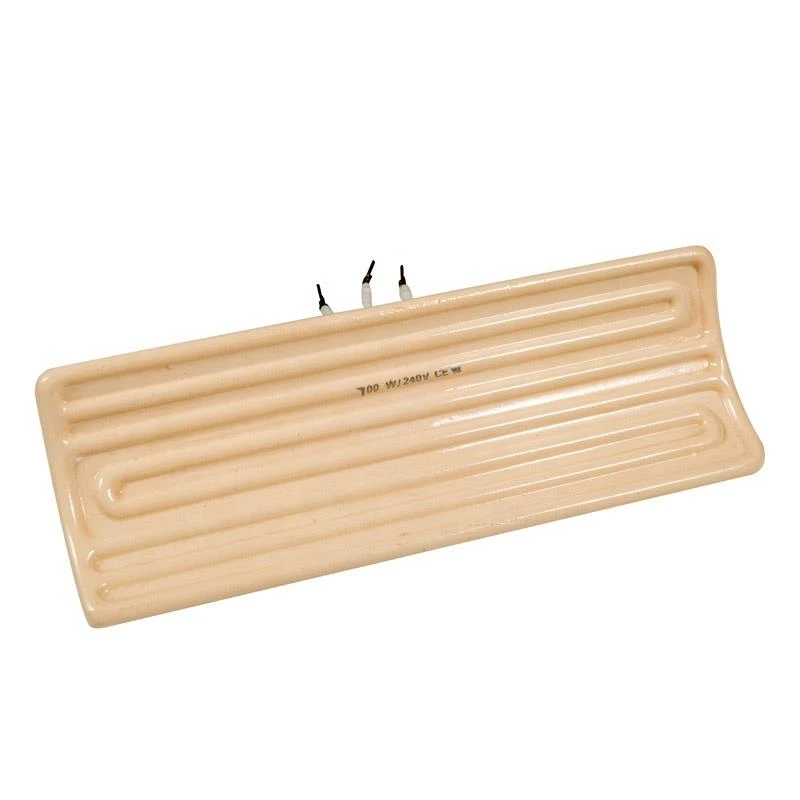

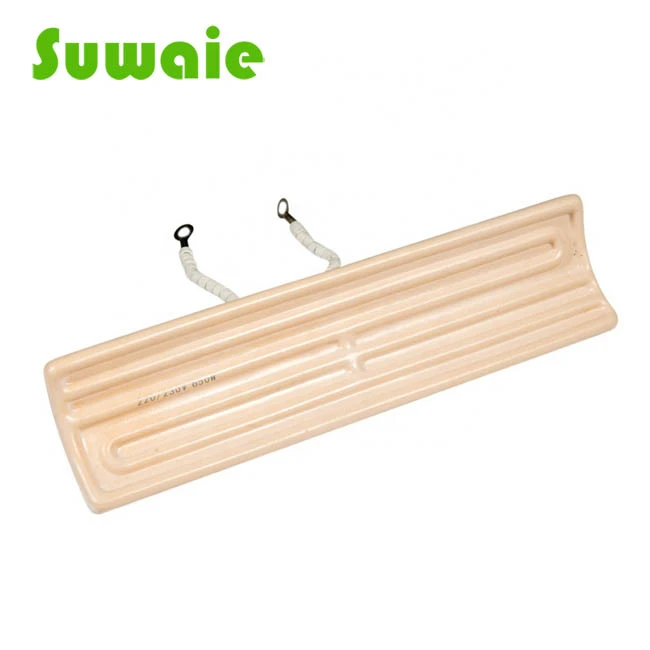

Full Trough Elements are a curved ceramic element 245×60mm with mounting neck behind the emitter. Available in wattages from 150W to 1000W with or without a thermocouple.K or Type J. Type thermocouple is available as a standard. We can also supply these with a J Type thermocouple, and can have them pre-calibrated prior to being shipped from China.
Technical Data:
|
Full trough element infrared Ceramic Heater With K Type Thermocouple |
|
|
Material |
High Quality Ceramic |
|
Max operating temp |
800ºC |
|
Voltage |
12V-480V or as customer's demand |
|
Wattage |
50w-10000w |
|
Shape |
Flat/Curved/Hollow/ Bulb |
|
Resistance wire element |
High Quality Nickel chrome wire |
|
Melting point |
1350ºC |
|
Max wattage |
6.5w/CM2 |
|
Useful wavelength range |
2 to 10 µm |
|
Average operating life |
Up to 20,000 hrs depending on conditions |
|
Cold areas |
Depends on length and diameter 5-25mm |
|
Internal thermocouple |
K or J type |
|
Recommended radiation distance |
100 mm to 200 mm |
Application
1. Plastics:
• Thermoforming
• Vacuum forming
• Curing extruded parts
• Drying Ceramic
• Laminating
2. Electronics:
• Preheat PCBs
• IR reflow ovens for SMT
3. Paper:
• Speed drying coated paper
• Adhesive activation
4. Textiles:
• Drying dyed/printed fabric
• Curing latex coatings
5. Ceramic:
• Drying glazes/pigments
6. Thin Film Deposition:
• Vacuum coating substrates
7. Wood/Furniture:
• Heating bonded/painted/plastic
coated components
• Drying same components
8. Food:
• Warming
• Baking
9. Paint:
• Drying lacquers/finishes
• Baking lacquers/finishes
10. Packaging:
• Heat shrink
• Forming
11. Printing:
• Ink drying

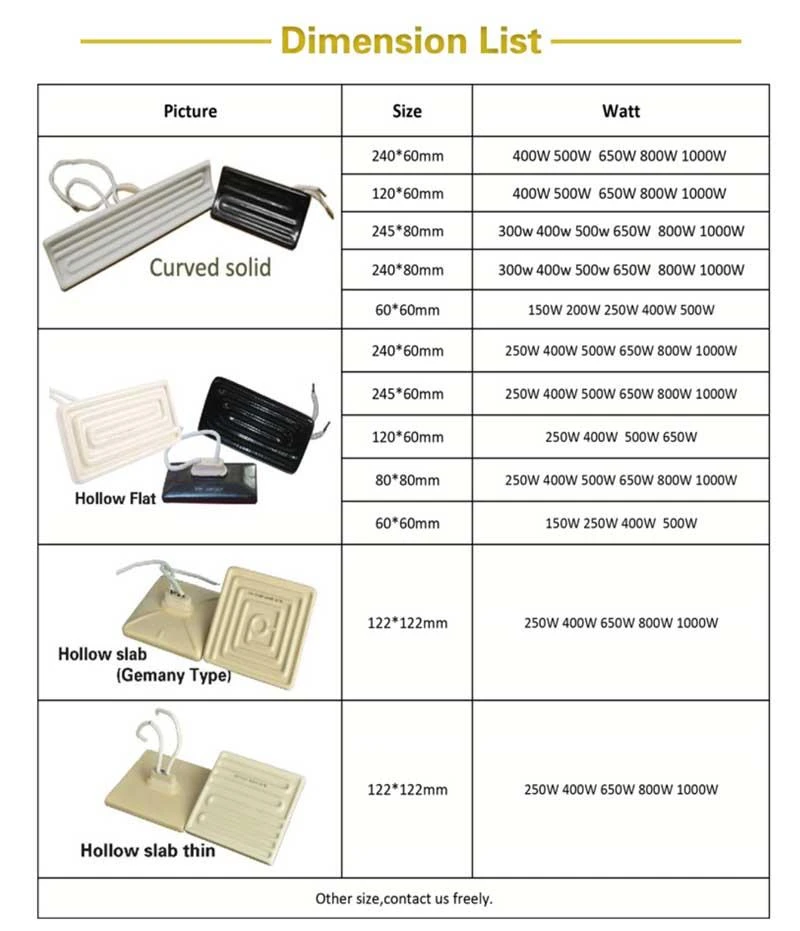

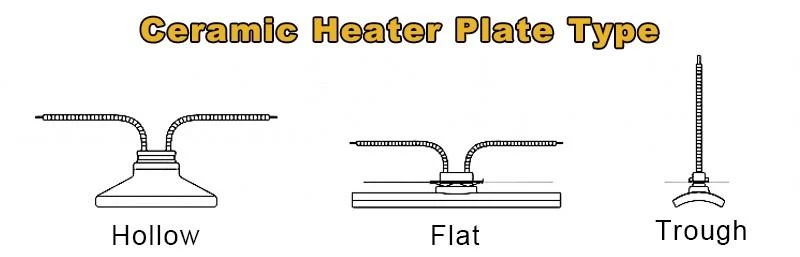

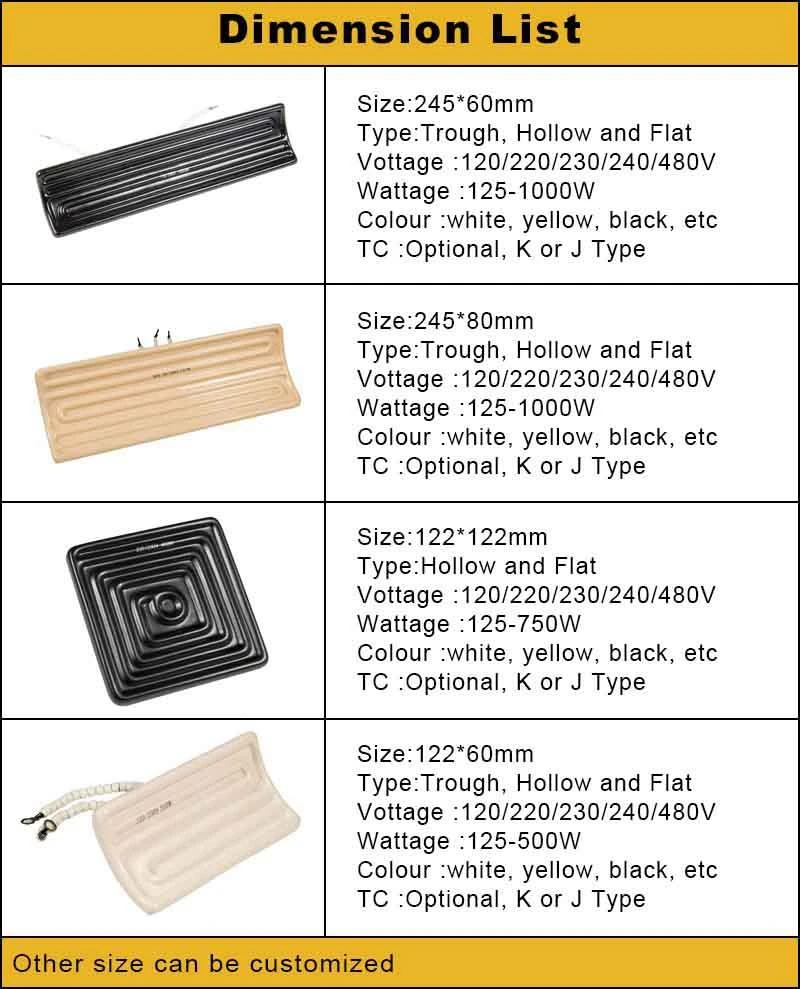

Drawing and size list show
Products show

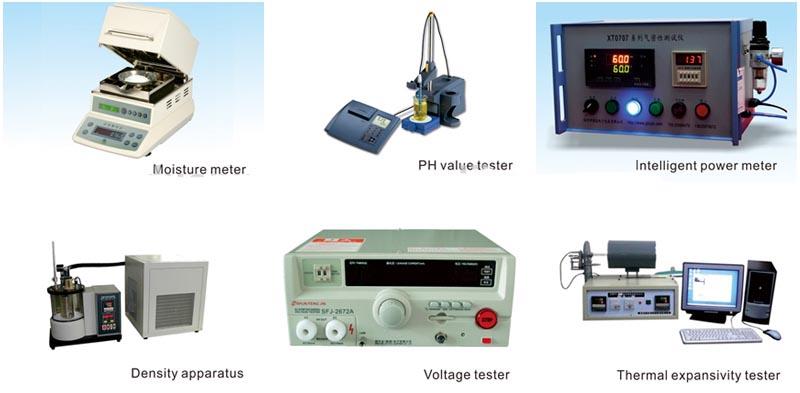

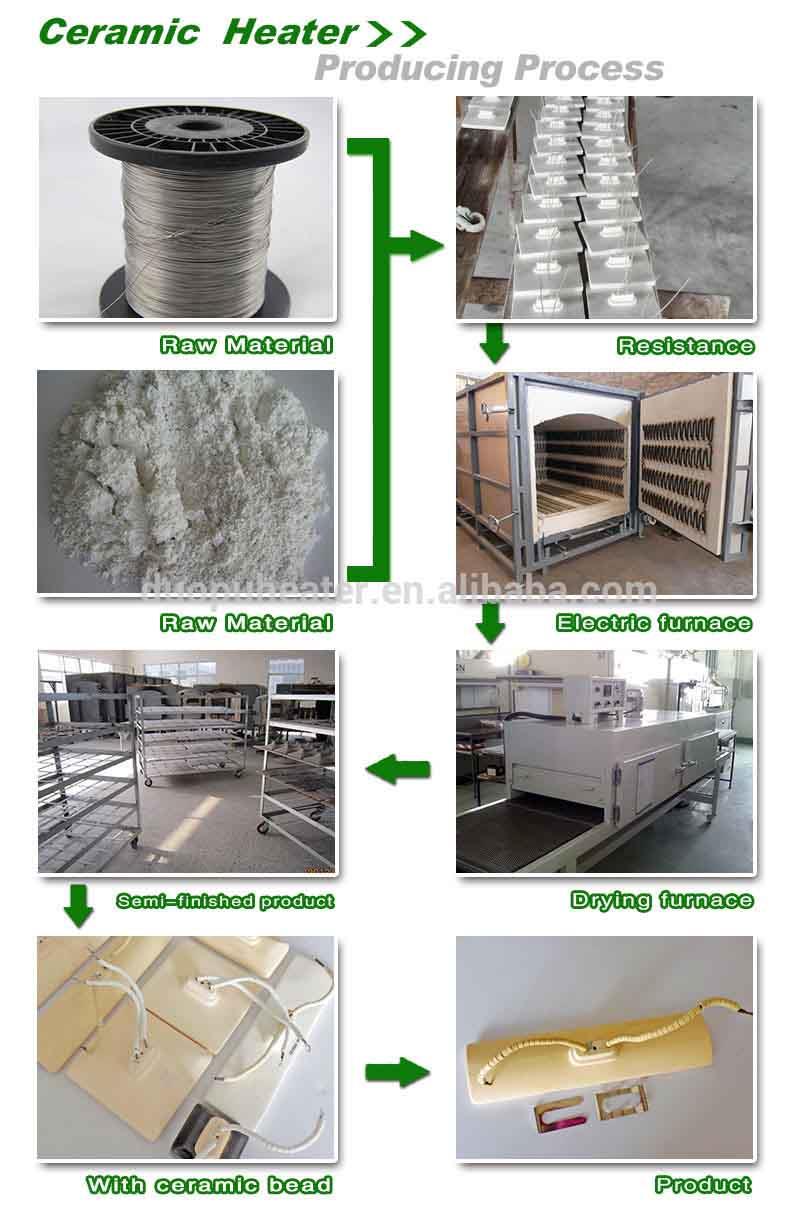

Process and test show
Packing and shipment
Why choose US?
1. Bureau veritas audited supplier
2. Strict confidentiality for customers
3. Have a strong product development capabilities!
4. We have Longterm cooperation forwarders to ensure the quick and safe shipment, avoid goods delay and extra cost.
5. Solve problems for customers in time
6. Good Payment terms and Reasonable price
7. Excellent after-sales service and feedback
8. Potential problems in product handling
9. We can provide installation video and instructions.
FAQ
1. Q: How can I get the price ?
A: Pls Email/call/levea message to us with you the unit you are looking for with you details (name, telephone, address, etc), and your products details,we will send to you ASAP.
2. Q: How about the machine warranty?
A: Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free
3. Q: What is your main product line made?
A: We mainly produce heating element,cartridge heater,hot runner heater ,industrial heater and so on.
Focus on heating element.( etc.)
4. Q: How do you guarantee the deliver time?
A: We have independent PMC department to arrange the production plan.
We have production meeting every morning to report the production progress and discuss the problems.
We will make production progress report to you every week and take some pictures for your reference, that's you can know our production progress clearly.
