Product description
Industrial Submersible Electric Stainless Steel Flange Immersion Heater are easy to form and feature highest mechanic stability and electric properties at the same time.
Even though Tubular heating element are technically rather mature and universal to use, there exist various new innovative solutions for many applications.
Screw in Tubular heating element are standardised for use in liquids like water.
Tubular heating element are easy to install,control and maintain, unique designer as your requirement. For corrosive enviroment, titanium material or tubular heating elements with additional teflon sleeving are available.
Specification
|
1. Name: immersion tubuar heater |
|
|
2. Tube diameter: Φ6mm-Φ20mm |
|
|
3. Tube Material: SS201, SS304, SS316 and INCOLOY800 etc |
|
|
4. Insulation Material: MgO |
|
|
5. Conductor Material: Nichrome Resistance Wire |
|
|
6. Wattage Density: High/Middle/Low (5-25w/cm2) |
|
|
7. Lead Connection Option: Threaded Stud Terminal or Lead Wire |
|
|
8. HI-POT Test: 1500V/S min cold condition |
9.Insulation resistance: 50M Ω min |
|
10. Leakage current: 0.5ma max |
11.Power tolerance:+5%,-10% |
Dear Customers:
Pls well noted our products are custom based on your requirements.
Pls inform us the detailed datas as attached for best quotation
We will send drawings to you for last confirmation and arrange the cost effective express delivery.

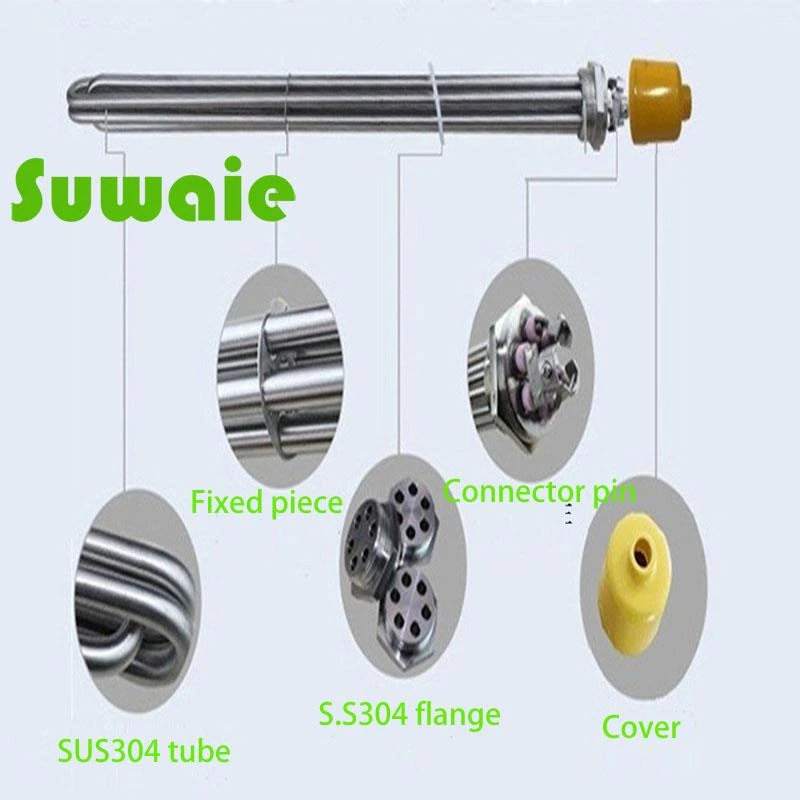

Material of 110v,220V screw plug immersion tubular heater for oil tank
|
Copper Sheath |
Water heating, water solutions non-corrosive to copper. |
|
Stainless stell sheath |
Immersion in oils, molten salt baths, alkaline cleaning solutions, tars and asphalt.Corrosive liquids, food processing equipment. |
|
Incoloy Sheath |
Air heating, radiant heating, cleaning and degreasing solutions, |
|
Titanium tube |
corrosive environment. |
Product pictures
How to make the Immersion heaters
Our service
1. Fast deilvery: For samples 3-7 working day. For bulk order: 7-30working days.
We produce over 50000pcs heating elements per day.
2. Good Quality control: We have our own test room,
All one years warranty with CE,ISO9001,ROHS certificates.
3. Mature OEM Service: With 12 years heating element manufacture. FREE laser print label, color box design etc.
4. Professional sales team, engineer team, and good after-sales service.
Wooden packing details
FAQ
1. Q: How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,CIF and so on.
2. Q: What is your term of delivery ?
A: EX-WORKS, FOB,CIF,C&F,DDP,DDU , etc
3. Q: How does the Qida control the quality?
A: 1) During processing, the operating machine worker inspect the each sizes by themselves.
2) After finished the first whole part, will show to QA for full inspection.
3) Before shipment, the QA will inspect according to ISO sampling inspection standard for mass production. Will do 100% full checking for small QTY.
4) when shipping the goods, we will attached the inspection report with the parts.
4. Q: What is the standard of package?
A: Professional export packing:
1) Separate Blister plastic box or Bubble Wrap/Pearl Wool, keep no scratch and damage.
2) Under 100 KGS parts, use strong DHL export Carton .
3) Above 100 KGS, will customize Wooded case for packing.
