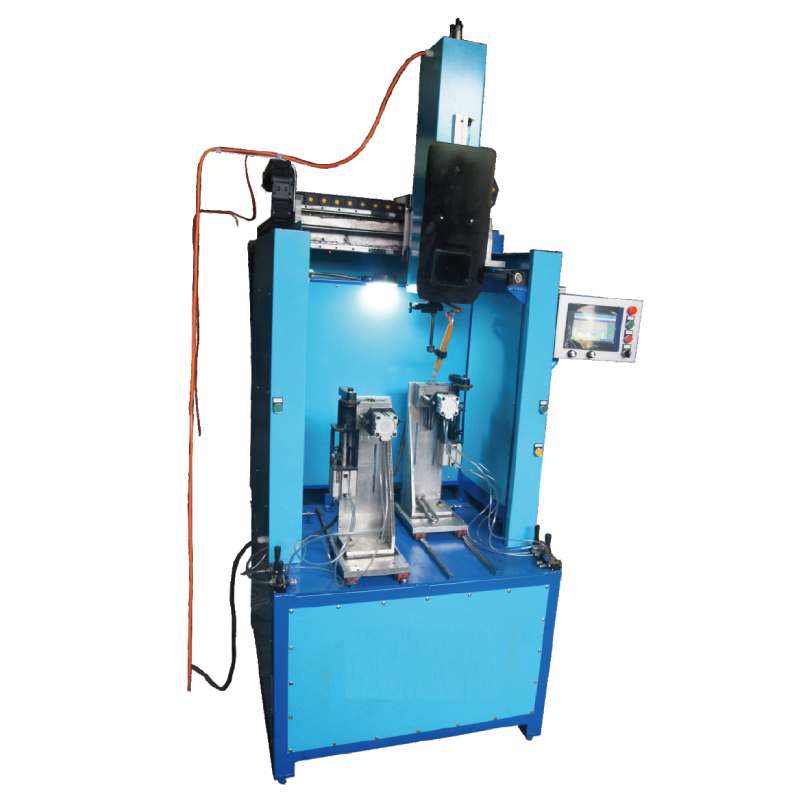

SUWAIE SW-W42 argon arc welding machine is an automated welding machine specially designed by Suwaie company for the heating element industry, with excellent stability and high efficiency. Reasonable workstation design, mainly used for welding heating tubes and flanges, bolts and Nipples, materials can be metal, stainless steel, iron, copper can all be welded. The welding joint has the advantages of smooth and burr free, firm, etc. It is a welding equipment that can effectively solve the problems of manual labor and high efficiency.
Functions
1. Digital system control and servo motor drive
The SW-W42 uses advanced digital system control combined with high-performance servo motor drive to ensure precise control and stable performance during the welding process. This technology configuration can monitor welding parameters in real time, improve the consistency and reliability of welding quality.
2. Multi-functional welding capability
argon arc welding machine can be used for welding various electric heat pipe flanges, flexible to meet different welding requirements. Whether for general welding or special processes, the SW-W42 is able to meet a variety of production requirements.
3. Flexible operation mode
The SW-W42's CNC panel supports manual and automatic operation mode switching, and users can freely choose according to actual production needs. This design increases the flexibility of the equipment and is suitable for operators of different skill levels.
4. Efficient operation and safety
The whole machine design pays attention to the convenience and safety of operation, the user can easily master the operation of the equipment, and the efficient welding performance ensures the continuity of production. The equipment has a high safety factor during operation to ensure the safety of the operator.
Technical specifications
|
Model |
SW-W42 |
|
Power supply |
220V 1P 50HZ 2 KW |
|
Pipe diameter |
5mm-18mm(Customize) |
|
Pipe length |
950mm |
|
Welding speed |
1 hole/1s |
|
Welding current |
380V 315A |
|
Workstation |
1 or 2 station |
|
Maximum welding thickness |
2mm |
|
Size(L*W*H) |
950*900*2200mm |
|
Packing size(L*W*H) |
1100*1000*2350mm |
|
Control |
CNC system |
|
Weight |
900KG |
Machine Performance And Requirements
- Applicable material and qualification rate
SW-W42 is suitable for the welding of individual electric heat pipe products, and can weld copper and stainless steel electric heat pipes. According to the standard, the leakage rate of steel electric heat pipe is about 3%, and the leakage rate of copper pipe is about 5%. This pass rate is non-one-time pass rate, reflecting the actual situation after many welding.
- Flange hole accuracy requirements
During the welding process, the accuracy of the flange hole should be controlled within ±0.1mm, and the length of the pipe mouth should not exceed 1mm. This strict precision requirement ensures that welded components are perfectly matched, reducing rework rates caused by improper welding.
- Daily capacity specification
The capacity of the unit is about 1,000 units per day, depending on a number of factors, including the employee's clamping time, the number of holes in the heating tube, and the precision of the blank dimensions of the material. Users can make reasonable planning according to the actual production situation.
- Electrode wear and oxidation
When welding stainless steel tubular heater, the tungsten needle electrode will be worn, and the user needs to compensate the electrode loss manually. At the same time, there may be a small amount of oxidation on the surface of the flange after welding, and there may also be a small amount of metal oxide on the surface of the magnesium powder at the mouth of the heating pipe, which is a normal phenomenon in production. Sand-blasted metallic tin treatment can be used to improve the welding surface quality.
How To Order Welding Machine(Need Information As Follow):
provide the heating element complete drawings
Provide flange or nipple drawings
Heating element and flange or nipple material
Provide the complete samples to us
