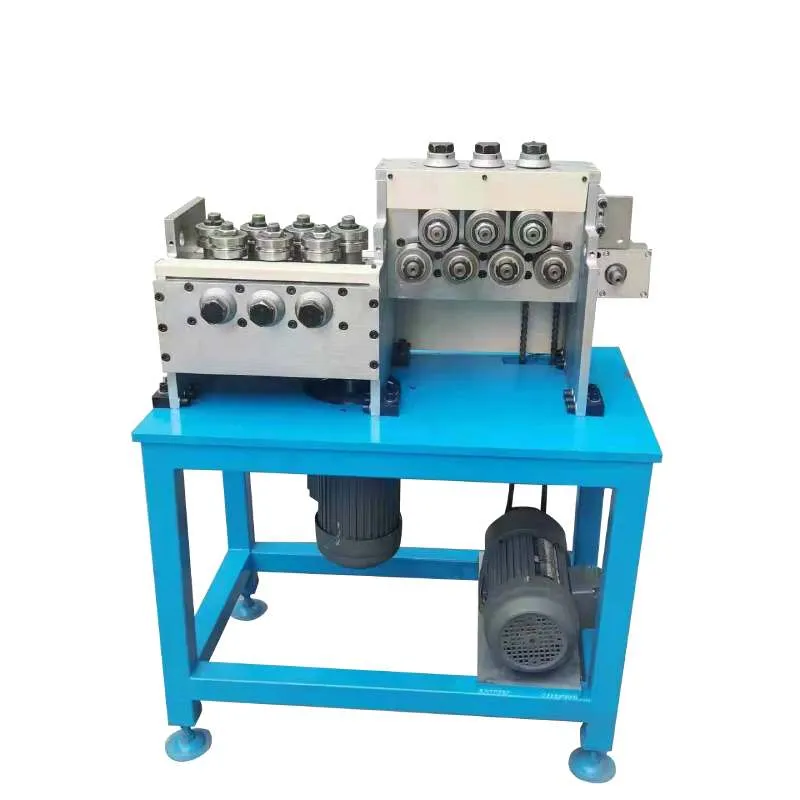

SW-S08 Straightening Machines mainly used for straightening the tubular heater after reduce tubular heating element, and undertaking the straightening after the pipe shrinking machine.
Functions
Seamless Integration with Rolling Mill Reduce Machines
The SW-S08 is designed to work seamlessly with rolling mill reduce machines, allowing for a smooth transition from pipe shrinking to straightening. This compatibility simplifies the production process and enhances overall efficiency.
High Automation for Maximum Productivity
With its fully automated design, the SW-S08 eliminates the need for manual feeding. This not only reduces labor costs but also ensures consistent and reliable results, even during high-volume production runs.
Customizable Wheels for Optimal Straightening
The machine is equipped with replaceable wheels tailored to different pipe diameters. This customization guarantees optimal straightness and precision for various tubular heater sizes, meeting the demands of diverse production requirements.
User-Friendly Operation
The SW-S08 is designed with simplicity in mind. Its intuitive interface and straightforward controls make it easy for operators to use, even with minimal training.
Space-Saving Design
With its compact size, the SW-S08 fits easily into most production facilities, making it ideal for manufacturers looking to optimize their workspace without compromising performance.
Easy Replacement of Straightening Wheels
Changing and maintaining straightening wheels is quick and hassle-free, minimizing downtime and ensuring the machine stays operational for longer periods.
Horizontal and Vertical Wheel Arrangement
The straightening wheels are arranged horizontally and vertically, which can be adjusted or replaced as needed to ensure maximum straightening precision. This design ensures that even the most demanding straightening tasks are handled with ease.
Technical specifications
|
Model |
SW-S08 |
|
Power supply |
380V 3P 50-60HZ 1.5KW |
|
Roller quantity |
14pcs |
|
Pipe material |
Iron,copper,stainless steel pipe |
|
Pipe diameter |
3mm-16mm |
|
Tube length |
300-6000mm |
|
speed |
Adjustment |
|
Machine size(L*W*H) |
900*500*1100mm |
|
Packing size(L*W*H) |
1100*700*1300mm |
|
Weight |
200KG |
How to order SW-S08 Tubular heater Straightening Machine
To configure the SW-S08 according to your specific needs, please provide the following details when placing an order:
Material of Tube
Specify the material of the tubular heating element, such as stainless steel or copper, to ensure compatibility with the machine.
Outer Diameter of the Tubular Heating Element
Indicate the outer diameter of the tubes so the machine can be equipped with the correct straightening wheels for your production needs.
Length of the Tubular Heater
Provide the length of the tubular heating elements to ensure the machine is set up for optimal straightening performance.
Why Choose the SW-S08 Tubular Heater Straightening Machine
The SW-S08 is a reliable, efficient, and compact solution for straightening tubular heating elements. Its automated operation, customizable features, and user-friendly design make it a perfect choice for manufacturers aiming to enhance productivity and quality.
Contact us today to learn more or to place an order. Let the SW-S08 help you streamline your manufacturing process and deliver precise, high-quality results!
