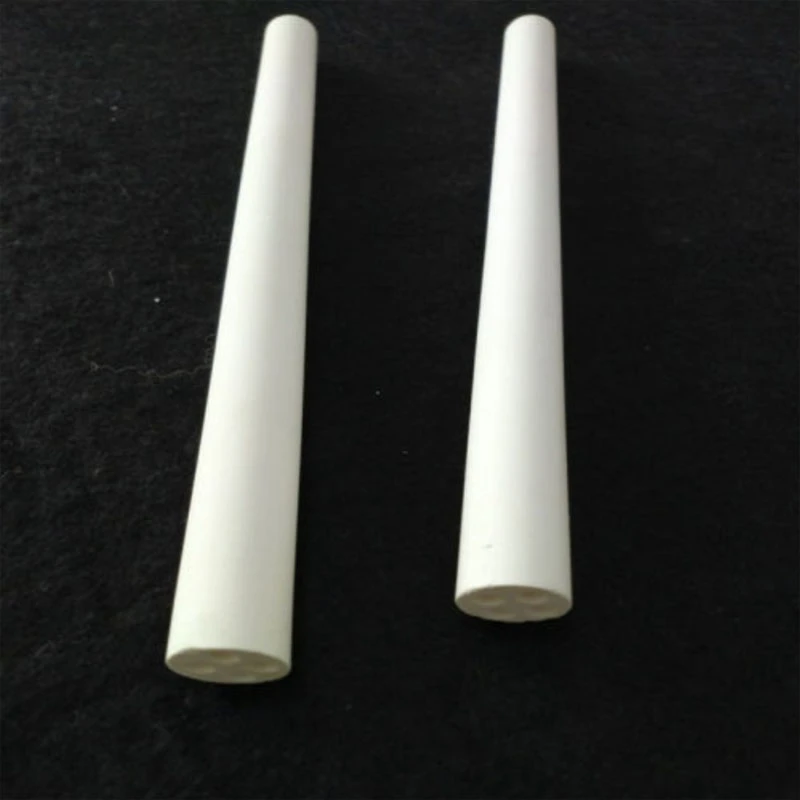

Our magnesium oxide rod is a premium industrial heating element. They are manufactured through a high-pressure automatic extrusion and fired in a 1700℃ tunnel pusher. This process yields a high-density product (2.3 g/ml) with excellent electrical insulation and pressure resistance, comparable to industry-leading suppliers in the US and Japan. They are designed for applications such as cartridge heaters, hot runner heaters, coil heaters, and ceramic tube assemblies (up to 1300°C or even 2400°C under operating conditions).
Key Features Include
- High Density: Manufactured to achieve a density of 2.3 g/ml, ensuring stable insulation and pressure resistance.
- Temperature Capability: Withstands extreme temperatures up to 2400℃, making it ideal for demanding industrial applications.
- Smooth & Uniform Appearance: Finished in a white to off-white matte with flat, burr-free end faces and uniformly distributed holes.

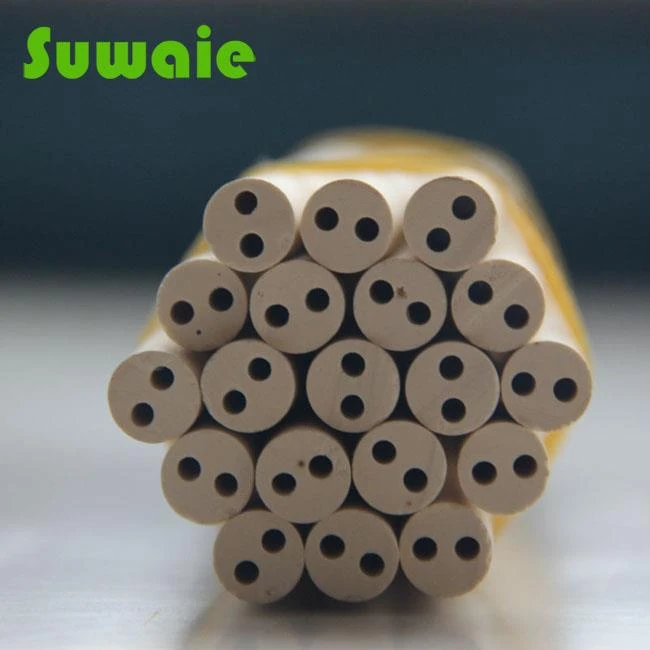

- Versatile Customization: Available in single-hole, double-hole, or multi-hole configurations. Outer diameters range from 2.8 mm to 30 mm, and lengths vary from 250 mm to 350 mm-extendable up to 600-1000 mm per customer needs.
- High Purity: The MgO content ranges from 98.19% to 99.56% (up to 99.8% for select products) based on GB/T 6900-2006 & GB/T 5069-2015 standards.
- Enhanced Properties: Offers low electrical conductivity, high thermal conductivity, excellent corrosion resistance, and infrared transparency.
Technical Specifications
Material Composition & Quality Control:
|
Item |
Parameter |
|
Magnesium Oxide |
≥ 99.8% (selected) |
|
Calcium Oxide |
≤ 0.08% |
|
Iron |
≤ 0.009% |
|
Silicon |
≤ 0.05% |
|
Sodium |
≤ 0.01% |
|
Alumina |
≤ 0.08% |
Magnesia (MgO) Technical Data:
|
Item |
Unit |
Data |
|
Content |
% |
99.5 |
|
Density |
g/cm³ |
3.56 |
|
Hardness |
Mohs' |
6 |
|
Linear Thermal Expansion |
/℃ (40℃–250℃) |
8.6×10⁻⁶ |
|
Work Temperature |
℃ |
2400 |
|
Flexural Strength |
MPa |
84 |
|
Compression Strength |
MPa |
14 |
|
Fracture Strength |
MPa |
125 |
|
Thermal Conductivity |
W/m·K |
15.9–42 |
|
Volume Resistivity |
(100℃) |
>10¹² |
|
Dielectric Constant |
(1.0 MHz) |
5.8 |
Dimension Capability & Customization Options:
- Shapes Available: Round, Square, Rectangular, Oval
- Precision Processing: Fine ground, lapping, and CNC machining ensure tight tolerances and excellent surface finishes.
- Typical Sizes:
Φ3×1.2×20, Φ6.4×3.4×40, Φ9×3×50, Φ11×7×30, Φ14×10×50, Φ19×4×40, etc.
Additional hole configurations such as two-hole, three-hole, four-hole, eight-hole, and nine-hole designs are available to meet specific industrial requirements.
Why Choose Our MgO Rods
Designed with the needs of industrial heating element manufacturers in mind, our Magnesium Oxide Rods address the challenges of reliability, custom complexity, and compliance. By leveraging advanced manufacturing processes and strict quality control, we provide a product that not only meets but exceeds performance expectations.
At SUWAIE, we are more than just a supplier, we are your partner in success. With over 300 employees, 50+ senior engineers, and a dedicated quality control team, our expertise in electric heating elements and industrial heaters is unparalleled. If you're searching for high-quality mgo rods, look no further. Contact our expert team today ( info@suwaie.com ) to discuss your specific requirements, request a sample, or place an order. Let us show you how our precision-engineered magnesium oxide products can enhance your production process and solve your most critical heating challenges.
FAQ
What customization options are available for your Magnesium Oxide Rods?
We offer various hole configurations (single, double, multi-hole) and can customize outer diameters from 2.8 mm to 30 mm and lengths from 250 mm up to 1000 mm. Additionally, we support multiple shapes including round, square, rectangular, and oval to fit your exact needs.
How do you ensure the consistency and quality of your products?
Our rods are produced using high-pressure automatic extrusion and fired in a tunnel pusher at 1700℃. We follow stringent quality standards (GB/T 6900-2006 & GB/T 5069-2015) and employ advanced CNC machining and precision processing techniques to maintain uniformity and high performance.
How do I place an order or get more information?
Simply reach out to our sales team via our website or contact details. We're ready to assist with sample requests, detailed quotations, and personalized consultations to ensure our products meet your specific application requirements.
