Iron Chromium Aluminum alloy wires are made of iron chromium aluminum base alloys containing small amounts of reactive elements such as yttrium and zirconium. The high aluminum content, in combination with the high chromium content causes the scaling temperature to increase up to 1425ºC (2600ºF ); Iron Chromium Aluminum alloys also have excellent oxidation
Properties at 800-1300ºC because of the formation of a highly protective Al2O3 scale.
Main Property of heating resistance wire
Alloy Type | Diameter | Resistivity | Tensile | Elongation(%) | Bending | Max.Continuous | Working Life |
Cr20Ni80 | <0.50 | 1.09±0.05 | 850-950 | >20 | >9 | 1200 | >20000 |
0.50-3.0 | 1.13±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
>3.0 | 1.14±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
Cr30Ni70 | <0.50 | 1.18±0.05 | 850-950 | >20 | >9 | 1250 | >20000 |
≥0.50 | 1.20±0.05 | 850-950 | >20 | >9 | 1250 | >20000 | |
Cr15Ni60 | <0.50 | 1.12±0.05 | 850-950 | >20 | >9 | 1125 | >20000 |
≥0.50 | 1.15±0.05 | 850-950 | >20 | >9 | 1125 | >20000 | |
Cr20Ni35 | <0.50 | 1.04±0.05 | 850-950 | >20 | >9 | 1100 | >18000 |
≥0.50 | 1.06±0.05 | 850-950 | >20 | >9 | 1100 | >18000 | |
1Cr13Al4 | 0.03-12.0 | 1.25±0.08 | 588-735 | >16 | >6 | 950 | >10000 |
0Cr15Al5 | 1.25±0.08 | 588-735 | >16 | >6 | 1000 | >10000 | |
0Cr25Al5 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
0Cr23Al5 | 1.35±0.06 | 634-784 | >12 | >5 | 1250 | >8000 | |
0Cr21Al6 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
1Cr20Al3 | 1.23±0.06 | 634-784 | >12 | >5 | 1100 | >8000 | |
0Cr21Al6Nb | 1.45±0.07 | 634-784 | >12 | >5 | 1350 | >8000 | |
0Cr27Al7Mo2 | 0.03-12.0 | 1.53±0.07 | 686-784 | >12 | >5 | 1400 | >8000 |

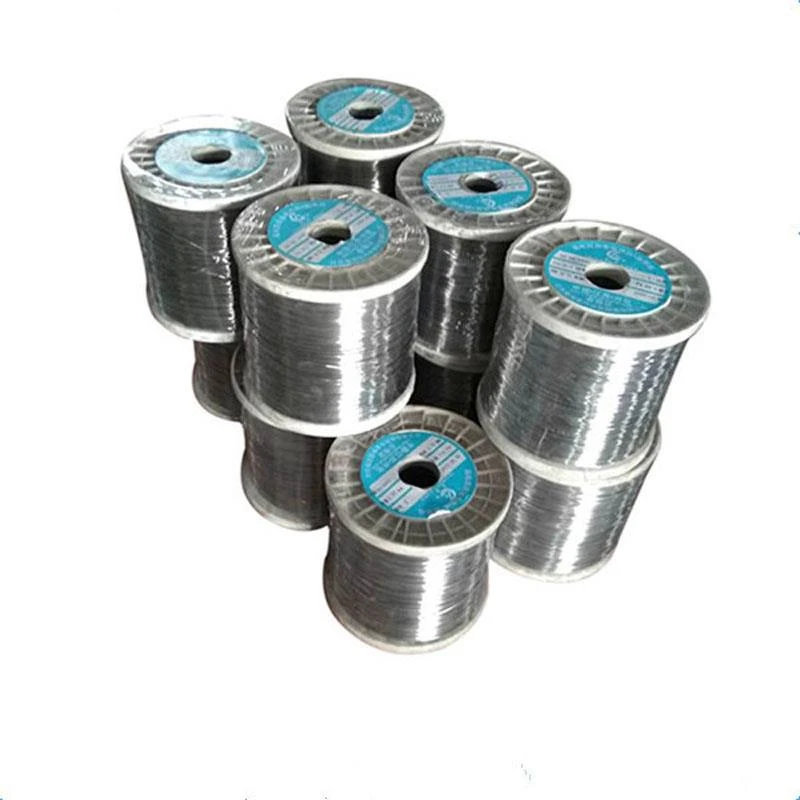

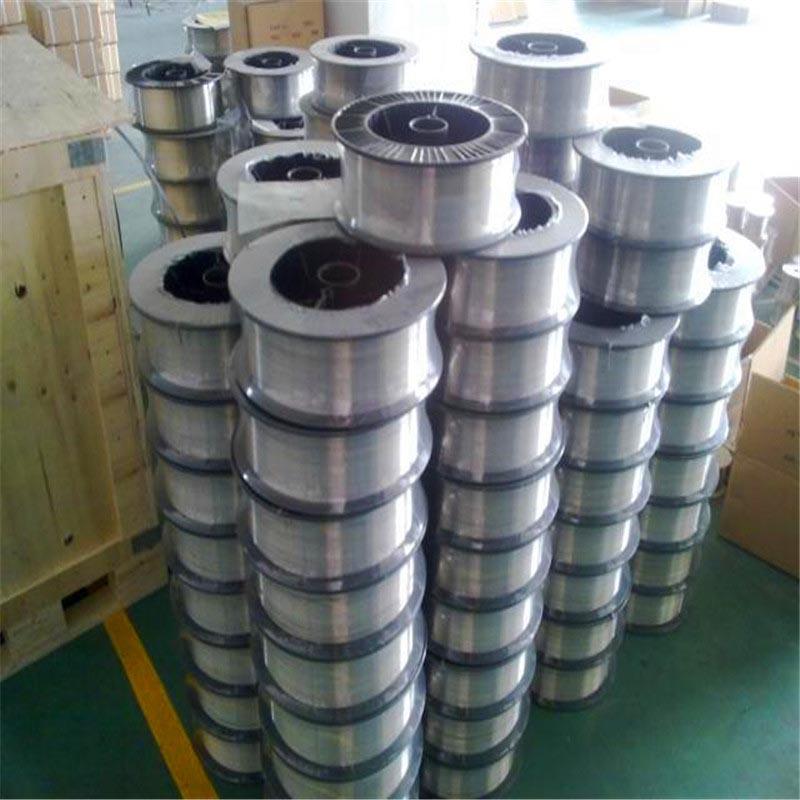

Cartridge heater resistance wire products show
Company office
Hot runner heater resistance wire packing details
Shipment
Market:
Currently, Suwaie Technology heating element is already exported to Asia, Europe, South America, North America, Africa and Middle East and other regions. For more details, please feel free to contact us. We will give you best service and timely reply.
What can we do for you?
1. Professional, Competitive price and Fast delivery time
We engaged in this area for almost 12yeas, experience engineer can help you process the project well and perfect, also we own our factory that we can control the cost and delivery time very well. We can try best to meet your request.
2. Protect our customer profit well
Even we have very strictly quality control system, but we still can`t promise every part you received will 100% perfect, so if there is any defective parts you received, you just need to offer us the evidence(such as picture),we will check and confirm it.
Because of our strictly quality control system, we have confidence to promise our customer with this. Please kindly noted that it`s our advantage compared with others, we realize that only the high quality and good service can we keep friendly and long-term business relationship with our customer and it`s also the only way for an enterprise to be existed...
FAQ
1. Q: I Want to Keep Our Design in Secret,Can We Sign NDA?
A: Sure! We Will Not Design Any Customers' Design or Show to Other People, And We Can Sigh NDA.
2. Q: Will my drawings be safe after sending to you?
A: Yes, we will keep them well and not release to third party without your permission.
3. Q: Is small quantity available?
A: Yes, small quantity for trial order is available.
Hot Tags: heating elements resistance wire, China, manufacturers, suppliers, factory, customized, Nichrome Resistance Wire, Industrial Electric Heating Resistance Wire
