Furnace Ceramic Heating Element

Furnace Ceramic Heating Element

Products details:

The inner core of the ceramic bobbin radiant heater is composed of a U-shaped axially arranged end-welded resistance wire and a ceramic support frame, and the inner core and the outer protective sleeve are not shielded, and the heat dissipation is good. The electric radiant heater with rated working temperature of 1000 degrees, the material of the resistance wire is Cr20Ni80 or 0Cr21Al6Nb, the surface working temperature can reach 1200 degrees, the highest working temperature of the electric radiant tube with this material can reach 1000 degrees, and the support frame is high aluminum ceramic parts. The outer protective sleeve is a cold-drawn seamless thin-wall heat-resistant steel tube. The material is 1Cr25Ni20Si2 or 1Cr25Ni35Si2. The material has good high temperature oxidation resistance, high temperature creep strength and certain anti-carburization performance. The radiant tube design and material selection safety factor Larger.

Ceramic Bobbin Heater Application:

1. Pre-heating bitumen road pavement

2. Oil purification industry

3. Degreasing for metal stamping industry

4. Wax softener

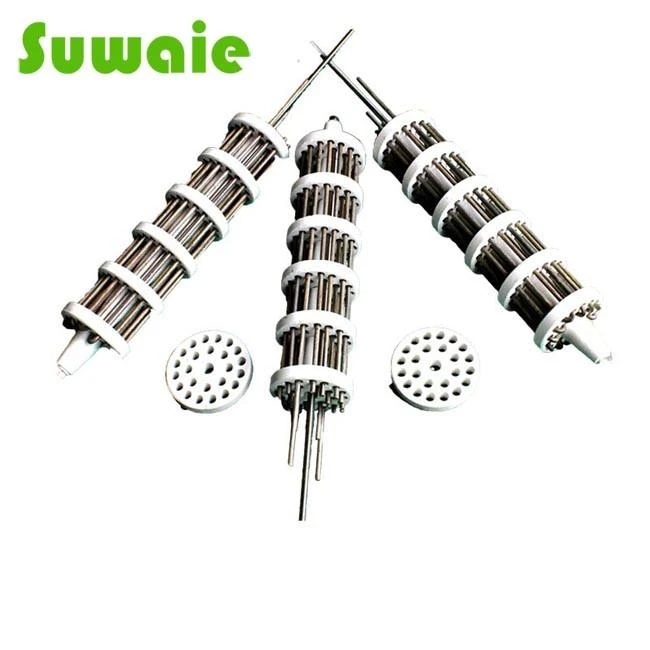

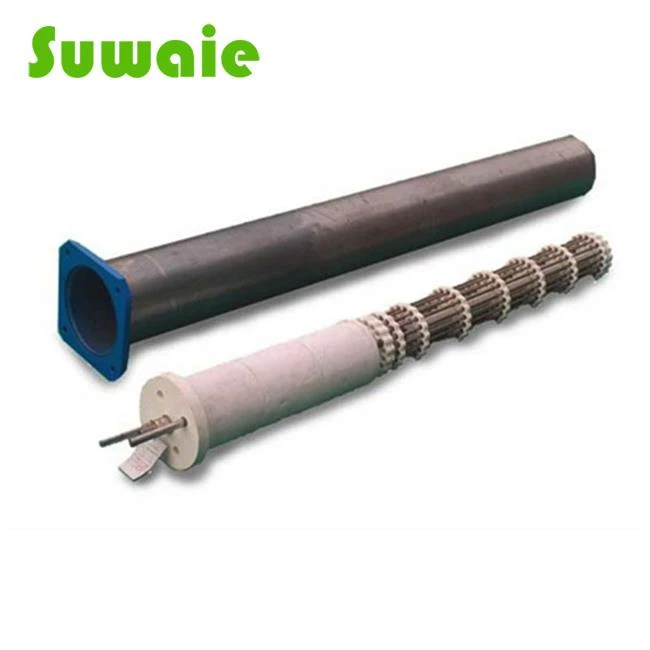

Product Pictures

Bobbin Heater Working Process

Quality Control Test Room

Packing Details

What Benefit We Can Get From You?

1) Competitive price

2) High quality control : 100% full inspection before shipment

3) High precision, tolerance can be ± 0.005mm

4) Fast lead time (5-7days for samples, 7-30 days for mass production)

5) Non-standard//OEM//customized service provided

6) No MOQ, small QTY is acceptable.

7) ISO 9001:2003 and ISO13485:2008 certificated factory, ROHS material used

8) Professional export packing: Carton+Wooded Case, keep no scratch and damage

FAQ

1. Q: Is it OK to print my logo on heating element product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

2. Q: How can I get the price ?

A: Pls Email/call/levea message to us with you the unit you are looking for with you details (name, telephone, address, etc), and your products details,we will send to you ASAP.

3. Q: How to Place an order?

A: Kindly pls send us you order by email, we will confirm the PI with you. we wish to know the followings: Delivery information-company name, address, phone/fax number, destination, transportation way; Product information :item number, size, quantity, or any requirements, etc.

Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Furnace Ceramic Heating Element. Our company has professional equipment and engineers to provide the production and service of Furnace Ceramic Heating Element.

Hot Tags: furnace ceramic heating element, China, manufacturers, suppliers, factory, customized, Boiler Bobbin Heater, Industrial Electric Radiant Heaters, Electric Furnace Bobbin Heater, Ceramic Radiant Heaters Electric, Bobbin Heater for Furnace, Ceramic Heating Element
