Product introduction
Radiant electric heating Element / Bobbin heater / Bobbin Electric Heating elements is often made of Cr20Ni80 (nickel-chromium) Cr25A15, Cr21A16Nb, Cr27A17Mo2 (iron-chromium-aluminum) and other materials. The chemical composition/% of each material is as follows:
Cr20Ni80 is used between 500 °C and 800 °C. Due to its stable, single, uniform solid solution structure, it has good normal temperature and high temperature mechanical properties, uniform electrical and physical properties and good processing properties. It is distinguished from iron-chromium-aluminum electrothermal alloy materials in terms of low temperature, long service life and non-damage.
Cr25A15, Cr21A16Nb, and Cr27A17Mo2 are used between 800 °C and 1200 °C, and the temperatures of the three materials are sequentially increased. Low plasticity and high brittleness are the biggest disadvantages of iron-chromium-aluminum electrothermal alloy materials, especially between 400 °C and 800 °C. Long-term use will cause "CrFe" type metal compounds to precipitate in the material, causing a sharp drop in alloy plasticity. Severe embrittlement, so the iron-chromium-aluminum electrothermal alloy material should avoid forming and processing in this temperature zone.
Specifications
1. Ceramic diameter: Φ22mm-Φ55mm
2. Material: Ceramic, Mgo Rod
3. Insulation Material: Resistance Wire
4. Conductor Material: Nichrome Resistance Wire
5. Wattage Density: High/Middle/Low (5-25w/cm2)
6. Lead Connection Option: Threaded Stud Terminal or Lead Wire
7. Lead Wire Type: Customized
Applications
1. High-temperature ovens and furnaces
2. Radiant heating
3. Drying
4. Environmental-VOC abatement
5. Process air heating: duct heaters, circulation heaters
6. Vacuum applications
7. Flue gas cleaning (desulphurization)
8. Fluidized beds

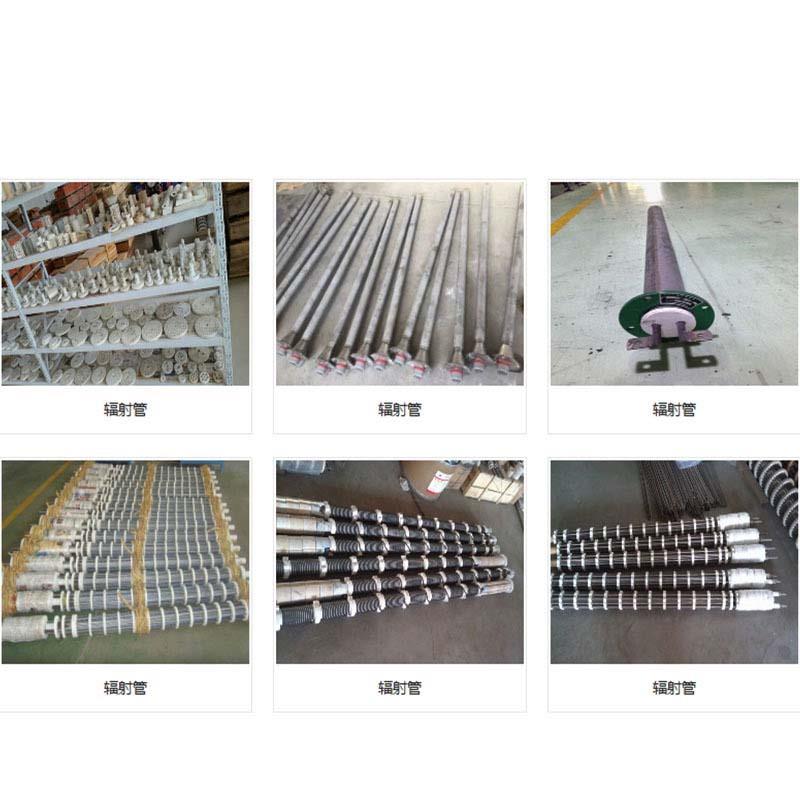

Products details show
How tp control the bobbin heater quality? Show the test room
SUWIE HEATER Advantage:
12 years focusing on heating elements;
10 years technical service and proessional sales team;
9 years of independent product research and development;
OEM/ODM is available.
Obtain Obvious Advantages, Provide Best Price, Welcome To Talk More.
FAQ
1. Q: How to Place an order?
A: Kindly pls send us you order by email, we will confirm the PI with you. we wish to know the followings: Delivery information-company name, address, phone/fax number, destination, transportation way; Product information :item number, size, quantity, or any requirements, etc.
2. Q: What is your main product line made?
A: We mainly produce heating element,cartridge heater,hot runner heater ,industrial heater and so on.
Focus on heating element.( etc.)
3. Q: Have the R&D for our company?
A: We have professional R&D team with rich design experience.We also establish strict but scientific product testing system so that products have perfect.
4. Q: How do I know about the production?
A: We will double confirm your requirements and send you the sample before the mass production.
During the mass production, we will keep you informed of any progress. Besides, we will
do 100% quality inspection before shipment.
Hot Tags: ceramic bobbin heating element, China, manufacturers, suppliers, factory, customized, Electric Furnace Bobbin Heater
