110v Cartridge Heater
Ceramic Cartridge Heater is applied to plastic packaging, small mold heating, hot nozzle heating of injection molding machine, hot press forming machine, cigarette machine, semiconductor eutectic soldering, input channel heating of die-casting parts, no sprue injection, various gas expansion Heating equipment such as cold effects.
The spiral electric heating wire and the lead-out wire are located in the center of the metal sheathed tube. The manufacturing process is to insert the spiral electric heating wire into the stainless steel tube, and the gap is evenly filled with the insulation by the multi-tube filling machine. A thermally conductive oxidizing medium such as crystalline magnesium oxide powder.
2. 110v Cartridge Heater Specification
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Insulation resistance (cold) | ≥ 50 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Max Sheath Temp | 1400 °F (760 °C) |
Resistance heating wire | NiCr 80/20 wire/High grade nickel chromium resistance wire |
Packaging | Plastic bag , Carton box. |
Lead tube material | AISI 304 |
Screw plug material | SUS304 |
Product name | Low Woltage Cartridge Heater with Metal Sheathed Tube |
Tube diameter | 6MM, 8mm,9mm,10mm,12mm |
Connecting cable::
a. glass fiber insulation nickel wire (temperature 450 degrees -750 degrees)
b. Crimp Teflon line (temperature 250 degrees)
c. Crimp silicon insulated wire (temperature 200 degrees)
d. Crimp fiberglass insulated nickel wire (temperature 450 degrees)

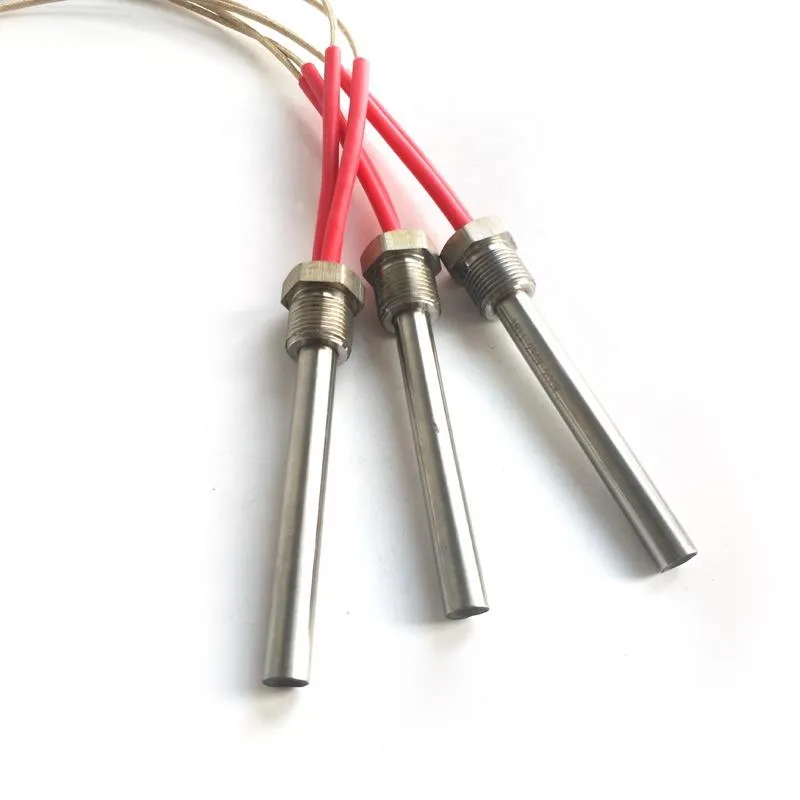

Micro Cartridge Heater Products show
Product Structure show
Pencil heater process and test working show
Packing and shipment case show
Our Services
1. We are skilled in producing this type of heating element and have adequate supply of spare parts, so we can guarantee continuous production and keep delivery.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. Well trained and experienced staffs to answer all your enquiries in fluent English.
4. OEM&ODM, or any your customized lightings, we can help you to design and put into production.
5. Your sales area, ideas of design and all your private information will be protected.
6. If you need more details, please contact our sales service person below online or via email.
FAQ
1.
Q:How does your factory do regarding quality control?
A:Quality is the priority.We always attach great importance to quality controlling fromthe start to the end.Our factory has gained CE, RoHS certification.
2.
Q: Where are the main markets for sales? A: Mainland China, UK, Thailand, Turkey, Canada, Mexico, Brazil, Argentina, Chile, India, Vietnam, Colombia, Malaysia, Australia, etc.
3.
Q:How can you ensure the HEATING ELEMENTS product quality?
A: Before shippment, all the HEATING ELEMENT have aging test. And then we also have Withstand voltage test and Insulation resistance test, ensure products can transportation safety and normal use.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of 110v Cartridge Heater. Our company has professional equipment and engineers to provide the production and service of 110v Cartridge Heater.
