Difference between cartridge heater and ordinary heating element
1. Appearance: Cartridge heater is a head (end), general electric heat pipe is at both ends
2. Inner Instruction: Difference in the appropriate winding between these two kinds of heating tube.
3. Manufacturing process: More process for cartridge heater than others, such as contract tube, that can make sure high power and long using life.
Advantages of cartridge heater
1. Appearance:
(1) Mini cartridge heater：DiameterΦ2.2～Φ5.9mm
(2) Standard cartridge heater：DiameterΦ6～Φ25mm
(3) Big cartridge heater：DiameterΦ25～Φ100mm
2. No limited for length,20-5000mm is available
3. High power,2-5 times power of electric heating tube,20 watts per square centimeter is available, imported material power can reach 60 watts per square centimeter.
4. Simple instruction, High mechanical strength, high thermal efficiency, safe and reliable, easy Installation, long using life, no pollution, low price. And it can be easy to fold kinds of shapes.

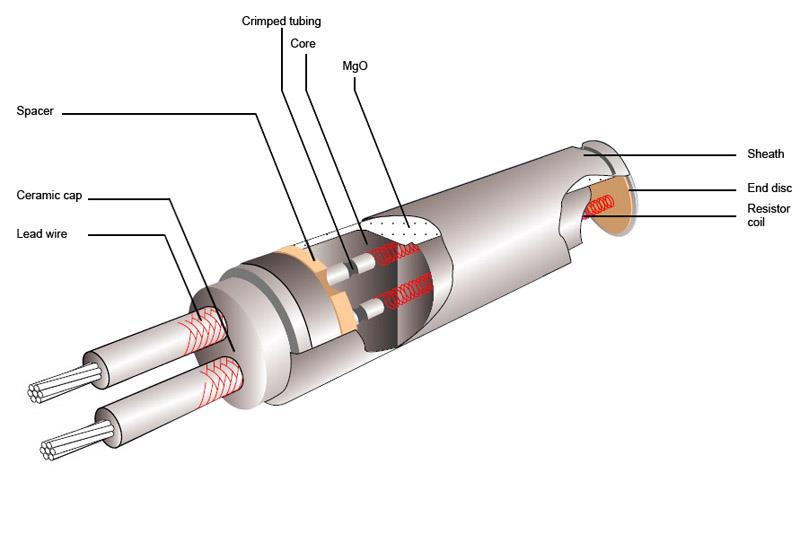

12V 24V Electric 3D Printer Cartridge Heater Structures:
Specification
|
Product nama |
Mini Cartridge heater |
|
Cartridge heater diameter |
3mm,4mm,5mm,6mm,8mm,9mm,10mm and so on. |
|
Resistance wire |
NiCr8020 |
|
Voltage |
220V |
|
Insulation resistance |
≥50M Ohm |
|
Leakage current |
≤0.5mA |
|
Length tolerance |
±0.5mm |
|
Wattage tolerance |
+5%, -10% |
|
Input voltage |
12V, 24V, 110V, 220V, 240V |
|
Material |
Stainless steel |
|
Color |
White |
Products show
Cartridge rod heater application
Process and test room show
Packing and shipment case show
What information should i let you know once i want to make a inquiry?
1. The drawings ( PDF,CAD or 3D )?
2. The voltage, power, shape, tube diameter
3. The surface treatment requirement.
4. How many pieces do you need?
FAQ
1. Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 50%-70% T/T in advance (depending on different situations.) balance before shipment.
2. Q: How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T, Western Union, L/C and so on.Small machine delivery time is 3~7 workdays. Big machine delivery time 15~25 workdays. Shipping term accept EXW, FOB, CIF and so on.
3. Q: How do you ship the goods and how long does it take to arrive?
A: Airline and sea shipping also optional. Shipping time depends on distance.
