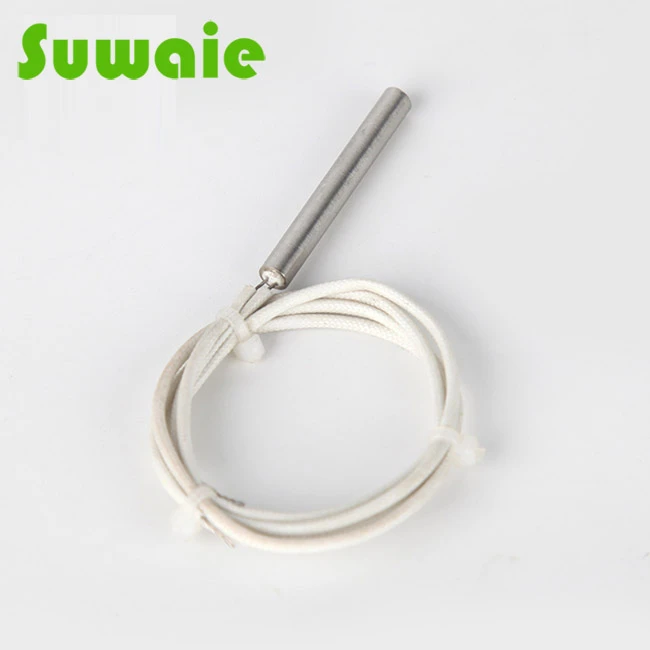

Internal Lead Wire Cartridge Heater
A Industrial Cartridge Heaters belongs to a type of electric heating elements, also called a Cartridge Heaters, and is an electric heating element that is out of the line. It has good insulation performance and uses high-purity magnesium oxide with high thermal conductivity as filler. The product has high inherent power, high thermal efficiency and fast heating dissipation.
Internal Lead Wire Cartridge Heater Parameters
Sheath material | SUS304,321,316,Incoloy800,840 |
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Voltages available | ,240V, 220V,110V,36V,24V or 12V |
Max operating temp | 800ºC |
Length tolerance | ±0.5 mm |
Diameter tolerance | -0.02mm |
Standard Cold Zone | 5-10mm |
Thermocouple Location | type J or K are available |
Lead wire length | 300mm |
Lead wire material | Nickel Glass fiber wire |
Filler material | Mgo and Mgo rod |
Resistance heating wire | NiCr8020 |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Application
Cartidge heater heating rods are suitable for working in heating media that cannot be wired at both ends, such as high and low temperature plug-in heating of various sizes of molds and mechanical equipment, including die and other molds, medical equipment, plastic sealing machines, bottle caps Machine, continuous automatic sealing machine, cigarette making machine, etc.
1. Mold heating has been accepted by a wide range of customers in modern industrial applications.
2. In the plastic mechanical heating system.
3. Pharmaceutical production line.
4. Laboratory heat treatment test.
5. Chemical industry and so on.
Micro Cartridge Heater Products show
Product Structure show
Pencil heater process and test working show
Packing and shipment case show
Why choose US? 1.BUREAU VERITAS AUDITED SUPPLIER
2.Strict confidentiality for customers
3.Have a strong product development capabilities!
4.We have Longterm cooperation forwarders to ensure the quick and safe shipment,
avoid goods delay and extra cost.
5.Solve problems for customers in time
6.Good Payment terms and Reasonable price
7. Excellent after-sales service and feedback
8. Potential problems in product handling 9.we can provide installation video and instructions.
FAQ
1.
Q: What is your main product line made?
A:We mainly produce heating element,cartridge heater,hot runner heater ,industrial heater and so on.
Focus on heating element.( etc.)
2.
Q:How can you ensure the HEATING ELEMENTS product quality?
A: Before shippment, all the HEATING ELEMENT have aging test. And then we also have Withstand voltage test and Insulation resistance test, ensure products can transportation safety and normal use.
3.
Q:How to handle the complains?
A: 1)During processing, if found any sizes defective, we will inform the clients and get clients approval.
2)If happen any complaints after got the goods, pls show us photos and detail complaints points, we will check with the production department and QC depart. Immediately and give solving solution with 6 hours.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Internal Lead Wire Cartridge Heater. Our company has professional equipment and engineers to provide the production and service of Internal Lead Wire Cartridge Heater.
