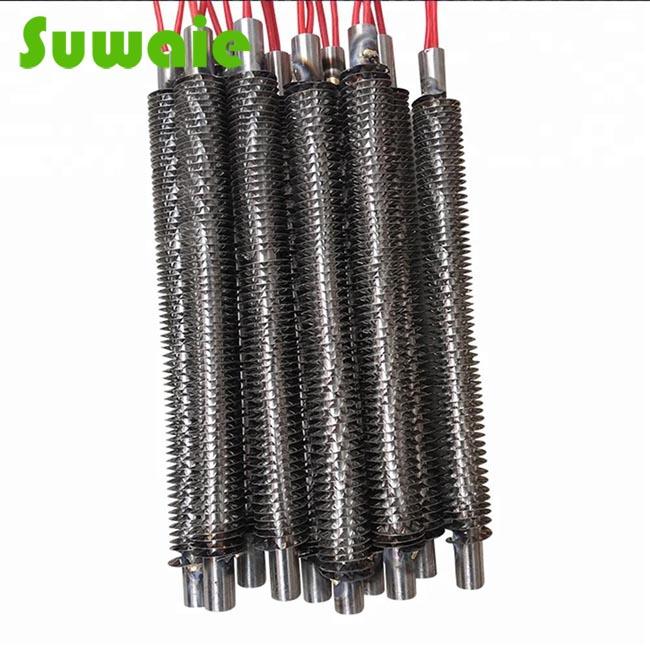

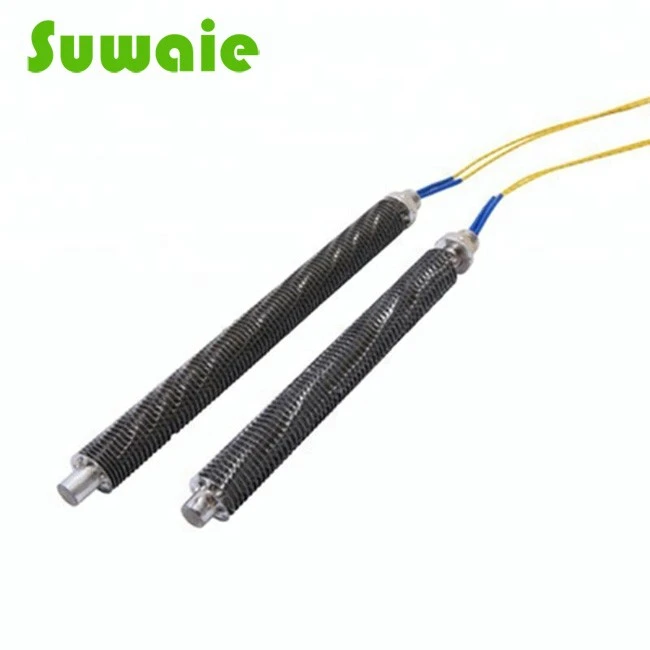

Cartridge heaters can be fitted with helical fins, enabling them to be used in air heating applications.
As well as cartridge heaters with internal thermocouples, a wide array of special features are available, including: IP terminal boxes, zoned heaters, distributed wattage, formed heaters, finned heaters, and many others. Please contact us for information on all the options available.

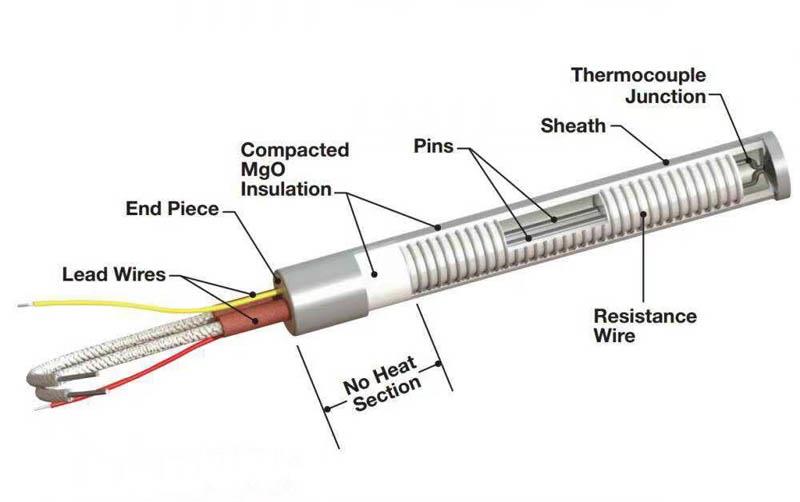

Finned Pencil Cartridge Heater Structure diagrams:
Resistance
Resistance changes with temperature. There are three circumstances under which resistance can be measured:
1. Room temperature (before use): nominal ohms are
90% of Ohm's law calculation.
2. Room temperature (after use): nominal ohms are
95% of Ohm's law calculation.
3. At temperature (during use): depending on application
nominal ohms are approximately 100% of Ohm's law.
Note: Resistance and wattage values are approximate depending on application conditions
Typical Applications
• Semiconductor chamber heating
• Semiconductor wire and die bonding
• Freeze protection and deicing of equipment in cold climates or applications
• Humidity control
• Patient comfort heating used in medical devices
• Mold die and platen heating
• Seal bars used in packaging equipment
• Test sample heating in gas chromatography equipment
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Max Sheath Temp | 1400 °F (760 °C) |
Resistance heating wire | NiCr 80/20 wire/High grade nickel chromium resistance wire |
Packaging | Plastic bag , Carton box, wooden box |

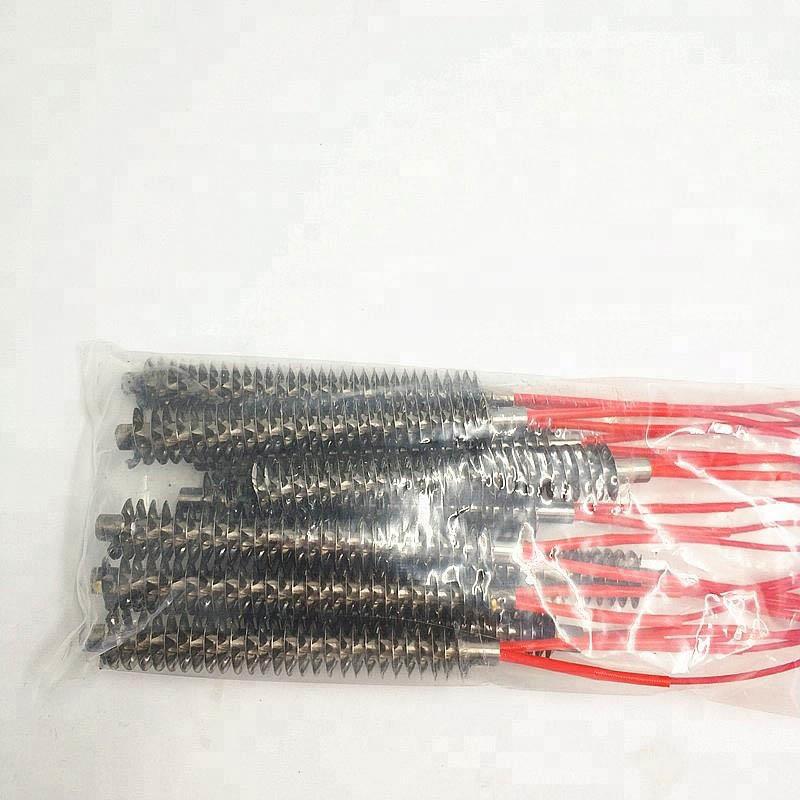

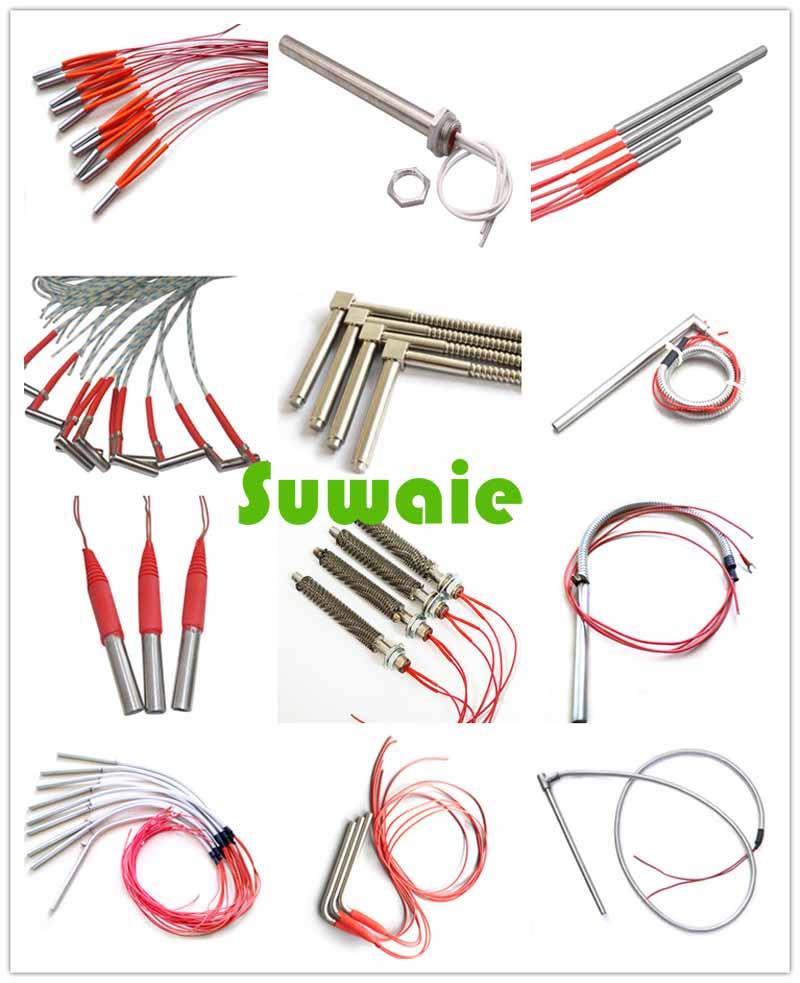

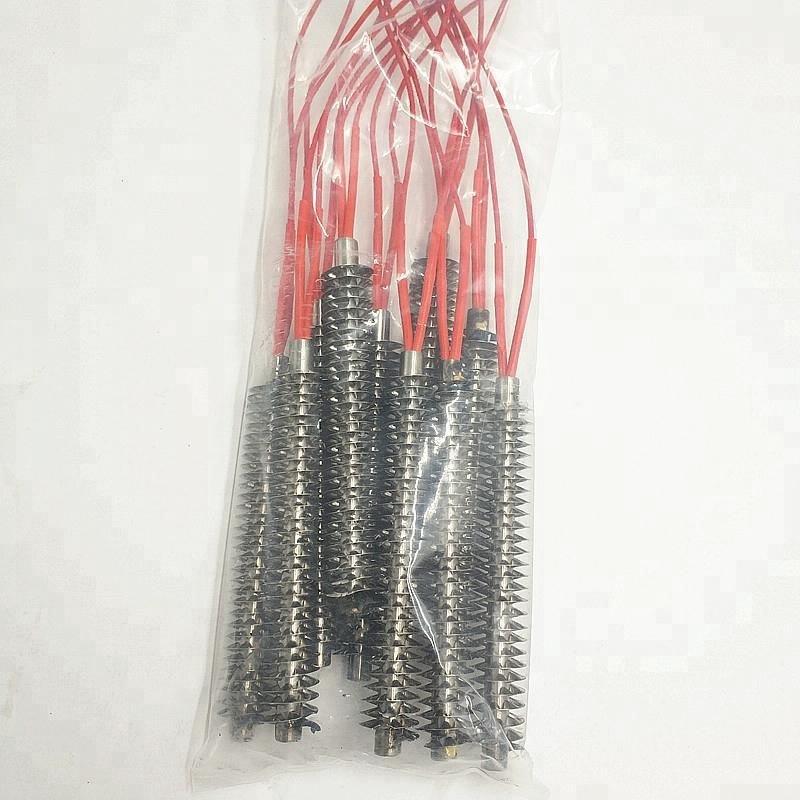

Products show

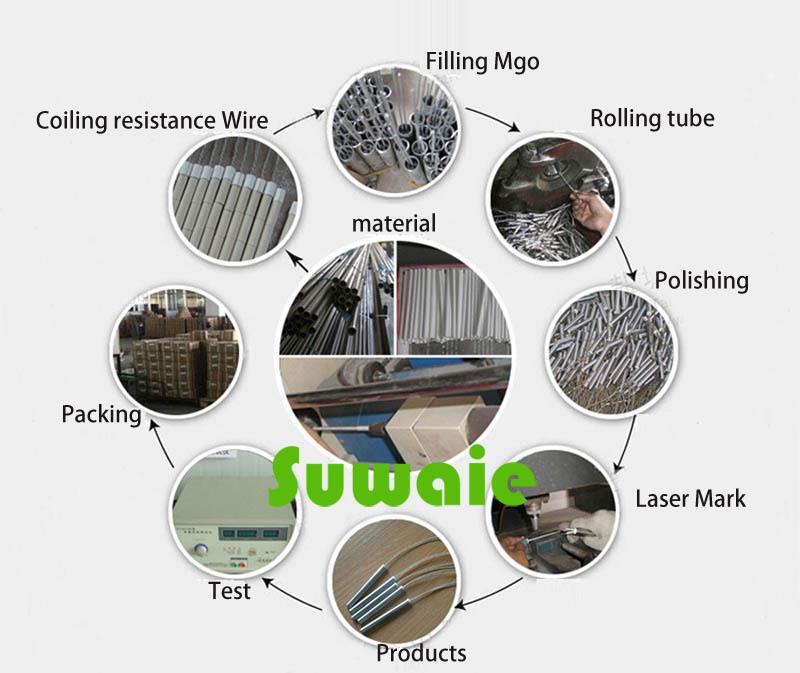

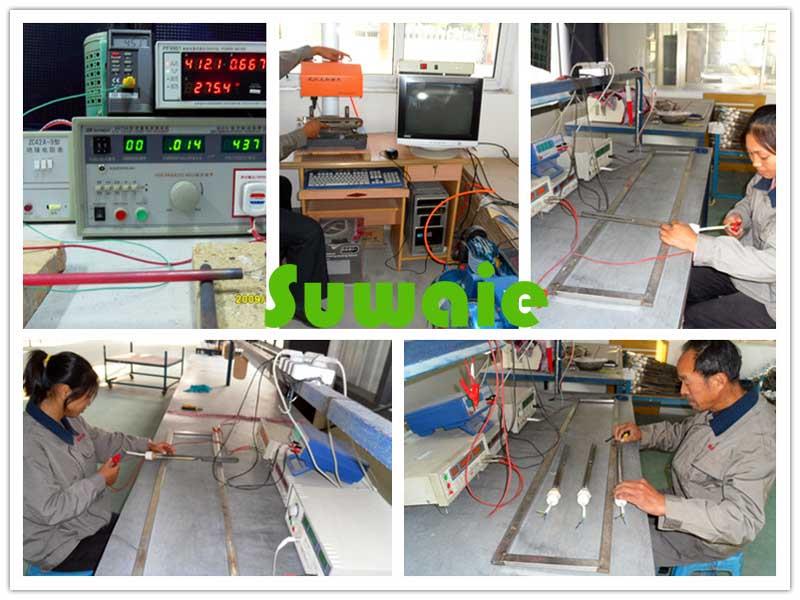

Process and test show
Packing and shipment
Advantage:
1. Professional installation instructions
Our company also can arrange our engineers to provide you professional installation guide.
2. Promising the goods quality
All of products will be tested many times and 100% promise the products are well before shipping.
3. Customized products
The products can be customized according to your projects and offer you the drawing for free.
4. After-sale service
We guarantee all of our heating element one years. During the time.
FAQ
1. Q: I Want to Keep Our Design in Secret, Can We Sign NDA?
A: Sure! We Will Not Design Any Customers' Design or Show to Other People, And We Can Sigh NDA.
2. Q: Who bears the bank transfer fee?
A: The total amount of the order is relatively small, the clients bears bank transfer fee, and the amount of the order is large, we bear bank transfer fee.
3. Q: How does your factory do regarding quality control?
A: Quality is the priority.We always attach great importance to quality controlling fromthe start to the end. Our factory has gained CE, RoHS certification.
