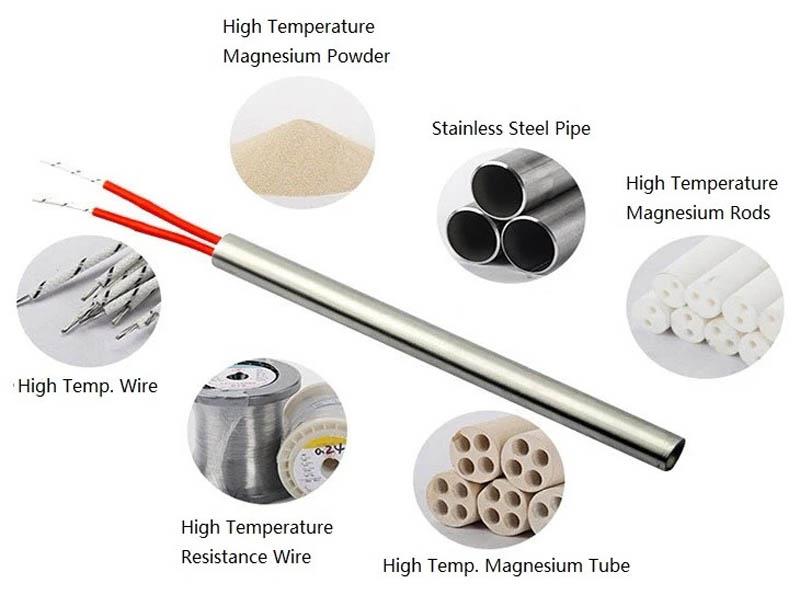

Construction
1. High Temperature Lead Wires for temperatures up to 550° C.
2. High Impact Ceramic Cap retards contamination and is suitable for high vibration applications. Deep holes in cap prevent fraying of leads when bent.
3. Nickel-Chromium Resistance Wire for maximum heater life, evenly wound for even heat distribution.
4. High Purity Magnesium Oxide fill selected for maximum dielectric strength and thermal conductivity, highly compacted for maximum heat transfer.
5. 304 Stainless Steel Sheath for oxidation resistance in a wide variety of environments. 316 Stainless Steel and Incoloy® are also available. Please consult the Sheath Suitability Chart to determine which material is best for your application.
6. TIG Welded End Disc to prevent contamination and moisture absorption.

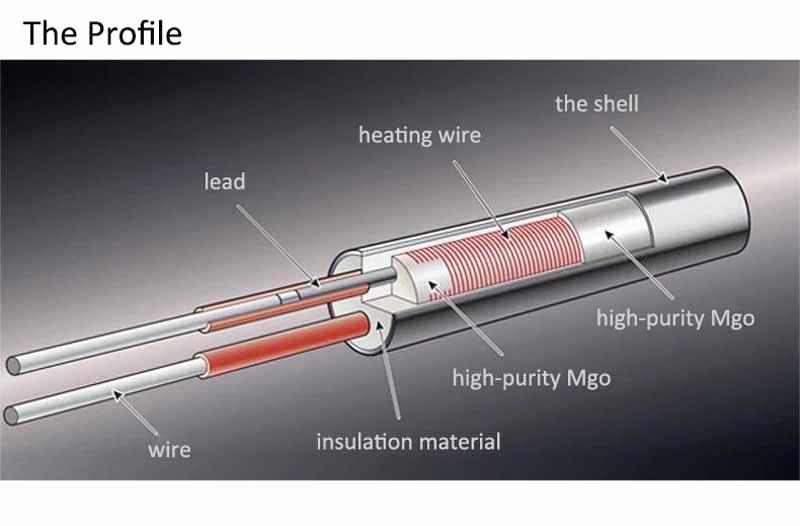

Industrial Waterproof Cartridge Rod Heater Structure diagram:
Resistance heating wire | Cr20Ni80 heating wire |
Voltages available | 220V, 230V |
Rated power | 300W |
Sheath | stainless steel 304, 310S, 316, Incoloy 800 |
Heating temperature | 920-1020°C |
Delivery time | 7-10 working days |
Thermocouple Location | type J, type K |
Resistance heating wire | Plastic processing machinery, moulds and dies, hot stamping, shoe machinery, food processing machinery, packing epuipment etc. |

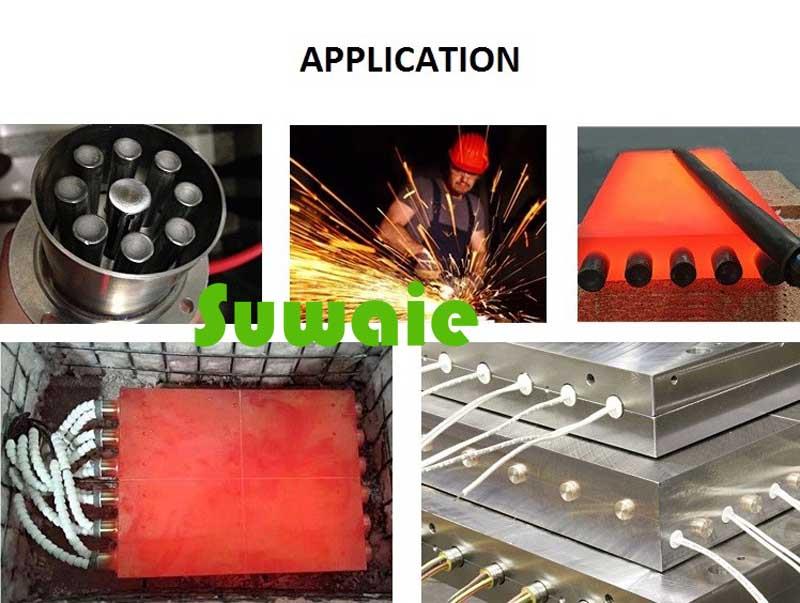

Applications:
Plastic Processing machinery.
Water and Oil Heating Appliances.
Packaging machineries
Vending Machines.
Dies and Tools.
Heating Chemical Solutions.
Ovens & Dryers
Kitchen equipments
Medical equipments

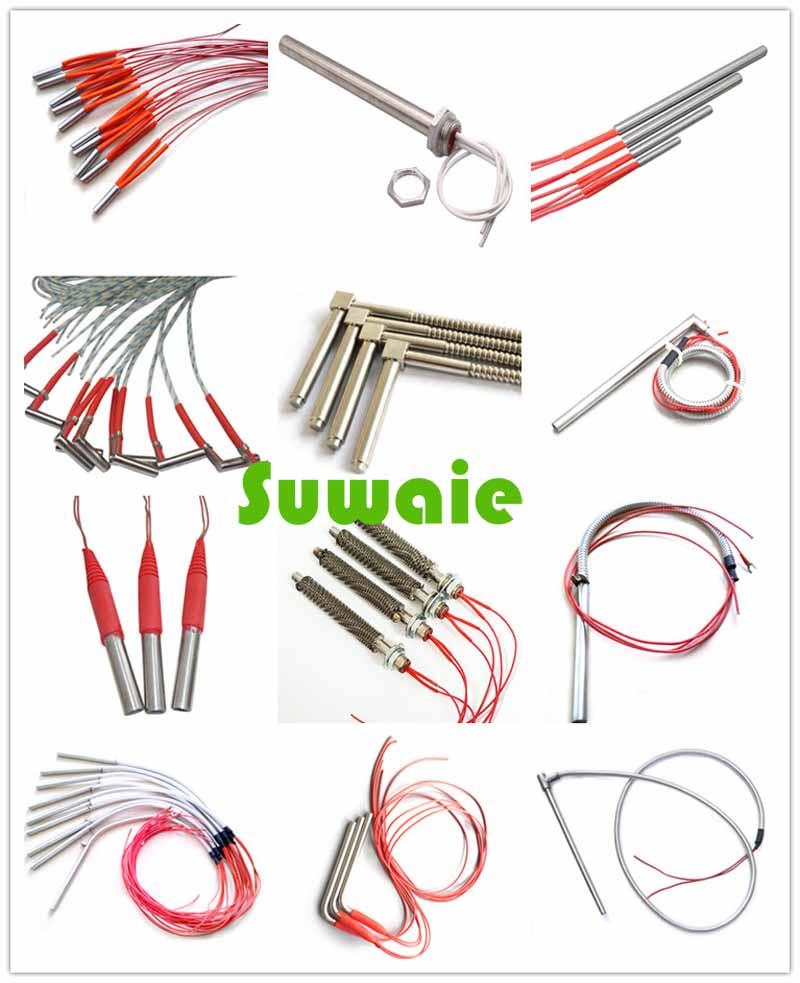

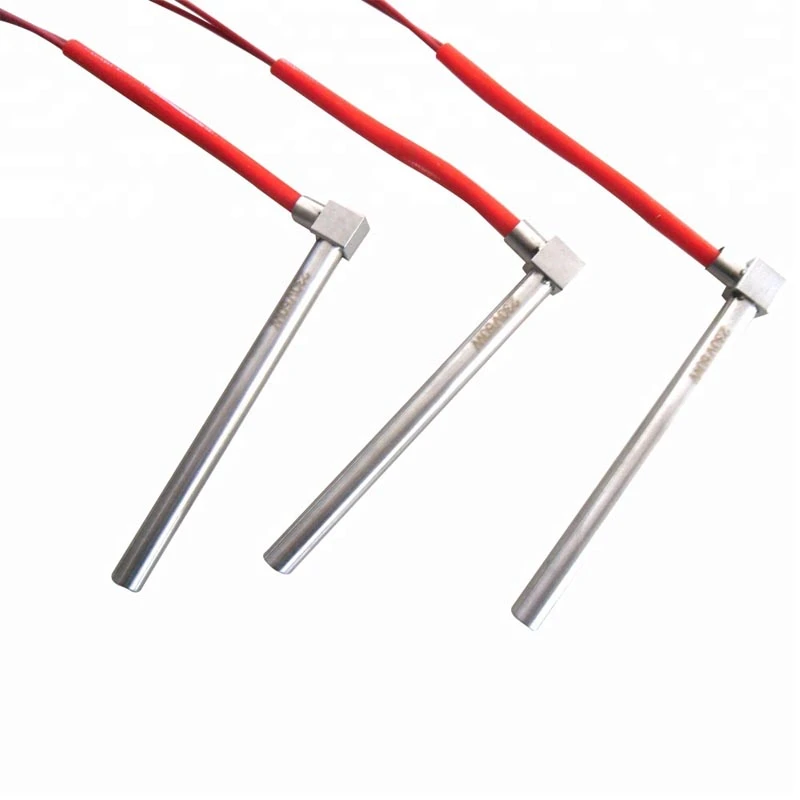

Product show

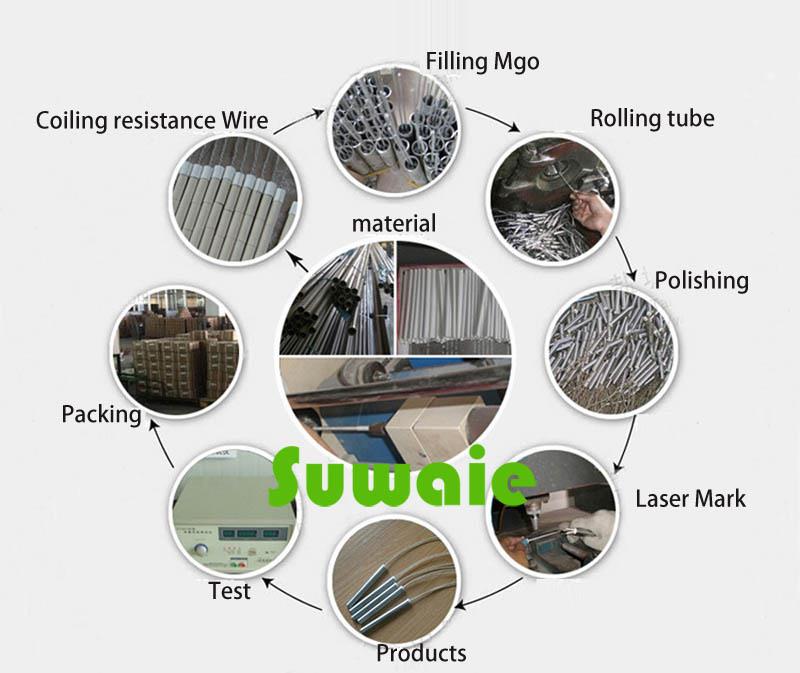

Process
Packing and ship
After-sales service
1. We offer 12 months warranty.
2. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
3. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
4. Service Center all over the world for after sales problems.
5. Various operation instructions such as: products inspect and control ,Receiving inspection control, sampling inspection operation instruction, process quality inspection operation instruction etc
6. Pre-sale service and free consultation service.
7. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
FAQ
1. Q: How to proceed the order if I have logo to print?
A: First, Artwork for visual confirmation, and next is Sample picture or sending sample to you for confirmation, finally we will go to mass production.
2. Q: What Inspection Equipments do we have?
A: Current tester, withstand voltage tester, X-ray machine, insulation current tester, insulation voltage tester, pressure tester, salt spray tester, micrometer, etc.
3. Q: Can You Give Me Help If My Products are Very Urgent?
A: Yes, Of Course, We Will Try Our Best to Give You Help. Because We Have Our Own Factory to Produce. We Can Flexible to Adjust Our Production Schedule.
